Nissan Tiida C11. Manual - part 234

DLK-346

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

SUPER LOCK ACTUATOR

2.

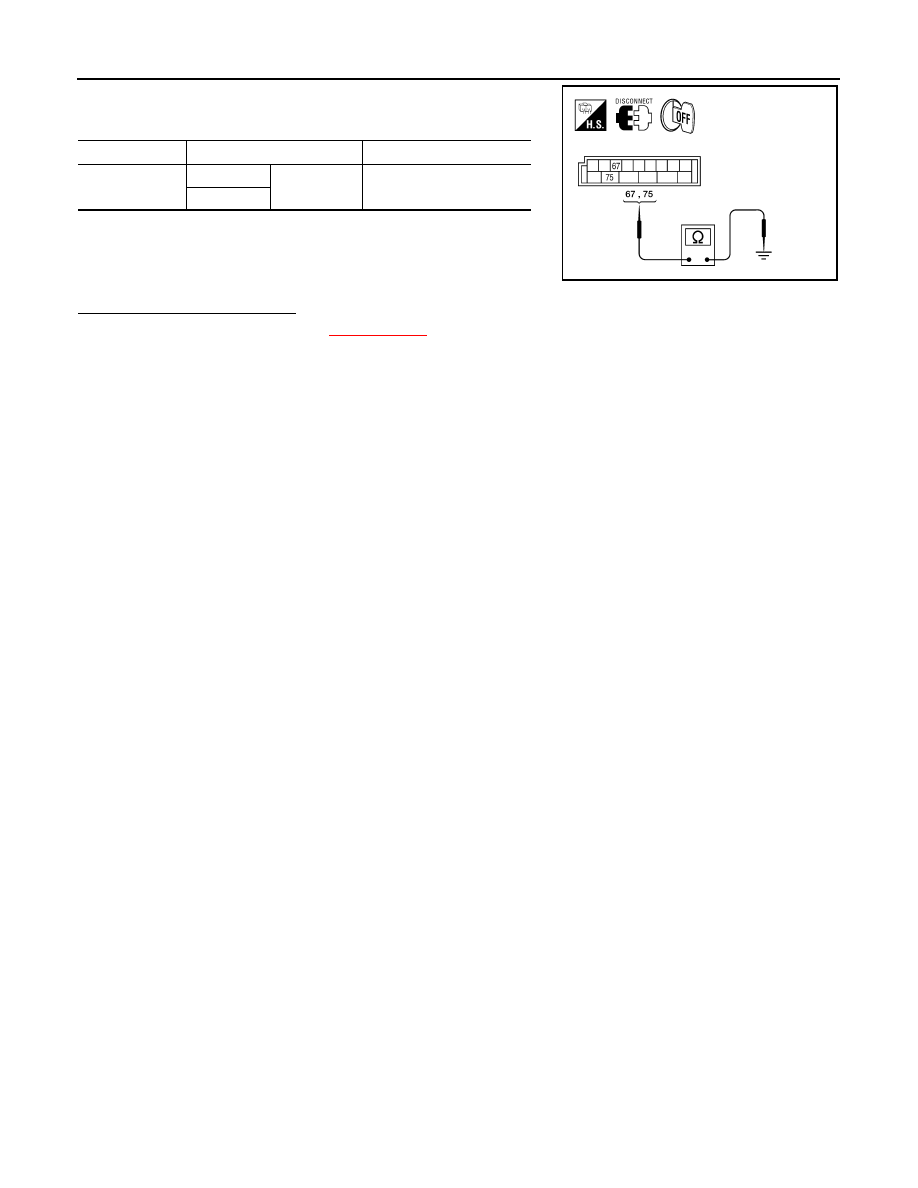

Check continuity between BCM connector (A) M20 terminals 67,
75 and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

BCM connector

Terminals

Continuity

M20

67

Ground

No

75

ALKIA0827ZZ

TRUNK LID OPENER ACTUATOR

DLK-347

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

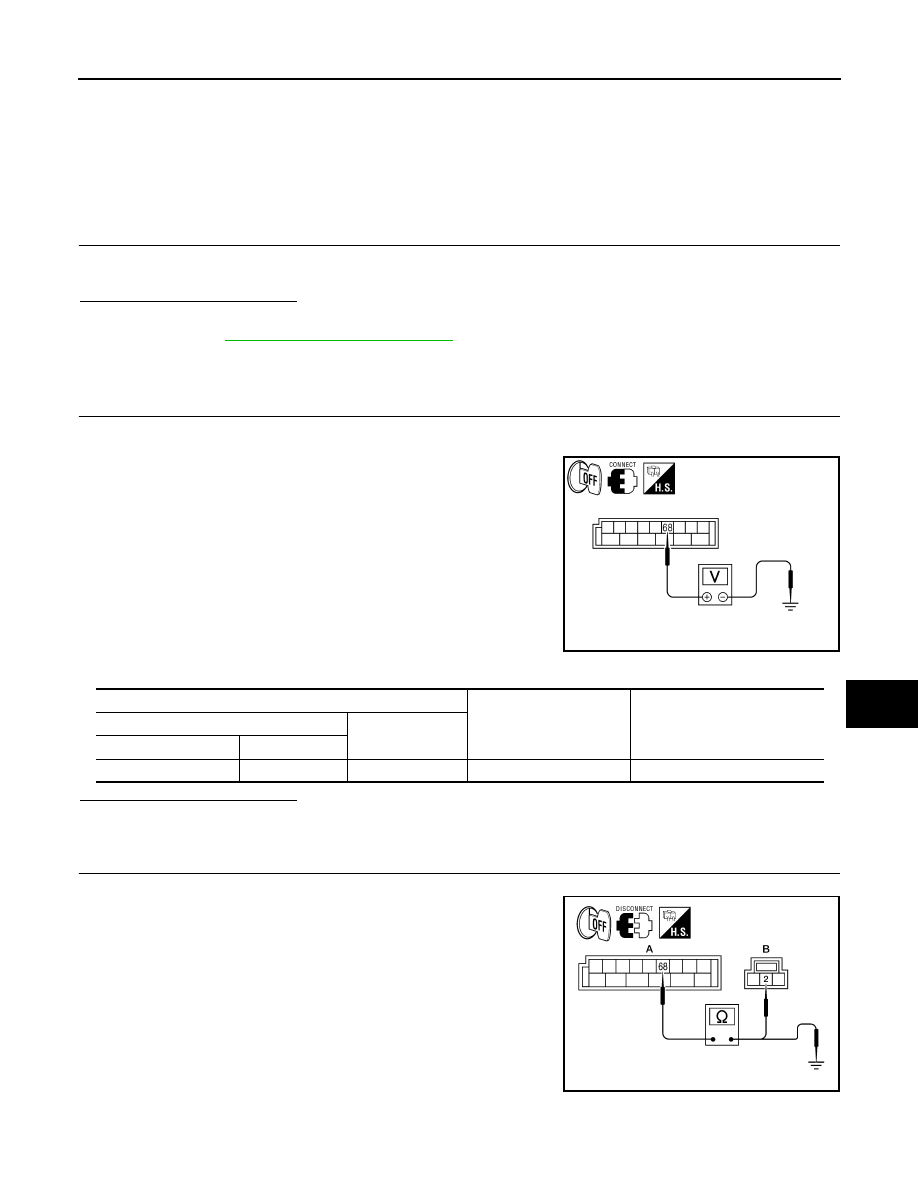

TRUNK LID OPENER ACTUATOR

Description

INFOID:0000000001530345

Performs trunk lid open with signal from BCM.

Component Function Check

INFOID:0000000001530346

1.

CHECK FUNCTION

1.

Perform Active Test TRUNK/GLASS HATCH with CONSULT-III.

2.

Touch “OPEN” and check that trunk lid opens.

Is the inspection result normal?

YES

>> Trunk lid opener actuator is OK.

NO

>> Refer to

DLK-347, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001530347

1.

CHECK OUTPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Ensure door lock system is unlocked.

3.

Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> GO TO 2

2.

CHECK TRUNK LID OPENER ACTUATOR CIRCUIT

1.

Disconnect BCM and trunk lamp switch and trunk release solenoid connectors.

2.

Check continuity between BCM connector (A) M20 terminal 68
and trunk lamp switch and trunk release solenoid connector (B)
B66 terminal 2.

ALKIA0765ZZ

Terminals

Condition of trunk lid open-

er switch

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M20

68

Ground

ON

0

→

 Battery voltage

→

 0

ALKIA0766ZZ

DLK-348

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

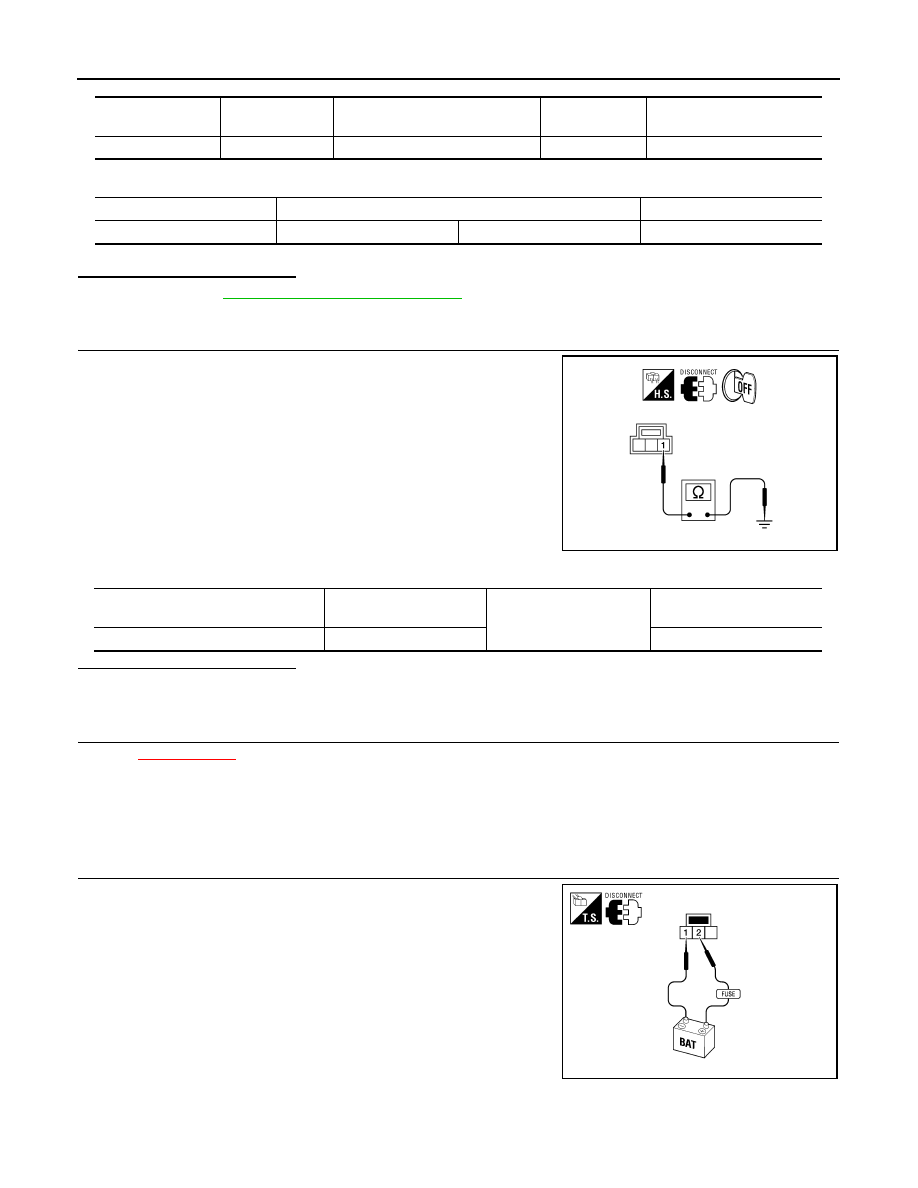

TRUNK LID OPENER ACTUATOR

3.

Check continuity between BCM connector (A) M20 terminal 68 and ground.

Is the inspection result normal?

YES

>> Refer to

DLK-348, "Component Inspection"

.

NO

>> Repair or replace harness.

3.

CHECK TRUNK LID OPENER ACTUATOR GROUND CIRCUIT

Check continuity between trunk lamp switch and trunk release sole-
noid connector and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace trunk lamp switch and trunk release solenoid ground circuit.

4.

CHECK INTERMITTENT INCIDENT

Refer to

XX-XX, "*****"

.

>> INSPECTION END.

Component Inspection

INFOID:0000000001530348

1.

CHECK TRUNK LAMP SWITCH

Momentarilly, connect battery power supply to trunk lamp switch and
trunk release solenoid terminals and check for solenoid operation.

BCM connector

Terminal

trunk lamp switch and trunk re-

lease solenoid connector

Terminal

Continuity

M20

68

B66

2

Yes

BCM connector

Terminal

Continuity

M20

68

Ground

No

ALKIA0763ZZ

Trunk lamp switch and trunk release

solenoid connector

Terminal

Ground

Continuity

B66

1

Yes

ALKIA0767ZZ

TRUNK LID OPENER ACTUATOR

DLK-349

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace trunk lamp switch and trunk release solenoid.

Terminal

Trunk condition

Trunk lamp switch and trunk release solenoid

1 BAT (-)

2 BAT (+)

Solenoid operates
