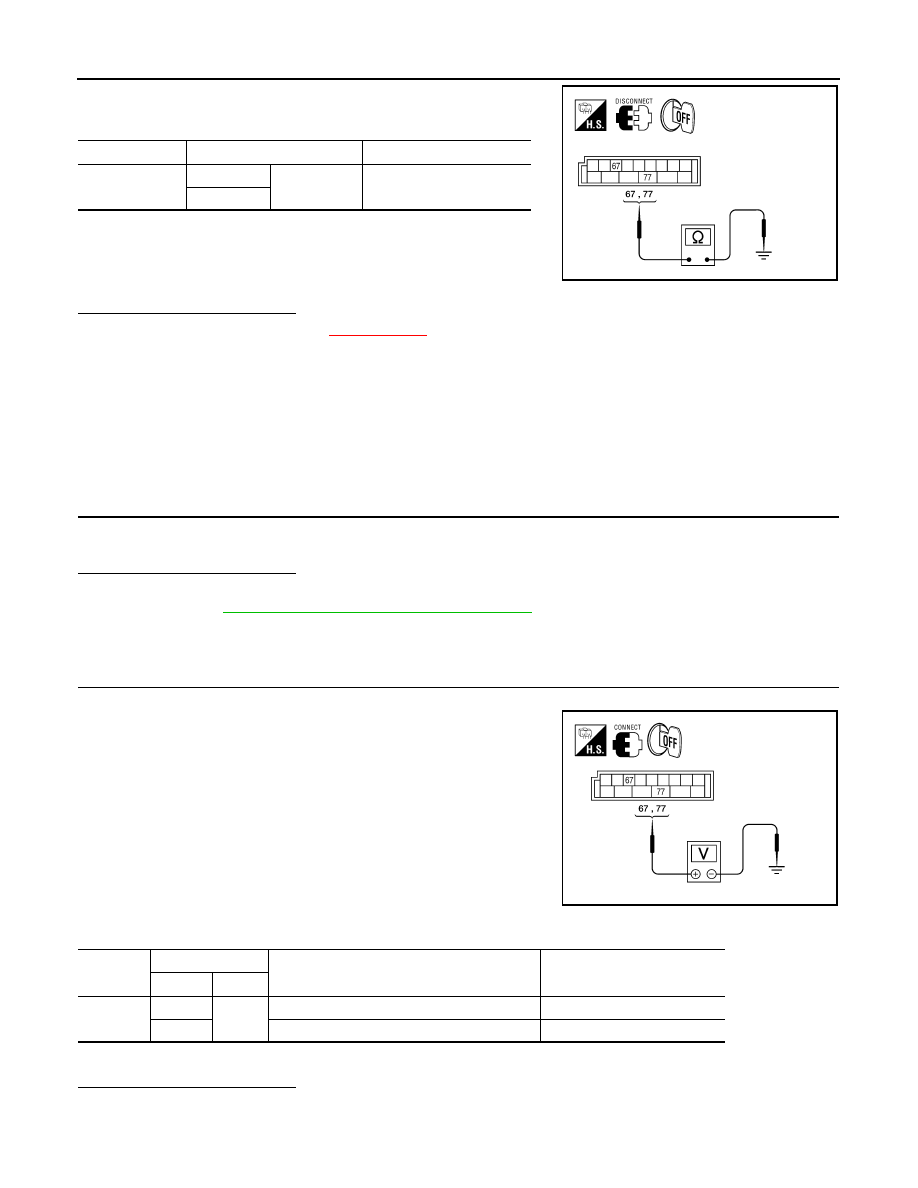

Nissan Tiida C11. Manual - part 231

DLK-334

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

DOOR LOCK ACTUATOR

2.

Check continuity between BCM connector M19 terminals 67, 77
and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

REAR LH

REAR LH : Description

INFOID:0000000001530326

Locks/unlocks the door with the signal from BCM.

REAR LH : Component Function Check

INFOID:0000000001530327

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test "DOOR LOCK".

2.

Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-334, "REAR LH : Diagnosis Procedure"

.

REAR LH : Diagnosis Procedure

INFOID:0000000001530328

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1.

Turn ignition switch OFF.

2.

Check voltage between BCM connector M20 terminals 67, 77
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

BCM connector

Terminals

Continuity

M20

67

Ground

No

77

ALKIA0777ZZ

ALKIA0775ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

77

Ground

Door lock/unlock switch is turned to LOCK

0

→

 Battery voltage

→

 0

67

Door lock/unlock switch is turned to UNLOCK

0

→

 Battery voltage

→

 0

DOOR LOCK ACTUATOR

DLK-335

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

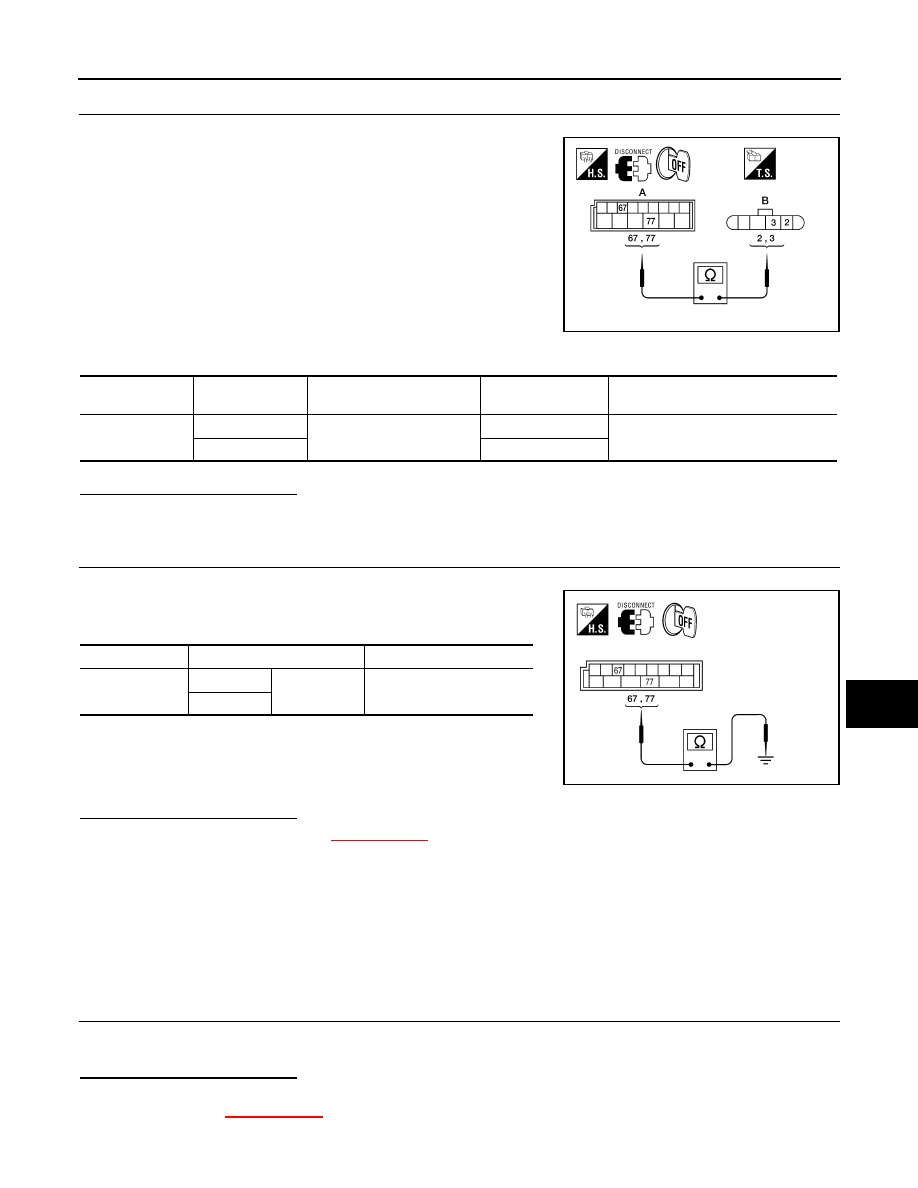

2.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and rear door lock actuator LH.

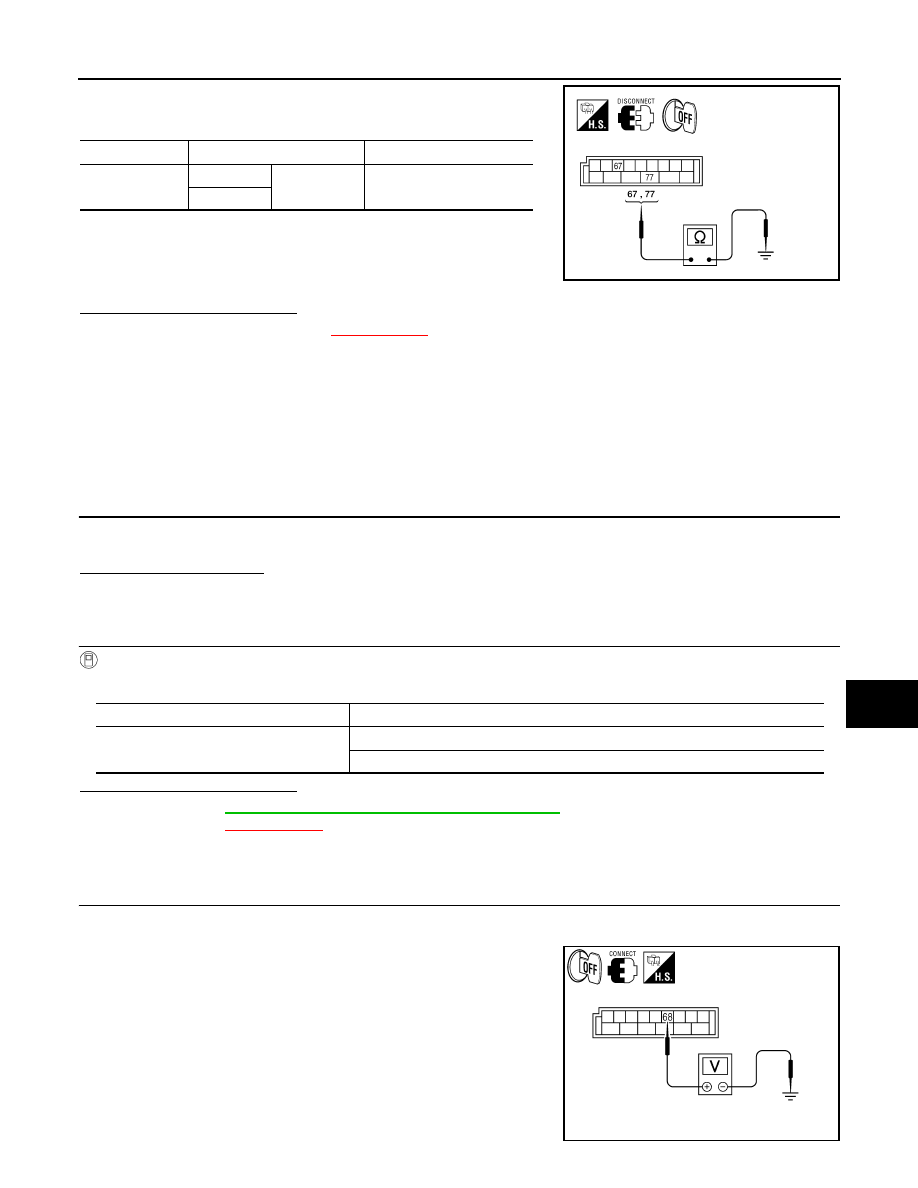

2.

Check continuity between BCM connector (A) M20 terminals 67,
77 and rear door lock actuator LH connector (B) D205 terminals
2, 3.

Is the inspection result normal?

YES

>> Replace rear door lock actuator LH.

NO

>> Repair or replace harness.

3.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and each door lock actuator.

2.

Check continuity between BCM connector M20 terminals 67, 77
and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

REAR RH

REAR RH : Description

INFOID:0000000001530329

Locks/unlocks the door with the signal from BCM.

REAR RH : Component Function Check

INFOID:0000000001530330

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test "DOOR LOCK".

2.

Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

XX-XX, "*****"

.

ALKIA0778ZZ

BCM connector

Terminal

Rear door lock actuator LH

connector

Terminal

Continuity

M20

67

D205

2

Yes

77

3

BCM connector

Terminals

Continuity

M20

67

Ground

No

77

ALKIA0777ZZ

DLK-336

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

DOOR LOCK ACTUATOR

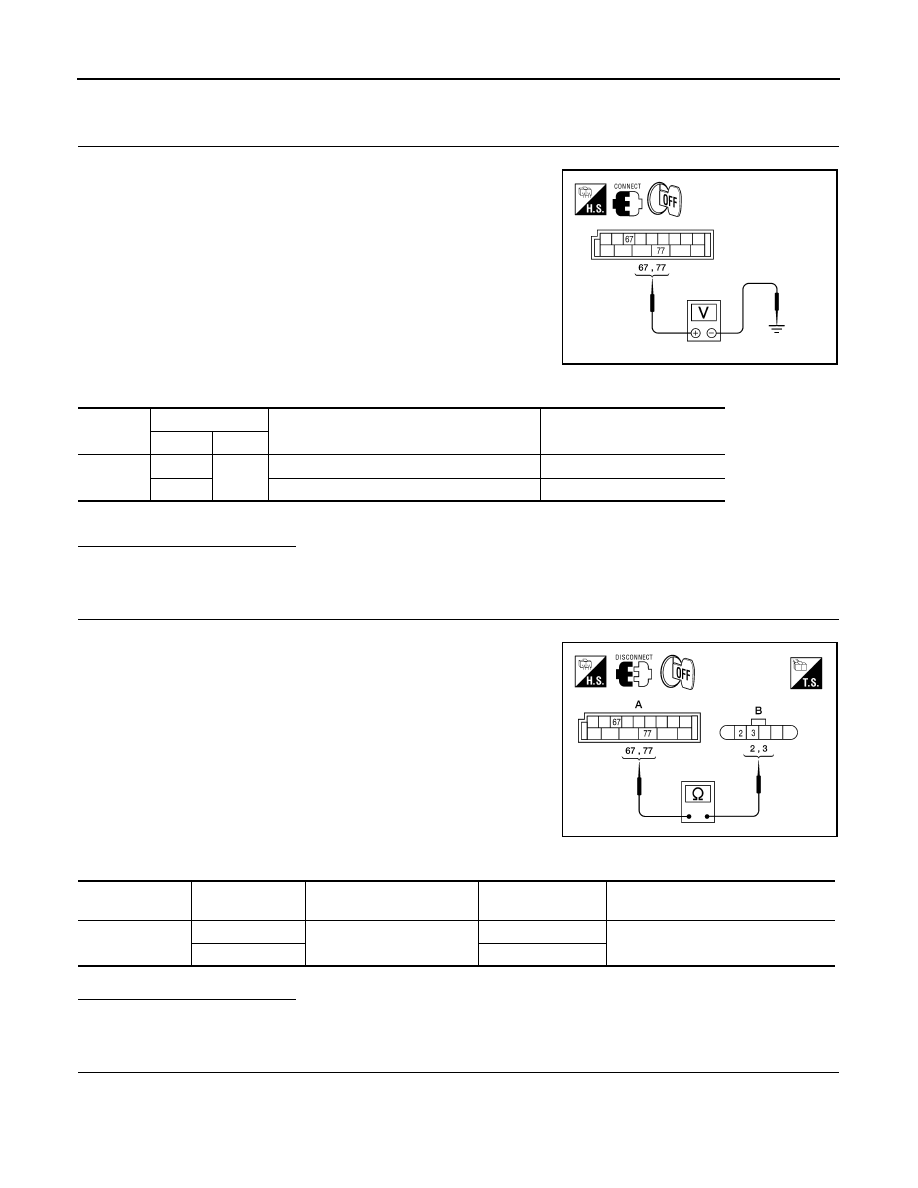

REAR RH : Diagnosis Procedure

INFOID:0000000001530331

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1.

Turn ignition switch OFF.

2.

Check voltage between BCM connector M20 terminals 67, 77
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and rear door lock actuator RH.

2.

Check continuity between BCM connector (A) M20 terminals 67,
77 and rear door lock actuator RH connector (B) D305 terminals
2, 3.

Is the inspection result normal?

YES

>> Replace rear door lock actuator RH.

NO

>> Repair or replace harness.

3.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and rear door lock actuator RH.

ALKIA0775ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

77

Ground

Door lock/unlock switch is turned to LOCK

0

→

 Battery voltage

→

 0

67

Door lock/unlock switch is turned to UNLOCK

0

→

 Battery voltage

→

 0

ALKIA0776ZZ

BCM connector

Terminal

Rear door lock actuator RH

connector

Terminal

Continuity

M20

67

D305

2

Yes

77

3

DOOR LOCK ACTUATOR

DLK-337

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Check continuity between BCM connector (A) M20 terminals 67,
77 and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

BACK DOOR

BACK DOOR : Description

INFOID:0000000001530332

Locks/unlocks the door with the signal from BCM.

BACK DOOR : Component Function Check

INFOID:0000000001530333

1.

CHECK FUNCTION

1.

Unlock all doors using main power window and door lock/unlock switch.

2.

Press the back door opener switch.

Does the back door open?

YES

>> Door lock actuator is OK.

NO

>> GO TO 2.

2.

CHECK FUNCTION

With CONSULT-III

Check back door opener request switch “BK DOOR OPNR SW” in “Data Monitor” mode.

Is the inspection result normal?

YES

>> Refer to

DLK-337, "BACK DOOR : Diagnosis Procedure"

.

NO

>> Refer to

XX-XX, "*****"

.

BACK DOOR : Diagnosis Procedure

INFOID:0000000001530334

1.

CHECK BACK DOOR LOCK ACTUATOR SIGNAL

1.

Ensure the door lock system is in the unlock position.

2.

Turn ignition switch OFF.

3.

Press the back door opener switch while checking voltage
between BCM connector M20 terminals 68 and ground.

BCM connector

Terminals

Continuity

M20

67

Ground

No

77

ALKIA0777ZZ

Monitor item

Condition

BD/TR OPNR SW

Back door opener request switch is pressed

:ON

Back door opener request switch is released

:OFF

ALKIA0765ZZ
