Nissan Tiida C11. Manual - part 229

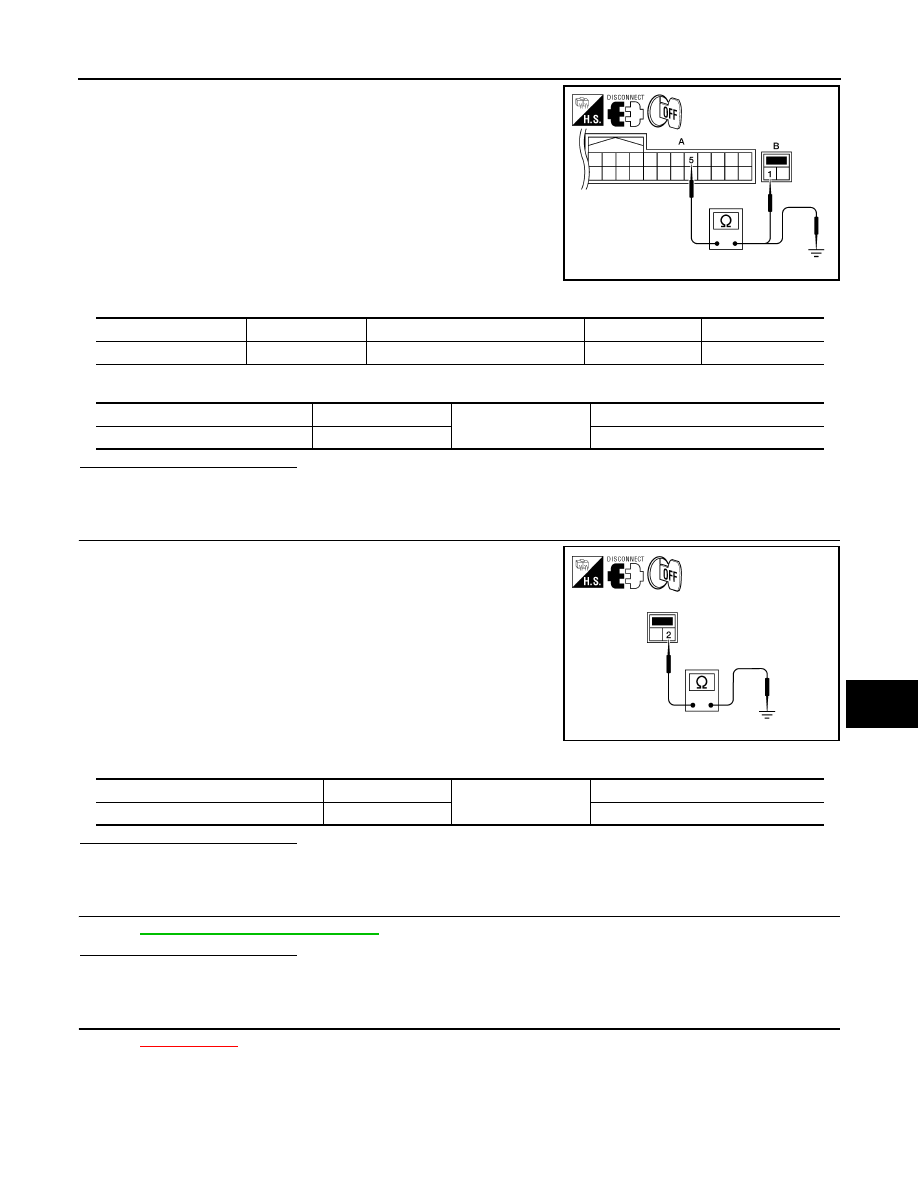

DLK-326

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

BACK DOOR OPENER SWITCH

2.

Check continuity between BCM connector (A) M18 terminal 5
and back door opener switch connector (B) D408 terminal 1.

3.

Check continuity between BCM connector (A) M18 terminal 5 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK BACK DOOR OPENER SWITCH GROUND CIRCUIT

Check continuity between back door opener switch connector and
ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK BACK DOOR OPENER SWITCH

Refer to

DLK-327, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace back door opener switch.

5.

CHECK INTERMITTENT INCIDENT

Refer to

XX-XX, "*****"

.

>> INSPECTION END.

ALKIA0761ZZ

BCM connector

Terminal

back door opener switch connector

Terminal

Continuity

M18

5

D408

1

Yes

BCM connector

Terminal

Ground

Continuity

M18

5

No

WIIA1187E

back door opener switch

Terminal

Ground

Continuity

D408

2

Yes

BACK DOOR OPENER SWITCH

DLK-327

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

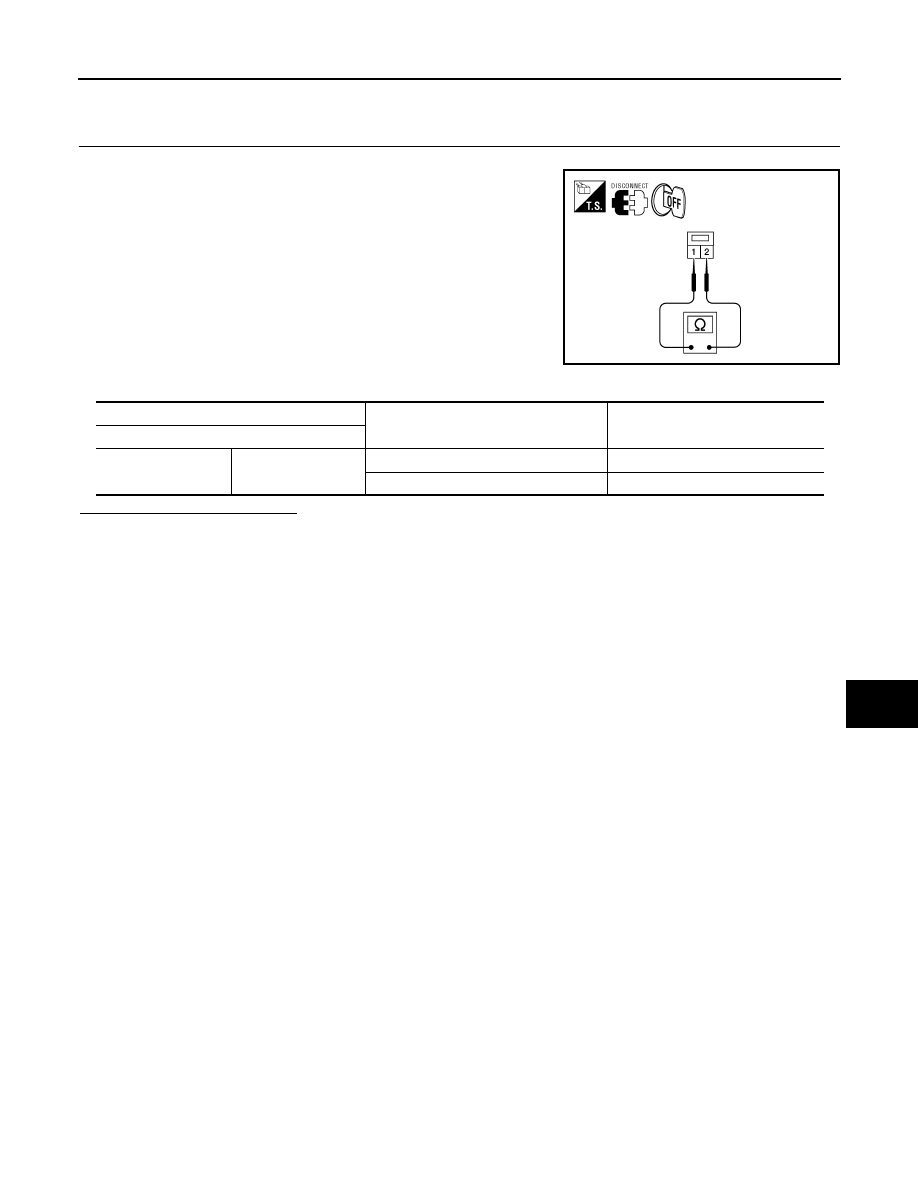

Component Inspection

INFOID:0000000001530340

1.

CHECK BACK DOOR OPENER SWITCH

1.

Turn ignition switch OFF.

2.

Check continuity between back door opener switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace back door opener switch.

WIIA1186E

Terminal

Condition

Continuity

Back door opener switch

1

2

ON (press and hold)

Yes

OFF (release)

No

DLK-328

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

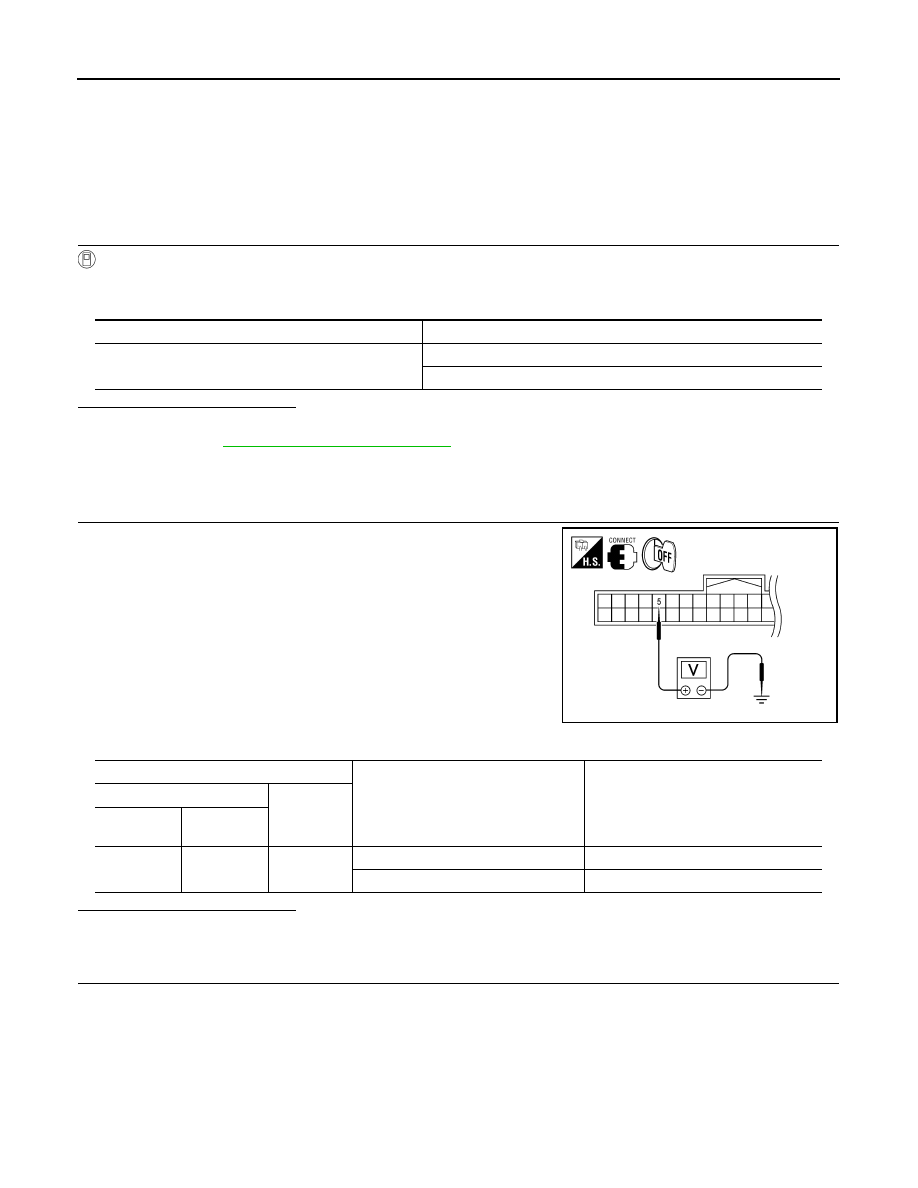

TRUNK LID OPENER SWITCH

TRUNK LID OPENER SWITCH

Description

INFOID:0000000001530341

Transmits trunk lid open signal to BCM.

Component Function Check

INFOID:0000000001530342

1.

CHECK FUNCTION

 With CONSULT-III

Check trunk lid opener switch TR/BD OPEN SW in “Data Monitor mode with CONSULT-III.
• When trunk lid opener switch is pressed.

Is the inspection result normal?

YES

>> Trunk lid opener switch is OK.

NO

>> Refer to

DLK-328, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001530343

1.

CHECK TRUNK LID OPEN INPUT SIGNAL

Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> GO TO 2

2.

CHECK TRUNK LID OPENER SWITCH CIRCUIT

1.

Disconnect BCM and trunk lid opener switch connectors.

Monitor item

Condition

TR/BD OPEN SW

Trunk lid opener switch is pressed: ON

Trunk lid opener switch is released: OFF

ALKIA0741ZZ

Terminals

Condition of trunk lid opener switch

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M18

5

Ground

ON (press and hold)

0

OFF (release)

Battery voltage

TRUNK LID OPENER SWITCH

DLK-329

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

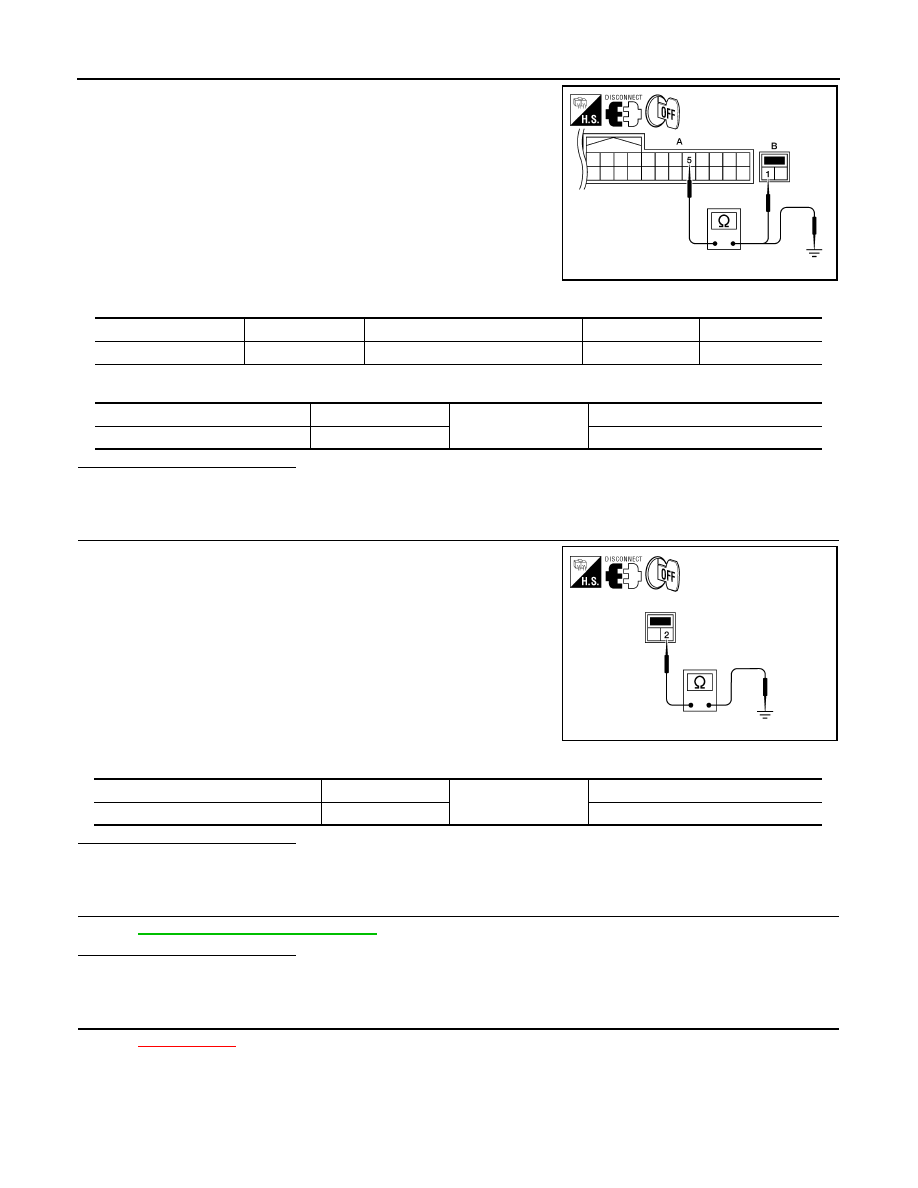

2.

Check continuity between BCM connector (A) M18 terminal 5
and trunk lid opener switch connector (B) B61 terminal 1.

3.

Check continuity between BCM connector (A) M18 terminal 5 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK TRUNK LID OPENER SWITCH GROUND CIRCUIT

Check continuity between trunk lid opener switch connector and
ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK TRUNK LID OPENER SWITCH

Refer to

DLK-330, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace trunk lid opener switch.

5.

CHECK INTERMITTENT INCIDENT

Refer to

XX-XX, "*****"

.

>> INSPECTION END.

ALKIA0761ZZ

BCM connector

Terminal

Trunk lid opener switch connector

Terminal

Continuity

M18

5

B61

1

Yes

BCM connector

Terminal

Ground

Continuity

M18

5

No

WIIA1187E

Trunk lid opener switch

Terminal

Ground

Continuity

B61

2

Yes
