DLK-330

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

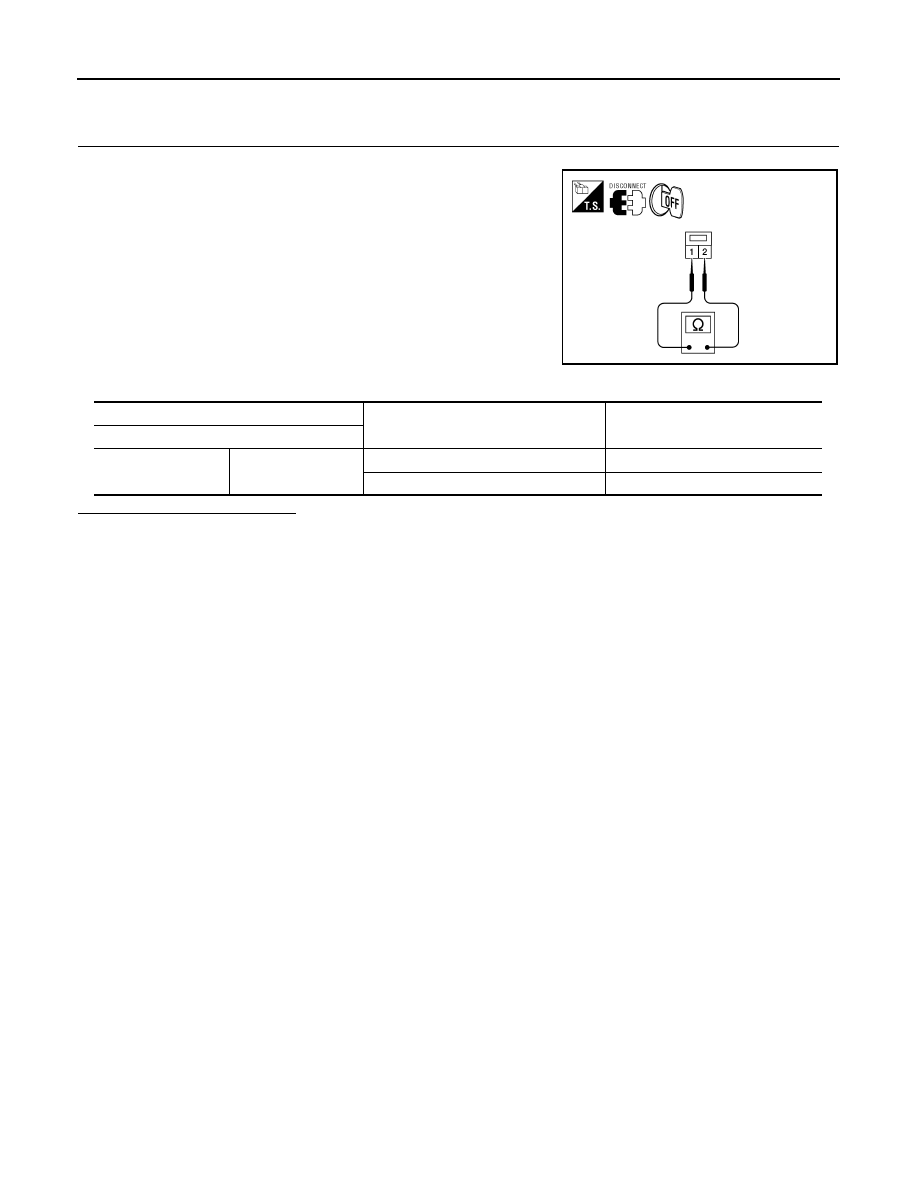

TRUNK LID OPENER SWITCH

Component Inspection

INFOID:0000000001530344

1.

CHECK TRUNK LID OPENER SWITCH

1.

Turn ignition switch OFF.

2.

Check continuity between trunk lid opener switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace trunk lid opener switch.

WIIA1186E

Terminal

Condition

Continuity

Trunk lid opener switch

1

2

ON (press and hold)

Yes

OFF (release)

No

DOOR LOCK ACTUATOR

DLK-331

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

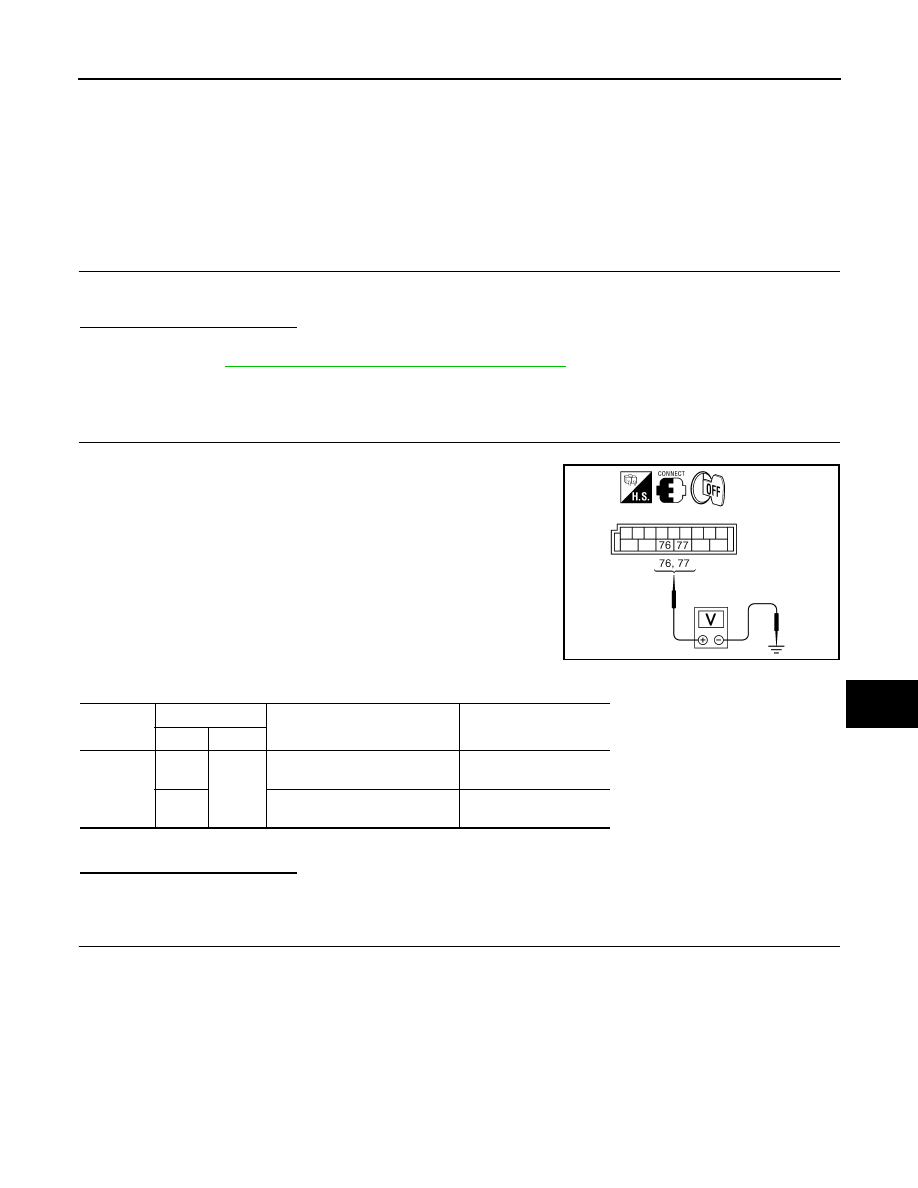

DOOR LOCK ACTUATOR

DRIVER SIDE

DRIVER SIDE : Description

INFOID:0000000001530320

Locks/unlocks the door with the signal from BCM.

DRIVER SIDE : Component Function Check

INFOID:0000000001530321

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test "DOOR LOCK".

2.

Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-331, "DRIVER SIDE : Diagnosis Procedure"

.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000001530322

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1.

Turn ignition switch OFF.

2.

Check voltage between BCM connector M20 terminals 76, 77
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (driver side).

ALKIA0772ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

76

Ground

Driver door lock/unlock switch is
turned to UNLOCK

0

→

 Battery voltage

→

 0

77

Driver door lock/unlock switch is
turned to LOCK

0

→

 Battery voltage

→

 0

DLK-332

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

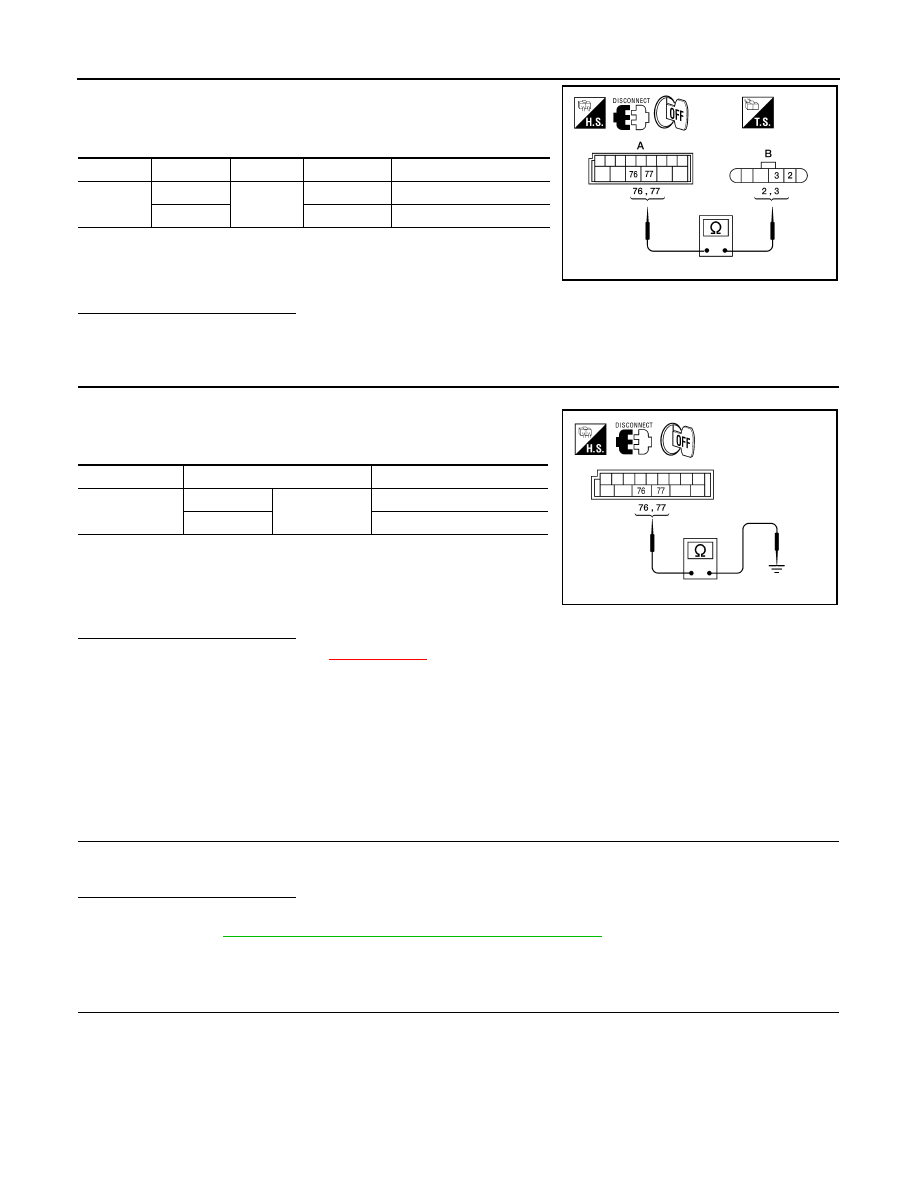

DOOR LOCK ACTUATOR

2.

Check continuity between BCM connector (A) M20 terminals 76,
77 and front door lock actuator (driver side) connector (B) D14
terminals 2, 3.

Is the inspection result normal?

YES

>> Replace front door lock actuator (driver side).

NO

>> Repair or replace harness.

3.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (driver side).

2.

Check continuity between BCM connector M20 terminals 76, 77
and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

PASSENGER SIDE

PASSENGER SIDE : Description

INFOID:0000000001530323

Locks/unlocks the door with the signal from BCM.

PASSENGER SIDE : Component Function Check

INFOID:0000000001530324

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test DOOR LOCK.

2.

Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Door lock actuator is OK.

NO

>> Refer to

DLK-332, "PASSENGER SIDE : Diagnosis Procedure"

.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000001530325

1.

CHECK FRONT DOOR LOCK ACTUATOR (PASSENGER SIDE) SIGNAL

1.

Turn ignition switch OFF.

Connector

Terminals

Connector

Terminals

Continuity

M20

76

D14

2

Yes

77

3

Yes

ALKIA0773ZZ

Connector

Terminals

Continuity

M20

76

Ground

No

77

No

ALKIA0774ZZ

DOOR LOCK ACTUATOR

DLK-333

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

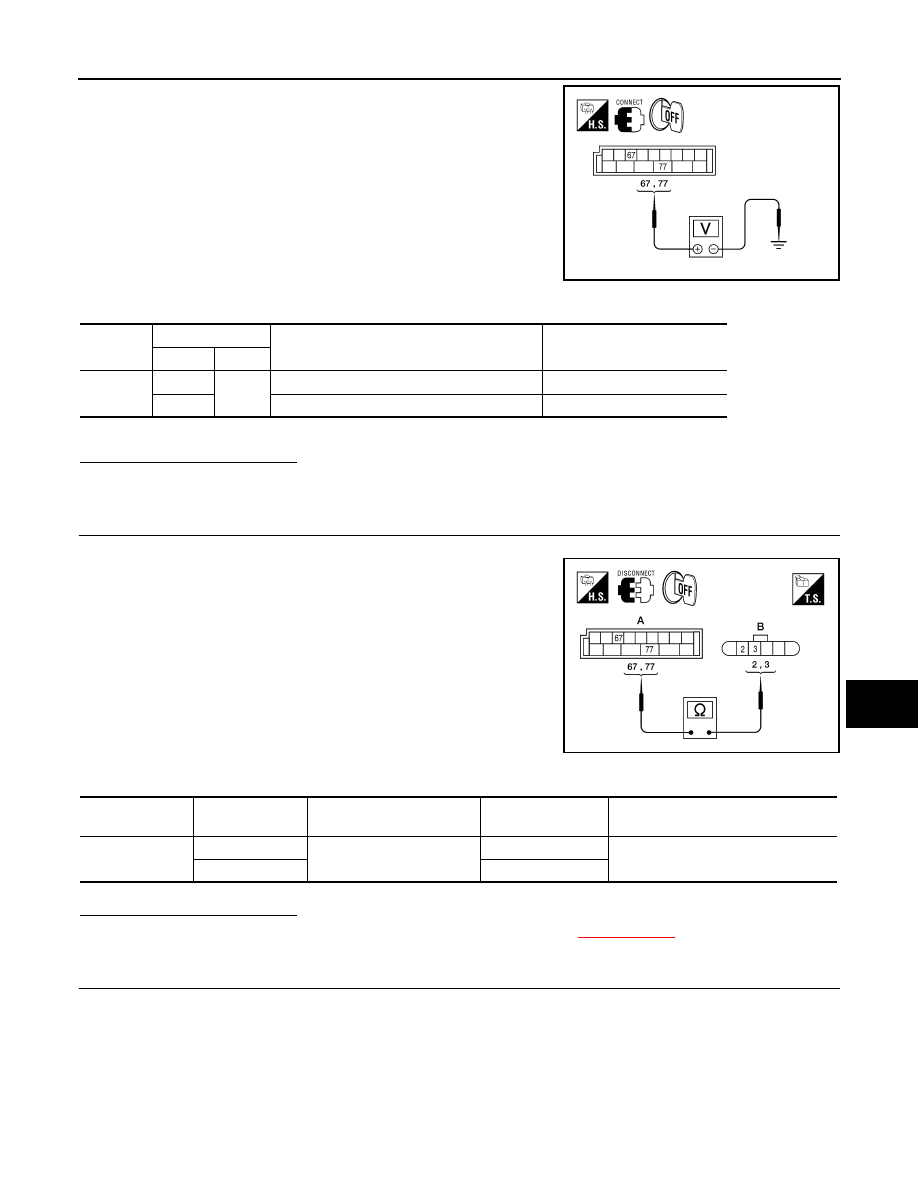

2.

Check voltage between BCM connector M20 terminals 67, 77
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (passenger side).

2.

Check continuity between BCM connector (A) M20 terminals 67,
77 and front door lock actuator (passenger side) (B) D114 termi-
nals 2, 3.

Is the inspection result normal?

YES

>> Replace front door lock actuator (passenger side). Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

3.

CHECK DOOR LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (passenger side).

ALKIA0775ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

77

Ground

Door lock/unlock switch is turned to LOCK

0

→

 Battery voltage

→

 0

67

Door lock/unlock switch is turned to UNLOCK

0

→

 Battery voltage

→

 0

ALKIA0776ZZ

BCM connector

Terminal

Front door lock actuator

(passenger side) connector

Terminal

Continuity

M20

67

D114

2

Yes

77

3
