Nissan Tiida C11. Manual - part 222

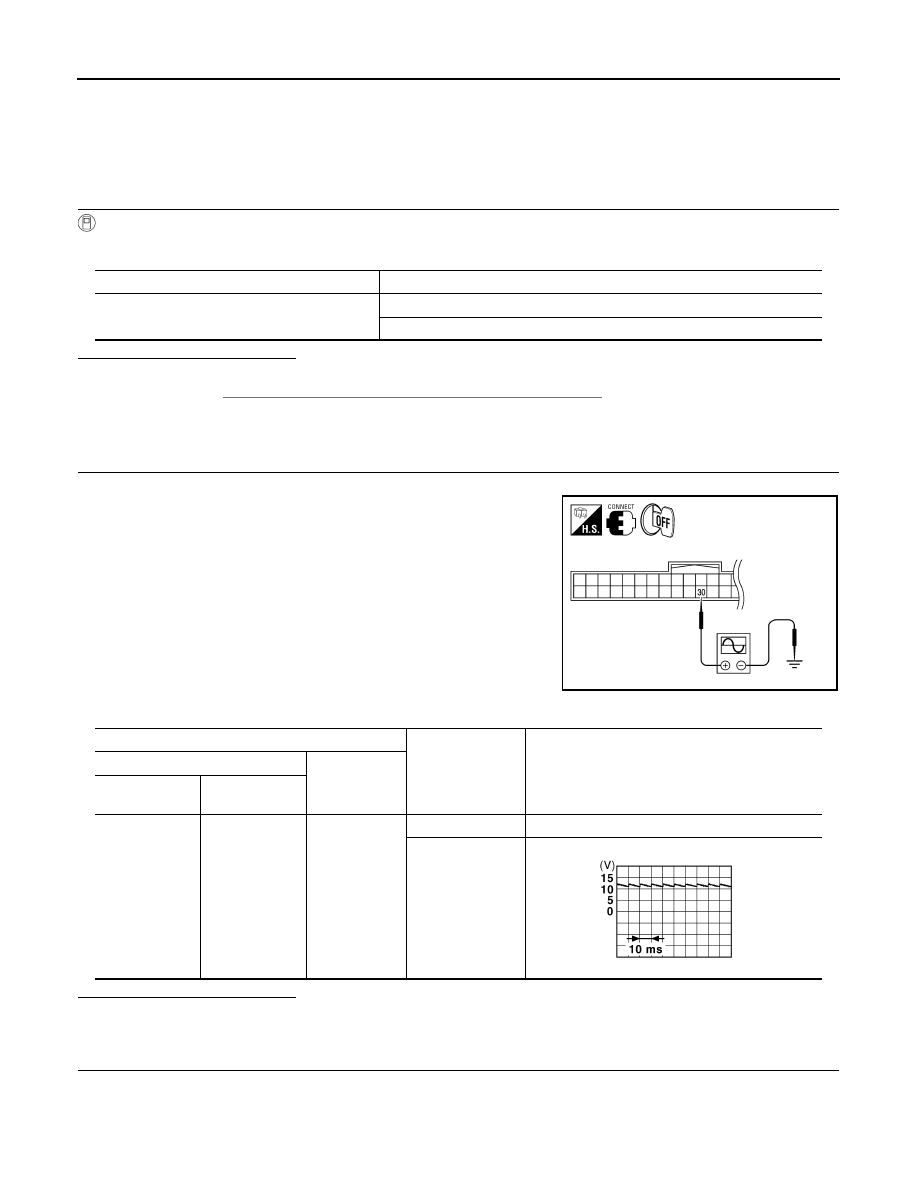

DLK-298

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

DOOR SWITCH

PASSENGER SIDE : Description

INFOID:0000000001530279

Detects door open/closed condition.

PASSENGER SIDE : Component Function Check

INFOID:0000000001530280

1.

CHECK FUNCTION

 With CONSULT-III

Check door switches “DOOR SW-AS” in “Data Monitor” mode with CONSULT-III.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-298, "PASSENGER SIDE : Diagnosis Procedure"

.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000001530281

1.

CHECK DOOR SWITCH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Check signal between BCM connector and ground with oscillo-
scope.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1.

Disconnect BCM and passenger door switch connectors.

Monitor item

Condition

DOOR SW-AS

OPEN

: ON

CLOSE :

OFF

ALKIA0749ZZ

Terminals

Door condition

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M18

30

Ground

OPEN

0

CLOSE

JPMIA0011GB

DOOR SWITCH

DLK-299

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

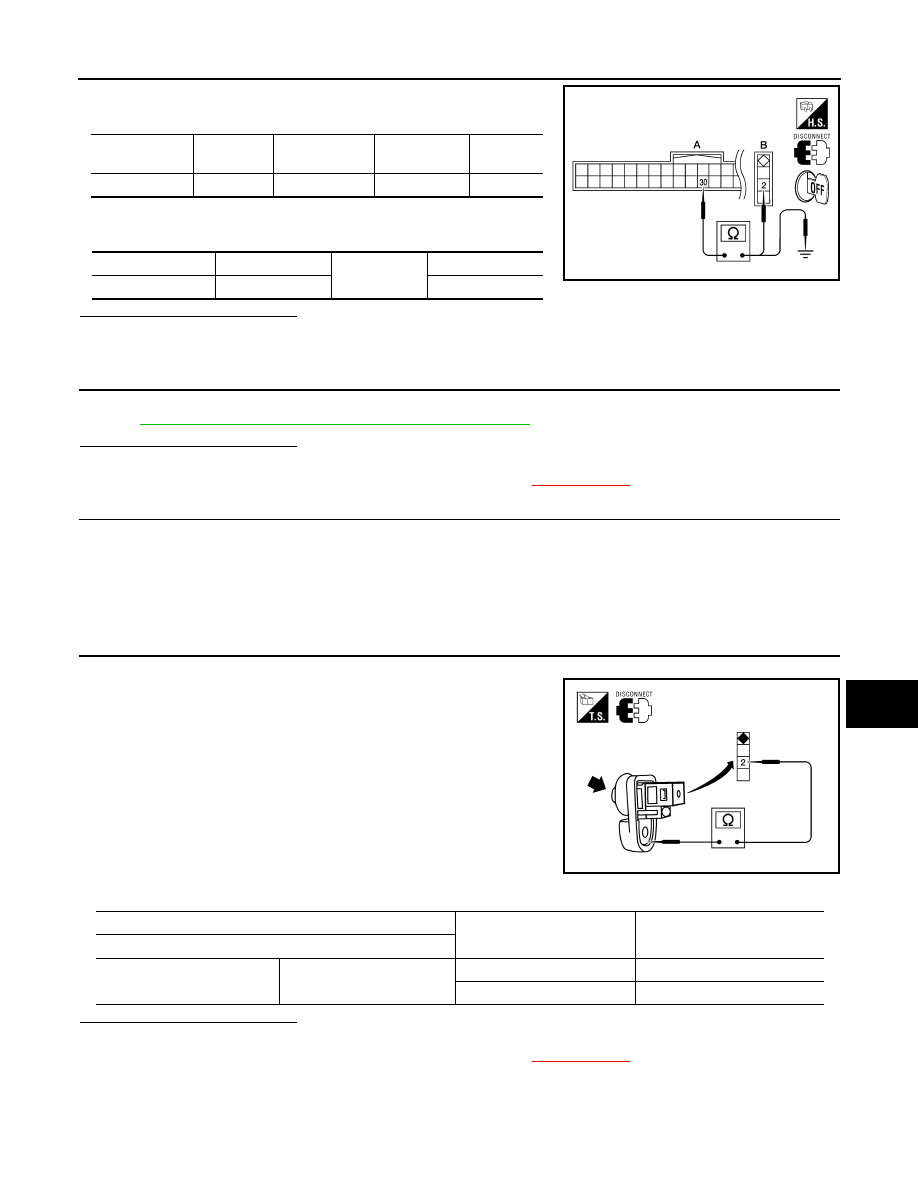

2.

Check continuity between BCM connector (A) M18 terminal 30
and passenger door switch connector (B) B27 terminal 2.

3.

Check continuity between BCM connector (A) M18 terminal 30
and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness between BCM and door switch.

3.

CHECK DOOR SWITCH

Check door switch.
Refer to

DLK-299, "PASSENGER SIDE : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace front door switch (passenger side). Refer to

XX-XX, "*****"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

PASSENGER SIDE : Component Inspection

INFOID:0000000001530282

1.

CHECK DOOR SWITCH

1.

Turn ignition switch OFF.

2.

Check passenger door switch.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Replace front door switch (passenger side). Refer to

XX-XX, "*****"

.

REAR LH

BCM connector

Terminal

Door switch

connector

Terminal

Continuity

M18

30

B27

2

Yes

BCM connector

Terminal

Ground

Continuity

M18

30

No

ALKIA0748ZZ

ALKIA0747ZZ

Terminal

Door switch condition

Continuity

Door switch

2

Ground part of door switch

Pressed

Yes

Released

No

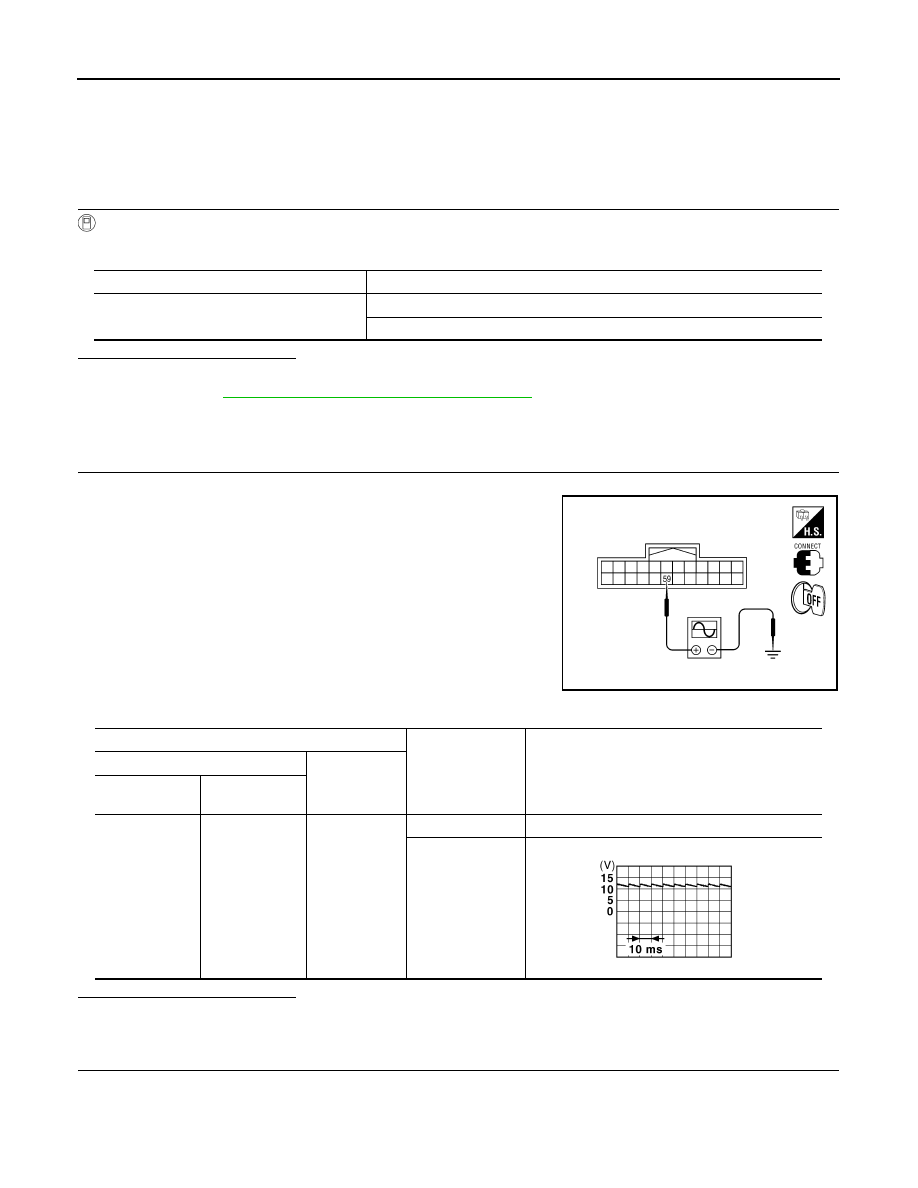

DLK-300

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

DOOR SWITCH

REAR LH : Description

INFOID:0000000001530283

Detects door open/closed condition.

REAR LH : Component Function Check

INFOID:0000000001530284

1.

CHECK FUNCTION

 With CONSULT-III

Check door switches “DOOR SW-RL” in “Data Monitor” mode with CONSULT-III.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-300, "REAR LH : Diagnosis Procedure"

.

REAR LH : Diagnosis Procedure

INFOID:0000000001530285

1.

CHECK DOOR SWITCH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Check signal between BCM connector and ground with oscillo-
scope.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1.

Disconnect BCM connector and rear door switch LH.

Monitor item

Condition

DOOR SW-RL

OPEN

:ON

CLOSE

:OFF

ALKIA0750ZZ

Terminals

Door condition

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M19

59

Ground

OPEN

0

CLOSE

JPMIA0011GB

DOOR SWITCH

DLK-301

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

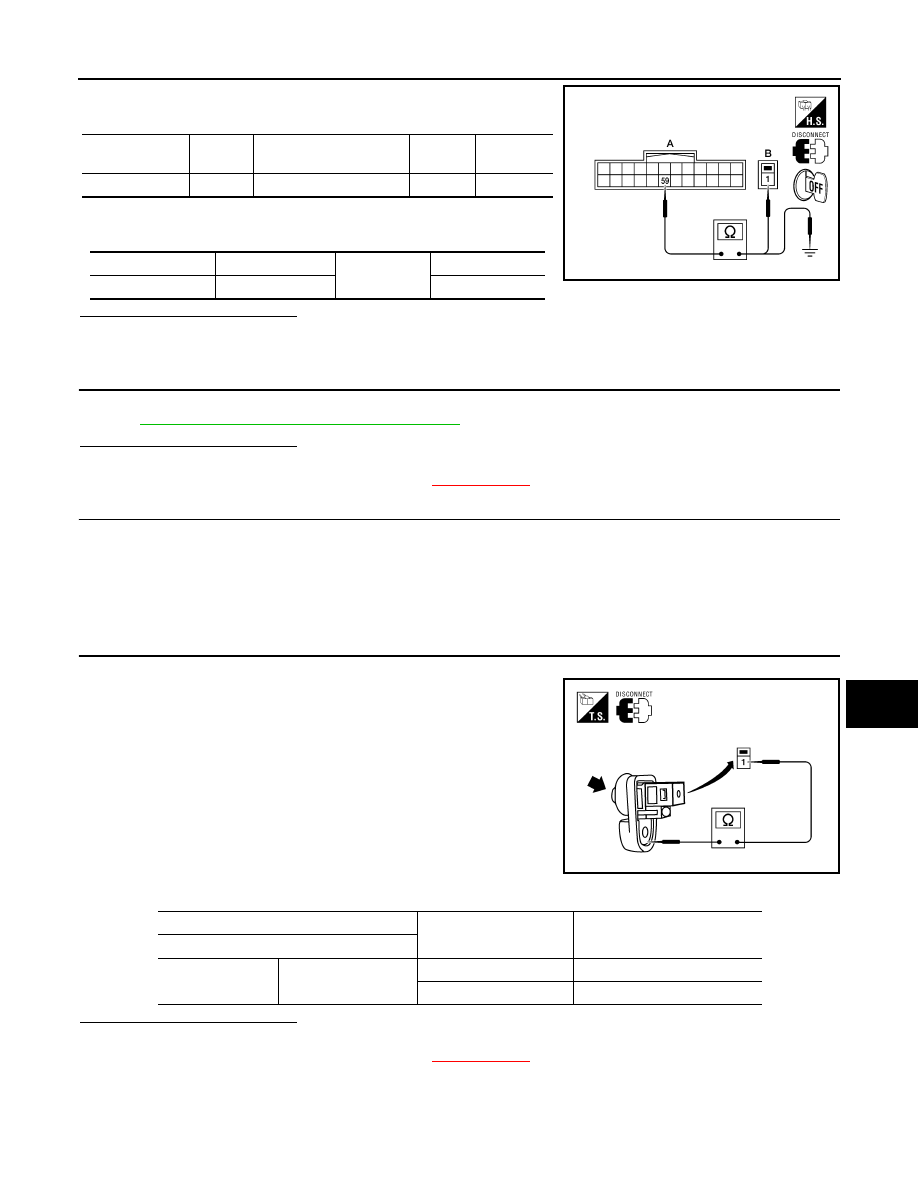

2.

Check continuity between BCM connector (A) M19 terminal 59
and rear door switch LH connector (B) B71 terminal 1.

3.

Check continuity between BCM connector (A) M19 terminal 59
and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness between BCM and rear door switch LH.

3.

CHECK DOOR SWITCH

Check door switch.
Refer to

DLK-301, "REAR LH : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace rear door switch LH. Refer to

XX-XX, "*****"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

REAR LH : Component Inspection

INFOID:0000000001530286

1.

CHECK DOOR SWITCH

1.

Turn ignition switch OFF.

2.

Check rear door switch LH.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Replace rear door switch LH. Refer to

XX-XX, "*****"

.

REAR RH

BCM connector

Terminal

Rear door switch LH

connector

Terminal

Continuity

M19

59

B71

1

Yes

BCM connector

Terminal

Ground

Continuity

M19

59

No

ALKIA0751ZZ

ALKIA0752ZZ

Terminal

Door switch condition

Continuity

Door switch

1

Ground part of door

switch

Pressed

Yes

Released

No
