Nissan Tiida C11. Manual - part 221

DLK-294

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

INSTRUMENT PANEL WARNING LAMP ASSEMBLY

3.

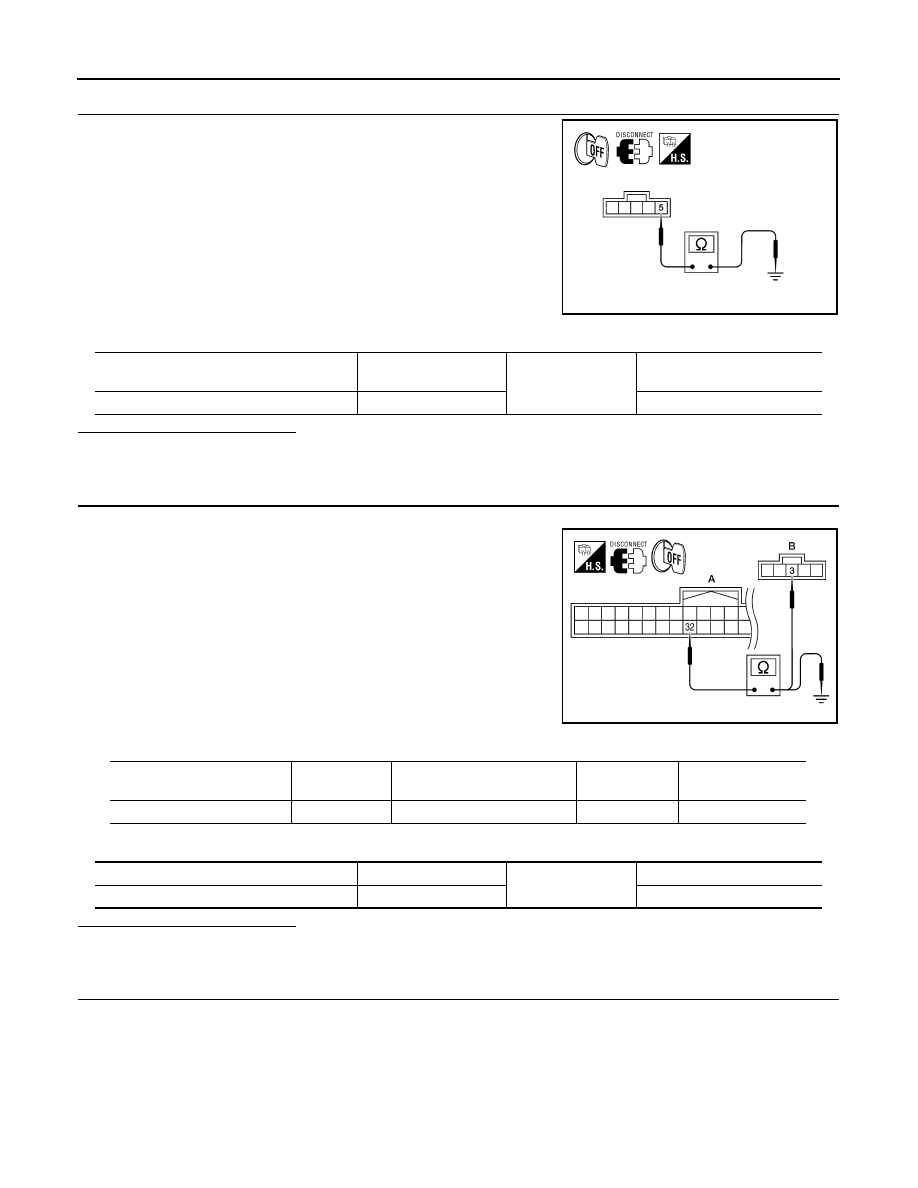

CHECK DOOR LOCK AND UNLOCK SWITCH INDICATOR INPUT SIGNAL

Check continuity between instrument panel warning lamp assembly
connector M37 terminal 5 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness ground.

4.

CHECK DOOR LOCK AND UNLOCK SWITCH CIRCUIT

1.

Disconnect BCM.

2.

Check continuity between BCM connector (A) M18 terminal 32
and instrument panel warning lamp assembly connector (B)
M37 terminal 3.

3.

Check continuity between BCM connector (A) M18 terminal 32 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

5.

CHECK BCM OUTPUT SIGNAL

1.

Connect BCM connector.

ALKIA0833ZZ

instrument panel warning lamp assembly

connector

Terminal

Ground

Continuity

M37

5

Yes

ALKIA0834ZZ

BCM connector

Terminal

Instrument panel warning lamp

assembly connector

Terminal

Continuity

M18

32

M37

3

Yes

BCM connector

Terminal

Ground

Continuity

M18

32

No

INSTRUMENT PANEL WARNING LAMP ASSEMBLY

DLK-295

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

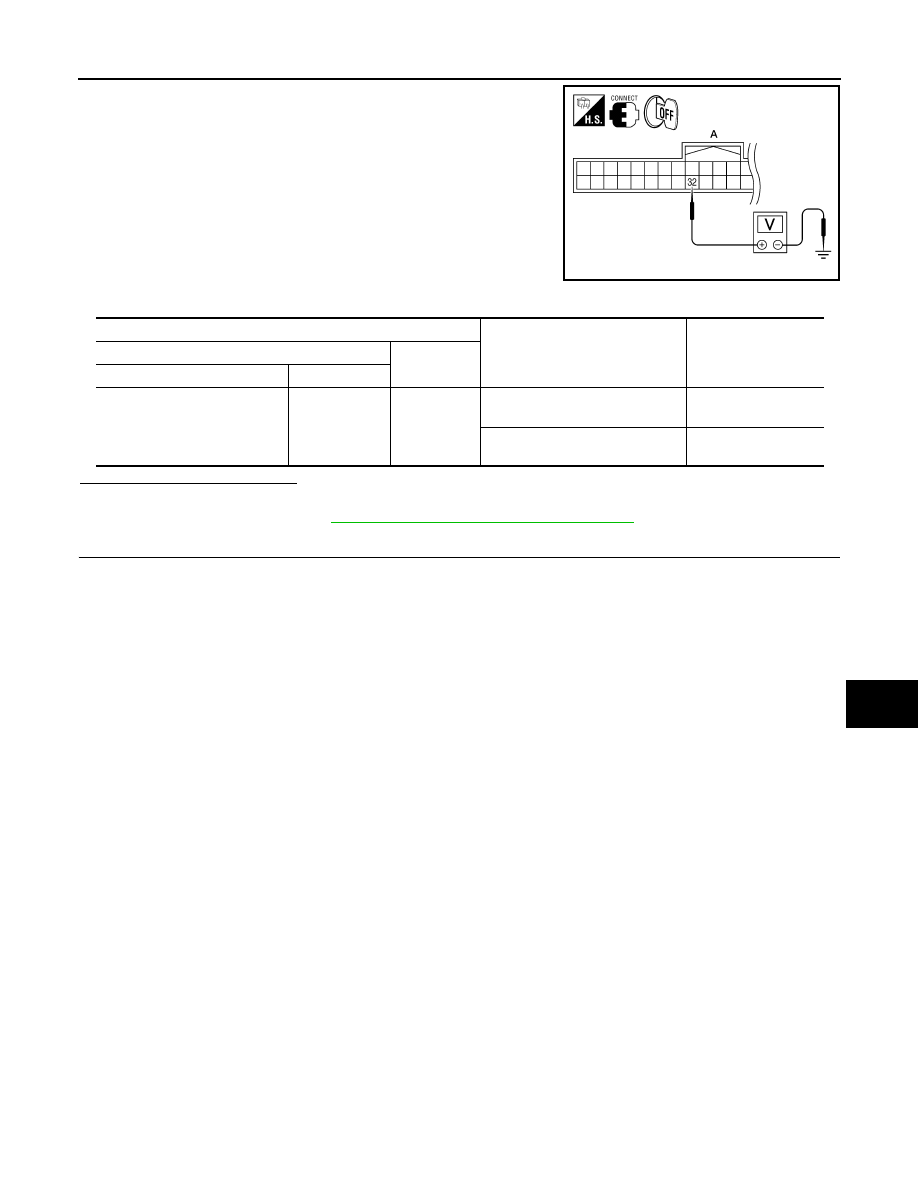

2.

Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace BCM. Refer to

BCS-57, "Removal and Installation of BCM"

.

6.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

ALKIA0835ZZ

Terminal

Condition

Voltage

(Approx.)

(+)

(–)

BCM connector

Terminal

M18

32

Ground

Press the door lock switch to the

LOCK position

Battery voltage

Press the door lock switch to the

UNLOCK position

0

DLK-296

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

DOOR SWITCH

DOOR SWITCH

DRIVER SIDE

DRIVER SIDE : Description

INFOID:0000000001530275

Detects door open/closed condition.

DRIVER SIDE : Component Function Check

INFOID:0000000001530276

1.

CHECK FUNCTION

 With CONSULT-III

Check door switches “DOOR SW-DR” in “Data Monitor” mode with CONSULT-III.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-296, "DRIVER SIDE : Diagnosis Procedure"

.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000001530277

1.

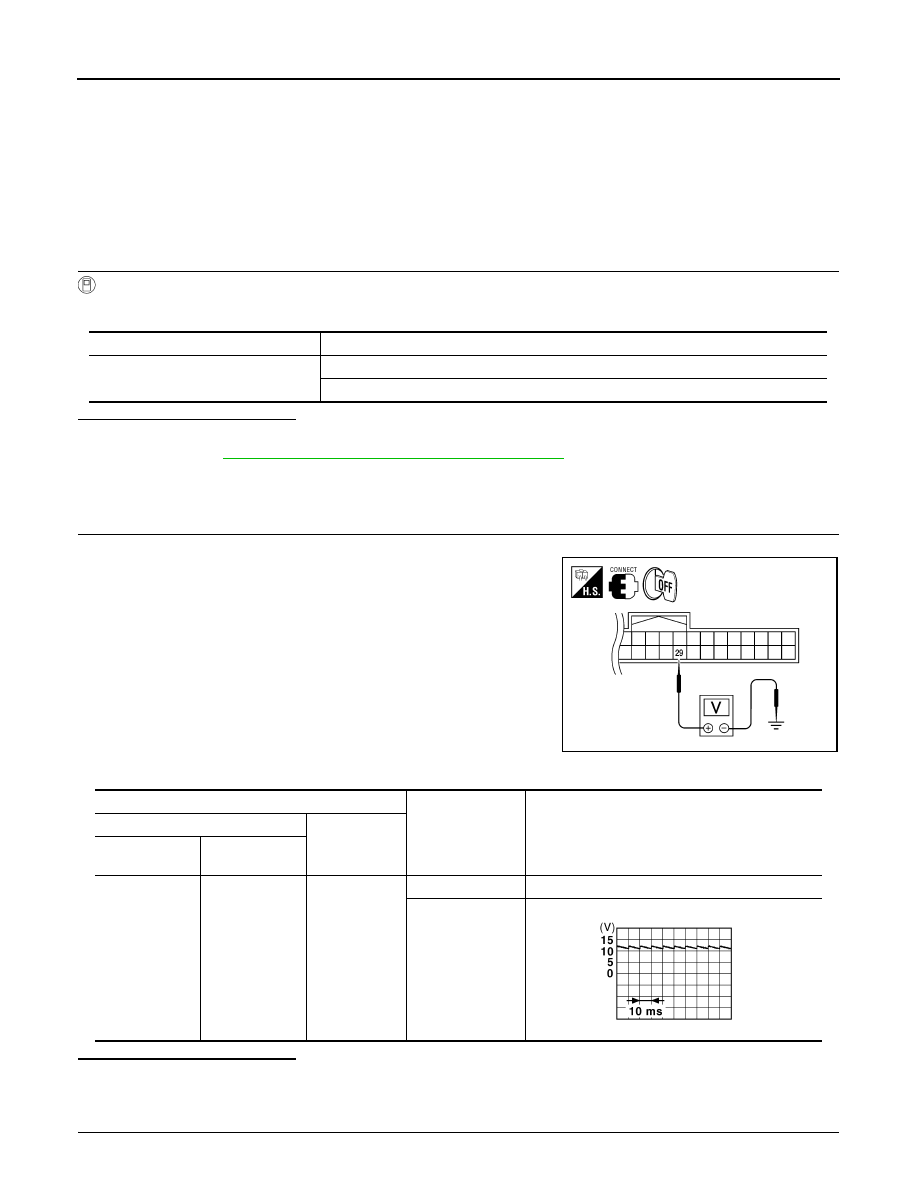

CHECK DOOR SWITCH INPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Check signal between BCM connector and ground with oscillo-
scope.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

Monitor item

Condition

DOOR SW-DR

 OPEN

:ON

CLOSE

:OFF

ALKIA0745ZZ

Terminals

Door condition

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M18

29

Ground

OPEN

0

CLOSE

JPMIA0011GB

DOOR SWITCH

DLK-297

< COMPONENT DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

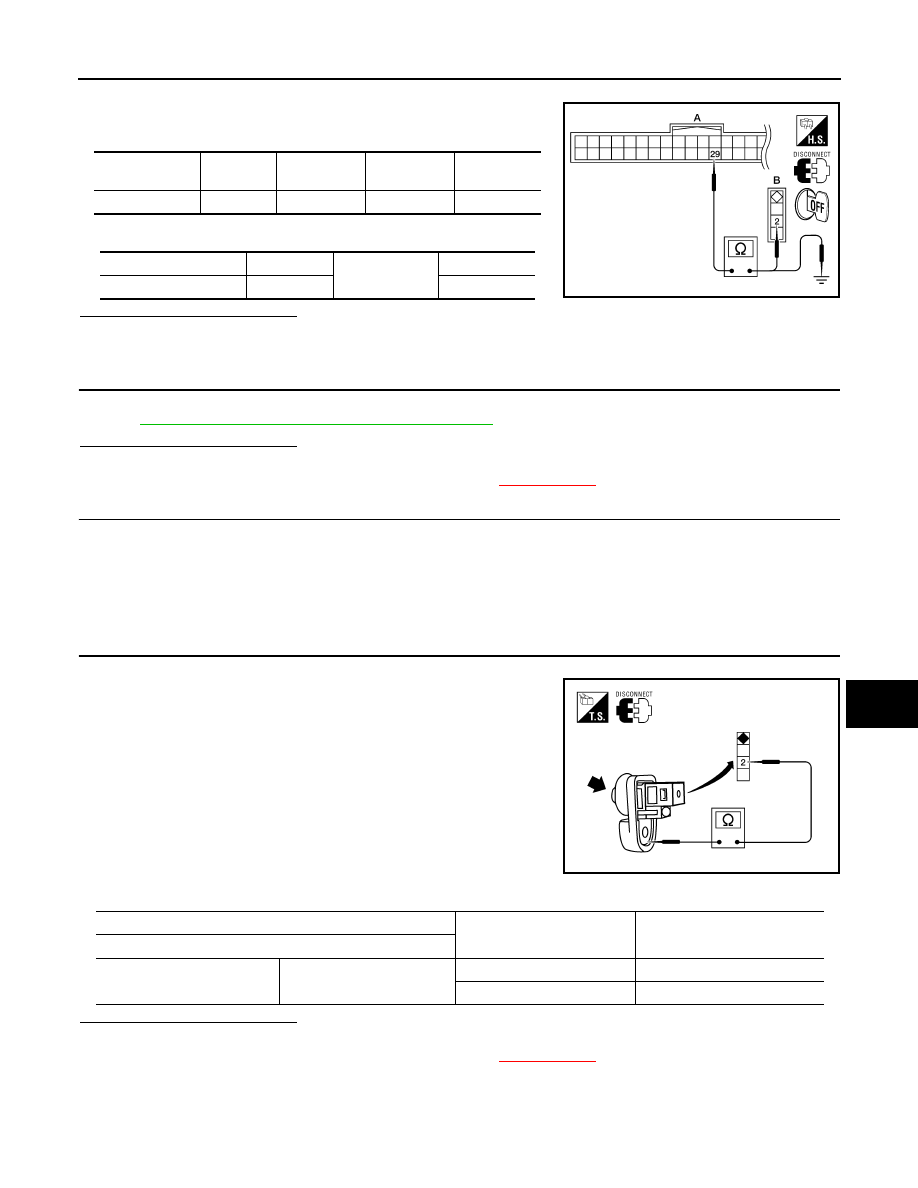

1.

Disconnect BCM and driver door switch connectors.

2.

Check continuity between BCM connector (A) M18 terminal 29
and door switch connector (B) B34 terminal 2.

3.

Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness between BCM and door switch.

3.

CHECK DOOR SWITCH

Check door switch.
Refer to

DLK-297, "DRIVER SIDE : Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace front door switch (driver side). Refer to

XX-XX, "*****"

.

4.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

DRIVER SIDE : Component Inspection

INFOID:0000000001530278

1.

CHECK DOOR SWITCH

1.

Turn ignition switch OFF.

2.

Check door switch.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Replace front door switch (driver side). Refer to

XX-XX, "*****"

.

PASSENGER SIDE

BCM connector

Terminal

Door switch

connector

Terminal

Continuity

M18

29

B34

2

Yes

BCM connector

Terminal

Ground

Continuity

M18

29

No

ALKIA0746ZZ

ALKIA0747ZZ

Terminal

Door switch condition

Continuity

Door switch

2

Ground part of door switch

Pressed

Yes

Released

No
