DLK-262

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

TRUNK LID OPENER

TRUNK LID OPENER

TRUNK LID OPENER SWITCH

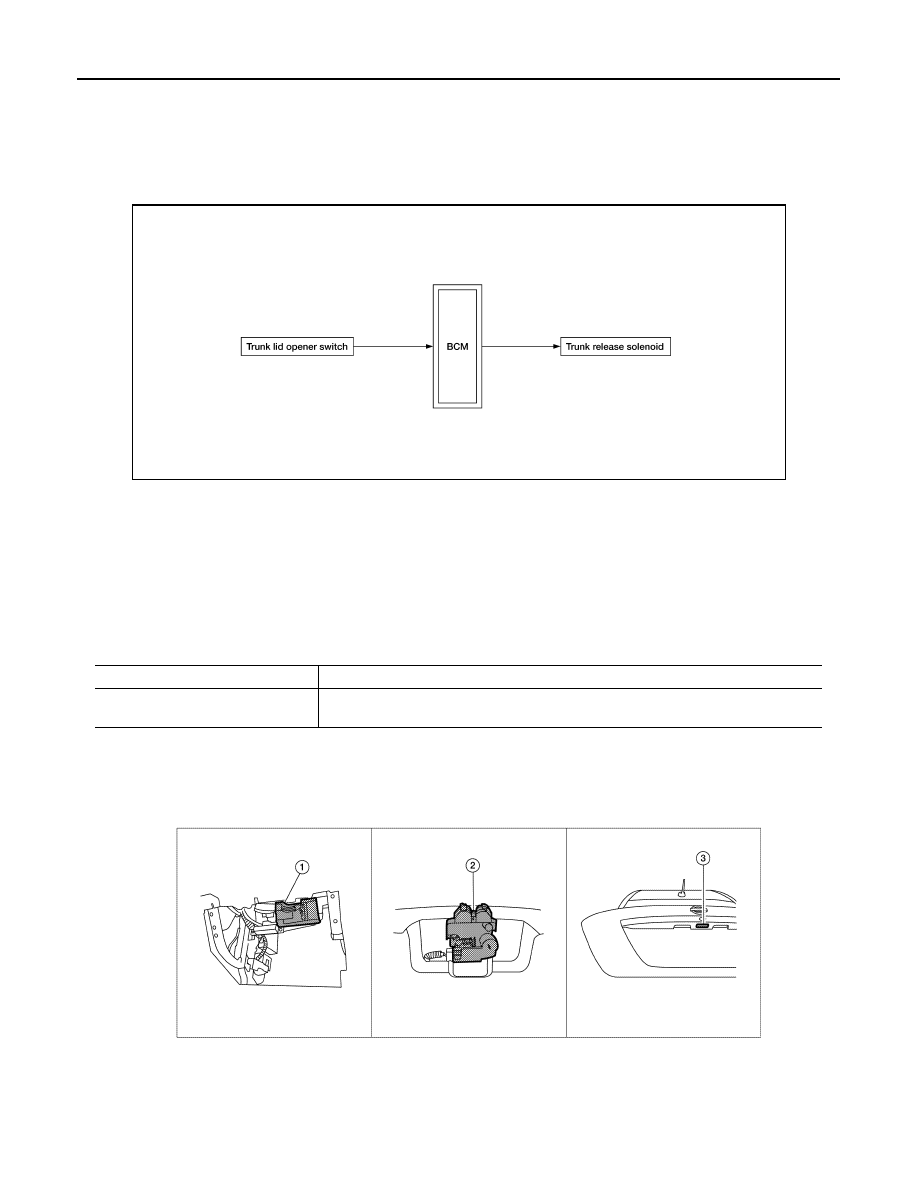

TRUNK LID OPENER SWITCH : System Diagram

INFOID:0000000001500106

TRUNK LID OPENER OPERATION

TRUNK LID OPENER SWITCH : System Description

INFOID:0000000001500107

TRUNK LID OPENER OPERATION

When trunk lid opener switch is pressed, BCM opens trunk release solenoid.
NOTE:
Trunk release solenoid is not for locking the trunk. The function is only to open the trunk.

OPERATION CONDITION

If the following conditions are not satisfied, trunk release operation is not performed.

TRUNK LID OPENER SWITCH : Component Parts Location

INFOID:0000000001530245

ALKIA0717GB

Trunk lid opener switch operation

Operation condition

Trunk release solenoid

• Vehicle speed is less than 5 km/h (3 MPH).
• All doors are unlocked.

ALKIA0819ZZ

1.

BCM M18, M20
(view with glove box removed)

2.

Trunk lamp switch and trunk release solenoid
B66

3.

Trunk lid opener switch B61

TRUNK LID OPENER

DLK-263

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID OPENER SWITCH : Component Description

INFOID:0000000001500109

Item

Function

BCM

Controls the trunk lid opener switch function.

Trunk lid opener switch

Transmits trunk lid opener switch operation signal to BCM.

Trunk release solenoid

Opens the trunk with the trunk release solenoid signal from BCM.

Combination meter

Transmits vehicle speed signal to BCM via CAN communication.

DLK-264

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

WARNING FUNCTION

WARNING FUNCTION

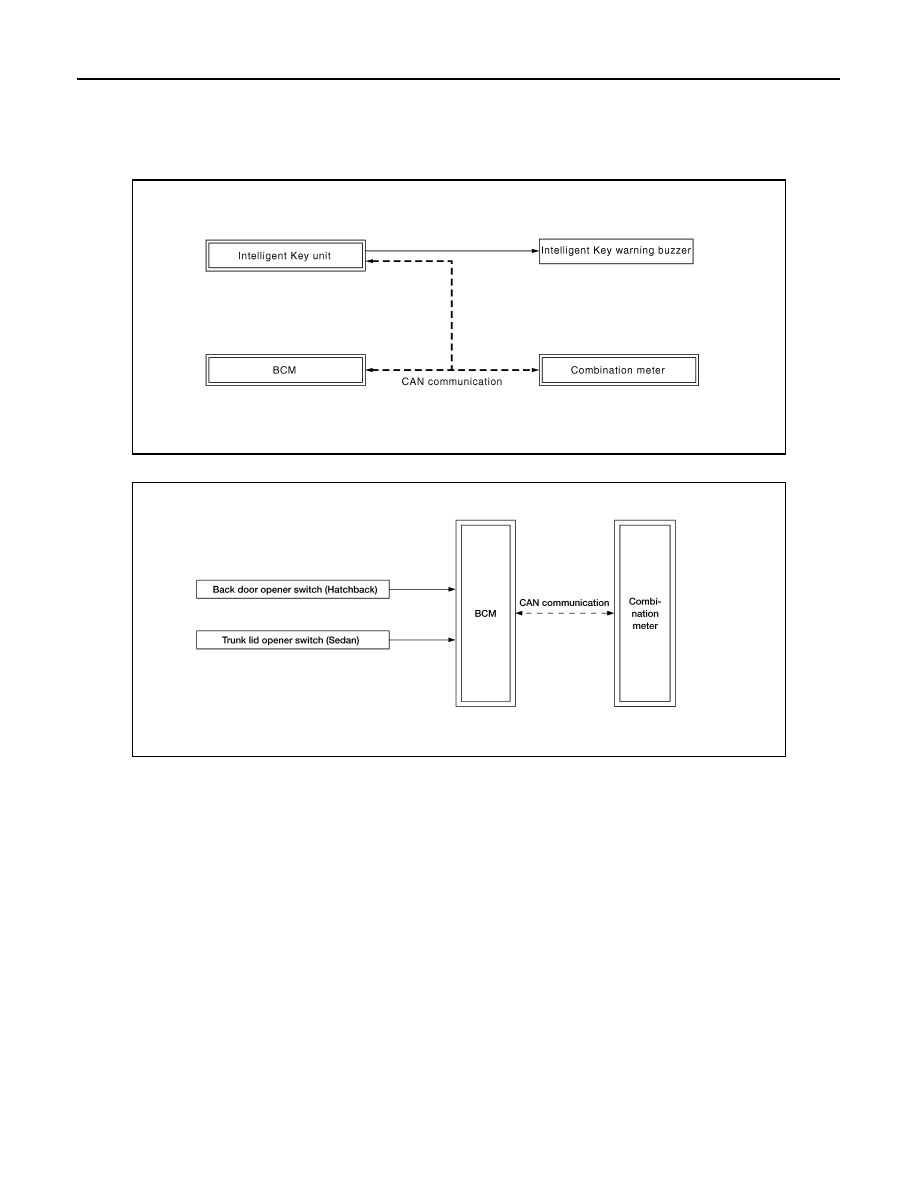

System Diagram

INFOID:0000000001396702

INTELLIGENT KEY WARNING OPERATION

BACK DOOR OPEN WARNING OPERATION

System Description

INFOID:0000000001396703

DESCRIPTION

The warning functions are as follows and are given to the user as warning information and warnings using
combinations of Intelligent Key warning buzzer(s), key warning lamps and buzzer (built in combination meter).

INTELLIGENT KEY WARNING OPERATION

Once one of the following conditions below is established, alert or warning will be executed.

JMKIA0409GB

ALKIA0718GB

WARNING FUNCTION

DLK-265

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Warning/Information functions

Operation conditions

Warning lamp

Warning chime

Combination

meter buzzer

Intelligent Key
warning buzz-

er(s)

Ignition knob return forgotten
warning

When all the conditions below are met.
• Ignition knob: OFF or LOCK (knob is

pressed).

• Door switch (driver side): ON (Door is

open).

—

Active

for 5 seconds

(pipipipi,

 pipipipi···)

—

Ignition key warning
(when mechanical key is used)

When all the conditions below are met.
• Ignition switch: OFF position.
• Key switch: ON (inserted)
• Door switch (driver side): ON (Door is

open).

—

Active

for 5 seconds

(pipipipi,

 pipipipi···)

—

OFF position warning

When all the conditions below are met.
• Ignition switch is between ACC and

OFF position or ignition knob is
pressed in while ignition switch is in
LOCK position.

• 3 seconds in the above state have

passed.

“LOCK”

(RED blinking)

Active

for 1 second

(pipi, pipi···)

—

Take away
warning

Any door
open to all
doors closed

When all the conditions below are met.
• Ignition switch: Except LOCK position.
• Door switch: ON to OFF (Door is open

to closed).

• Intelligent Key cannot be detected in-

side the vehicle.

“KEY”

(RED blinking)

—

Active

(pi, pi, pi)

Door is open

When all the conditions below are met.
• Door switch: ON (Door is open)
• Key ID verification every 5 seconds

when registered Intelligent Key can
not be detected inside the vehicle.

“KEY”

(RED blinking)

—

—

Take away
through win-
dow

When all the conditions below are met.
• Key ID verification: OK
• Every 30 seconds when registered In-

telligent Key cannot be detected in-
side the vehicle or result of vehicle
speed verification is NG. (The regis-
tered Intelligent Key cannot be detect-
ed inside the vehicle when ignition
switch is ON.)

• Key switch: OFF (Key is removed

from ignition key cylinder.)

“KEY”

(RED blinking)

Active for 3 sec-

onds

(pipipi···

—
