DLK-266
< FUNCTION DIAGNOSIS >
[WITH I-KEY & SUPER LOCK]
WARNING FUNCTION

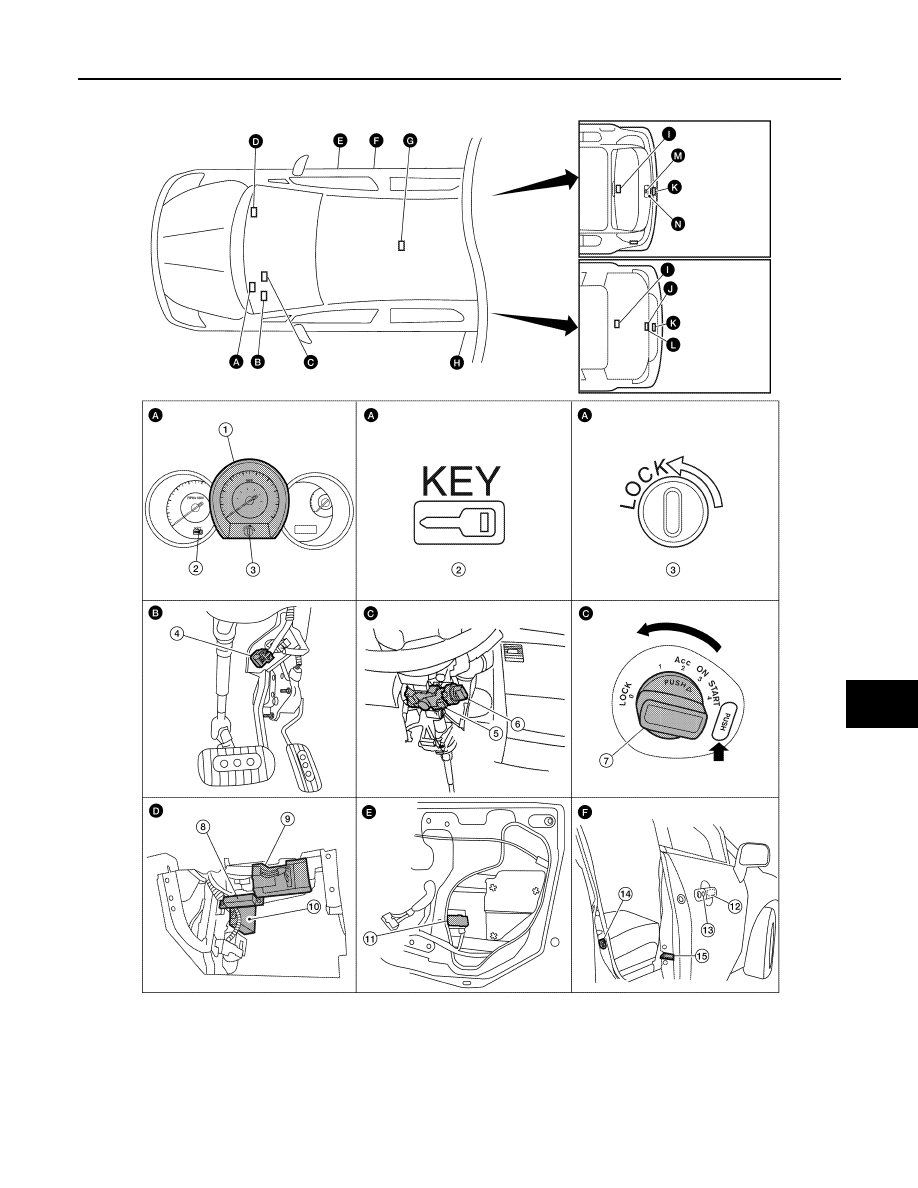

KEY WARNING LAMP & LOCK WARNING LAMP
The key indicator and lock indicator indicates Intelligent Key system status.
Operation Condition
BACK DOOR OPEN WARNING OPERATION
When back door opener switch is operated, when door lock is locked with door lock and unlock switch, speed
sensing lock or only driver side is unlocked with anti-hijack function, the buzzer (built in combination meter) will
sound.
KEY REMINDER OPERATION
• The buzzer (combination meter) will sound and the doors will not lock if the door lock and unlock switch is
pressed while the driver door is open and mechanical key is inserted ignition key cylinder.
• The buzzer (combination meter) will sound and the doors will not lock if the door lock and unlock switch is
pressed while any door other than the driver door is open.
Door lock op-
eration warn-
ing
Request
switch opera-
tion
When request switch is pushed (lock op-
eration) under the following conditions.
• Door switch: ON (Any door is open).
• Ignition switch is in ACC or OFF posi-
tion or ignition knob is pressed in
LOCK position or mechanical key is
inserted into ignition key cylinder.
• Intelligent Key is inside vehicle.
—
—
Active for 2
seconds
(pipipi···)
Intelligent Key
button opera-
tion
When Intelligent Key button is pushed
(lock operation) under the following con-
ditions.
• Door switch: ON (Any door is open).
• Ignition switch is in ACC or OFF posi-
tion or ignition knob is pressed in
LOCK position or mechanical key is
inserted into ignition key cylinder.
—
—
Active for 2
seconds
(pipipi···)
Intelligent Key low battery
warning
When Intelligent Key battery voltage is
low, Intelligent Key unit is detected after
ignition switch is turned ON.
“KEY”
(GREEN blink-
ing for 30 sec-
onds)
—
—
Warning/Information functions
Operation conditions
Warning lamp
Warning chime
Combination
meter buzzer
Intelligent Key
warning buzz-
er(s)
Behavior of lamps
Operation condition
KEY
GREEN
Lighting
All the following conditions are satisfied.
• Ignition knob is pushed in LOCK position. (Ignition knob switch is ON)
• Ignition key is removed from ignition key cylinder. (Key switch is OFF)
• Intelligent Key is detected inside of the vehicle.
• KEY RED lighting/blinking conditions are not satisfied.
Blinking
while Intelligent Key low battery warning is operating.
RED
Lighting
All the following conditions are satisfied.
• Ignition knob is pushed. (Ignition knob switch is ON)
• Ignition key is removed from ignition key cylinder. (Key switch is OFF)
• Intelligent Key is not detected inside of the vehicle.
Blinking
All the following conditions are satisfied.
• Take away warning is operating.
• KEY RED lighting condition is not satisfied.
LOCK
Blinking
While OFF position warning is operating.
KEY(RED) and LOCK lighting
All the following conditions are satisfied.
• Ignition switch is ON.
• Steering lock ID is NG.
