Nissan Tiida C11. Manual - part 211





DLK-254

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

DOOR LOCK FUNCTION

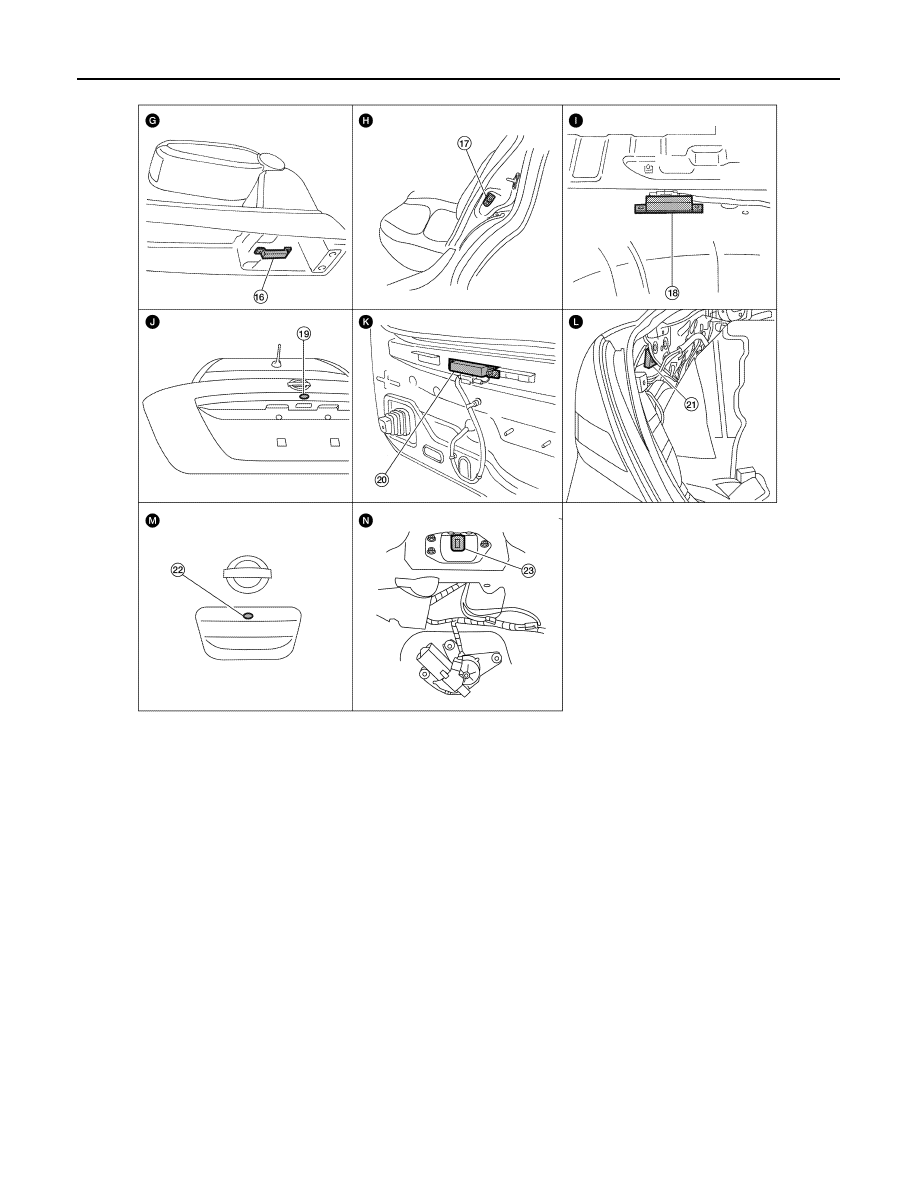

ALKIA0815ZZ

1.

Combination meter M24

2.

Key warning lamp (combination meter)

3.

Lock warning lamp (combination meter)

4.

Stop lamp switch M203
(view with instrument panel LH re-
moved)

5.

Steering lock solenoid M6
(bottom view of steering column)

6.

Key switch and ignition knob switch (A/
T) M32

7.

Key switch and ignition knob
switch (M/T) M32

8.

Instrument panel antenna M10
(view with glove box removed)

9.

BCM M18, M19, M20

10. Intelligent Key Unit M52

11.  Intelligent key warning buzzer (driver side)

D6 (view with front door finisher removed)

12. Front outside antenna (driver side) D10

(Passenger side) D106

13. Front door request switch (driver

side) D5
(Passenger side) D103

14. Door unlock sensor D14

[Front door lock actuator (driver side)]

15. Front door switch (driver side) B34

(Passenger side) B29

16. Front console antenna B45

(view with front console removed)

17.  Rear door switch LH B71

RH B53

18. Rear floor antenna B46

(behind rear seat)

19. Trunk request switch B67

(sedan)

20. Rear bumper antenna B81

(view with rear fascia removed)

21. Intelligent Key warning buzzer (trunk)

B82 (sedan)
(view with trunk finisher LH removed)

22. Back door request switch D406

(hatchback)

23.  Back door lock assembly (back door switch)

D405 (hatchback view with back door open)

DOOR LOCK FUNCTION

DLK-255

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR REQUEST SWITCH : Component Description

INFOID:0000000001396681

KEY REMINDER

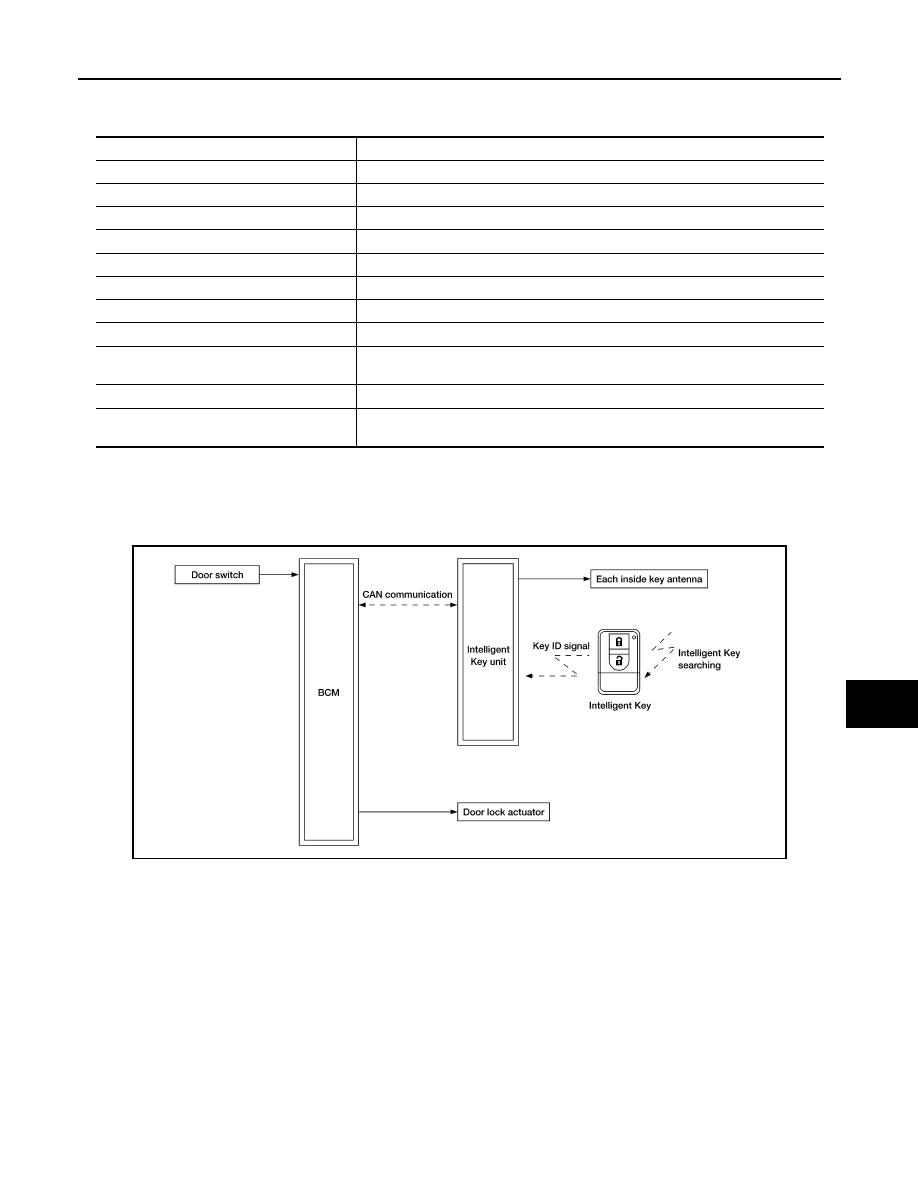

KEY REMINDER : System Diagram

INFOID:0000000001396682

KEY REMINDER OPERATION

KEY REMINDER : System Description

INFOID:0000000001396683

KEY REMINDER OPERATION

Key reminder have the following 2 functions.

Item

Function

Intelligent Key unit

Controls the door lock function with BCM.

BCM

Controls the door lock function with Intelligent Key unit.

Door request switch

Transmits operation signal (lock and unlock) to Intelligent Key unit.

Door switch

Detects door state (open or close).

Key switch

Detects mechanical key is inserted into ignition key cylinder.

Ignition knob switch

Detects ignition knob state (push or release).

Outside key antenna

Detects Intelligent Key is in detection area of outside key antenna.

Inside key antenna

Detects Intelligent Key is in detection area of inside key antenna.

Intelligent Key

Transmits key ID to Intelligent Key unit when request signal is received from out-
side key antenna.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Super lock actuator

Receives super lock set/release signal from BCM and sets/releases super lock
system.

ALKIA0713GB

DLK-256

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

DOOR LOCK FUNCTION

CAUTION:

The above function operates when the Intelligent Key is inside the vehicle. However, there may be
times when the Intelligent Key can not be detected, and this function will not operate when the Intelli-
gent Key is on the instrument panel, rear parcel shelf or in the glove box. Also, this system some times
does not operate if the Intelligent Key is in the door pocket for the open door.

Operation

Operation condition

Operation

Driver door close

Right after driver side door is closed under the following con-
ditions
• Door lock operation
• Driver side door is opened
• Driver side door is in unlock state.

All doors unlock

Any door open to all door close

Right after all doors are closed under the following condi-
tions
• Intelligent Key is inside the vehicle
• Any door is opened
• All doors are locked by door lock and unlock switch.

• All doors unlock
• Honk Intelligent Key warning

buzzer

DOOR LOCK FUNCTION

DLK-257

< FUNCTION DIAGNOSIS >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

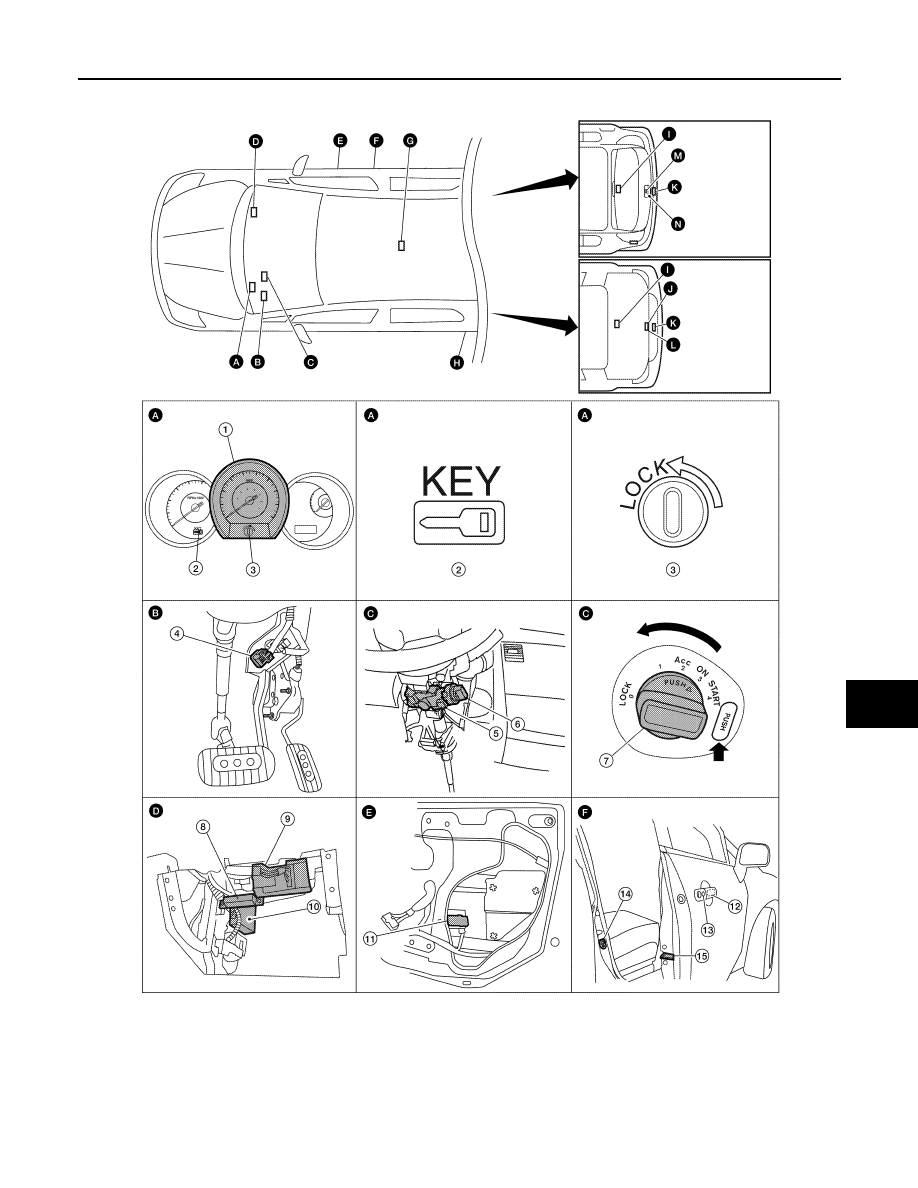

KEY REMINDER : Component Parts Location

INFOID:0000000001396684

ALKIA0816ZZ
