Nissan Tiida C11. Manual - part 1429

VTL-52

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

DUCTS AND GRILLES

2.

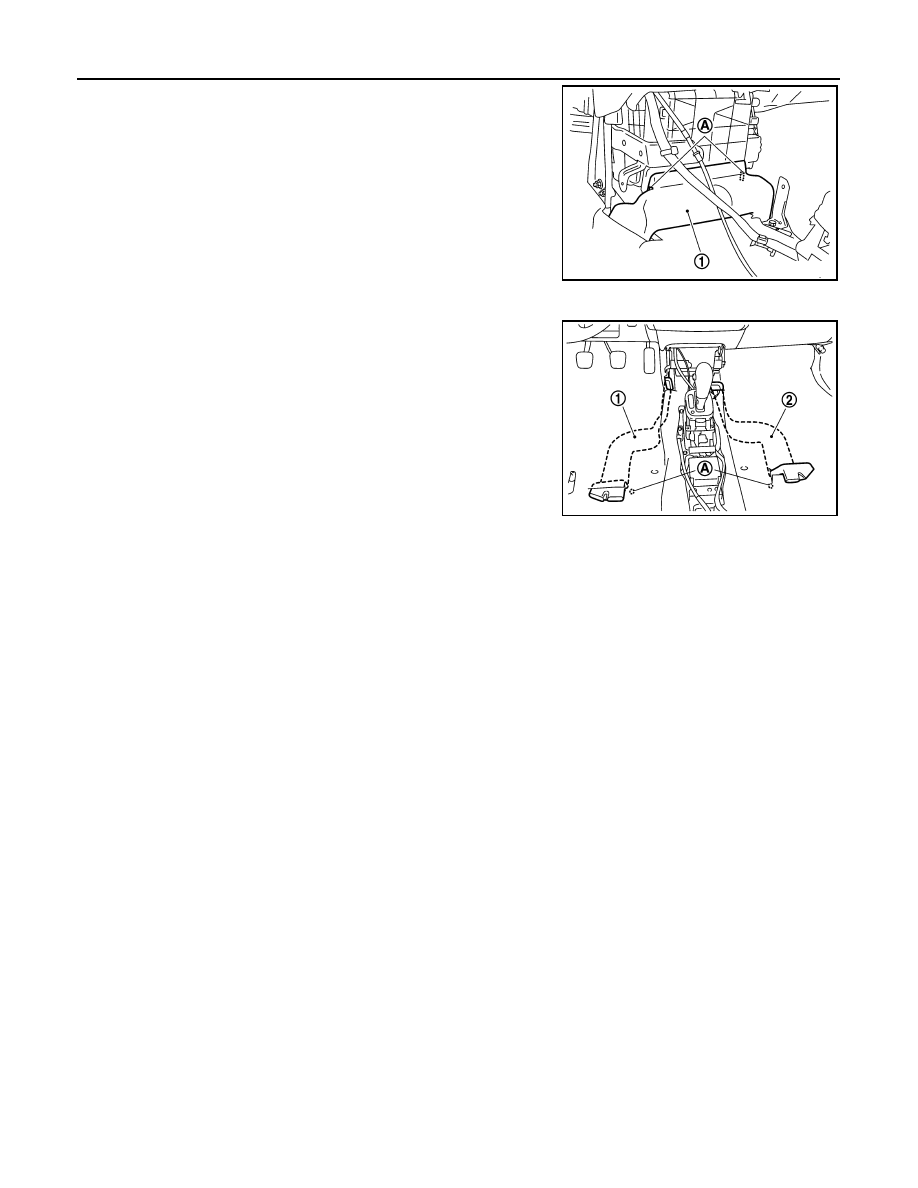

Disengage claws (A), and then remove front floor duct (1).

3.

Peel back floor trim to a point where floor duct is visible.

4.

Remove clips (A), and then remove rear floor duct (left) (1) and
rear floor duct (right) (2).

Installation

Installation is in the reverse order of removal.

SJIA0667E

SJIA0668E

PTC HEATER

VTL-53

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

PTC HEATER

Removal and Installation of PTC Control Unit

INFOID:0000000001696541

REMOVAL

1.

Remove the instrument lower finisher and instrument lower cover (LH) for LHD only. Refer to

IP-11,

"Removal and Installation"

.

2.

Remove the glove box assembly and instrument lower cover (RH) for RHD only. Refer to

IP-11, "Removal

and Installation"

.

3.

Disconnect connector (A).

4.

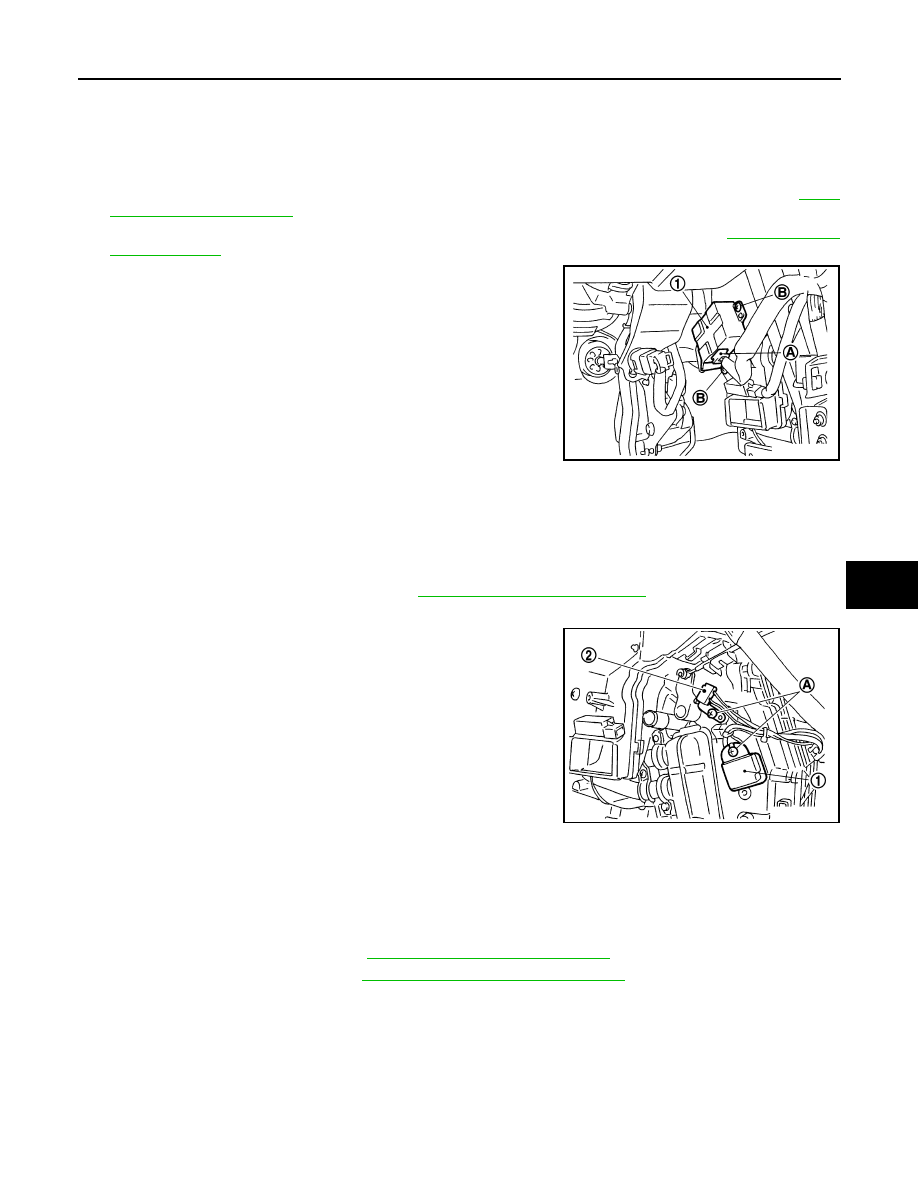

Remove mounting screws (B), and then remove PTC control
unit (1).

INSTALLATION

Installation is basically the reverse order of removal.

Removal and Installation of PTC Heater

INFOID:0000000001696542

REMOVAL

1.

Remove instrument panel and pad. Refer to

IP-11, "Removal and Installation"

.

2.

Disconnect PTC heater connector and full hot switch connector.

3.

Remove mounting screws (A), and then remove PTC heater (1)
and full hot switch (2).

INSTALLATION

Installation is basically the reverse order of removal.

Removal and Installation of Water Temperature Sensor

INFOID:0000000001696543

REMOVAL

1.

Remove A/C unit assembly. Refer to

VTL-37, "Removal and Installation"

.

2.

Remove heater pipe cover. Refer to

VTL-39, "Disassembly and Assembly"

.

SJIA0776E

SJIA0774E

VTL-54

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

PTC HEATER

3.

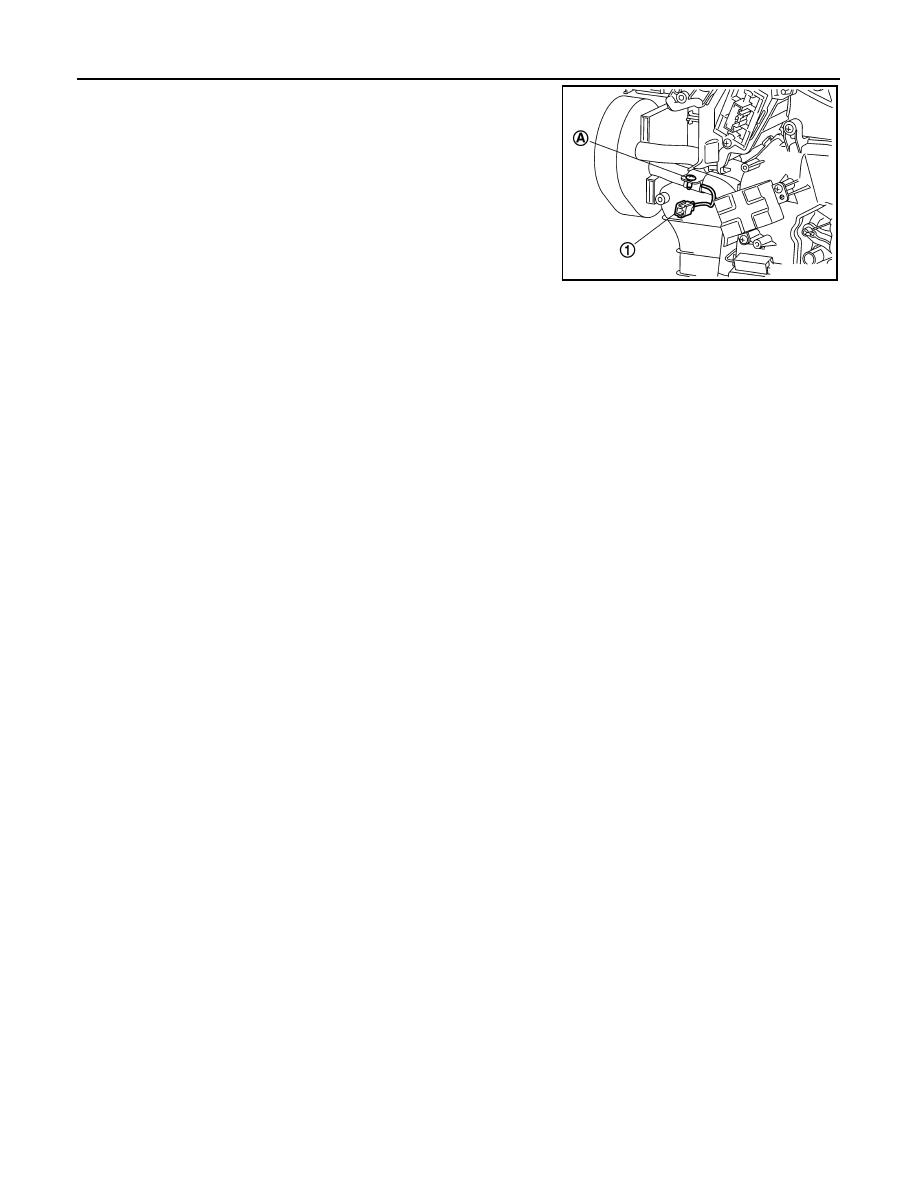

Remove mounting screw (A), and then remove water tempera-
ture sensor (1).

INSTALLATION

Installation is basically the reverse order of removal.

SJIA0934E
