DUCTS AND GRILLES

DUCTS AND GRILLES

Removal and Installation

INFOID:0000000001696540

Instrument Panel Ducts

NOTE:

A LHD model shown, RHD model similar

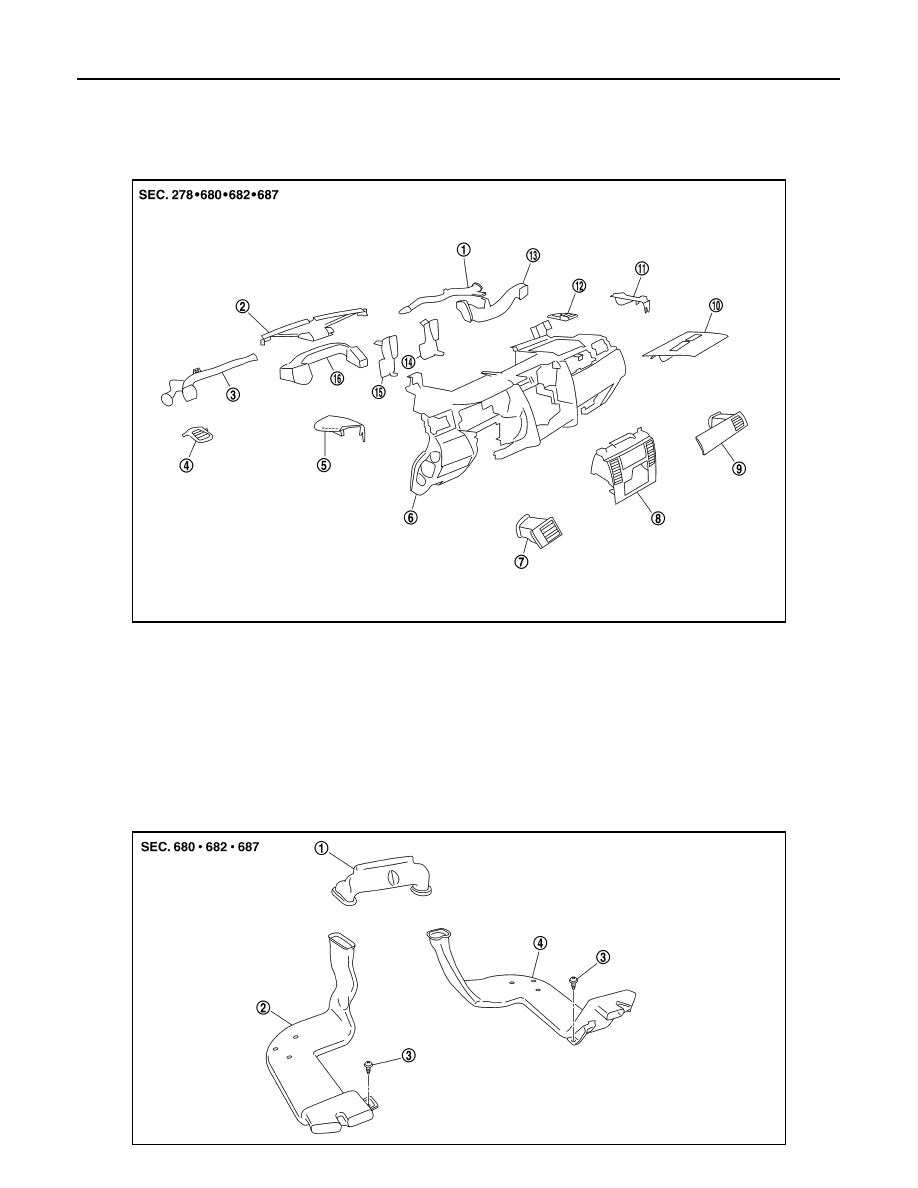

Floor Ducts

SJIA0657E

1.

Side defroster duct (right)

2.

Defroster nozzle

3.

Side defroster duct (left)

4.

Side defroster grille (left)

5.

Instrument side panel (left)

6.

Instrument panel and pad

7.

Side ventilator assembly (left)

8.

Cluster lid C

9.

Side ventilator assembly (right)

10. Instrument finisher E

11. Instrument side panel (right)

12. Side defroster grille (right)

13. Side ventilator duct (right)

14. Center ventilator duct (right)

15. Center ventilator duct (left)

16. Side ventilator duct (left)

WJIA2198E

DUCTS AND GRILLES

VTL-49

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

CENTER VENTILATOR GRILLES

Removal

1.

Remove cluster lid C. Refer to

IP-10, "Component Parts"

.

2.

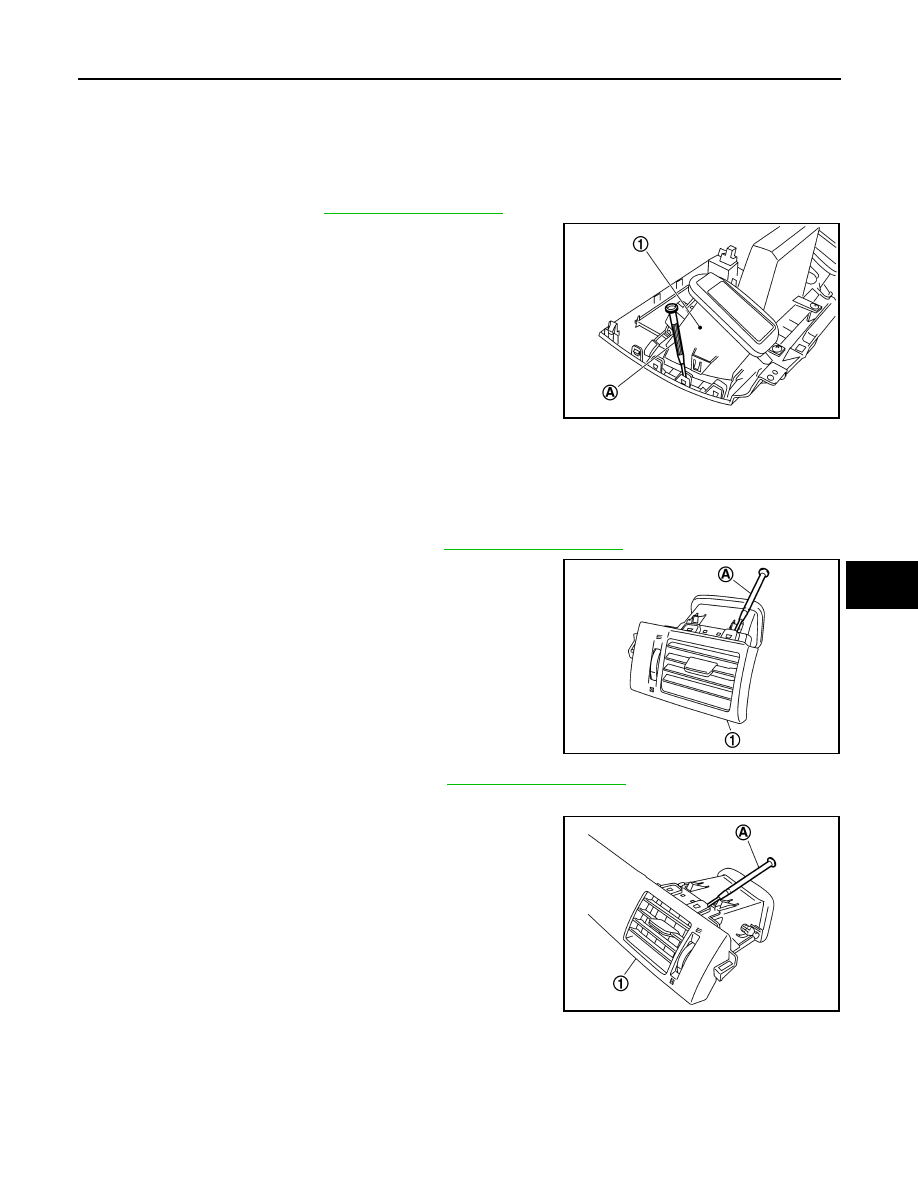

Remove center ventilator grills (1) from cluster lid C using suit-
able tool (A).

Installation

Installation is in the reverse order of removal.

SIDE VENTILATOR GRILLES (LH/RH)

Removal

1.

Remove side ventilator assembly (LH). Refer to

IP-10, "Component Parts"

.

2.

Remove side ventilator grille (LH) (1) using suitable tool (A).

3.

Remove side ventilator assembly (RH). Refer to

IP-10, "Component Parts"

.

4.

Remove the side ventilator grille (RH) screw.

5.

Remove side ventilator grille (RH) (1) using suitable tool (A).

Installation

Installation is in the reverse order of removal.

DEFROSTER NOZZLE AND SIDE DEFROSTER DUCTS (LH/RH)

1.

Front floor duct

2.

Rear floor duct (left)

3.

Clip

4.

Rear floor duct (right)

ZJIA0661E

SJIA0658E

SJIA0659E

VTL-50

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

DUCTS AND GRILLES

Removal

1.

Remove instrument upper finisher. Refer to

IP-10, "Component Parts"

.

2.

Remove screws and then remove side defroster duct (RH) and side defroster duct (LH).

3.

Remove screws, and then remove defroster nozzle.

Installation

Installation is in the reverse order of removal.

SIDE VENTILATOR DUCTS

Removal

1.

Remove instrument panel and pad. Refer to

IP-10, "Component Parts"

.

2.

Remove screws (A), and then remove side ventilator duct (left)
(1).

3.

Remove screw (A) and clip (B), and then remove side ventilator
duct (right) (1).

Installation

Installation is in the reverse order of removal.

1.

Side defroster duct (RH)

2.

Side defroster duct (LH)

3.

Defroster nozzle

A.

Side defroster duct screw

B.

Defroster nozzle screw

WJIA2199E

SJIA0661E

SJIA0662E

DUCTS AND GRILLES

VTL-51

< ON-VEHICLE REPAIR >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

CENTER VENTILATOR DUCTS

Removal

1.

Remove instrument panel and pad. Refer to

IP-10, "Component Parts"

.

2.

Remove screws (A), and then remove center ventilator ducts
(1).

Installation

Installation is in the reverse order of removal.

SIDE FOOT DUCTS

NOTE:
The side foot ducts are part of the A/C unit assembly case.

Removal

1.

Remove A/C unit assembly. Refer to

VTL-37, "Removal and Installation"

.

2.

Remove screws (A), and then remove side foot duct (LH) (1).

3.

Remove screws (A), and then remove side foot duct (RH) (1).

Installation

Installation is in the reverse order of removal.

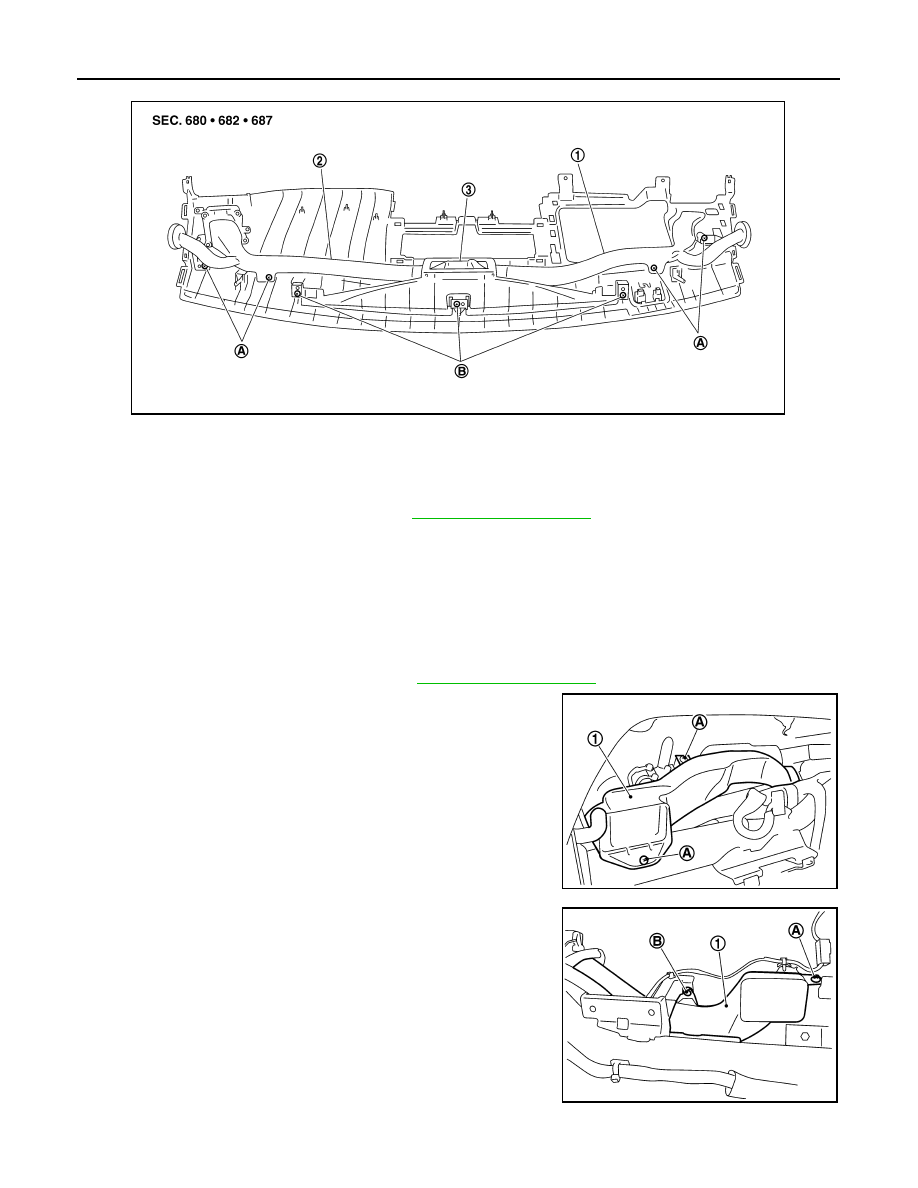

FLOOR DUCTS

Removal

1.

Remove front seats and center console assembly. Refer to

SE-14, "Removal and Installation"

 and

IP-11,

"Removal and Installation"

.

SJIA0663E

SJIA0664E

SJIA0665E
