Nissan Tiida C11. Manual - part 1423





VTL-28

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

PTC HEATER

PTC HEATER

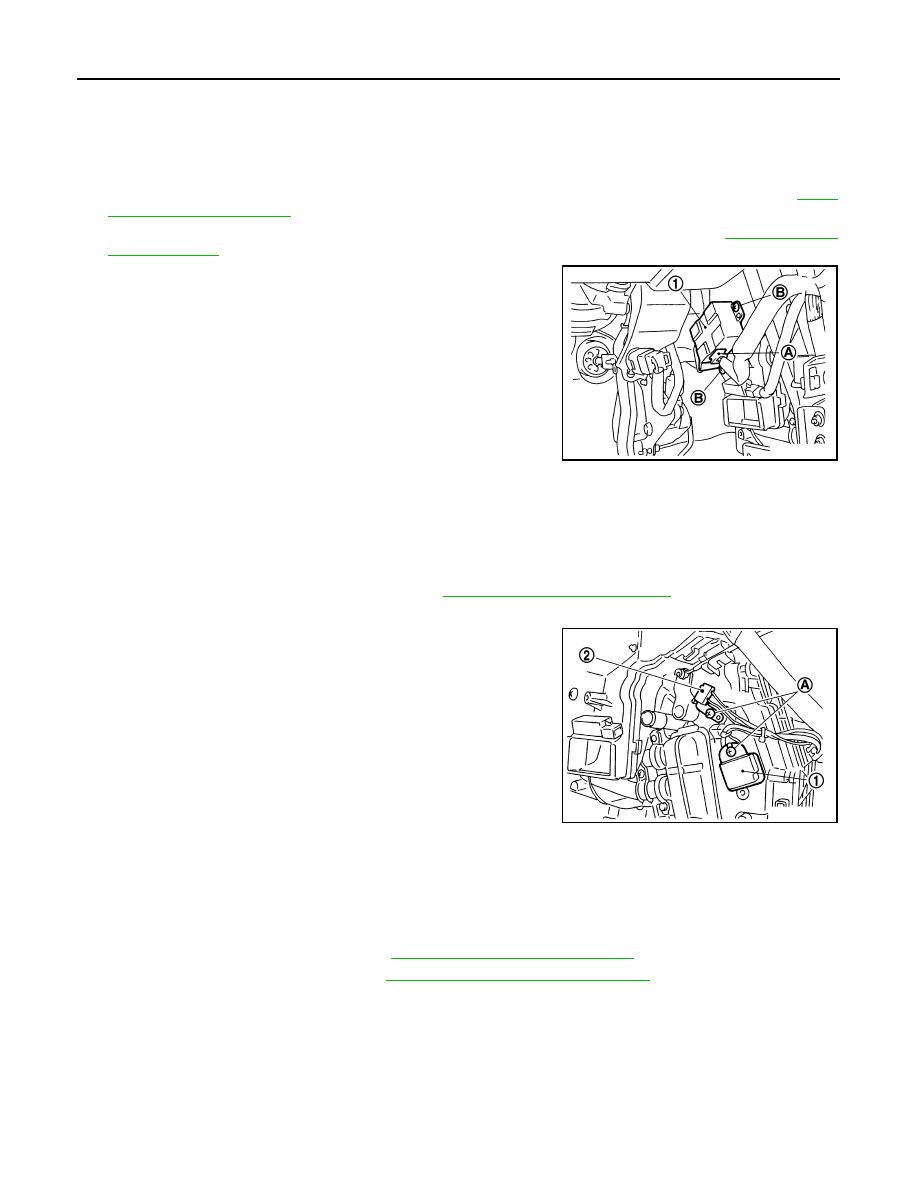

Removal and Installation of PTC Control Unit

INFOID:0000000001696502

REMOVAL

1.

Remove the instrument lower finisher and instrument lower cover (LH) for LHD only. Refer to

IP-11,

"Removal and Installation"

.

2.

Remove the glove box assembly and instrument lower cover (RH) for RHD only. Refer to

IP-11, "Removal

and Installation"

.

3.

Disconnect the PTC control unit connector (A).

4.

Remove the PTC control unit screws (B), and then remove the
PTC control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation of PTC Heater

INFOID:0000000001696503

REMOVAL

1.

Remove the instrument panel and pad. Refer to

IP-11, "Removal and Installation"

.

2.

Disconnect the PTC heater connector and full hot switch connector.

3.

Remove the PTC heater and full hot switch screws (A), and then
remove the PTC heater (1) and full hot switch (2).

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation of Water Temperature Sensor

INFOID:0000000001696504

REMOVAL

1.

Remove the A/C unit assembly. Refer to

VTL-12, "Removal and Installation"

.

2.

Remove the heater pipe cover. Refer to

VTL-39, "Disassembly and Assembly"

.

SJIA0776E

SJIA0774E

PTC HEATER

VTL-29

< ON-VEHICLE REPAIR >

[AUTOMATIC AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

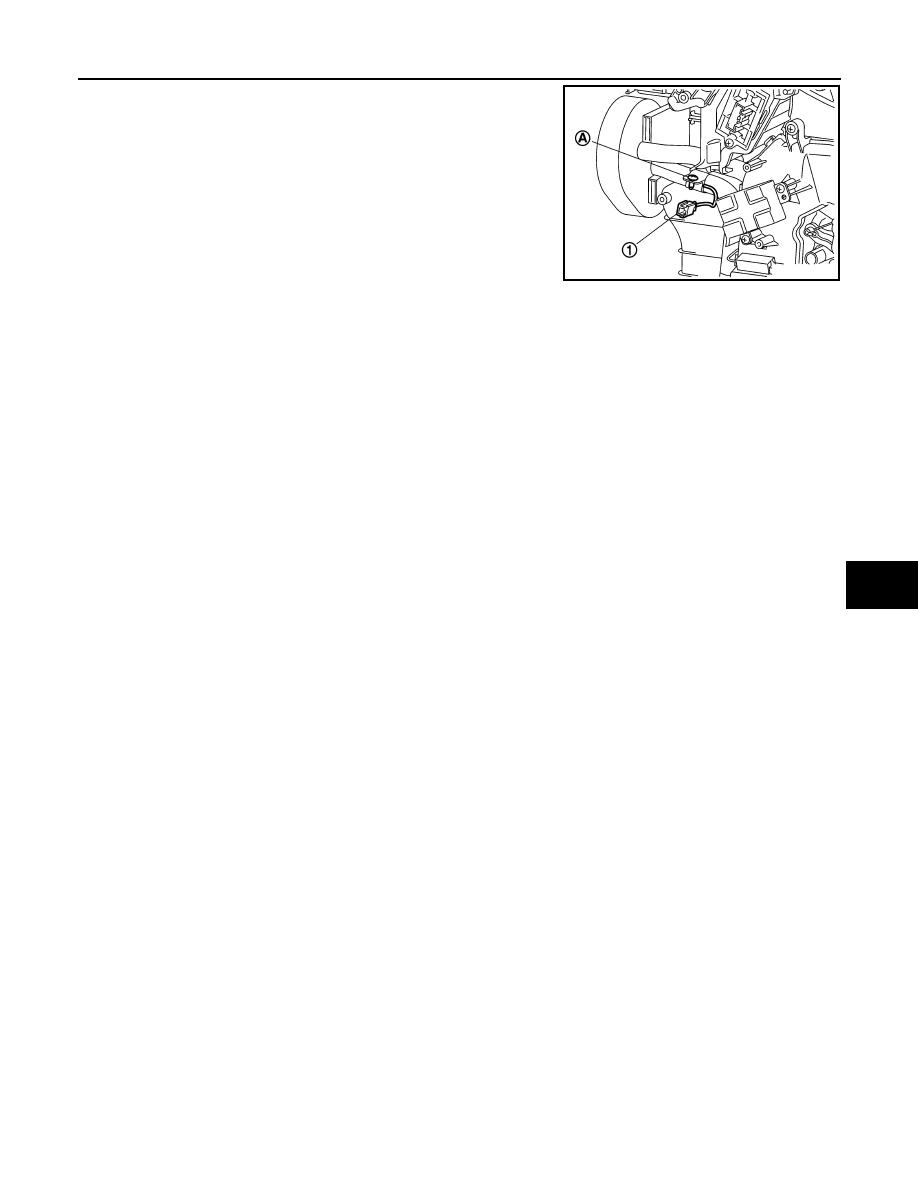

3.

Remove the water temperature sensor screw (A), and then
remove the water temperature sensor (1).

INSTALLATION

Installation is in the reverse order of removal.

SJIA0934E

VTL-30

< PRECAUTION >

[MANUAL AIR CONDITIONER]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001696378

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Precaution for Working with HFC-134a (R-134a)

INFOID:0000000001696379

WARNING:

• Use only specified oil for the HFC-134a (R-134a) A/C system and HFC-134a (R-134a) components. If

oil other than that specified is used, compressor malfunction is likely to occur.

• The specified HFC-134a (R-134a) oil rapidly absorbs moisture from the atmosphere. The following

handling precautions must be observed:

- When removing refrigerant components from a vehicle, immediately cap (seal) the component to

minimize the entry of moisture from the atmosphere.

- When installing refrigerant components to a vehicle, do not remove the caps (unseal) until just

before connecting the components. Connect all refrigerant loop components as quickly as possible
to minimize the entry of moisture into system.

- Only use the specified oil from a sealed container. Immediately reseal containers of oil. Without

proper sealing, oil will become moisture saturated and should not be used.

- Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat.

Use only approved recovery/recycling equipment to discharge HFC-134a (R-134a) refrigerant. If acci-
dental system discharge occurs, ventilate work area before resuming service. Additional health and
safety information may be obtained from refrigerant and oil manufacturers.

- Do not allow A/C oil to come in contact with styrofoam parts. Damage may result.

PREPARATION

VTL-31

< PREPARATION >

[MANUAL AIR CONDITIONER]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

PREPARATION

PREPARATION

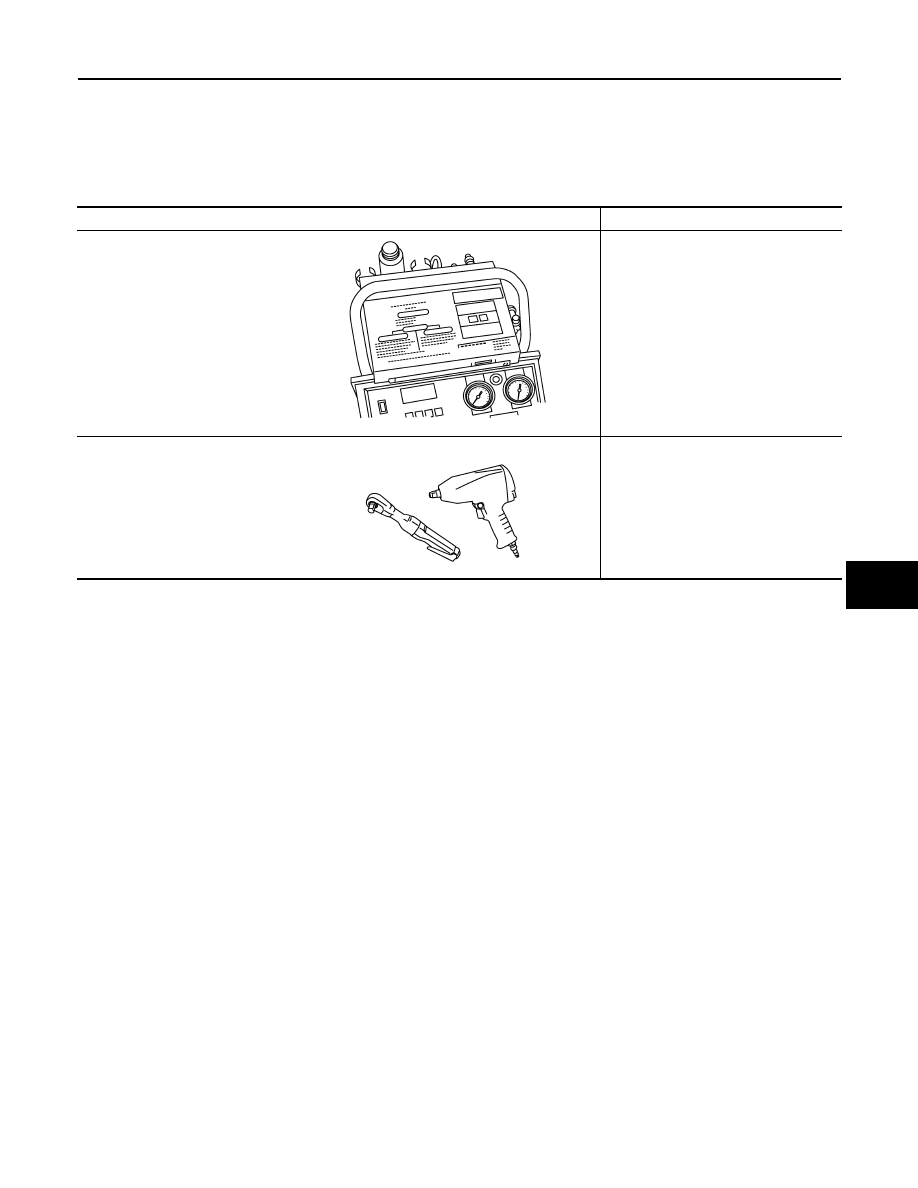

Commercial Service Tool

INFOID:0000000001696380

Tool name

Description

(J-41810-NI)
Refrigerant identifier equipment (R-
134a)

For checking refrigerant purity and
system contamination

Power tool

Loosening bolts and nuts

RJIA0197E

PBIC0190E
