TRANSAXLE ASSEMBLY

TM-683

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DISASSEMBLY AND ASSEMBLY

TRANSAXLE ASSEMBLY

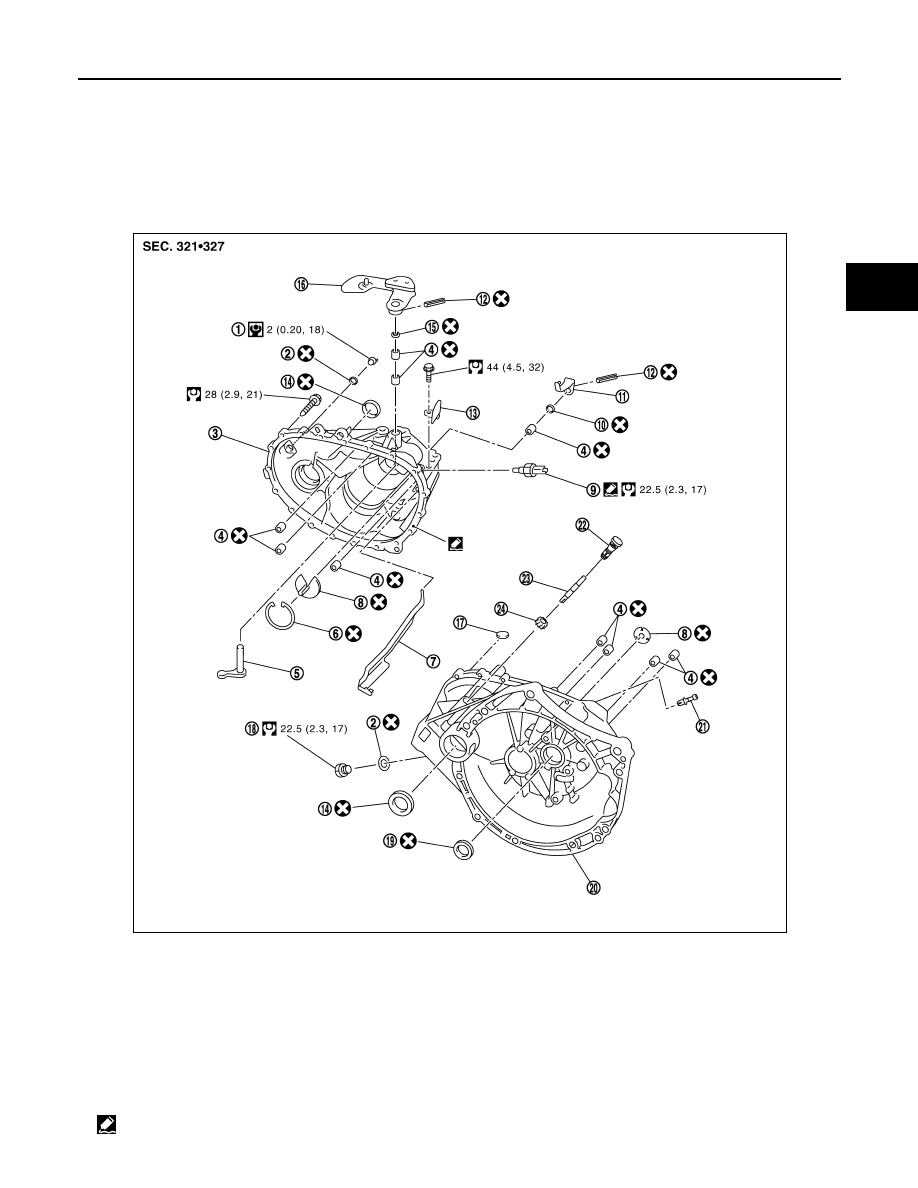

Exploded View

INFOID:0000000001381645

CASE AND HOUSING

1.

Filler plug

2.

Gasket

3.

Transaxle case

4.

Bushing

5.

Shift finger

6.

Snap ring

7.

Oil gutter

8.

Oil channel

9.

Position switch

10. Shifter lever oil seal

11. Shifter lever

12. Retaining pin

13. Bracket

14. Differential side oil seal

15. Selector lever oil seal

16. Selector lever

17. Magnet

18. Drain plug

19. Input shaft oil seal

20. Clutch housing

21. Two way connector

22. Plug (if equipped)

23. Pinion shaft (if equipped)

24. Pinion gear (if equipped)

: Apply Genuine Liquid Gasket, Three Bond 1215 or an equivalent.

JPDIC0071GB

TM-684

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

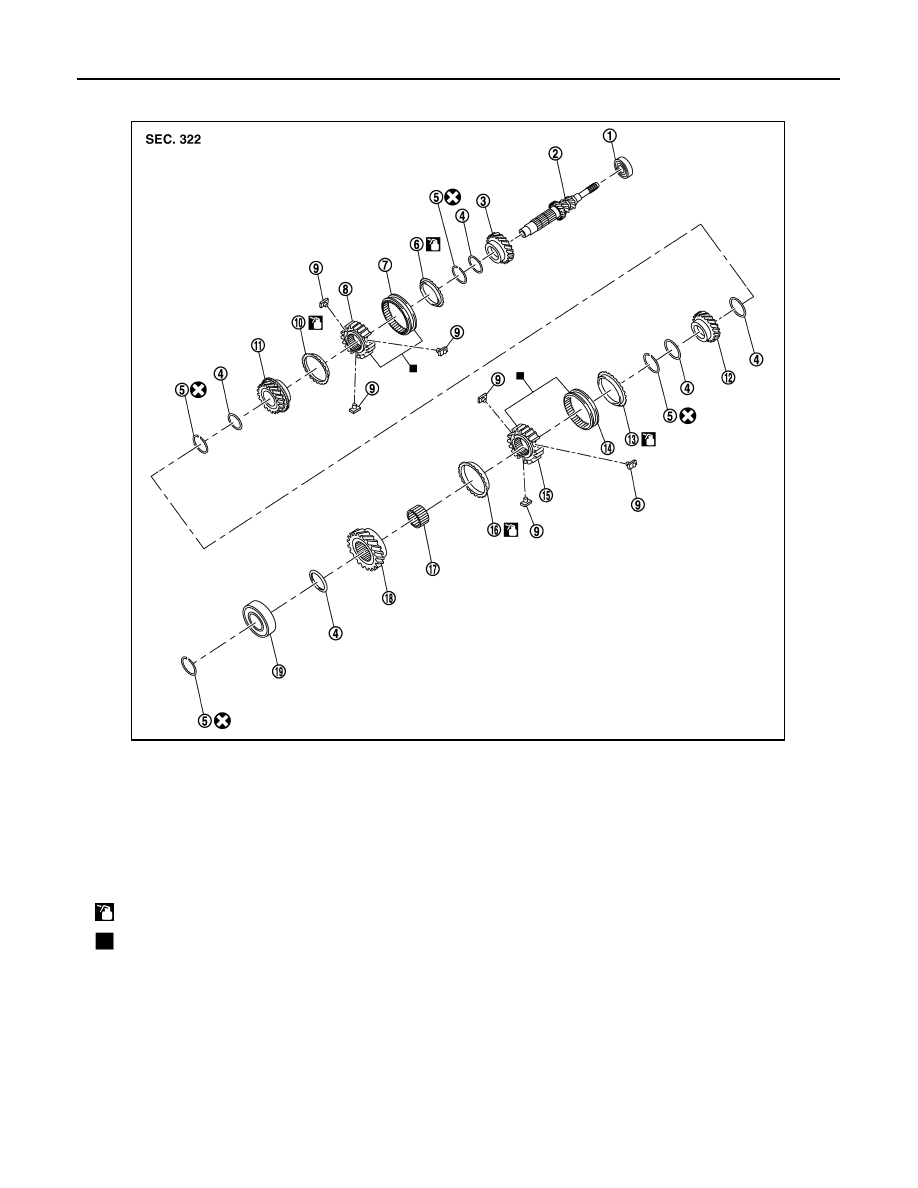

SHAFT AND GEAR

1.

Input shaft front bearing

2.

Input shaft

3.

3rd input gear

4.

Washer

5.

Snap ring

6.

3rd baulk ring

7.

3rd-4th coupling sleeve

8.

3rd-4th synchronizer hub

9.

Insert key

10. 4th baulk ring

11. 4th input gear

12. 5th input gear

13. 5th baulk ring

14. 5th-6th coupling sleeve

15. 5th-6th synchronizer hub

16. 6th baulk ring

17. Needle bearing

18. 6th input gear

19. Input shaft rear bearing

: Apply gear oil.

: Replace the parts as a set.

SFIA3292E

TRANSAXLE ASSEMBLY

TM-685

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

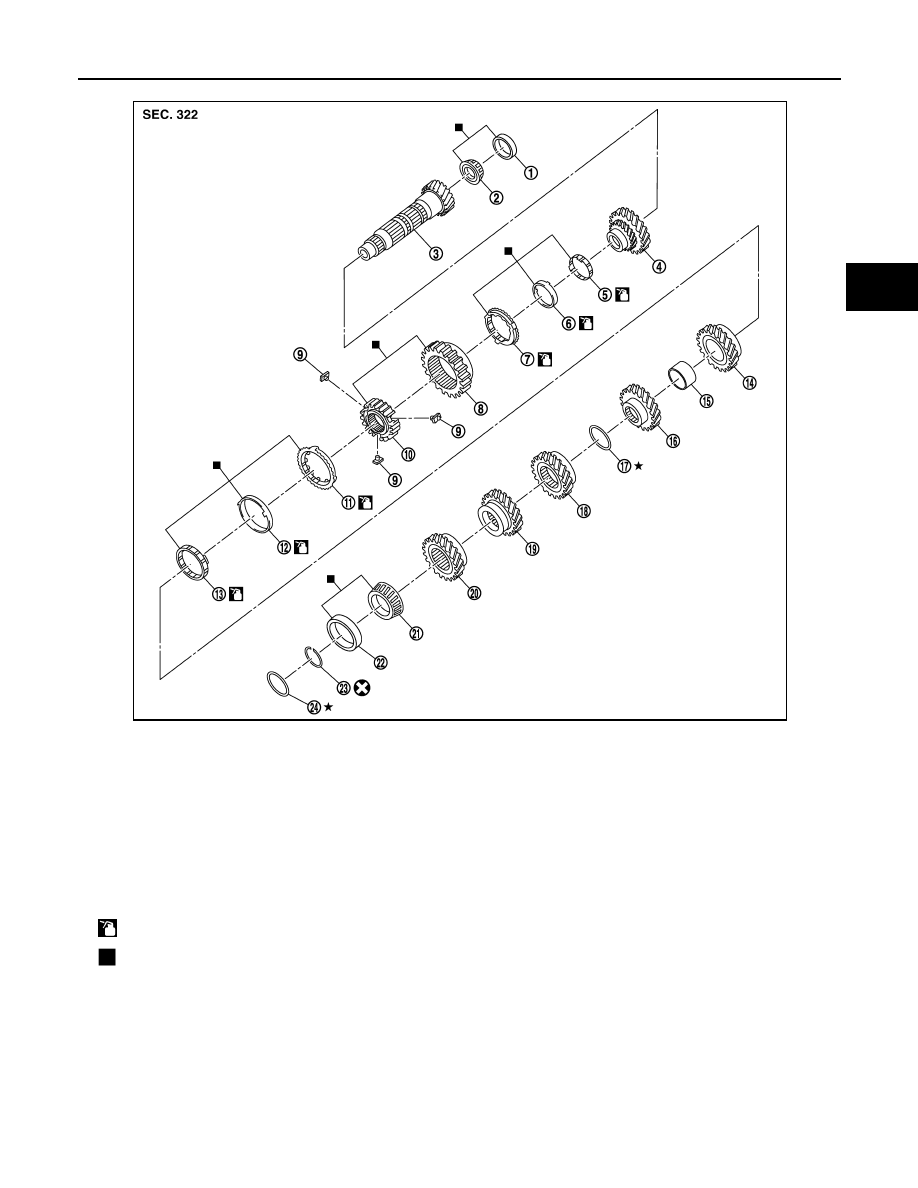

1.

Mainshaft front bearing outer
race

2.

Mainshaft front bearing inner race

3.

Mainshaft

4.

1st main gear

5.

1st inner baulk ring

6.

1st synchronizer cone

7.

1st outer baulk ring

8.

1st-2nd coupling sleeve

9.

Insert key

10.

1st-2nd synchronizer hub

11. 2nd outer baulk ring

12. 2nd synchronizer cone

13.

2nd inner baulk ring

14. 2nd main gear

15. Bushing

16.

3rd main gear

17. Intermediate adjusting shim

18. 4th main gear

19.

5th main gear

20. 6th main gear

21. Mainshaft rear bearing inner race

22.

Mainshaft rear bearing outer race 23. Snap ring

24. Bearing preloading shim

: Apply gear oil.

: Replace the parts as a set.

SFIA3293E

TM-686

< DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

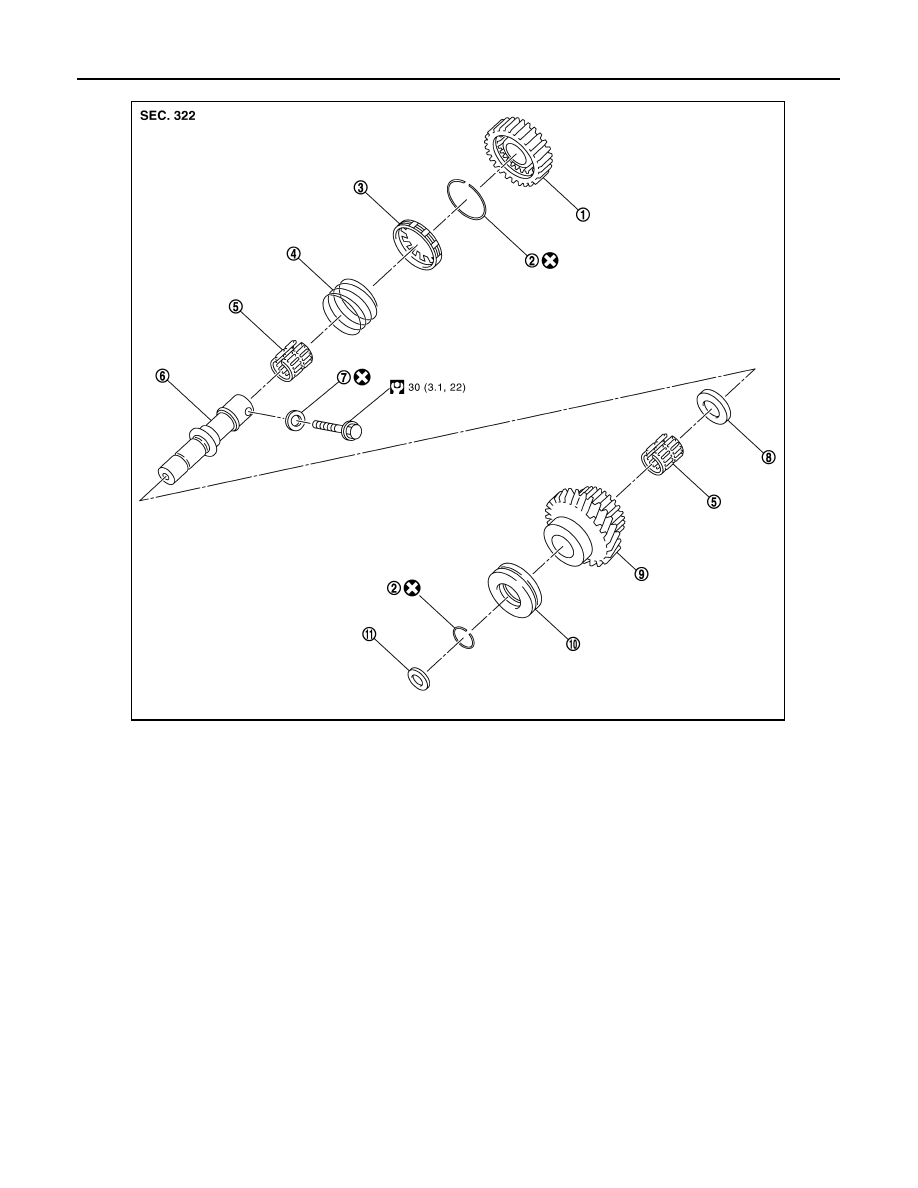

SHIFT FORK AND FORK ROD

1.

Reverse output gear

2.

Snap ring

3.

Reverse baulk ring

4.

Return spring

5.

Needle bearing

6.

Reverse idler shaft

7.

Seal washer

8.

Washer

9.

Reverse input gear

10.

Lock washer

11. Spring washer

SFIA3294E
