Nissan Tiida C11. Manual - part 1407





AIR BREATHER HOSE

TM-679

< ON-VEHICLE REPAIR >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

MR18DE Engine Models

1.

Remove the battery. Refer to

PG-6, "Removal and Installation"

.

2.

Remove air duct and air cleaner case. Refer to

EM-269, "Removal and Installation"

.

3.

Remove the air breather hose.

CAUTION:

When removing air breather hose, be sure to hold two way connector securely.

K9K Engine Models

1.

Remove the air duct.

2.

Remove the air breather hose.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure air breather hose is not collapsed or blocked due to folding or bending when installed.

MR18DE Engine Models

• When installing air breather hose on two way connector, aim paint mark face toward the vehicle front.
• When installing air breather hose on two way connector, push it until it hits transaxle case.
• When installing air breather hose to air cleaner case, make sure that clips are fully inserted.

K9K Engine Models

• When installing air breather hose to transaxle, aim paint mark face toward the vehicle front.
• When installing air breather hose to transaxle, push it until it hits transaxle case.
• When installing air breather hose to air duct, make sure that clip is fully inserted.

TM-680

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

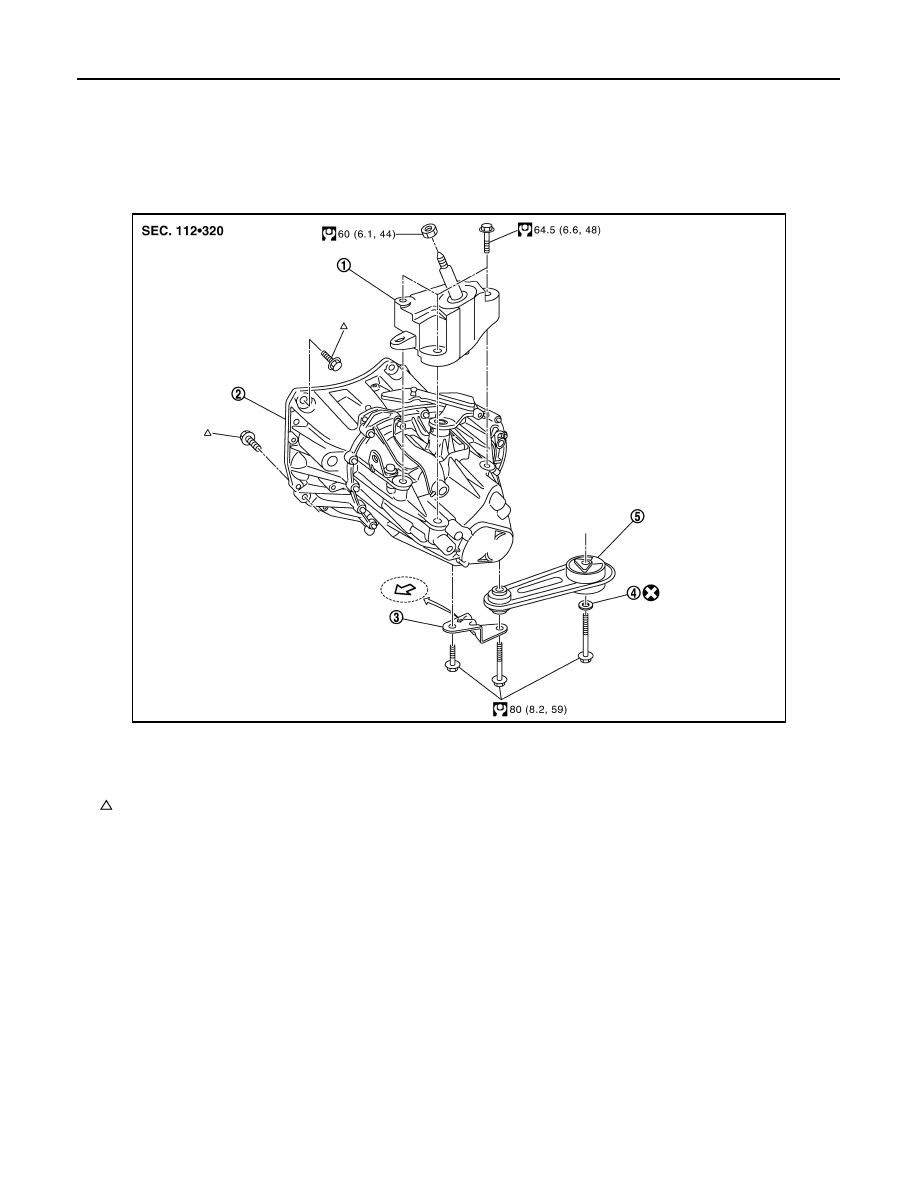

Exploded View

INFOID:0000000001381643

MR18DE

SCIA7631E

1.

LH engine mount bracket (transaxle
side)

2.

 Transaxle assembly

3.

Rear engine mount bracket

4.

Washer

5.

Rear torque rod

Front

:  Refer to installation.



TRANSAXLE ASSEMBLY

TM-681

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

K9K

Removal and Installation

INFOID:0000000001381644

CAUTION:

If transaxle assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder).
Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc sliding parts
may damage seal of CSC and may cause clutch fluid leakage. Refer to

CL-11, "Removal and Installa-

tion"

.

REMOVAL

1.

Drain gear oil. Refer to

TM-672, "Draining"

.

2.

Drain clutch fluid and remove clutch tube from CSC. Refer to

CL-12, "Removal and Installation"

.

CAUTION:

Do not depress clutch pedal during removal procedure.

3.

Remove the engine and transaxle as an assembly from the vehicle. Refer to

EM-207, "Removal and

Installation"

 (MR18DE) or

EM-302, "Removal and Installation"

 (K9K).

4.

Remove the transaxle to engine and engine to transaxle bolts.

5.

Separate the tranaxle assembly from the engine.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• The transaxle assembly must not interfere with the wire harnesses and clutch tube.
• When installing transaxle assembly, never bring input shaft into contact with clutch cover.

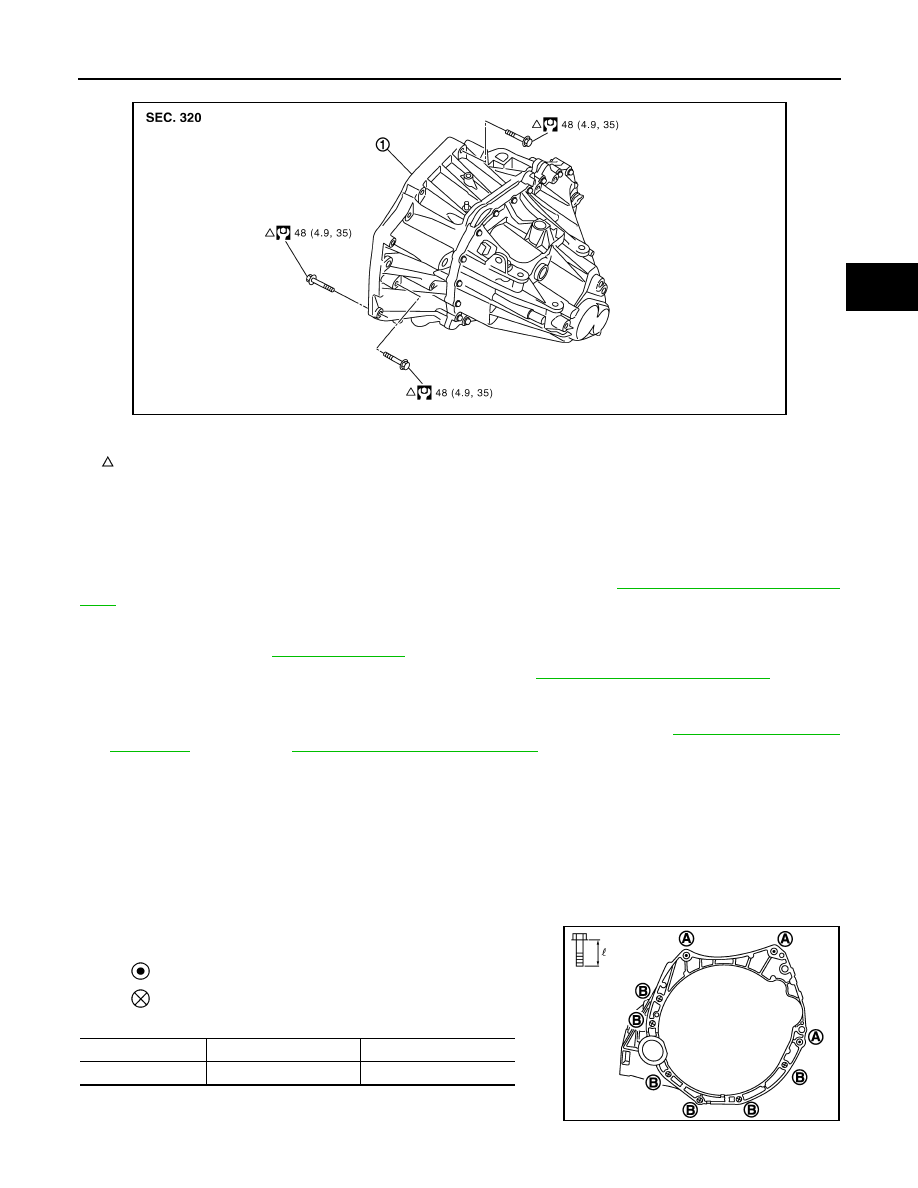

MR18DE

Tighten bolts to the specified torque.

JPDIC0121GB

1.

Transaxle assembly

:  Refer to installation.

: Transaxle to engine

: Engine to transaxle

Bolt symbol

A

B

Quantity

3

6

JPDIC0094ZZ

TM-682

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

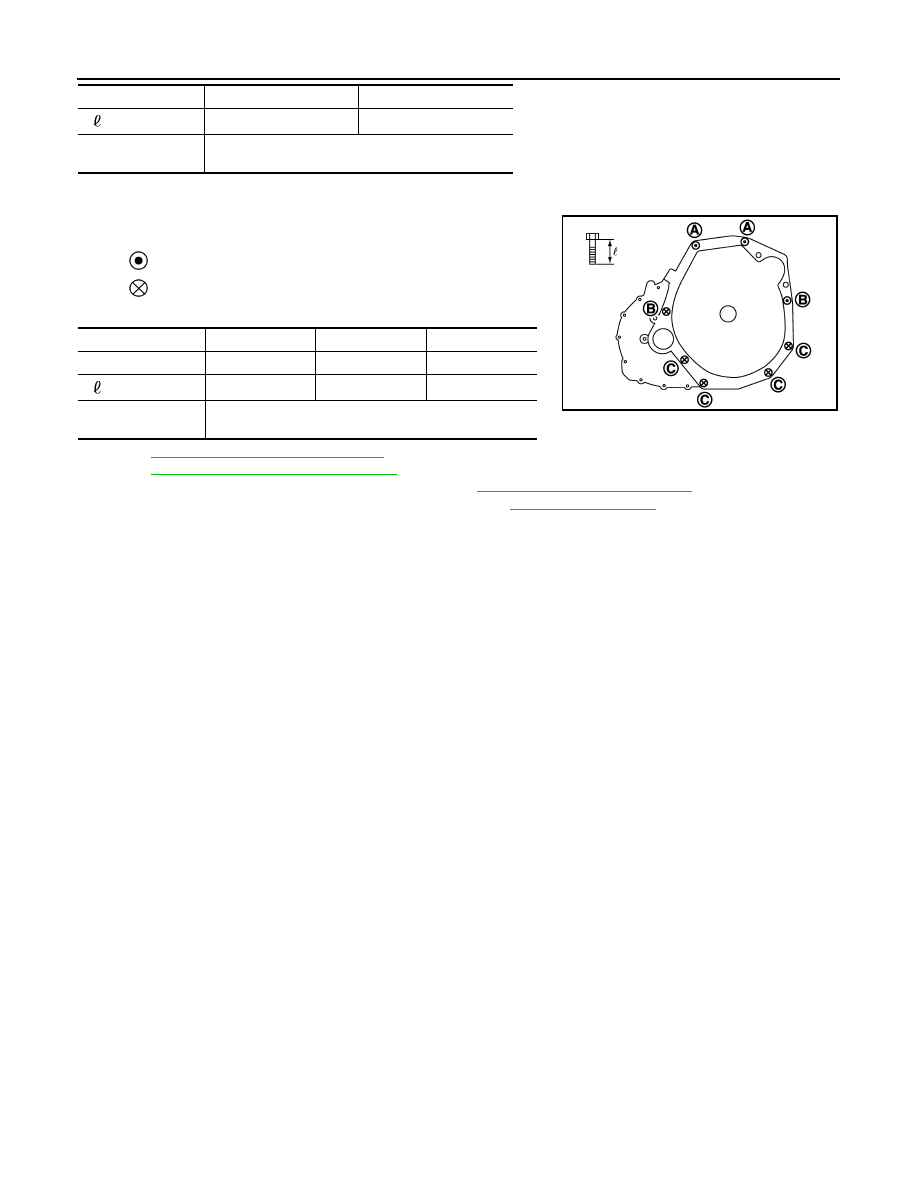

K9K

Tighten bolts to the specified torque.

• Refer to

CL-11, "Removal and Installation"

 for CSC (Concentric Slave Cylinder) installation procedure.

• Refer to

TM-674, "Removal and Installation"

 for select cable and shift cable installation procedure.

• Bleed the air from the clutch hydraulic system. Refer to

CL-8, "Air Bleeding Procedure"

.

• After installation, check for oil leakage and oil level. Refer to

TM-672, "Inspection"

.

” mm (in)

60 (2.36)

50 (1.97)

Tightening torque
N·m (kg-m, ft-lb)

62.0 (6.3, 46)

Bolt symbol

A

B

: Transaxle to engine

: Engine to transaxle

Bolt symbol

A

B

C

Quantity

2

2

4

” mm (in)

50 (1.97)

80 (3.15)

65 (2.56)

Tightening torque
N·m (kg-m, ft-lb)

48 (4.9, 35)

JPDIC0054ZZ
