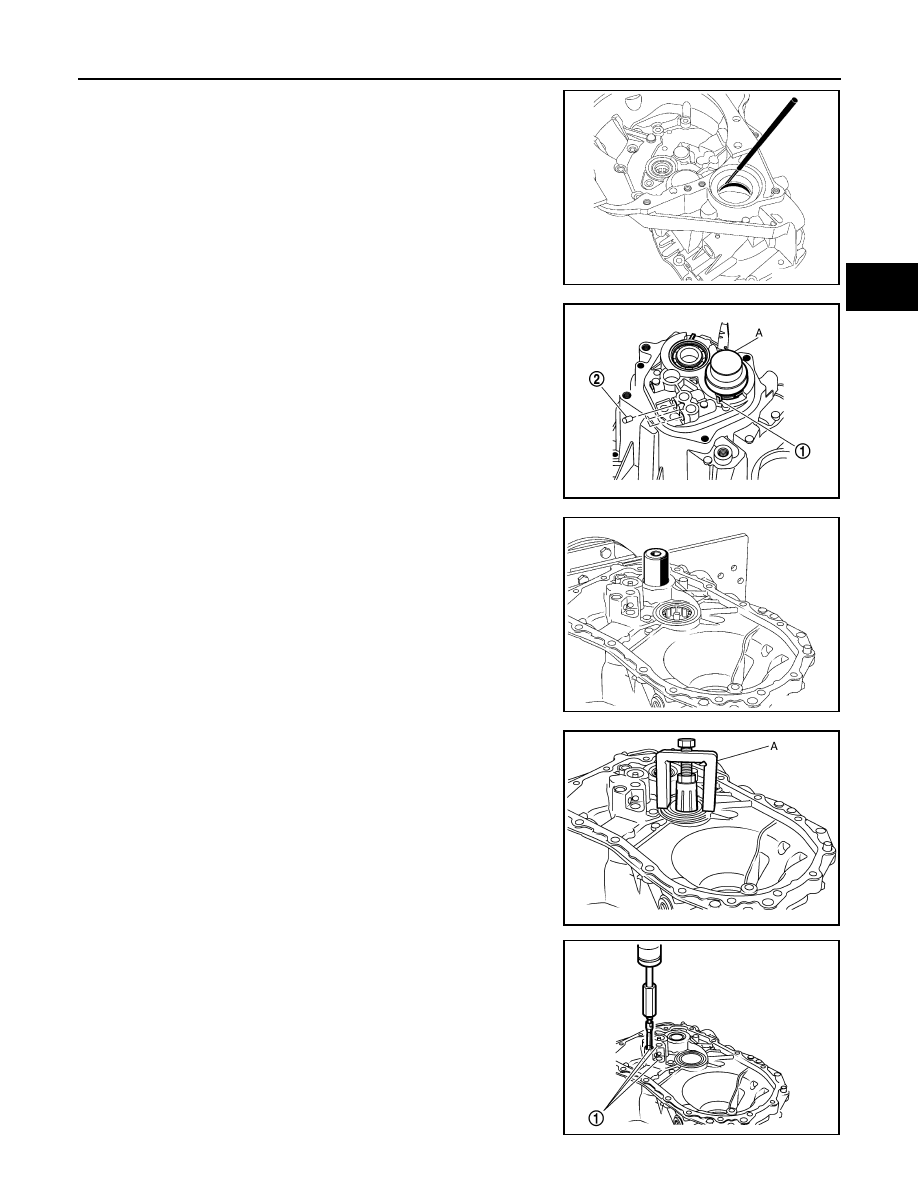

28. Remove differential side bearing outer races from clutch hous-

ing and transaxle case using a brass bar.

CAUTION:

Be careful not to damage clutch housing and transaxle
case.

29. Using the drift, with snap rings (1) stretched, press out input

shaft rear bearing and mainshaft rear bearing from transaxle
case.

30. Remove check balls (2) and check ball plugs from transaxle

case.

31. Remove input shaft oil seal and input shaft front bearing from

clutch housing using a suitable drift.

32. Separate oil channel tube at the root.

33. Remove mainshaft front bearing and oil channel from clutch

housing using the valve seat remover.

34. Remove bushings (1) from clutch housing using a suitable

remover.

MCIB0050E

Tool number

A: ST35300000

PCIB1535E

MCIB0044E

Tool number

A: KV111038S0

PCIB1536E

PCIB1537E

TM-644

< DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

TRANSAXLE ASSEMBLY

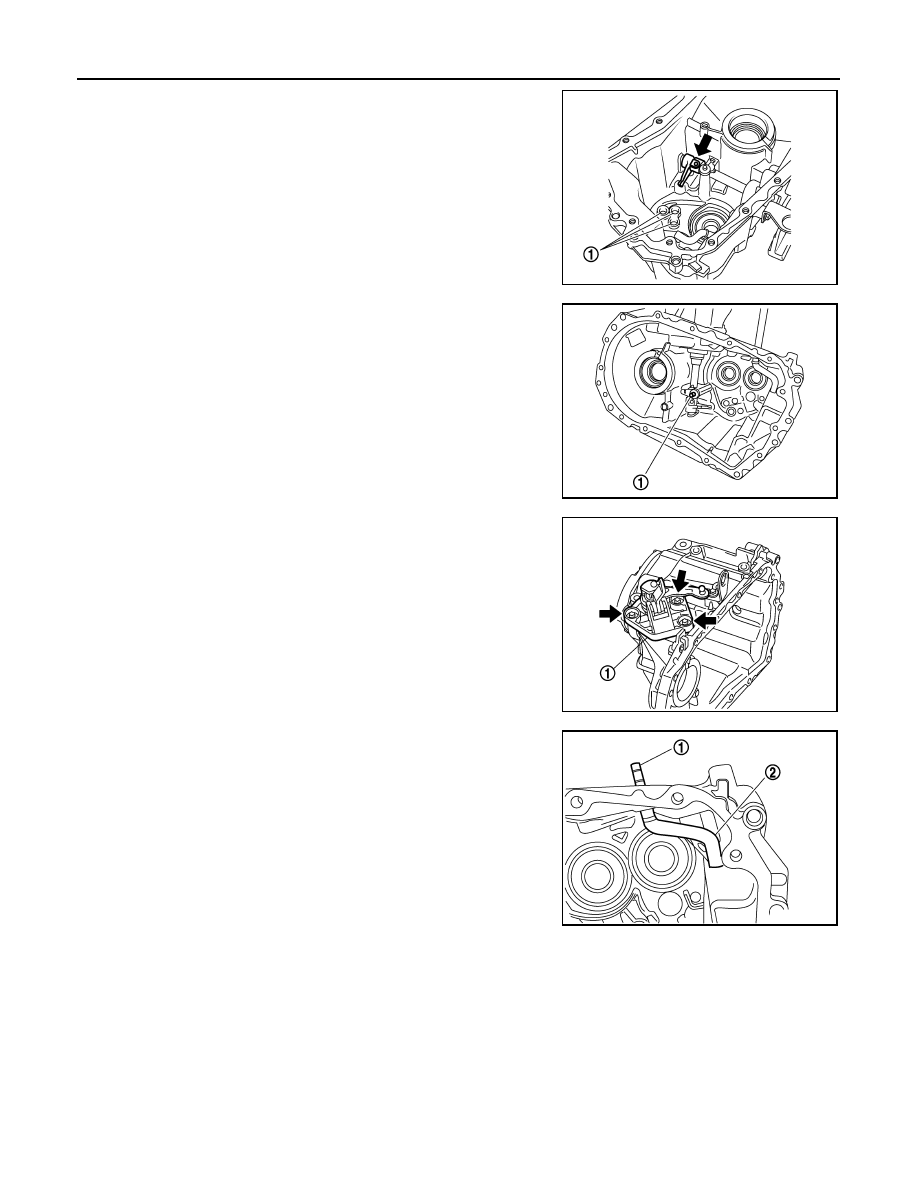

35. Remove retaining pin from selector using a pin punch.

36. Remove bushings (1) from transaxle case using a suitable

remover.

37. Remove interlock bolt (1), bushing, spring and striking interlock

from transaxle case.

38. Remove control shaft (1) from transaxle case.

39. Pull out 2 way connector (1) straight from air breather inner tube

(2).

40. Remove air breather inner tube (2) from transaxle case.

PCIB1538E

PCIB1539E

PCIB1540E

PCIB1541E

TRANSAXLE ASSEMBLY

TM-645

< DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

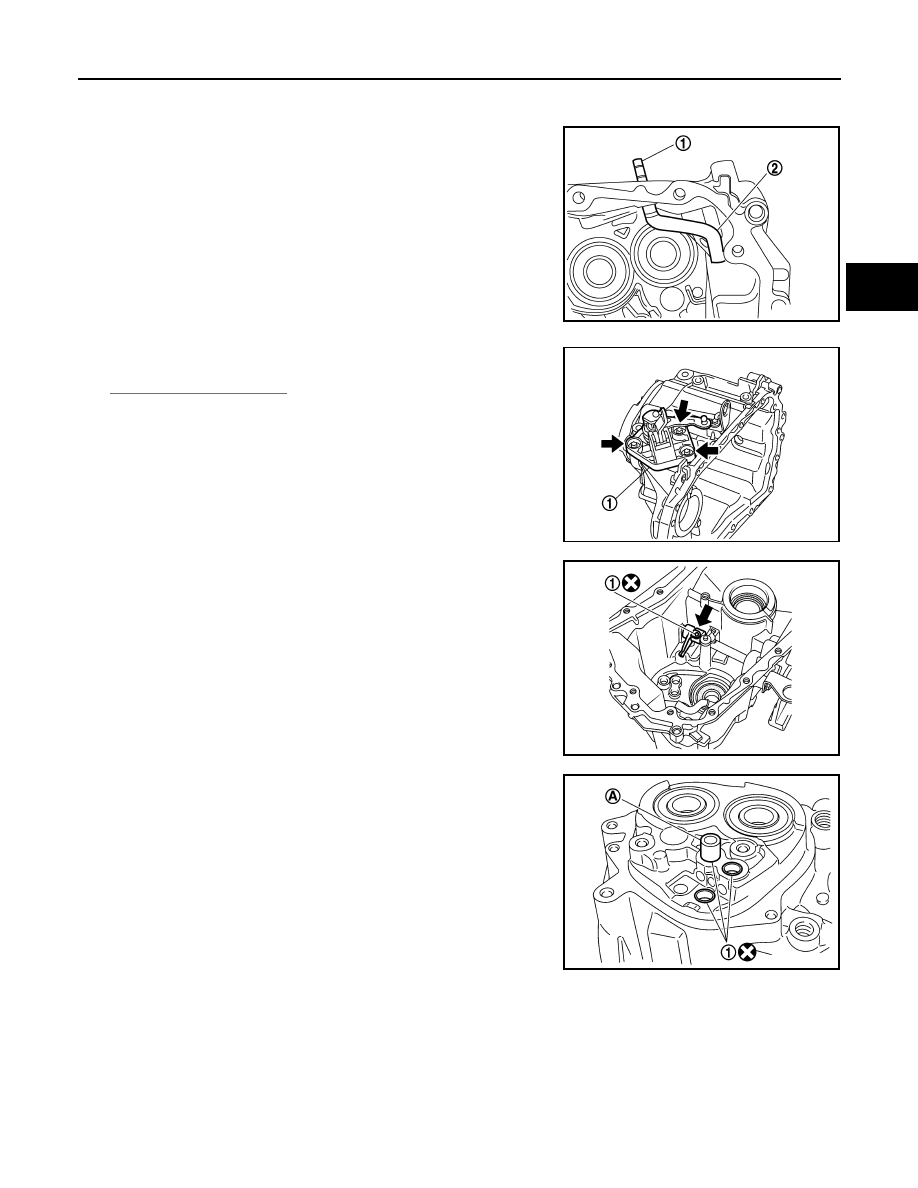

Assembly

INFOID:0000000001381696

1.

Install air breather inner tube (2) to transaxle case.

CAUTION:

Be careful not to damage air breather inner tube.
NOTE:
It is easy to install the air breather inner tube when its end is
closed with tape. Remove the tape after the installation.

2.

Insert 2 way connector (1) straight to air breather inner tube (2).

CAUTION:

Check air breather inner tube for twists after installing.

3.

Apply gear oil to O-ring and install it to control shaft.

CAUTION:

Do not reuse O-ring.

4.

Install control shaft (1) to transaxle case and then install selector
to control shaft. Tighten bolts to the specified torque. Refer to

TM-635, "Exploded View"

.

CAUTION:

Be careful with the orientation of selector.

5.

Install selector onto control shaft, and then install retaining pin
(1) to selector.

6.

Install bushings (1) until it is flush with end face of transaxle
case using a suitable drift (A).

PCIB1541E

PCIB1540E

PCIB1645E

PCIB1542E

TM-646

< DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

TRANSAXLE ASSEMBLY

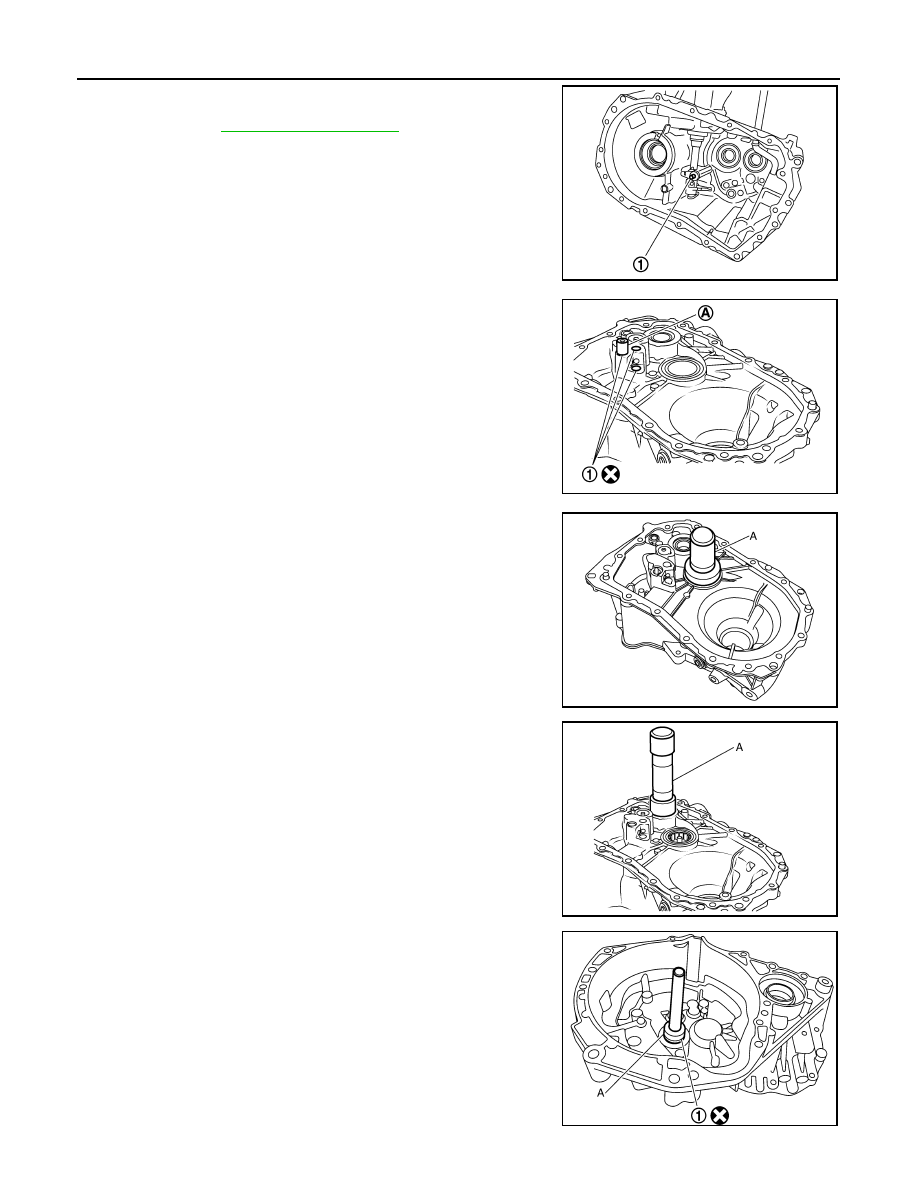

7.

Install striking interlock, spring, bushing and interlock bolt (1) to
transaxle case, and then tighten interlock bolt to the specified
torque. Refer to

TM-635, "Exploded View"

.

8.

Install bushings (1) until it is flush with end face of clutch housing
using a suitable drift (A).

9.

Install oil channel to clutch housing.

CAUTION:

Do not reuse oil channel.

10. Install mainshaft front bearing until it is flush with end face of

clutch housing using Tool (A).

11. Install input shaft front bearing until it is flush with end face of

clutch housing using Tool (A).

12. Install input shaft oil seal (1) until it is flush with end face of

clutch housing using Tool (A).

PCIB1539E

PCIB1543E

Tool number

A: ST33061000

PCIB1544E

Tool number

A: KV40100900

PCIB1545E

Tool number

A: ST33220000

PCIB1546E
