DISASSEMBLY AND ASSEMBLY

TRANSAXLE ASSEMBLY

Exploded View

INFOID:0000000001381694

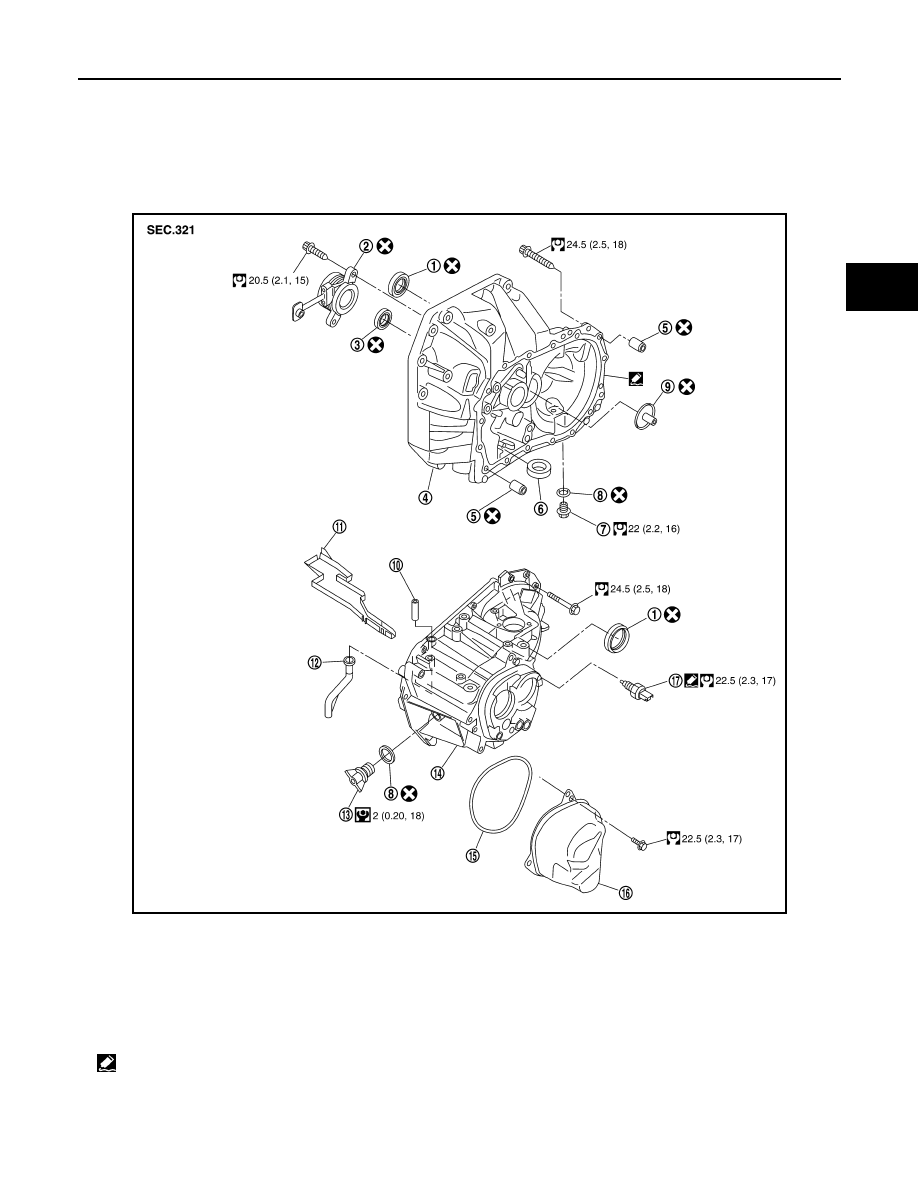

CASE AND HOUSING COMPONENTS

PCIB1518E

1.

Differential side oil seal

2.

CSC (Concentric Slave Cylinder)

3.

Input shaft oil seal

4.

Clutch housing

5.

Dowel pin

6.

Magnet

7.

Drain plug

8.

Gasket

9.

Oil channel

10. 2 way connector

11. Oil gutter

12. Air breather inner tube

13. Filler plug

14. Transaxle case

15. O-ring

16. Rear housing

17. Position switch

: Apply Genuine Liquid Gasket, Three Bond TB1215 or the equivalent.

TM-636

< DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

TRANSAXLE ASSEMBLY

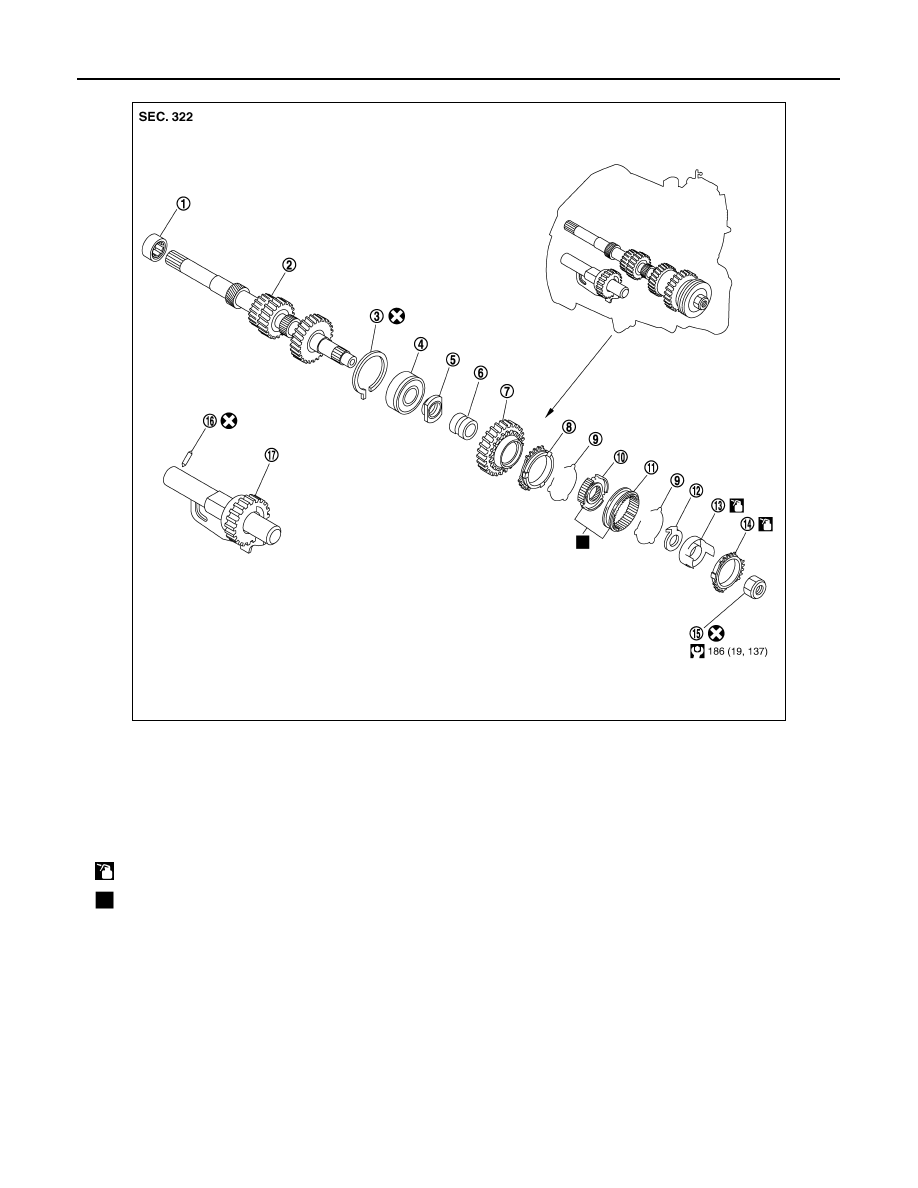

GEAR COMPONENTS

PCIB1519E

1.

Input shaft front bearing

2.

Input shaft

3.

Snap ring

4.

Input shaft rear bearing

5.

Adapter plate

6.

Bushing

7.

5th input gear

8.

5th baulk ring

9.

Spread spring

10. 5th-reverse synchronizer hub

11. 5th-reverse coupling sleeve

12. Lock washer

13. Reverse synchronizer cone

14. Reverse baulk ring

15. Input shaft nut

16. Retaining pin

17. Reverse gear assembly

: Apply gear oil.

: Replace the parts as a set.

TRANSAXLE ASSEMBLY

TM-637

< DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

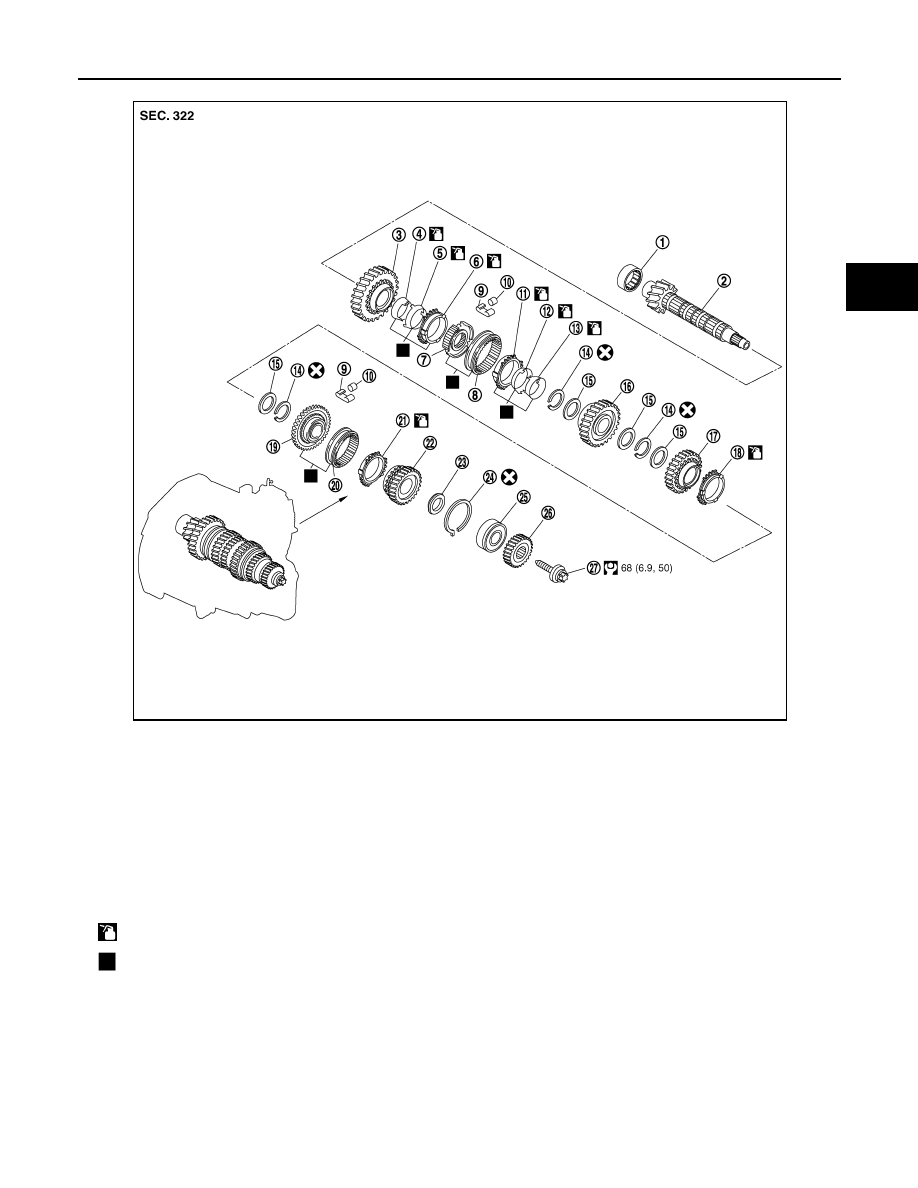

1.

Mainshaft front bearing

2.

Mainshaft

3.

1st main gear

4.

1st inner baulk ring

5.

1st synchronizer cone

6.

1st outer baulk ring

7.

1st-2nd synchronizer hub

8.

1st-2nd coupling sleeve

9.

Spring

10.

Insert key

11. 2nd outer baulk ring

12. 2nd synchronizer cone

13.

2nd inner baulk ring

14. Snap ring

15. Thrust washer

16.

2nd main gear

17. 3rd main gear

18. 3rd baulk ring

19.

3rd-4th synchronizer hub

20. 3rd-4th coupling sleeve

21. 4th baulk ring

22.

4th main gear

23. Washer

24. Snap ring

25.

Mainshaft rear bearing

26. 5th main gear

27. Mainshaft bolt

: Apply gear oil.

: Replace the parts as a set.

PCIB1520E

TM-638

< DISASSEMBLY AND ASSEMBLY >

[5MT: RS5F91R]

TRANSAXLE ASSEMBLY

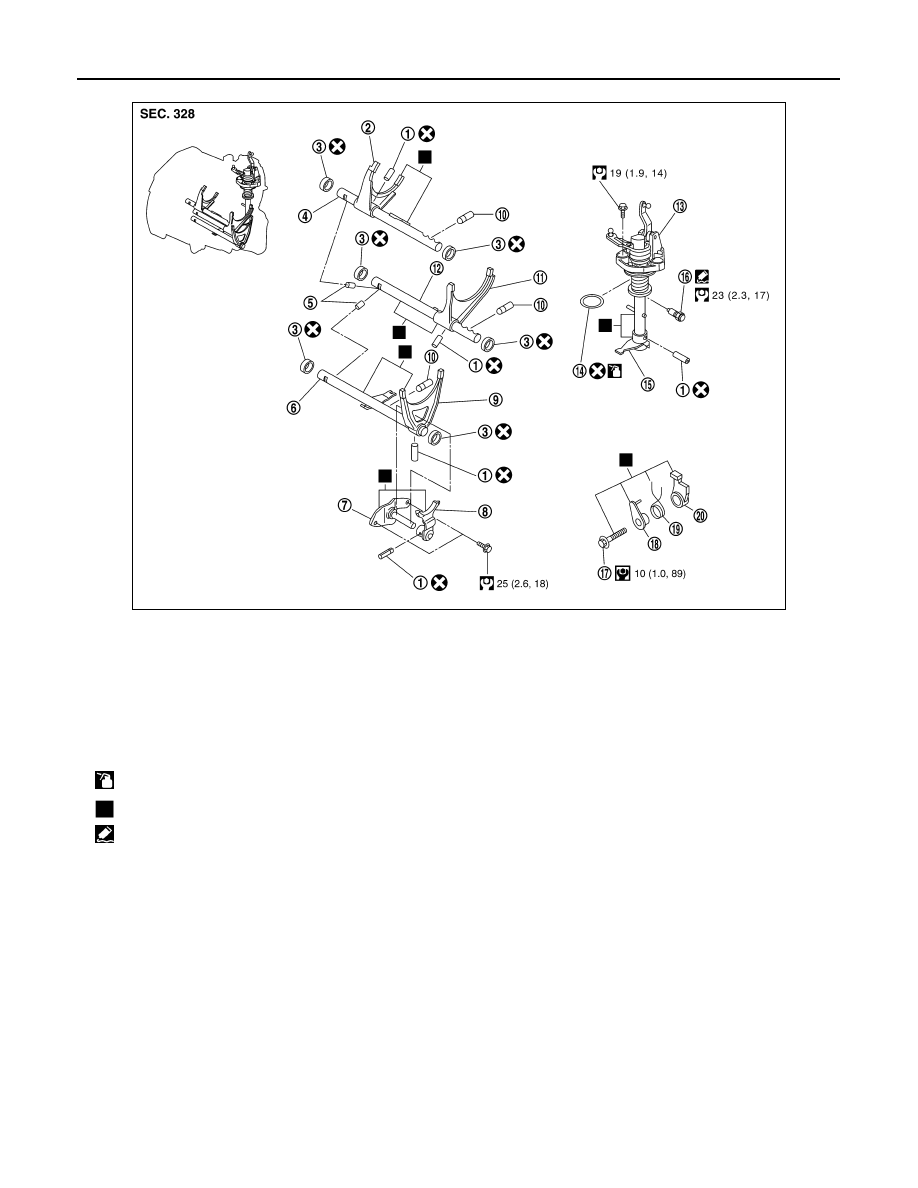

SHIFT CONTROL COMPONENTS

PCIB1521E

1.

Retaining pin

2.

1st-2nd shift fork

3.

Bushing

4.

1st-2nd fork rod

5.

Lock pin

6.

5th-reverse fork rod

7.

Bracket

8.

Reverse gear gate

9.

5th-reverse shift fork

10. Check ball

11. 3rd-4th shift fork

12. 3rd-4th fork rod

13. Control shaft

14. O-ring

15. Selector

16. Check ball plug

17. Interlock bolt

18. Bushing

19. Spring

20. Striking interlock

: Apply gear oil.

: Replace the parts as a set.

: Apply Genuine Liquid Gasket, Three Bond TB1215 or the equivalent.
