Nissan Tiida C11. Manual - part 1394





PREPARATION

TM-627

< PREPARATION >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Commercial Service Tools

INFOID:0000000001381680

Tool name

Description

Drift
a: 38 mm (1.50 in) dia.

• Removing input shaft oil seal
• Removing input shaft front bearing

Drift
a: 14.5 mm (0.571 in) dia.

Installing bushing

S-NT063

S-NT063

TM-628

< ON-VEHICLE MAINTENANCE >

[5MT: RS5F91R]

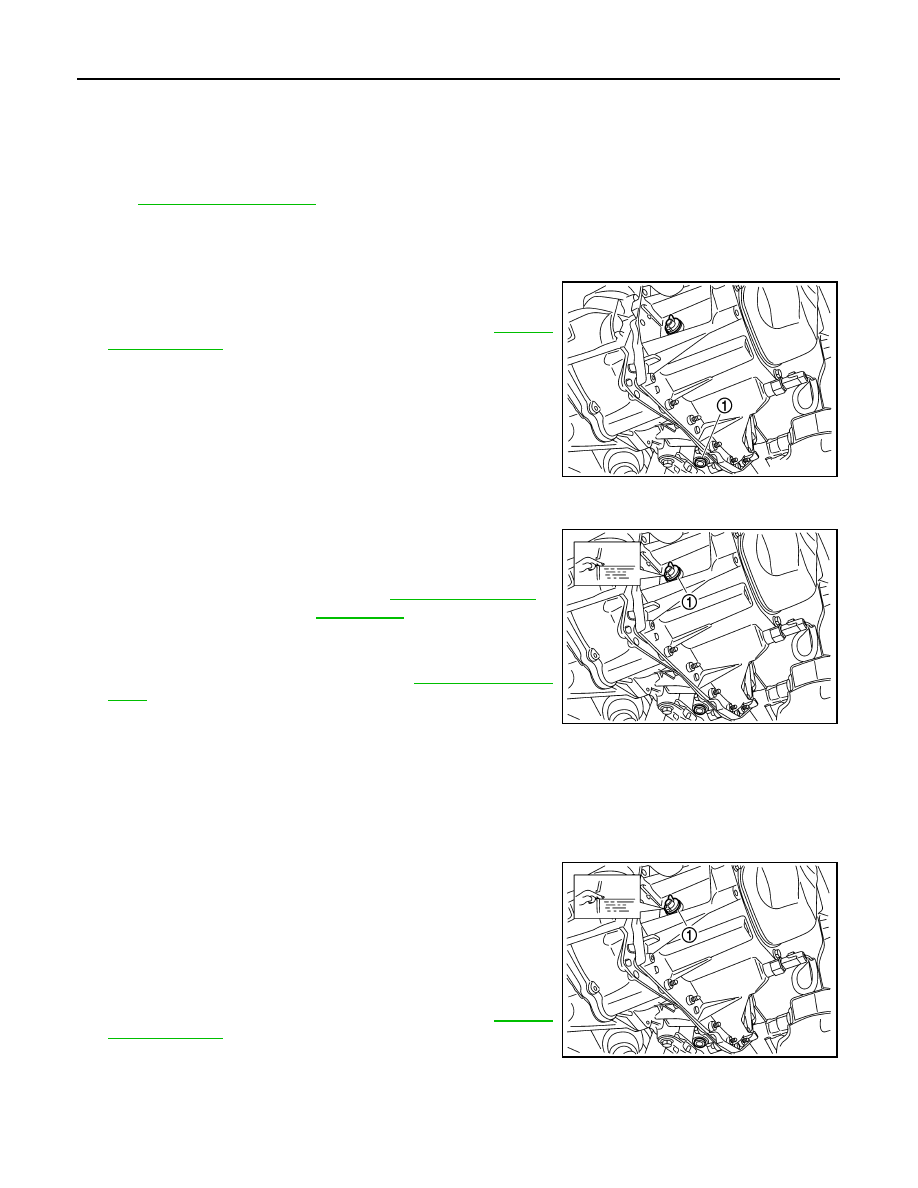

GEAR OIL

ON-VEHICLE MAINTENANCE

GEAR OIL

Exploded View

INFOID:0000000001381681

Refer to

TM-635, "Exploded View"

.

Draining

INFOID:0000000001381682

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug (1) and drain oil.

3.

Set a new gasket on drain plug (1) and install it to transaxle and
tighten drain plug to the specified torque. Refer to

TM-635,

"Exploded View"

CAUTION:

Do not reuse gasket.

Refilling

INFOID:0000000001381683

1.

Remove filler plug (1). Fill with new oil until oil level reaches the
specified limit near filler plug hole as shown.

2.

After refilling oil, check oil level.

3.

Set a new gasket on filler plug (1), then install it to transaxle and
tighten to the specified torque. Refer to

TM-635, "Exploded

View"

.

CAUTION:

Do not reuse gasket.

Inspection

INFOID:0000000001381684

LEAKAGE

Make sure that oil is not leaking from transaxle or around it.

LEVEL

1.

Remove filler plug (1) and check oil level at filler plug hole as
shown.

CAUTION:

Do not start engine while checking oil level.

2.

Set a new gasket on filler plug (1) and install it to the transaxle
case.

CAUTION:

Do not reuse gasket.

3.

Tighten filler plug to the specified torque. Refer to

TM-635,

"Exploded View"

.

PCIB1504E

Oil grade and capacity

: Refer to

MA-19, "Fluids and

Lubricants"

.

SCIA7119E

SCIA7119E

SIDE OIL SEAL

TM-629

< ON-VEHICLE REPAIR >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ON-VEHICLE REPAIR

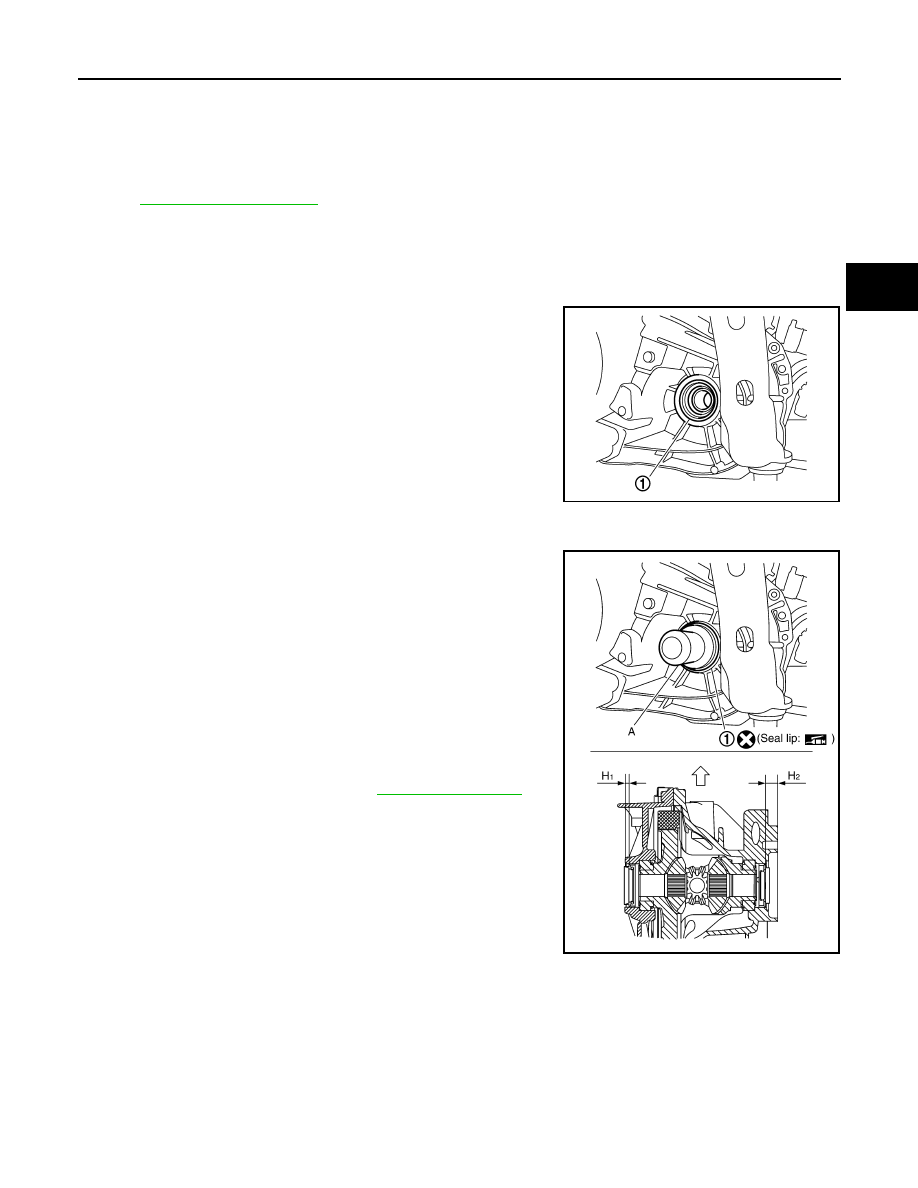

SIDE OIL SEAL

Exploded View

INFOID:0000000001381685

Refer to

TM-635, "Exploded View"

.

Removal and Installation

INFOID:0000000001381686

REMOVAL

1.

Remove front drive shafts from transaxle assembly. Refer to XX-XX, "*****".

2.

Remove differential side oil seal (1) using suitable tool.

CAUTION:

Do not damage transaxle case and clutch housing.

INSTALLATION

Installation is in the reverse order of removal.

: Front

• Install new differential side oil seal (1) to clutch housing and tran-

saxle case using Tool (A).

CAUTION:

• Do not reuse differential side oil seal.
• When installing, do not incline differential side oil seal.
• Do not damage clutch housing or transaxle case.

• Check oil level after installation. Refer to

TM-628, "Inspection"

.

PCIB1505E

Tool number

: ST27862000 (

)

Dimension “H

1

: 5.7 - 6.3 mm (0.224 - 0.248 in)

Dimension “H

2

: 16.4 - 17.0 mm (0.646 - 0.669 in)

PCIB1506E

TM-630

< ON-VEHICLE REPAIR >

[5MT: RS5F91R]

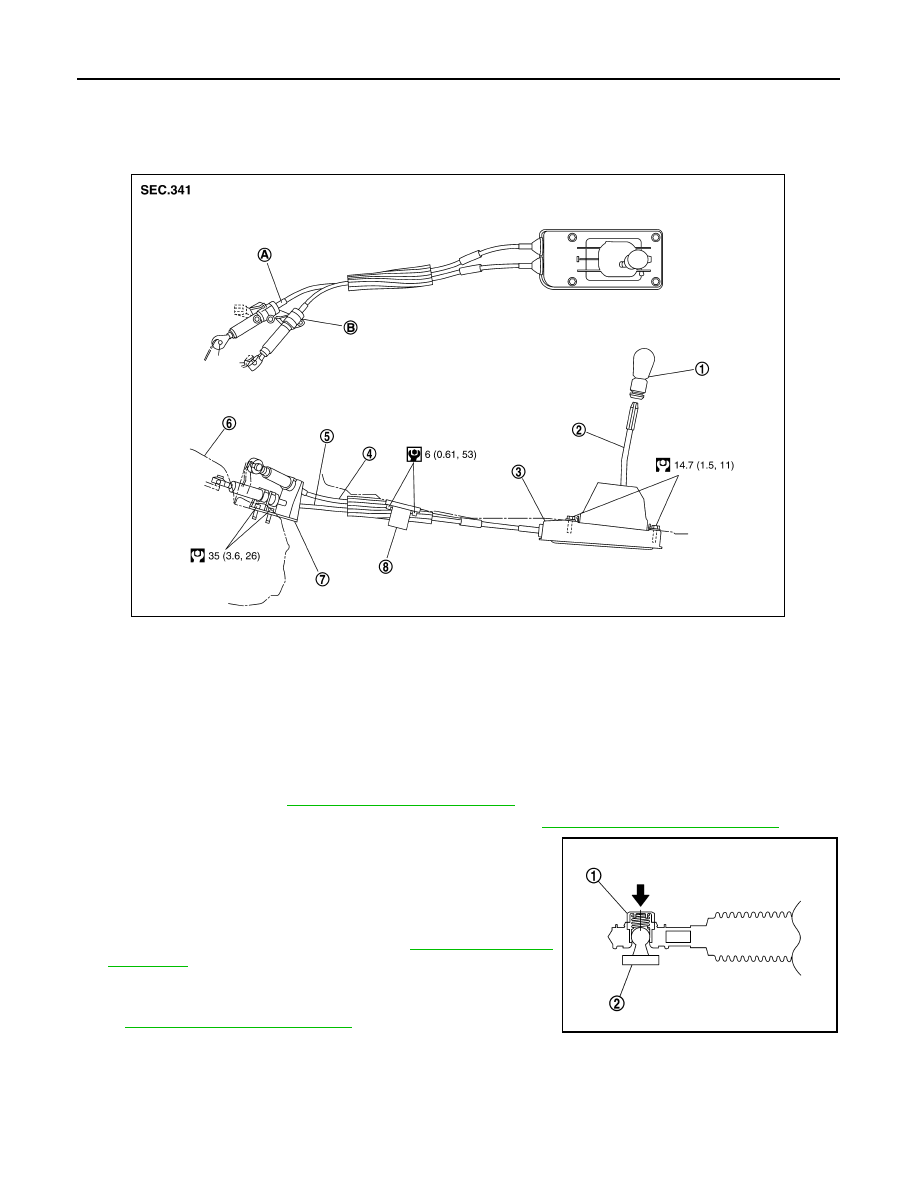

CONTROL LINKAGE

CONTROL LINKAGE

Exploded View

INFOID:0000000001381687

Removal and Installation

INFOID:0000000001381688

REMOVAL

1.

Remove battery. Refer to

PG-6, "Removal and Installation"

.

2.

Remove air duct (Inlet), air duct and air cleaner case. Refer to

EM-27, "Removal and Installation"

.

3.

Press the release button (1) of select cable and shift cable, and
then remove select cable and shift cable from lever of control
shaft (2).

4.

Shift control lever to neutral position.

5.

Remove control lever knob.

6.

Remove center console assembly. Refer to

IP-11, "Removal and

Installation"

.

7.

Remove control device assembly mounting bolts.

8.

Remove exhaust front tube, center muffler and heat plate. Refer
to

EX-5, "Removal and Installation"

.

9.

Remove bracket.

10. Remove select cable and shift cable from cable mounting bracket.
11. Remove control device assembly from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

1.

Control lever knob

2.

Control lever

3.

Control device assembly

4.

Select cable

5.

Shift cable

6.

Clutch housing

7.

Cable mounting bracket

8.

Bracket

A: Black

color

B: White

color

PCIB1508E

SCIA7077E
