Nissan Tiida C11. Manual - part 1392

M/T SYSTEM

TM-619

< FUNCTION DIAGNOSIS >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FUNCTION DIAGNOSIS

M/T SYSTEM

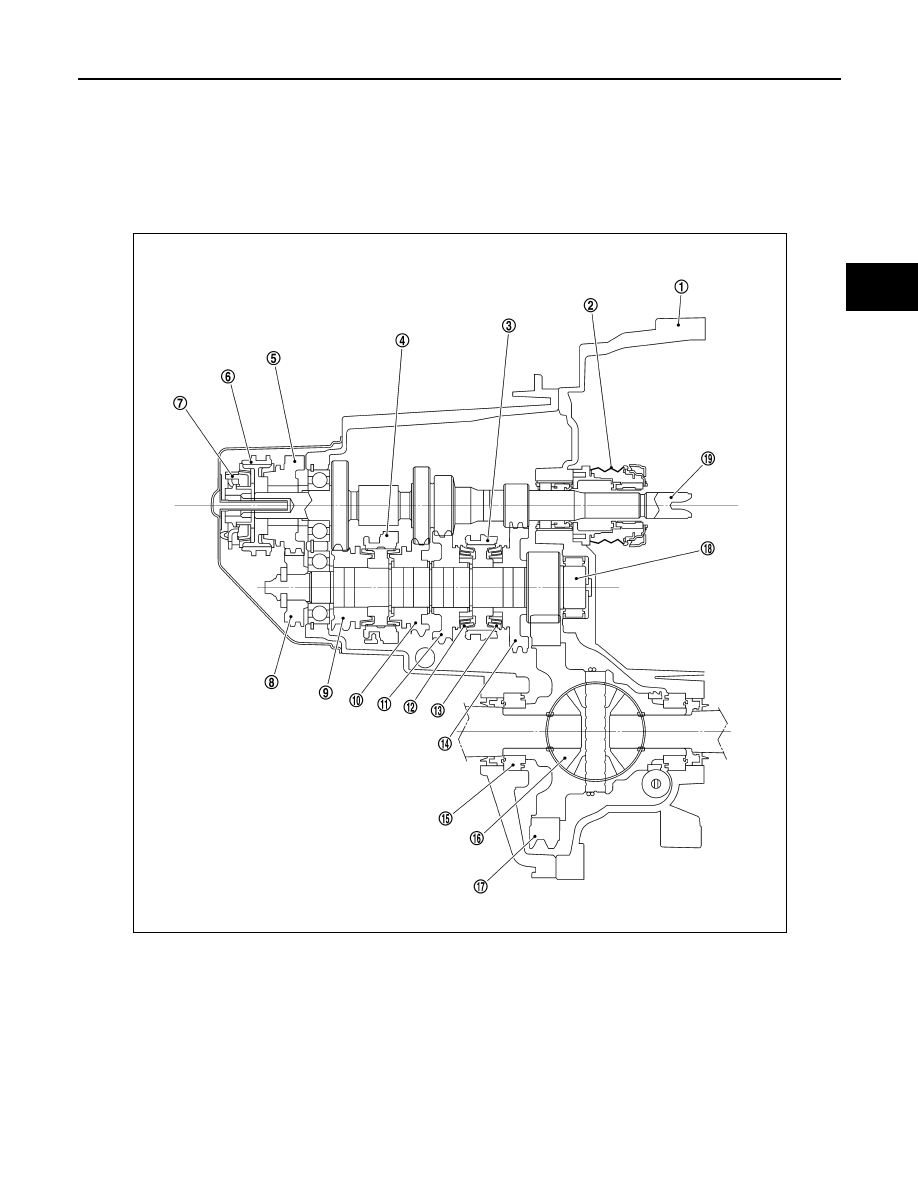

System Diagram

INFOID:0000000001381671

CROSS-SECTIONAL VIEW

1.

Clutch housing

2.

CSC (Concentric Slave Cylinder)

3.

1st-2nd synchronizer assembly

4.

3rd-4th synchronizer assembly

5.

5th input gear

6.

5th-reverse synchronizer assembly

7.

Reverse synchronizer cone

8.

5th main gear

9.

4th main gear

10. 3rd main gear

11.

2nd main gear

12. 2nd double cone synchronizer

13. 1st double cone synchronizer

14. 1st main gear

15. Differential side bearing

16. Differential assembly

17. Final gear

18. Mainshaft

19. Input shaft

PCIB1614E

TM-620

< FUNCTION DIAGNOSIS >

[5MT: RS5F91R]

M/T SYSTEM

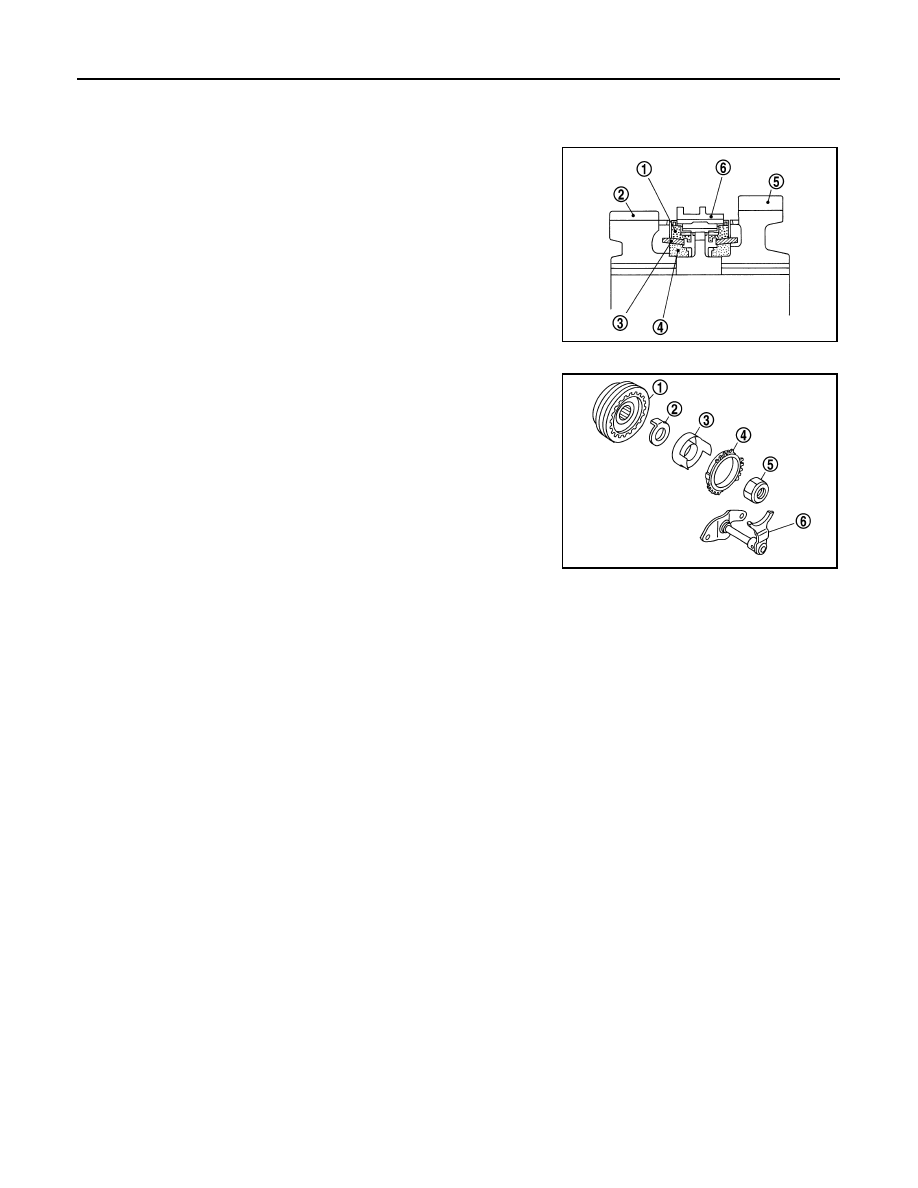

System Description

INFOID:0000000001381672

DOUBLE-CONE SYNCHRONIZER

Double-cone synchronizer is adopted for 1st and 2nd gears to
reduce operating force of the shift lever.
(1): Outer baulk ring
(2): 2nd main gear
(3): Synchronizer cone
(4): Inner baulk ring
(5): 1st main gear
(6): 1st-2nd coupling sleeve

REVERSE GEAR NOISE PREVENTION FUNCTION (SYNCHRONIZING METHOD)

5th-reverse synchronizer hub assembly consists of reverse baulk
ring, reverse synchronizer cone and reverse gear gate assembly.
When the lever is shifted to the reverse position, the construction
allows smooth shift operation by stopping the input shaft rotation by
frictional force of synchronizer.
(1): 5th-reverse synchronizer hub assembly
(2): Lock washer
(3): Reverse synchronizer cone
(4): Reverse baulk ring
(5): Input shaft nut
(6): Reverse gear gate assembly

SCIA7117E

SCIA7118E

POSITION SWITCH

TM-621

< COMPONENT DIAGNOSIS >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

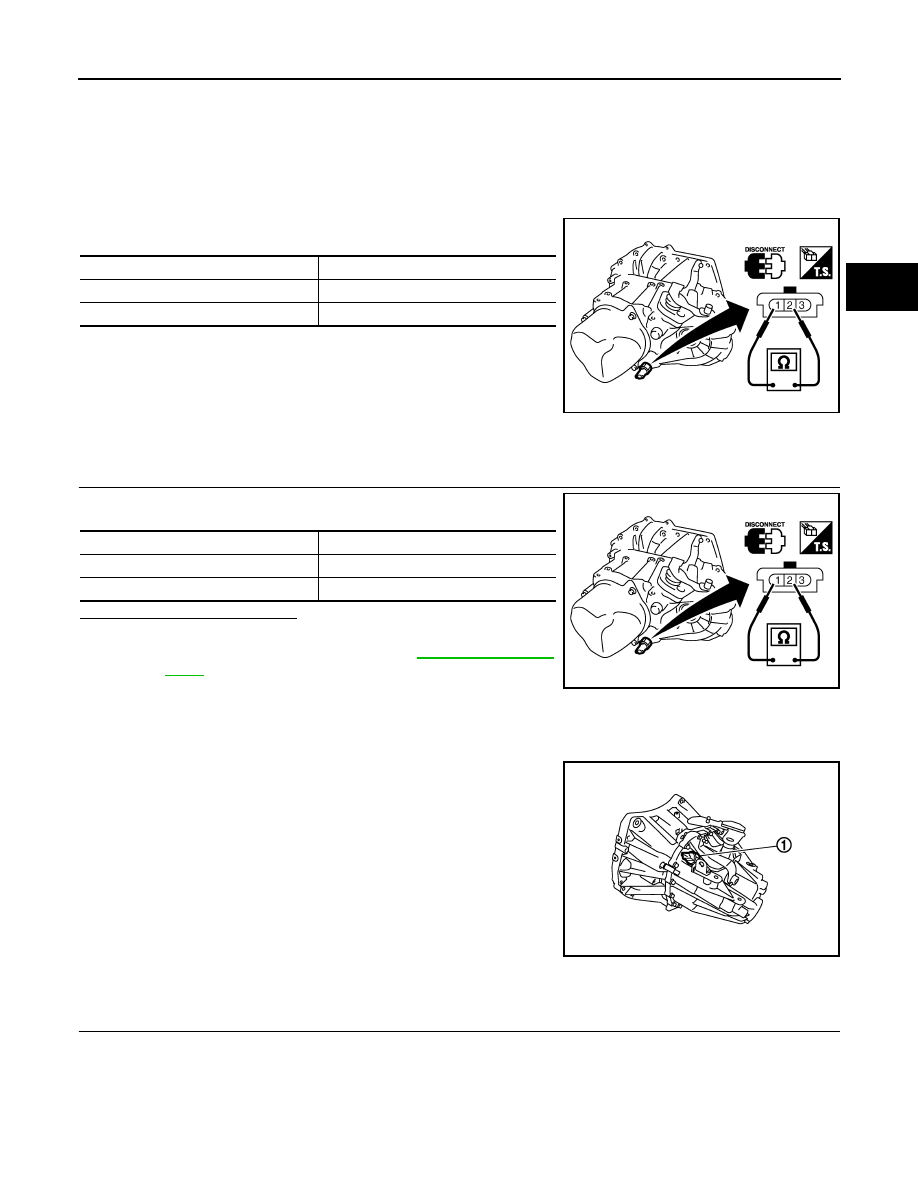

COMPONENT DIAGNOSIS

POSITION SWITCH

BACK-UP LAMP SWITCH

BACK-UP LAMP SWITCH : Component Parts Location

INFOID:0000000001381673

• Check continuity between terminals 1 and 2.

BACK-UP LAMP SWITCH : Component Inspection

INFOID:0000000001381674

1.

CHECK BACK-UP LAMP SWITCH

Check continuity between terminals 1 and 2.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch. Refer to

TM-635, "Exploded

View"

.

PARK/NEUTRAL POSITION (PNP) SWITCH

PARK/NEUTRAL POSITION (PNP) SWITCH : Component Parts Location

INFOID:0000000001381675

PARK/NEUTRAL POSITION (PNP) SWITCH : Component Inspection

INFOID:0000000001381676

1.

CHECK PARK/NEUTRAL POSITION (PNP) SWITCH

Gear position

Continuity

Reverse

Yes

Except reverse

No

MCIA0157E

Gear position

Continuity

Reverse

Yes

Except reverse

No

MCIA0157E

1

: Position switch

JPDIC0070ZZ

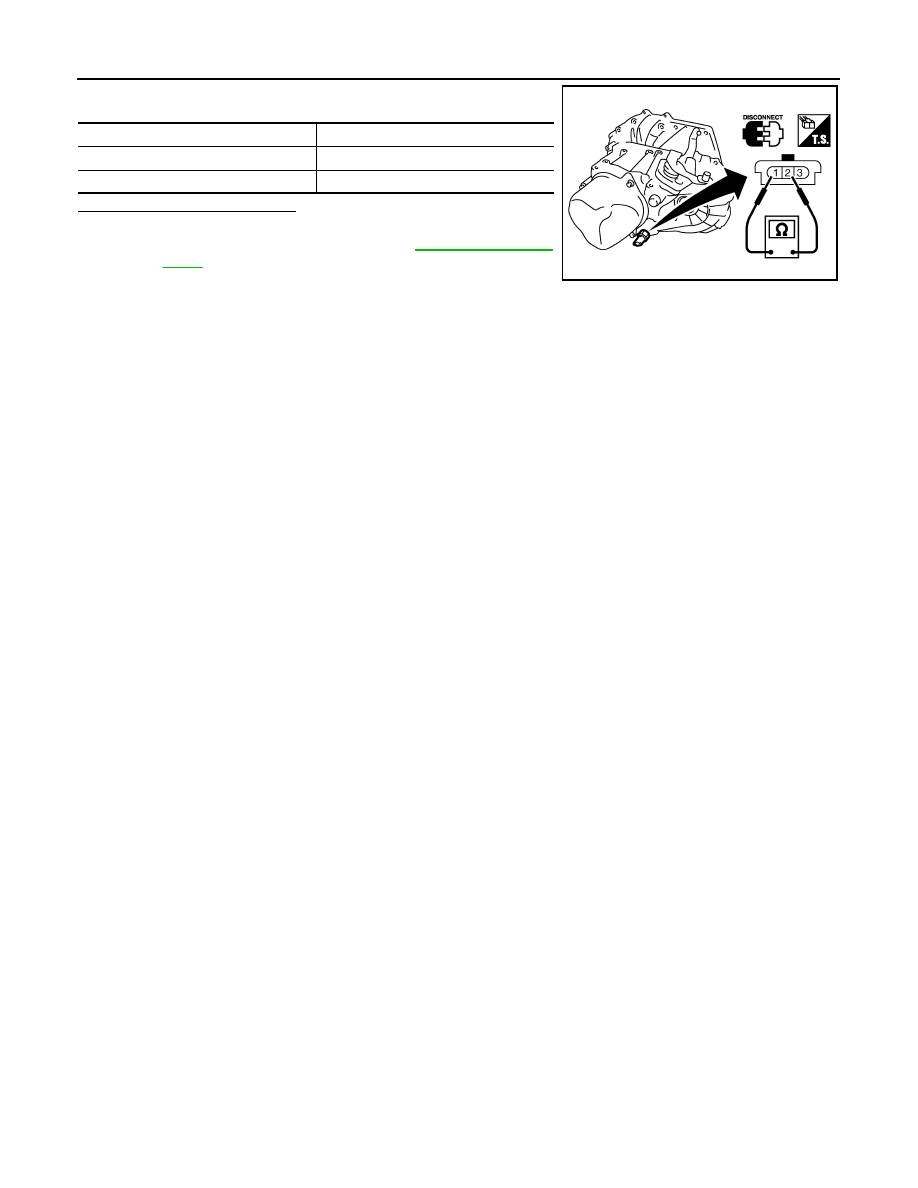

TM-622

< COMPONENT DIAGNOSIS >

[5MT: RS5F91R]

POSITION SWITCH

Check continuity between terminals 2 and 3.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace position switch. Refer to

TM-635, "Exploded

View"

.

Gear position

Continuity

Neutral

Yes

Except neutral

No

MCIA0157E
