CONTROL LINKAGE

TM-631

< ON-VEHICLE REPAIR >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

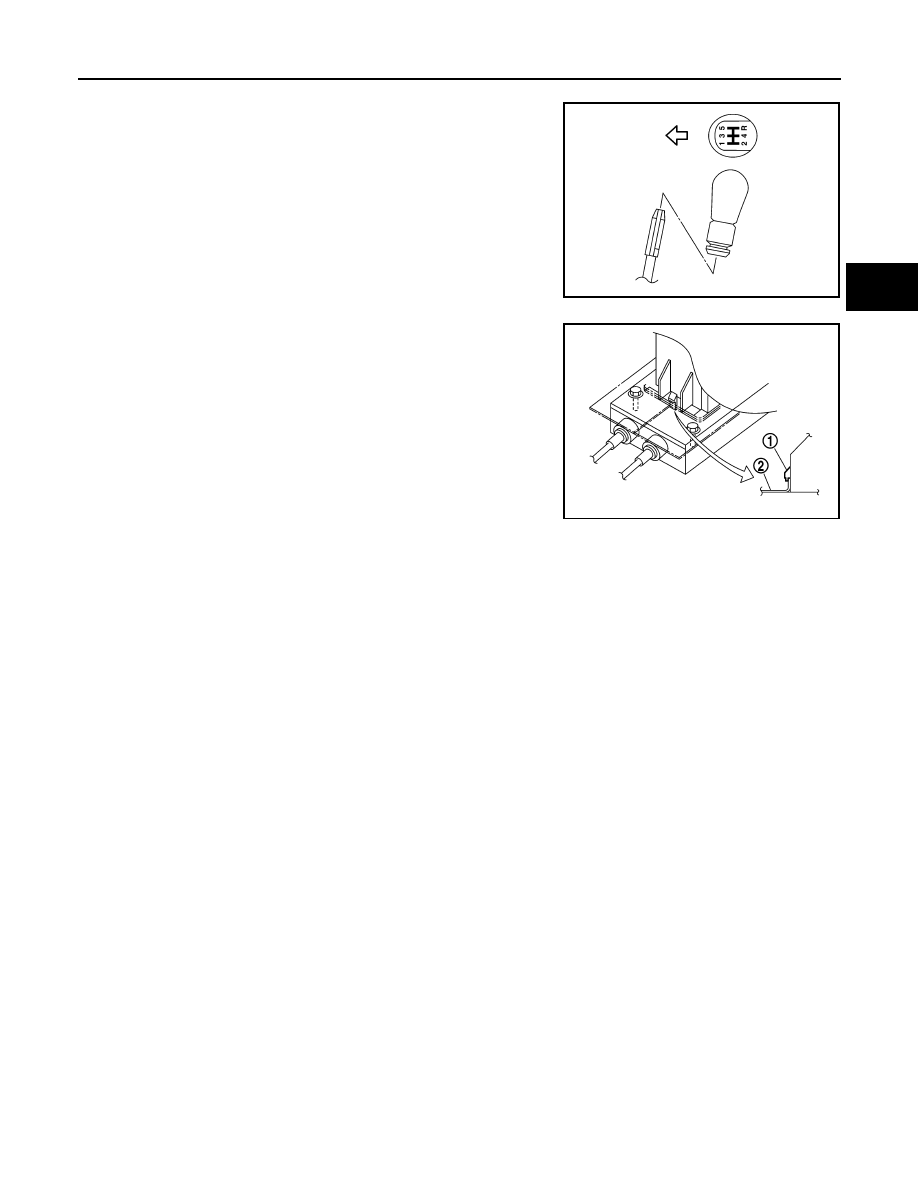

• Securely assemble each cable and lever of control shaft.
• Be careful about the installation direction, and push control lever

knob into control lever.

-

⇐

: Front

• Make sure that the front/rear claws (1) of control device assembly

are in contact with flange of the floor (2).

Inspection

INFOID:0000000001381689

Inspect the following items:
• When control lever is selected to 1st-2nd side and 5th-reverse side, confirm control lever returns to neutral

position smoothly.

• When control lever is shifted to each position, make sure there is no binding or disconnection in each boot.

PCIB1509E

PCIB1510E

TM-632

< ON-VEHICLE REPAIR >

[5MT: RS5F91R]

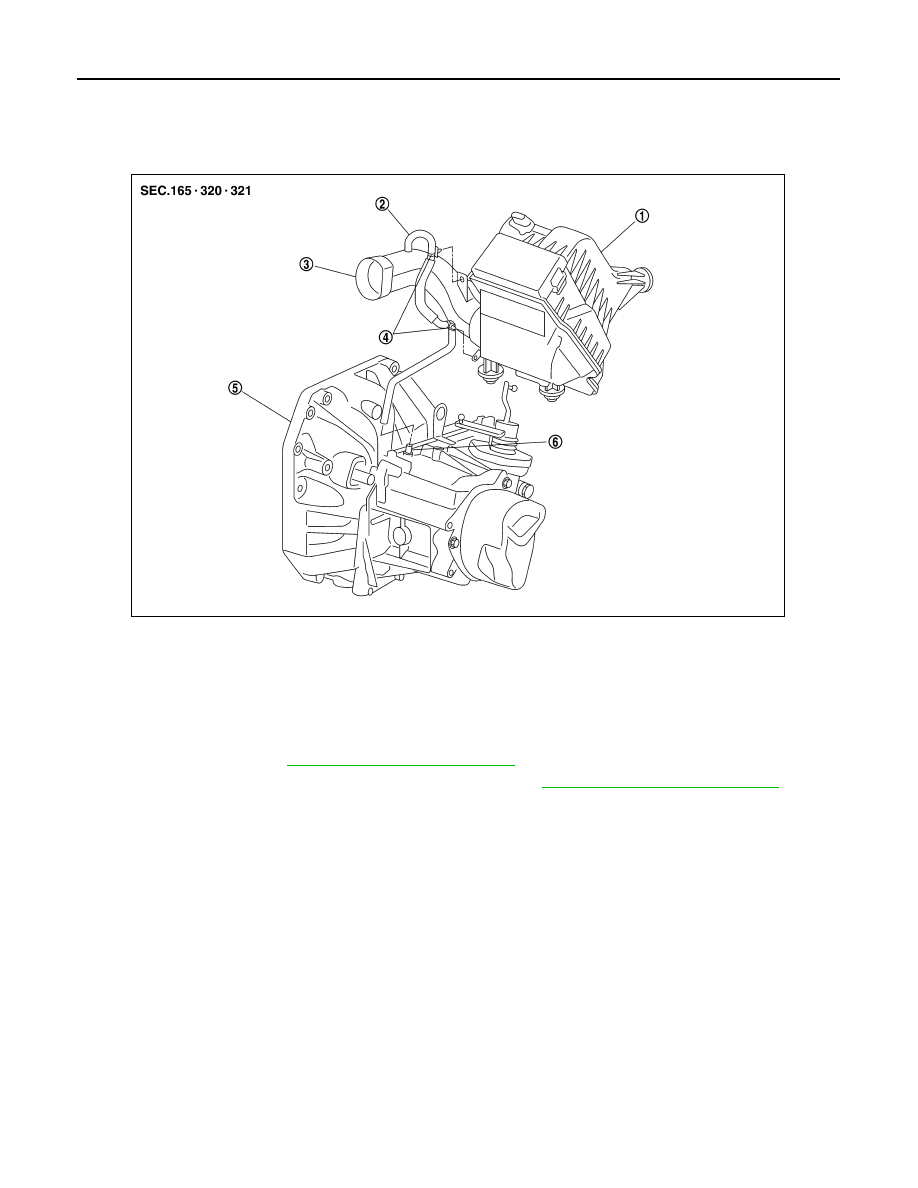

AIR BREATHER HOSE

AIR BREATHER HOSE

Exploded View

INFOID:0000000001381690

Removal and Installation

INFOID:0000000001381691

REMOVAL

1.

Remove battery. Refer to

PG-6, "Removal and Installation"

.

2.

Remove air duct (Inlet), air duct and air cleaner case. Refer to

EM-27, "Removal and Installation"

.

3.

Remove air breather hose.

CAUTION:

When air breather hose is removed, be sure to hold 2 way connector securely.

INSTALLATION

Installation is in the reverse order of removal.
• When installing air breather hose on 2 way connector, paint mark must be rearward.
• When installing air breather hose on 2 way connector, push it until it hits the transaxle case.
• When installing air breather hose to air duct and air cleaner case, make sure that clips are fully inserted.

CAUTION:

Make sure air breather hose is not collapsed or blocked due to folding or bending when installed.

1.

Air cleaner case

2.

Air breather hose

3.

Air duct

4.

Clip

5.

Transaxle assembly

6.

2 way connector

PCIB1511E

TRANSAXLE ASSEMBLY

TM-633

< REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

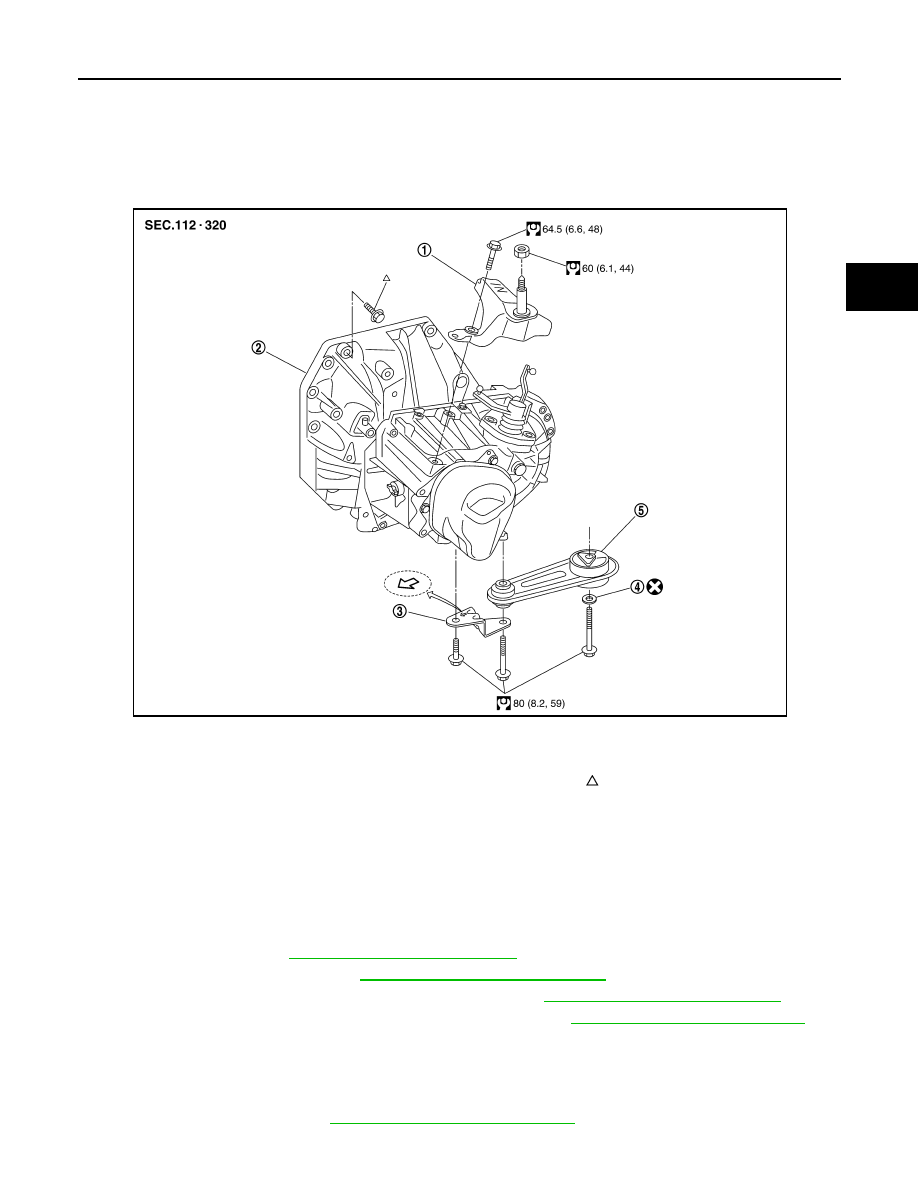

REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

Exploded View

INFOID:0000000001381692

Removal and Installation

INFOID:0000000001381693

CAUTION:

If transaxle assembly is removed from the vehicle, always replace CSC (Concentric Slave Cylinder).
Return CSC insert to original position to remove transaxle assembly. Dust on clutch disc sliding parts
may damage seal of CSC and may cause clutch fluid leakage.

REMOVAL

1.

Remove battery. Refer to

PG-6, "Removal and Installation"

.

2.

Remove air breather hose. Refer to

TM-632, "Removal and Installation"

.

3.

Remove air duct (Inlet), air duct and air cleaner case. Refer to

EM-27, "Removal and Installation"

.

4.

Drain clutch fluid and then remove clutch tube from CSC. Refer to

CL-12, "Removal and Installation"

.

CAUTION:

Do not depress clutch pedal during removal procedure.

5.

Disconnect clip of engine harness from bracket.

6.

Disconnect ground cable from transaxle assembly.

7.

Remove starter motor. Refer to

STR-13, "Removal and Installation"

.

1.

LH engine mount bracket (transaxle
side)

2.

 Transaxle assembly

3.

Rear engine mount bracket

4.

Washer

5.

Rear torque rod

:

Refer to installation.

PCIB1514E

TM-634

< REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

TRANSAXLE ASSEMBLY

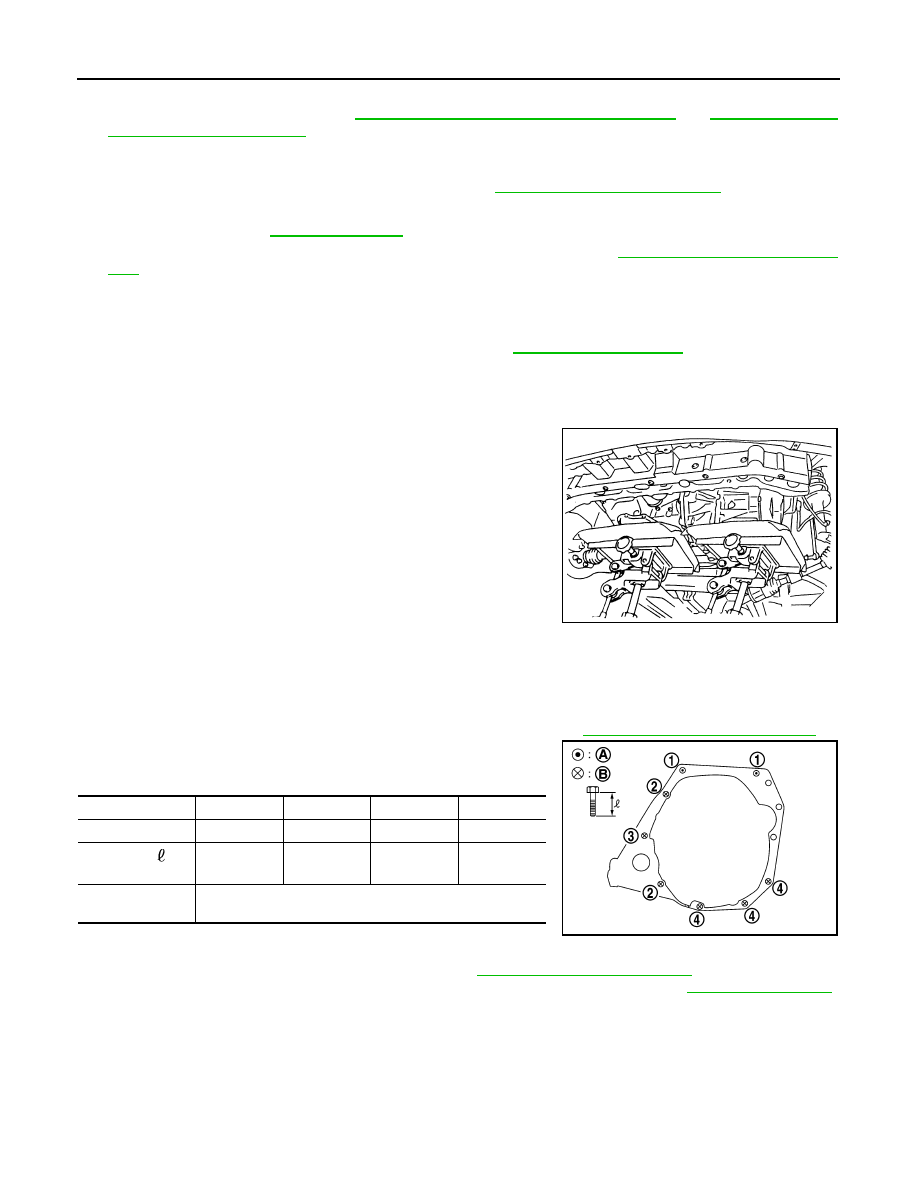

8.

Remove engine undercover.

9.

Remove front drive shafts. Refer to

FAX-10, "Removal and Installation (Left Side)"

 and

FAX-11, "Removal

and Installation (Right Side)"

.

NOTE:
Insert a suitable plug into side oil seal after removing front drive shaft.

10. Remove heat insulator and exhaust front tube. Refer to

EX-5, "Removal and Installation"

.

11. Disconnect position switch harness connector and then disconnect clip from rear housing.

12. Drain gear oil. Refer to

TM-628, "Draining"

.

13. Disconnect select cable and shift cable from transaxle assembly. Refer to

TM-630, "Removal and Installa-

tion"

.

14. Support engine assembly and transaxle assembly with a jack.

CAUTION:

When setting a jack, be careful not to bring it into contact with switch.

15. Remove engine mount through bolt-securing nut. Refer to

EM-89, "Exploded View"

.

16. Remove LH engine mount bracket (transaxle side) bolts.
17. Remove rear engine mount bracket and rear torque rod.

18. Remove transaxle assembly to engine assembly bolts.

19. Remove transaxle assembly from the vehicle.

CAUTION:

Secure transaxle assembly to a jack while removing it.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing transaxle assembly, be careful not to bring transaxle input shaft into contact with
clutch cover.
• If transaxle is removed from the vehicle, always replace CSC. Refer to

CL-11, "Removal and Installation"

.

• When installing the transaxle assembly to the engine, install the

bolts following the standard below.

(A): M/T to engine
(B): Engine to M/T

• Bleed the air from the clutch hydraulic system. Refer to

CL-8, "Air Bleeding Procedure"

.

• After installation, check oil level, and check for leaks and loose mechanisms. Refer to

TM-628, "Inspection"

.

SCIA7084E

Bolt  No.

1

2

3

4

Quantity

2

2

1

3

Bolt length “

”

mm (in)

55

(2.17)

49

(1.93)

69

(2.72)

55

(2.17)

Tightening torque
N·m (kg-m, ft-lb)

48.0

 (4.9, 35)
