REPAIR FOR COMPONENT PARTS

TM-559

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

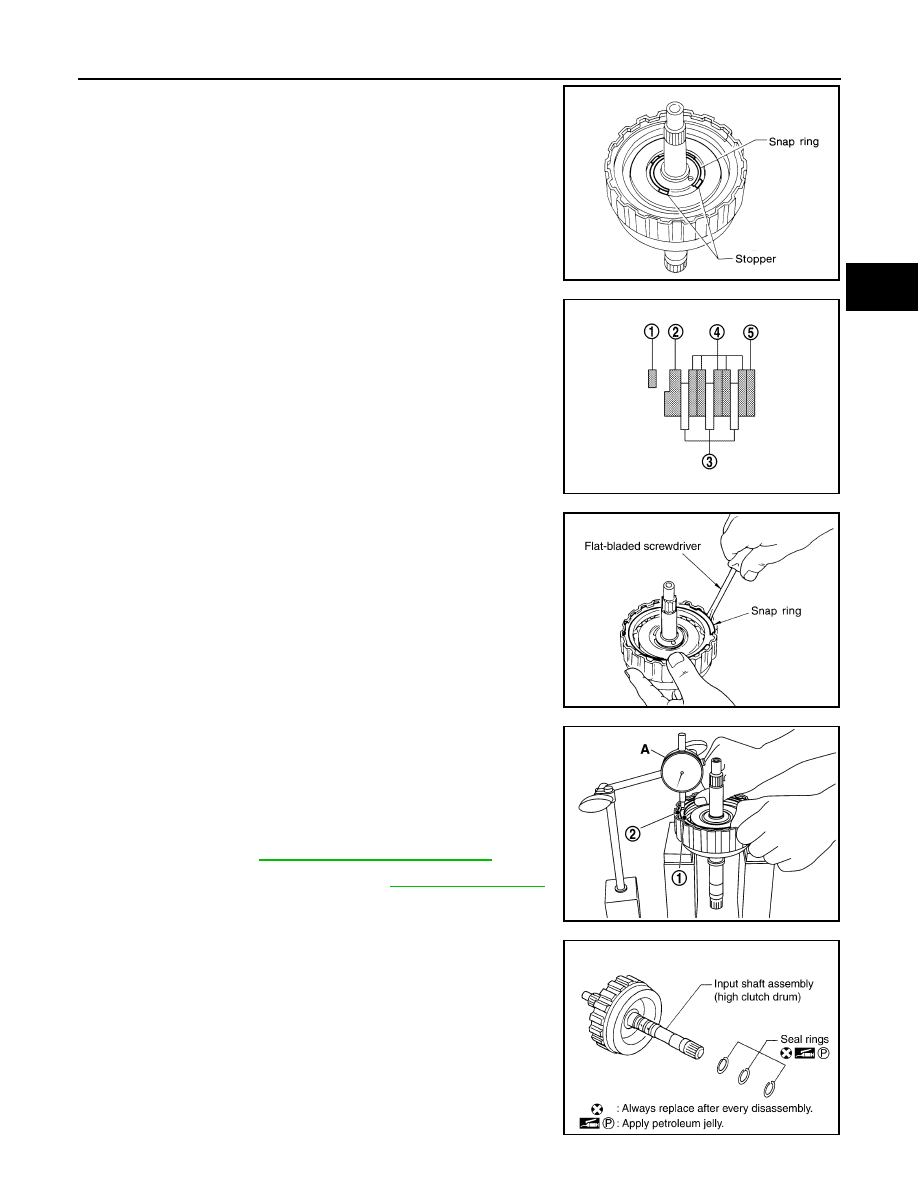

• Do not align snap ring gap with cancel cover stopper.

4.

Install driven plates (4), (5), drive plates (3) and retaining plate
(2).
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Driven plate
Drive plate/Driven plate: 3/6 (1+5)

CAUTION:

Be careful with the order and direction of plates.

5.

Install snap ring using suitable tool.

6.

Set dial indicator (A) on retaining plate (1), and measure clear-
ance between retaining plate (1) and snap ring (2). If not within
allowable limit, select proper retaining plate (1).

7.

Check operation of high clutch. Refer to

TM-262, "High Clutch"

.

8.

Install seal rings to input shaft assembly (high clutch drum).

SAT113F

SCIA5996E

SCIA4891E

Specified clearance

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

SCIA5858E

SCIA4890E

TM-560

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

CAUTION:

Roll paper around seal rings to prevent seal rings from spread-
ing.

Forward and Overrun Clutches

INFOID:0000000001731442

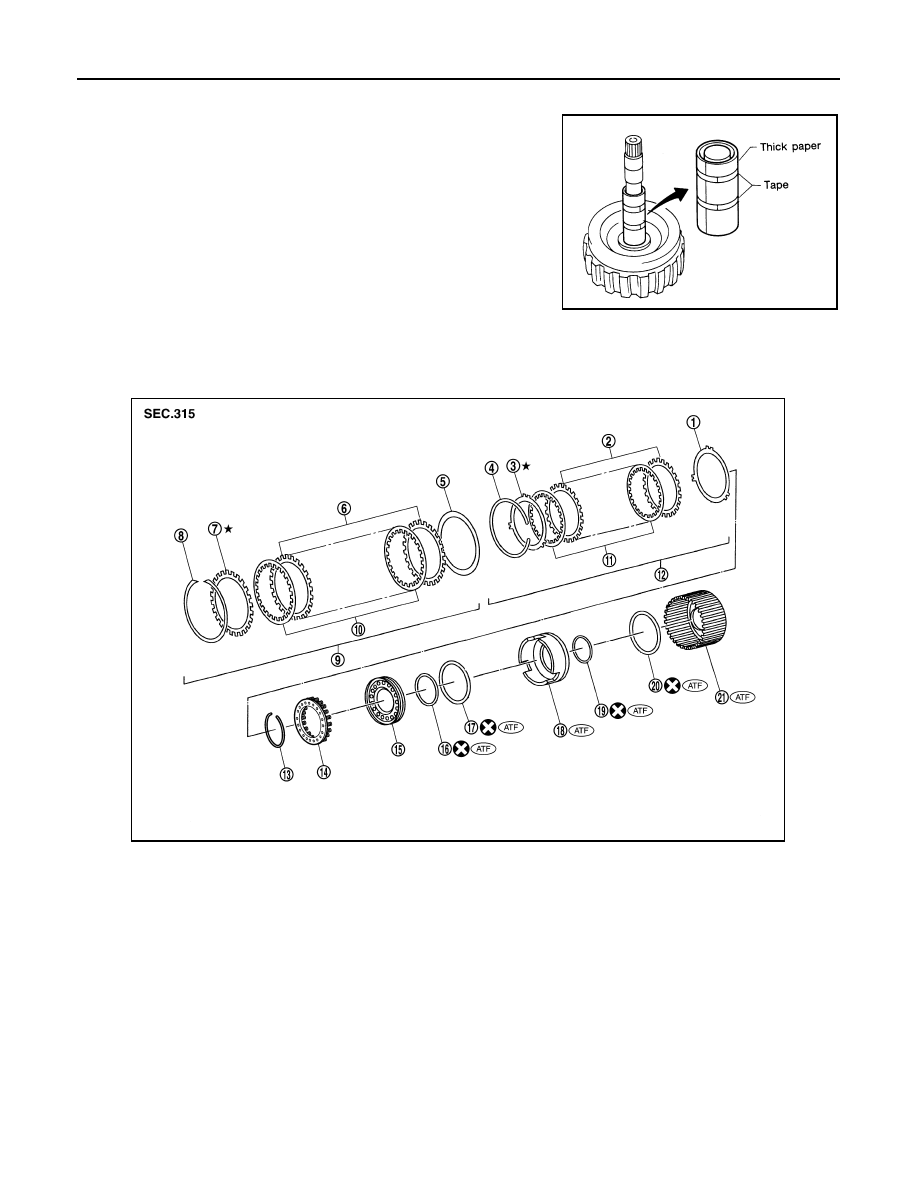

COMPONENTS

DISASSEMBLY

SAT198D

1.

Dish plate

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Dish plate

6.

Driven plate

7.

Retaining plate

8.

Snap ring

9.

Forward clutch

10. Drive plate

11.

Drive plate

12. Overrun clutch

13. Snap ring

14. Spring retainer assembly

15. Overrun clutch piston

16. D-ring

17. Seal ring

18. Forward clutch piston

19. D-ring

20. Seal ring

21. Forward clutch drum

SCIA7183E

REPAIR FOR COMPONENT PARTS

TM-561

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

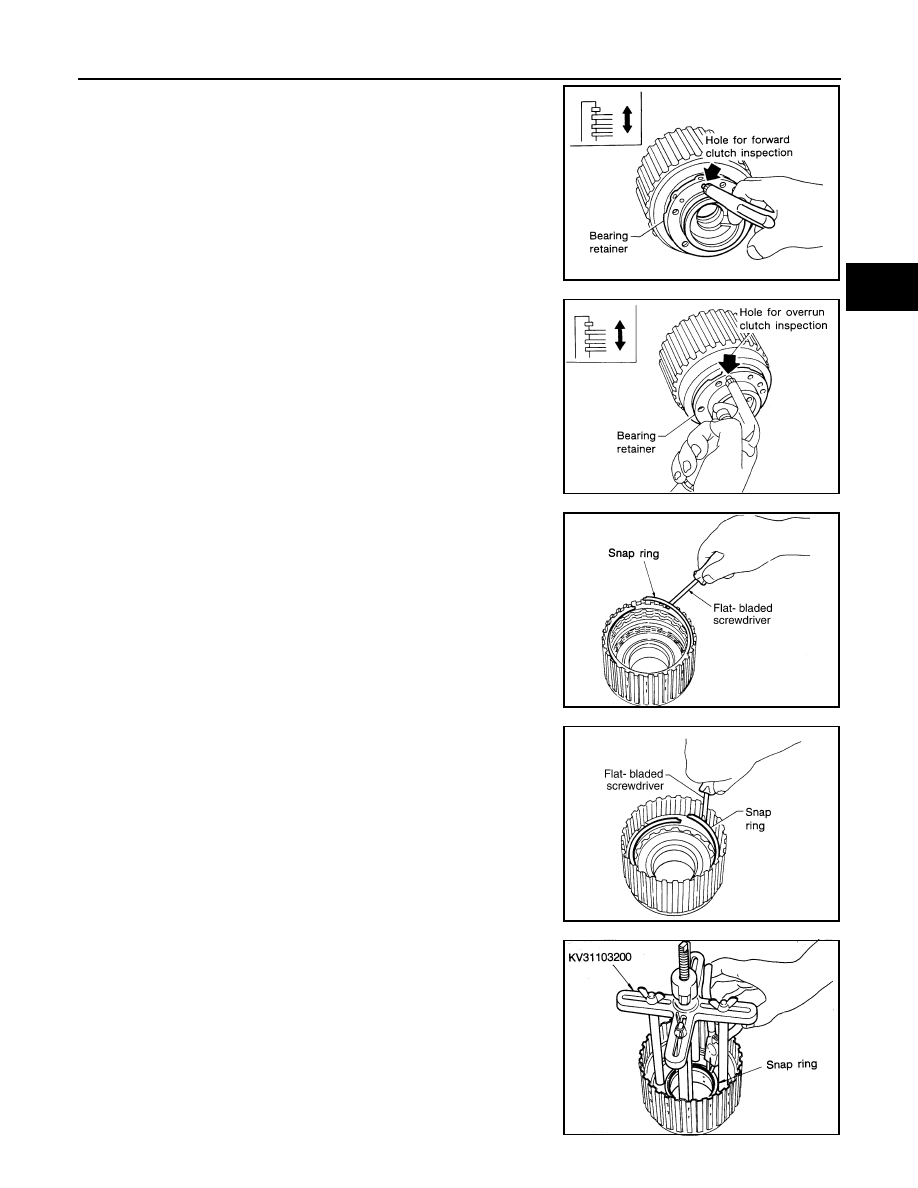

1.

Check operation of forward clutch.

a.

Install seal rings to bearing retainer, and set forward clutch
drum.

b.

Apply compressed air into oil hole of bearing retainer at the loca-
tion as shown.

c.

Check to see that retaining plate moves to snap ring.

d.

If retaining plate does not contact snap ring:
• D-ring might be damaged.
• Seal ring might be damaged.
• Fluid might be leaking past piston check ball.

2.

Check operation of overrun clutch.

a.

Install seal rings to bearing retainer, and set forward clutch
drum.

b.

Apply compressed air into oil hole of bearing retainer at the loca-
tion as shown.

c.

Check to see that retaining plate moves to snap ring.

d.

If retaining plate does not contact snap ring:
• D-ring might be damaged.
• Seal ring might be damaged.
• Fluid might be leaking past piston check ball.

3.

Remove snap ring for forward clutch from forward clutch drum
using suitable tool.

4.

Remove retaining plate, drive plates, driven plates and dish
plate for forward clutch.

5.

Remove snap ring for overrun clutch from forward clutch drum
using suitable tool.

6.

Remove retaining plate, drive plates, driven plates and dish
plate for overrun clutch.

7.

Set Tool on spring retainer assembly, and remove snap ring
from forward clutch drum while compressing spring retainer
assembly.

CAUTION:

• Set Tool directly over return springs.
• Do not expand snap ring excessively.

8.

Remove spring retainer assembly from forward clutch drum.

CAUTION:

Do not remove return springs from spring retainer.

SAT201D

SAT202D

SCIA4894E

SCIA4895E

SAT205D

TM-562

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

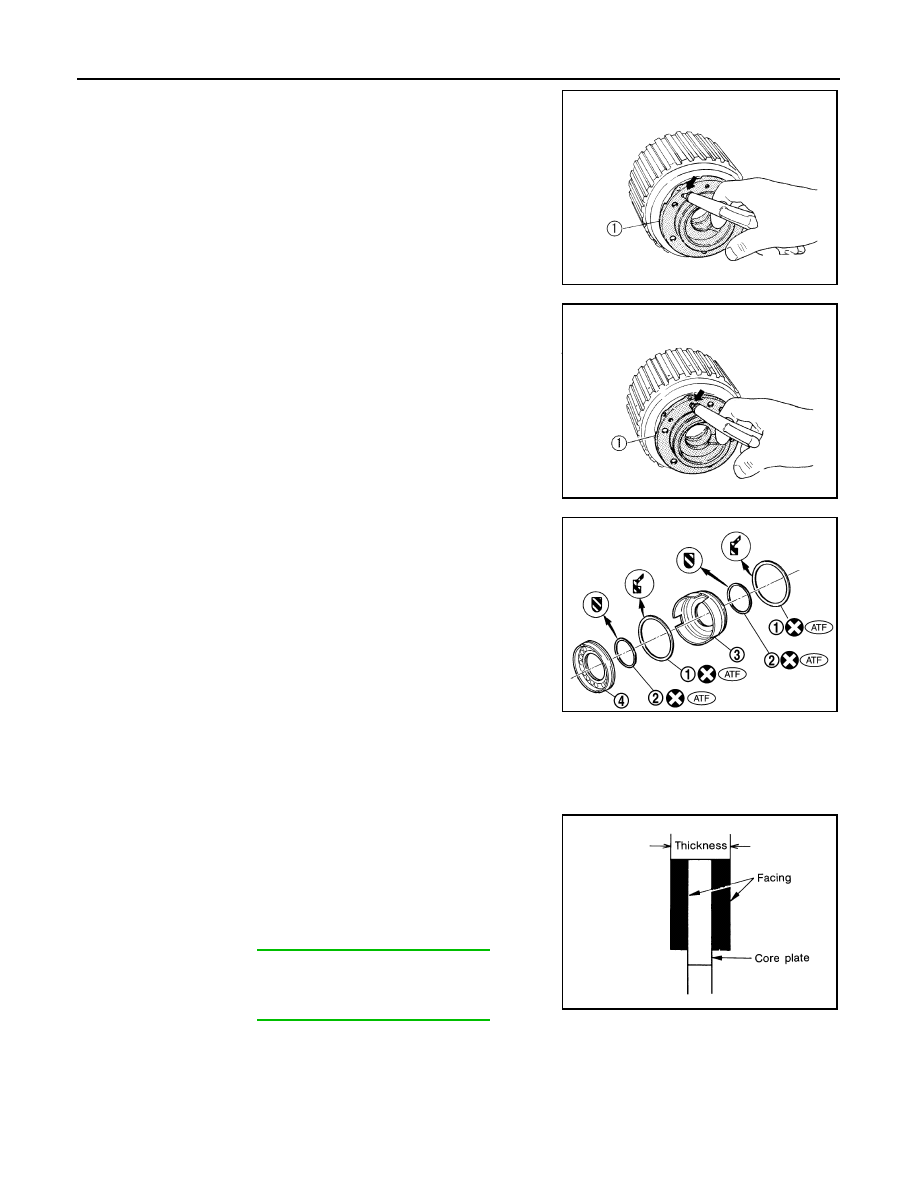

9.

Install seal rings to bearing retainer (1), and set forward clutch
drum. Then apply compressed air into the oil hole at the location
as shown to remove overrun clutch piston from forward clutch
piston.

CAUTION:

Do not blow air in too quickly, or overrun clutch piston and
ATF could jump out. Carefully blow air little by little while
protecting with lint-free cloth.

10. Install seal rings to bearing retainer (1), and set forward clutch

drum. Then apply compressed air into the oil hole at the location
as shown to remove forward clutch piston from forward clutch
drum.

CAUTION:

Do not blow air in too quickly, or forward clutch piston and
ATF could jump out. Carefully blow air little by little while
protecting with lint-free cloth.

11. Remove seal rings (1) and D-rings (2) from forward clutch piston

(3) and overrun clutch piston (4).

INSPECTION

Forward Clutch and Overrun Clutch Snap Rings

Check for deformation, fatigue or damage. Replace if necessary.

Forward Clutch and Overrun Clutch Drive Plates

• Check facing for burns, cracks or damage. Replace if necessary.
• Measure thickness of facing.

CAUTION:

• Measure the thickness at 3 locations and find the average.
• Inspect ALL drive plates.
• Replace if the thickness is below the allowable limit.

Forward Clutch and Overrun Clutch Dish Plates

• Check for deformation or damage.

SCIA6004J

SCIA6003J

SCIA6005J

Thickness of drive plate

Forward clutch

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

Overrun clutch

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

SAT162D
