REPAIR FOR COMPONENT PARTS

TM-551

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Install control valves.
For installation procedures, refer to

TM-545, "Control Valve Upper

Body"

.

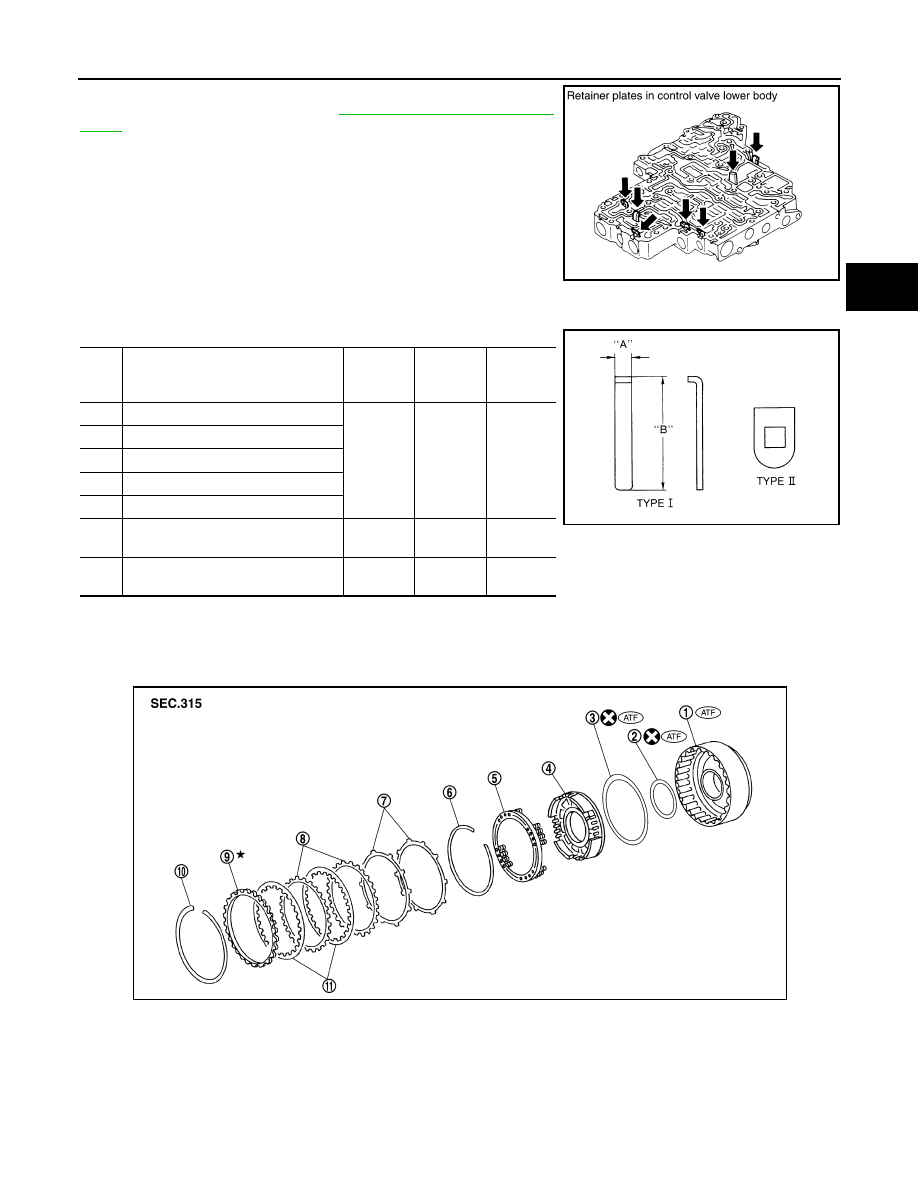

Retainer Plate (Control Valve Lower Body)

Install proper retainer plates.

Unit: mm (in)

Reverse Clutch

INFOID:0000000001731440

COMPONENTS

DISASSEMBLY

SCIA4978E

Lo-

cat-

ion

Retainer plate designation

Width “A”

Length “B”

Type

L3

Pressure regulator valve

6.0

(0.236)

28.0

(1.102)

I

L4

Overrun clutch control valve

L5

Accumulator control valve

L6

Shift valve A

L7

Shuttle valve

L12

Shift valve B

17.0

(0.669)

24.0

(0.945)

II

L13

Pressure modifier valve

6.0

(0.236)

28.0

(1.102)

I

SAT089F

1.

Reverse clutch drum

2.

D-ring

3.

Seal ring

4.

Reverse clutch piston

5.

Spring retainer assembly

6.

Snap ring

7.

Dish plate

8.

Driven plate

9.

Retaining plate

10. Snap ring

11.

Drive plate

SCIA6939J

TM-552

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

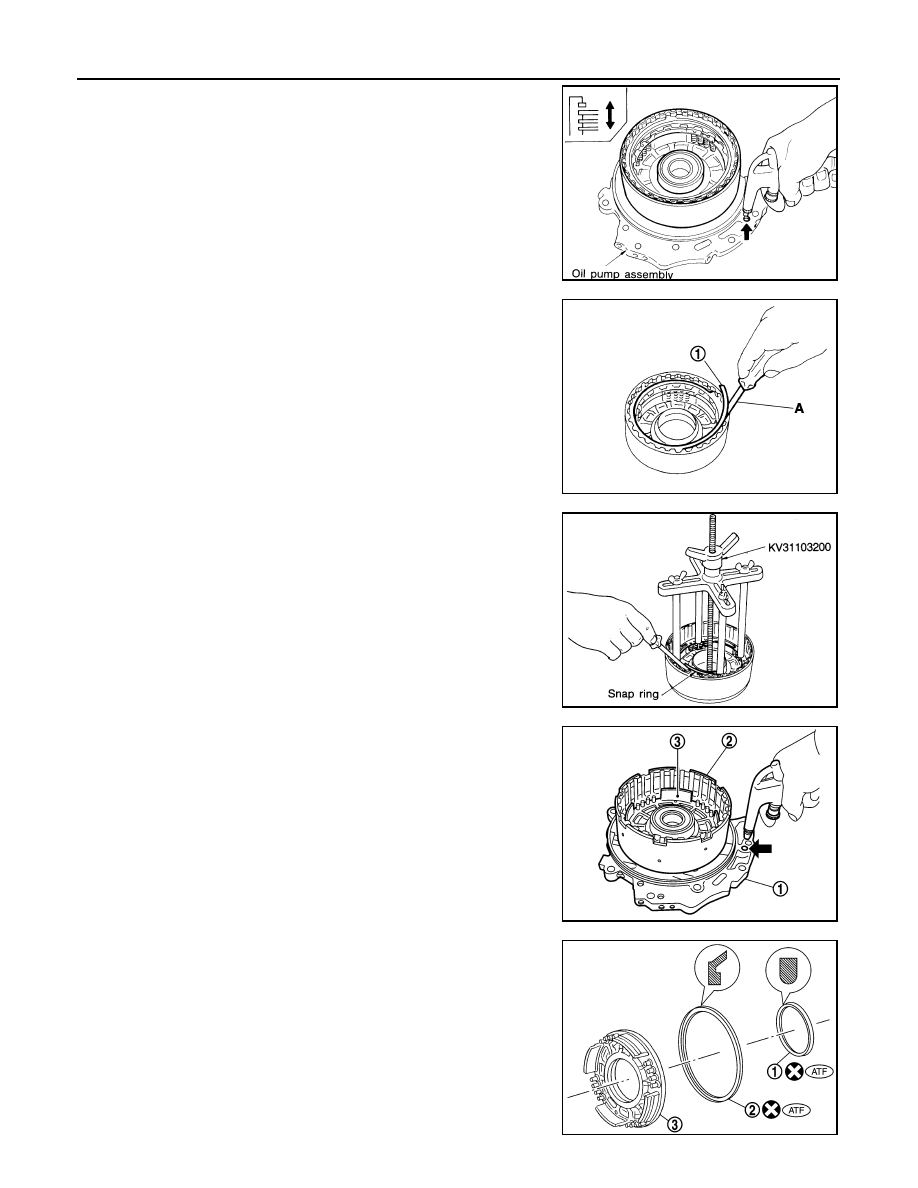

1.

Check operation of reverse clutch

a.

Install seal rings to drum support of oil pump assembly, and set
reverse clutch assembly.

b.

Apply compressed air into the oil hole at the location as shown.

c.

Check to see that retaining plate moves to snap ring.

d.

If retaining plate does not contact snap ring:
• D-ring might be damaged.
• Seal ring might be damaged.
• Fluid might be leaking past piston check ball.

2.

Remove snap ring (1) using suitable tool (A).

3.

Remove retaining plate, drive plates, driven plates and dish
plates.

4.

Set Tool on spring retainer assembly, and remove snap ring
from reverse clutch drum while compressing spring retainer
assembly.

CAUTION:

Set Tool directly over return springs.

5.

Remove spring retainer assembly from reverse clutch drum.

CAUTION:

Do not remove return springs from spring retainer.

6.

Install seal rings to drum support of oil pump assembly (1), and
set reverse clutch drum (2). Then apply compressed air into the
oil hole at the location as shown to remove reverse clutch piston
(3) from reverse clutch drum (2).

CAUTION:

Do not flow air in too quickly or reverse clutch piston (3)
and ATF could jump out. Carefully flow air in little by little
while protecting with lint-free cloth.

7.

Remove D-ring (1) and seal ring (2) from reverse clutch piston
(3).

SAT155D

SCIA7024J

SAT157D

SCIA5999J

SCIA5998J

REPAIR FOR COMPONENT PARTS

TM-553

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

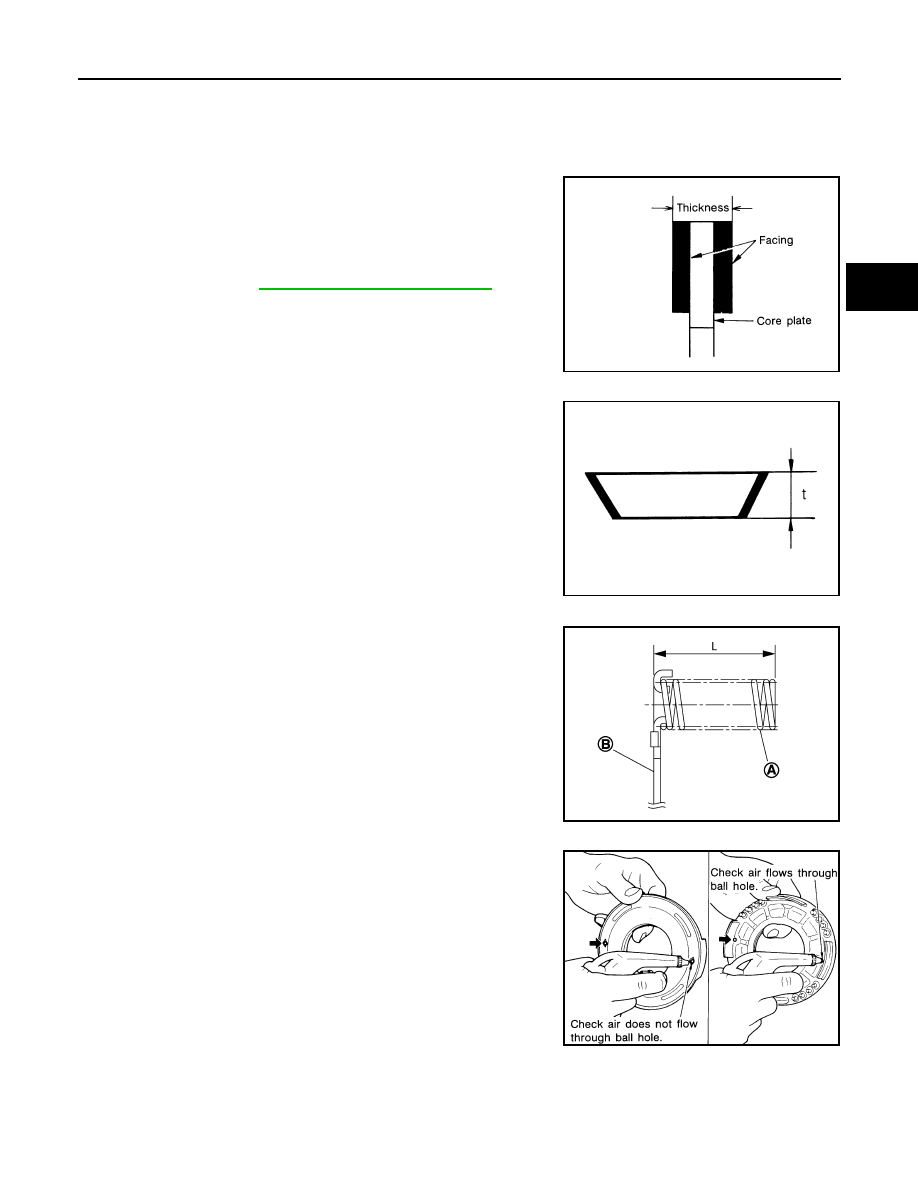

INSPECTION

Reverse Clutch Snap Ring

Check for deformation, fatigue or damage. Replace if necessary.

Reverse Clutch Drive Plates

• Check facing for burns, cracks or damage. Replace if necessary.
• Measure thickness of facing.

CAUTION:

• Measure the thickness at 3 locations and find the average.
• Inspect ALL drive plates.
• Replace if the thickness is below the allowable limit.

Reverse Clutch Dish Plates

• Check for deformation or damage.
• Measure thickness (t) of dish plate. Replace if damaged, deformed

or worn.

Reverse Clutch Spring Retainer Assembly

Measure length (L) of spring retainer assembly. Replace if damaged,
deformed or worn.

CAUTION:

Do not remove return springs (A) from spring retainer (B)

Reverse Clutch Piston

• Make sure that check balls do not stick.
• Apply compressed air to check ball oil hole opposite from return

spring. Make sure there is no air leakage.

• Apply compressed air to oil hole on return spring side to make sure

that air leaks past ball.

Reverse Clutch Drum

Check for deformation or damage. Replace if necessary.

ASSEMBLY

Thickness of drive plate

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

SAT162D

Thickness of dish plate (t):

2.87 mm (0.1130 in)

SAT163D

Length (L):

20.1 mm (0.791 in)

SCIA7025J

SAT164D

TM-554

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

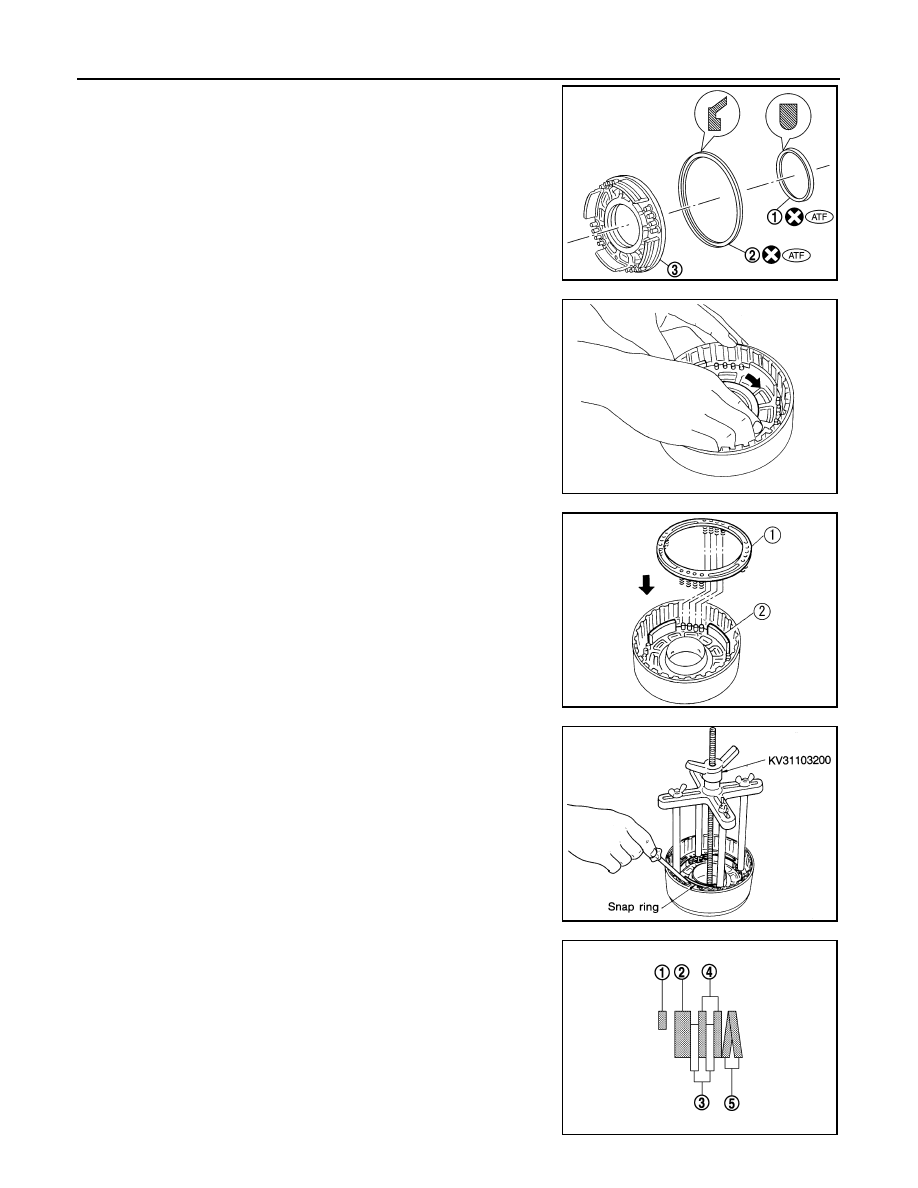

1.

Install D-ring (1) and seal ring (2) on reverse clutch piston (3).

CAUTION:

Be careful with the direction of seal ring (2).

2.

Install reverse clutch piston by turning it slowly.

CAUTION:

Apply ATF to inner surface of reverse clutch drum.

3.

Install spring retainer assembly (1) to reverse clutch piston (2).

4.

Set Tool on spring retainer assembly, and install snap ring while
compressing spring retainer assembly.

CAUTION:

Set Tool directly over return springs.

5.

Install dish plates (5), driven plates (4), drive plates (3) and
retaining plate (2).
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Dish plate
Drive plate/Driven plate: 2/2

CAUTION:

Be careful with the order of plates.

SCIA5998J

SAT159D

SCIA6000J

SAT157D

SCIA7003J
