REPAIR FOR COMPONENT PARTS

TM-531

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

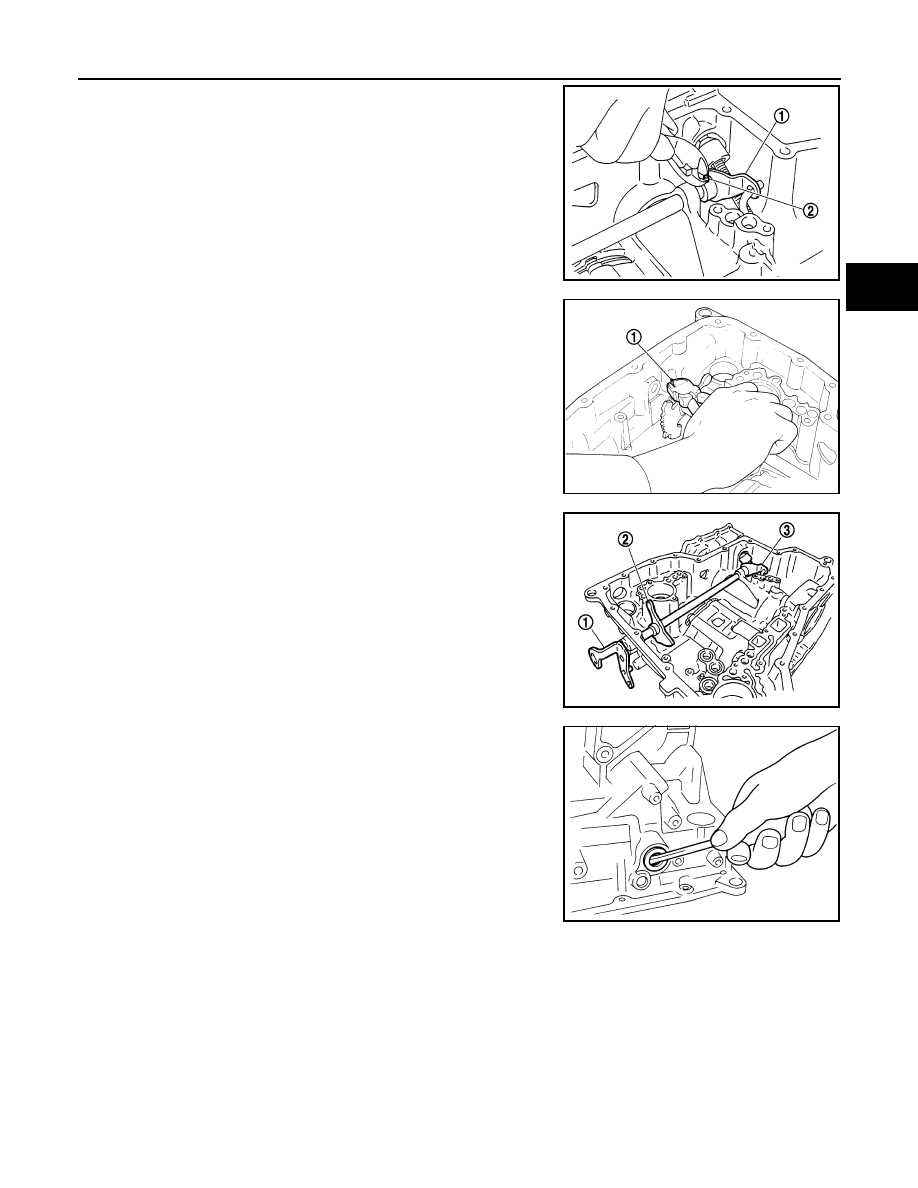

3.

Pull out retaining pin (2) of parking rod plate (1) using suitable
tool.

4.

Pull out retaining pin (1) of manual shaft using suitable tool.

5.

Remove parking rod plate (with parking rod) (3) from manual
shaft (1).

6.

Remove parking rod from parking rod plate (3).

7.

Remove manual plate (2) from manual shaft (1).

8.

Draw out manual shaft (1) from transaxle case.

9.

Remove manual shaft oil seal from transaxle case using suitable
tool.

CAUTION:

Do not scratch transaxle case.

INSPECTION

Check component parts, and replace if damaged or worn.

INSTALLATION

SCIA5806J

SCIA6514J

SCIA7005E

SAT080D

TM-532

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

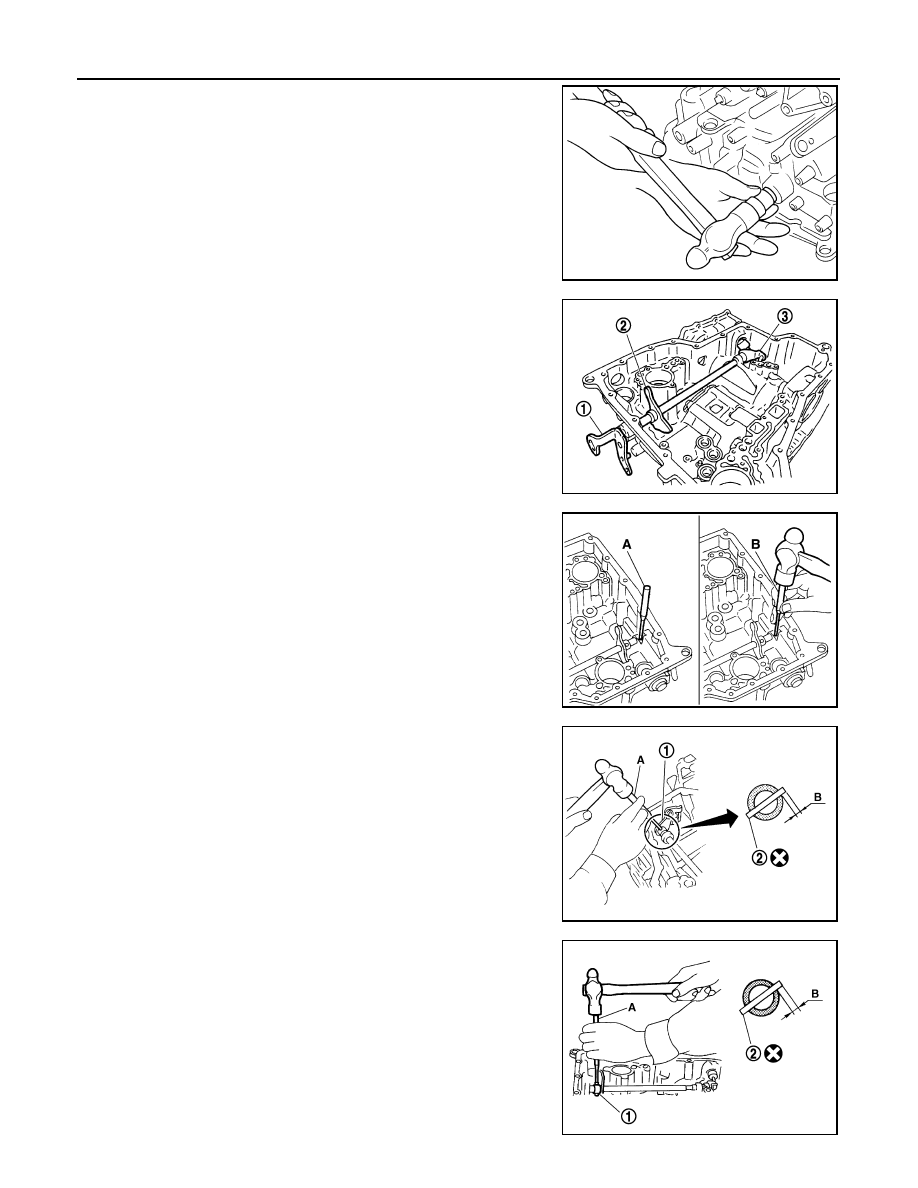

1.

Drive manual shaft oil seal into transaxle case using suitable
tool.

CAUTION:

• Do not reuse manual shaft oil seal.
• Apply ATF to outer surface of manual shaft oil seal.

2.

Install parking rod to parking rod plate.

3.

Insert manual shaft (1) to transaxle case, and install manual
plate (2) to manual shaft (1).

4.

Install parking rod plate (with parking rod) (3) to manual shaft
(1).

5.

Align groove of manual shaft and hole of transaxle case using
suitable tool (A).

6.

Drive retaining pin of manual shaft into transaxle case using Tool
(B).

CAUTION:

Do not reuse retaining pin.

7.

Set parking rod plate (1) onto manual shaft, and drive retaining
pin (2) of parking rod plate (1) using Tool (A).

CAUTION:

The retaining pin end should protrude approx. 3mm (0.12
in) (B) from the outer surface of parking rod plate (1).

8.

Set manual plate (1) onto manual shaft, and drive retaining pin
(2) of manual plate (1) using Tool (A).

CAUTION:

The retaining pin end should protrude approx. 3mm (0.12
in) (B) from the outer surface of manual plate (1).

SAT081D

SCIA7005E

Tool number B:

ST23540000

SCIA7006E

Tool number A:

ST23540000

SCIA7107E

Tool number A:

ST23540000

SCIA7108E

REPAIR FOR COMPONENT PARTS

TM-533

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

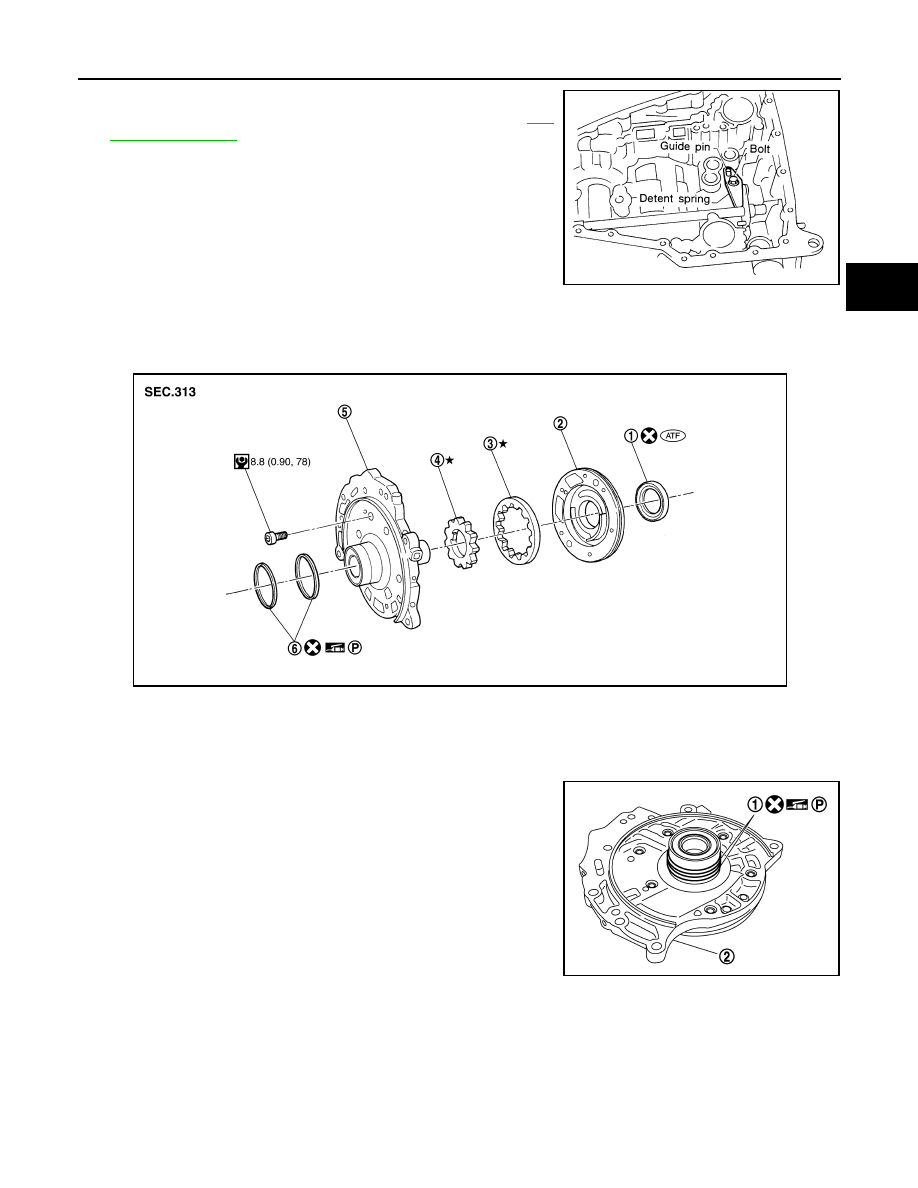

9.

Install detent spring on transaxle case.

10. Tighten detent spring bolt to the specified torque. Refer to

TM-

213, "Component"

.

Oil Pump

INFOID:0000000001731436

COMPONENTS

DISASSEMBLY

1.

Remove seal rings (1) from oil pump assembly (2).

SAT042F

1.

Oil pump housing oil seal

2.

Oil pump housing

3.

Outer gear

4.

Inner gear

5.

Oil pump cover

6.

Seal ring

SCIA5908J

SCIA7016E

TM-534

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

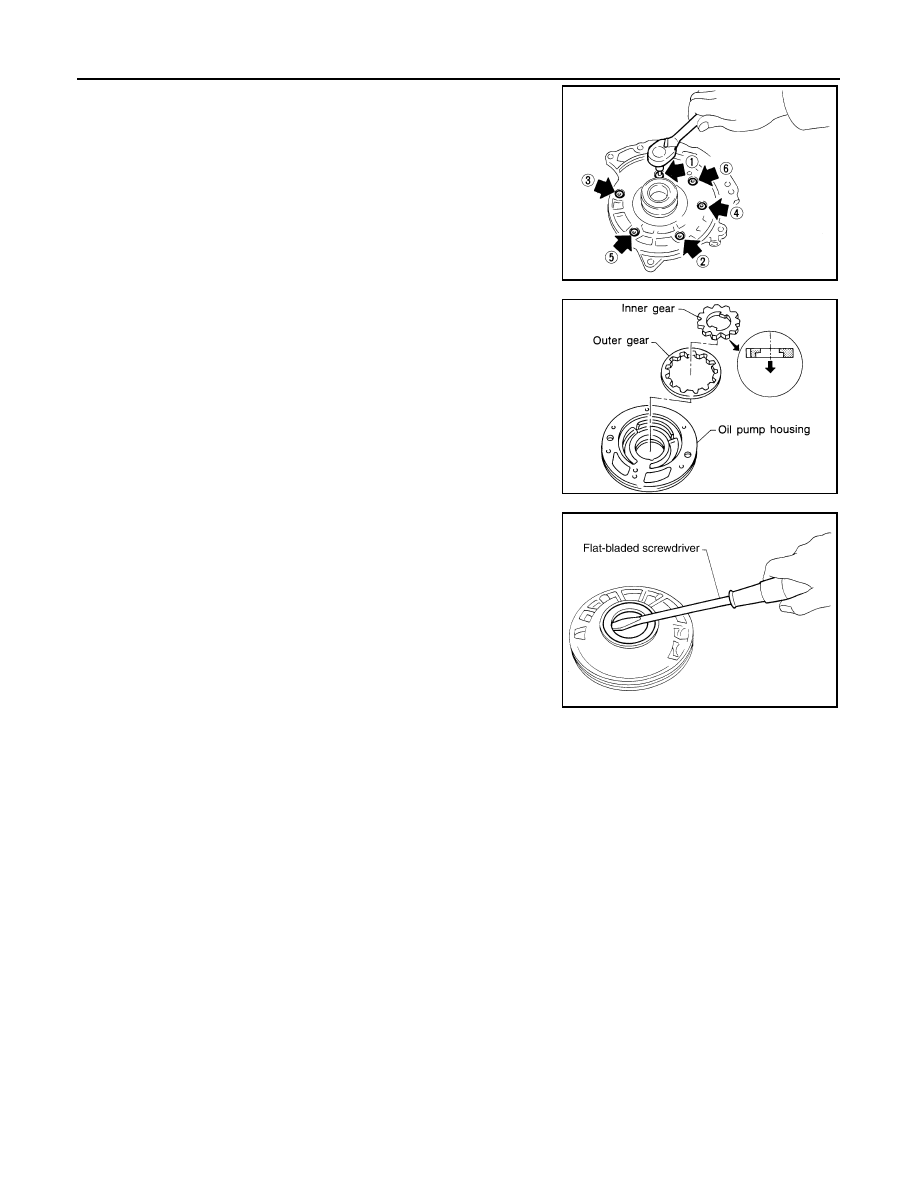

2.

Remove bolts in the order as shown, and remove oil pump
cover.

3.

Remove inner gear and outer gear from oil pump housing.

4.

Remove oil pump housing oil seal using suitable tool.

CAUTION:

Do not scratch oil pump housing.

INSPECTION

Oil Pump Housing, Oil Pump Cover, Inner Gear and Outer Gear

Check for wear or damage. Replace if necessary.

Side Clearances

SAT091D

SAT092D

SCIA2840E
