Nissan Tiida C11. Manual - part 1348

SYSTEM SYMPTOM

TM-443

< SYMPTOM DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OK or NG

OK

>> GO TO 2.

NG

>> Adjust A/T position. Refer to

TM-204, "Adjustment of A/T Position"

.

2.

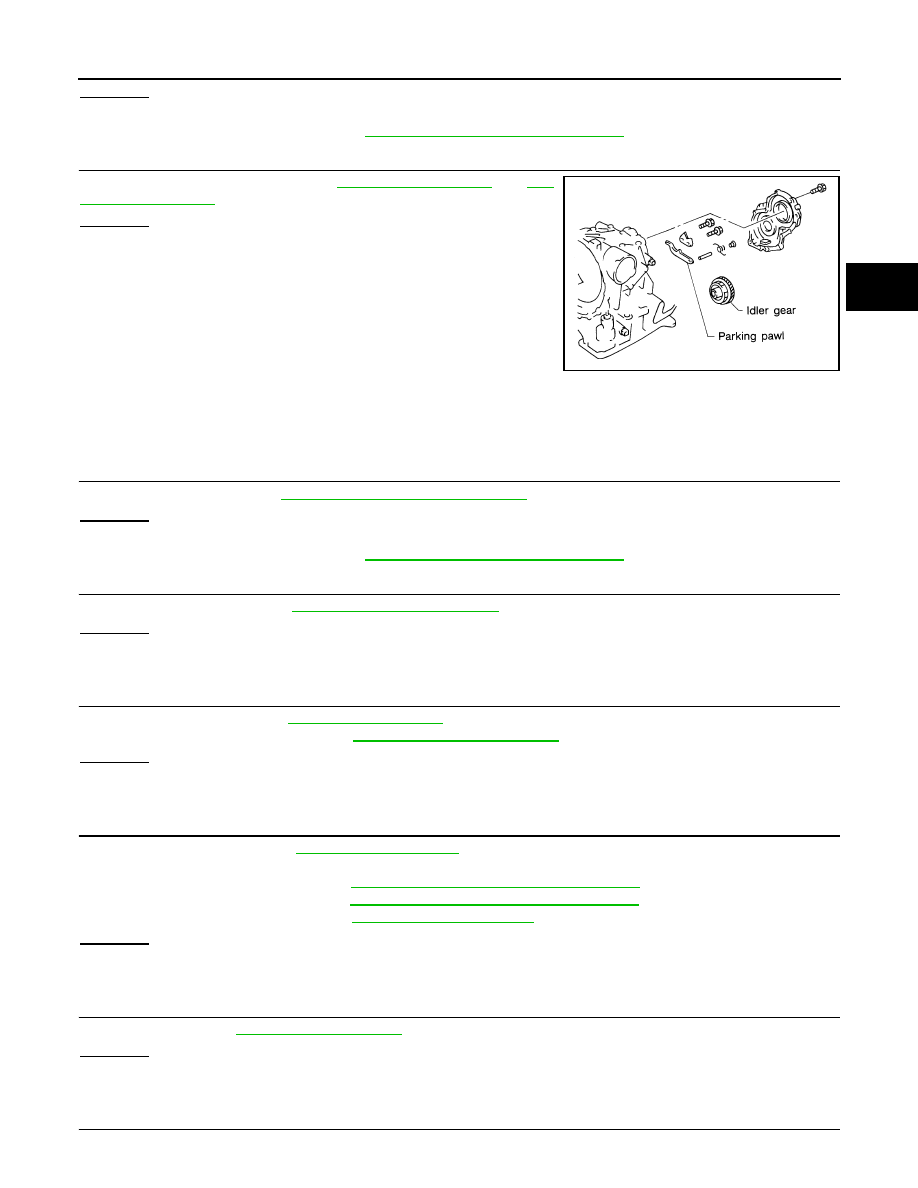

CHECK PARKING COMPONENTS

Check parking components. Refer to

TM-213, "Component"

 and

TM-

222, "Disassembly"

.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

In "N" Position, Vehicle Moves

INFOID:0000000001714349

SYMPTOM:
Vehicle moves forward or backward when selecting “N” position.

1.

CHECK A/T POSITION

Check A/T position. Refer to

TM-204, "Checking of A/T Position"

.

OK or NG

OK

>> GO TO 2.

NG

>> Adjust A/T position. Refer to

TM-204, "Adjustment of A/T Position"

.

2.

CHECK A/T FLUID LEVEL

Check A/T fluid level. Refer to

TM-171, "Checking A/T Fluid"

.

OK or NG

OK

>> GO TO 3.

NG

>> Refill ATF.

3.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

TM-213, "Component"

.

2.

Check A/T fluid condition. Refer to

TM-171, "Checking A/T Fluid"

.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 4.

4.

DETECT MALFUNCTIONING ITEM

1.

Disassemble A/T. Refer to

TM-222, "Disassembly"

.

2.

Check the following items:

-

Forward clutch assembly. Refer to

TM-267, "Forward and Overrun Clutches"

.

-

Overrun clutch assembly. Refer to

TM-267, "Forward and Overrun Clutches"

.

-

Reverse clutch assembly. Refer to

TM-258, "Reverse Clutch"

.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK SYMPTOM

Check again. Refer to

TM-181, "Check at Idle"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 6.

6.

CHECK TCM

SAT282F

TM-444

< SYMPTOM DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

SYSTEM SYMPTOM

1.

Check TCM input/output signals. Refer to

TM-22, "Input/Output Signal of TCM"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Large Shock "N"

→

 "R" Position

INFOID:0000000001714350

SYMPTOM:
There is a large shock when changing from “N” to “R” position.

1.

CHECK SELF-DIAGNOSTIC RESULTS

Perform self-diagnosis. Refer to

TM-35, "CONSULT-III Function (TRANSMISSION)"

 or

TM-38, "Diagnosis

Procedure without CONSULT-III"

.

Is any malfunction detected by self-diagnostic results?

YES

>> Check the malfunctioning system. Refer to

TM-38, "Diagnosis Procedure without CONSULT-III"

.

NO

>> GO TO 2.

2.

CHECK LINE PRESSURE

Check line pressure at idle with selector lever in “D” position. Refer to

TM-178, "Inspection and Judgment"

.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING ITEM

1.

Remove control valve assembly. Refer to

TM-191, "Control Valve Assembly and Accumulators"

.

2.

Check the following items:

-

Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot fil-
ter)

-

Line pressure solenoid valve

-

Oil pump assembly. Refer to

TM-240, "Oil Pump"

.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

CHECK SYMPTOM

Check again. Refer to

TM-181, "Check at Idle"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 5.

5.

CHECK TCM

1.

Check TCM input/output signals. Refer to

TM-22, "Input/Output Signal of TCM"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Vehicle Does Not Creep Backward in "R" Position

INFOID:0000000001714351

SYMPTOM:
Vehicle does not creep backward when selecting “R” position.

1.

CHECK A/T FLUID LEVEL

Check A/T fluid level. Refer to

TM-171, "Checking A/T Fluid"

.

OK or NG

OK

>> GO TO 2.

NG

>> Refill ATF.

SYSTEM SYMPTOM

TM-445

< SYMPTOM DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

2.

CHECK LINE PRESSURE

Check line pressure at idle with selector lever in “R” position. Refer to

TM-178, "Inspection and Judgment"

.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING ITEM

1.

Remove control valve assembly. Refer to

TM-191, "Control Valve Assembly and Accumulators"

.

2.

Check the following items:

-

Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot fil-
ter)

-

Line pressure solenoid valve

3.

Disassemble A/T. Refer to

TM-222, "Disassembly"

.

4.

Check the following item:

-

Oil pump assembly. Refer to

TM-240, "Oil Pump"

.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

CHECK STALL REVOLUTION

Check stall revolution with selector lever in “1” and “R” positions. Refer to

TM-175, "Inspection and Judgment"

.

OK or NG

OK

>> GO TO 6.

OK in “1” position, NG in “R” position>>GO TO 5.
NG in both “1” and “R” positions>>GO TO 7.

5.

DETECT MALFUNCTIONING ITEM

1.

Disassemble A/T. Refer to

TM-222, "Disassembly"

.

2.

Check the following items:

-

Low & reverse brake assembly. Refer to

TM-273, "Low & Reverse Brake"

.

-

Reverse clutch assembly. Refer to

TM-258, "Reverse Clutch"

.

OK or NG

OK

>> GO TO 6.

NG

>> Repair or replace damaged parts.

6.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

TM-213, "Component"

.

2.

Check A/T fluid condition. Refer to

TM-171, "Checking A/T Fluid"

.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 7.

7.

DETECT MALFUNCTIONING ITEM

1.

Disassemble A/T. Refer to

TM-222, "Disassembly"

.

2.

Check the following items:

-

Reverse clutch assembly. Refer to

TM-258, "Reverse Clutch"

.

-

High clutch assembly. Refer to

TM-262, "High Clutch"

.

-

Low & reverse brake assembly. Refer to

TM-273, "Low & Reverse Brake"

.

-

Forward clutch assembly. Refer to

TM-267, "Forward and Overrun Clutches"

.

-

Overrun clutch assembly. Refer to

TM-267, "Forward and Overrun Clutches"

.

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace damaged parts.

8.

CHECK SYMPTOM

Check again. Refer to

TM-181, "Check at Idle"

.

OK or NG

TM-446

< SYMPTOM DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

SYSTEM SYMPTOM

OK

>> INSPECTION END

NG

>> GO TO 9.

9.

CHECK TCM

1.

Check TCM input/output signals. Refer to

TM-22, "Input/Output Signal of TCM"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Vehicle Does Not Creep Forward in "D", "2" or "1" Position

INFOID:0000000001714352

SYMPTOM:
Vehicle does not creep forward when selecting “D”, “2” or “1” position.

1.

CHECK A/T FLUID LEVEL

Check A/T fluid level. Refer to

TM-171, "Checking A/T Fluid"

.

OK or NG

OK

>> GO TO 2.

NG

>> Refill ATF.

2.

CHECK LINE PRESSURE

Check line pressure at idle with selector lever in “D” position. Refer to

TM-178, "Inspection and Judgment"

.

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 3.

3.

DETECT MALFUNCTIONING ITEM

1.

Remove control valve assembly. Refer to

TM-191, "Control Valve Assembly and Accumulators"

.

2.

Check the following items:

-

Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot fil-
ter)

-

Line pressure solenoid valve

3.

Disassemble A/T. Refer to

TM-222, "Disassembly"

.

4.

Check the following item:

-

Oil pump assembly. Refer to

TM-240, "Oil Pump"

.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

CHECK STALL REVOLUTION

Check stall revolution with selector lever in “D” position. Refer to

TM-175, "Inspection and Judgment"

.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

DETECT MALFUNCTIONING ITEM

1.

Disassemble A/T. Refer to

TM-222, "Disassembly"

.

2.

Check the following items:

-

Oil pump assembly. Refer to

TM-240, "Oil Pump"

.

-

Forward clutch assembly. Refer to

TM-267, "Forward and Overrun Clutches"

.

-

Forward one-way clutch. Refer to

TM-278, "Rear Internal Gear and Forward Clutch Hub"

.

-

Low one-way clutch. Refer to

TM-222, "Disassembly"

.

-

Torque converter. Refer to

TM-222, "Disassembly"

.

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

6.

CHECK A/T FLUID CONDITION
