PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSI-

TION SIGNAL CIRCUIT

TM-415

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

2.

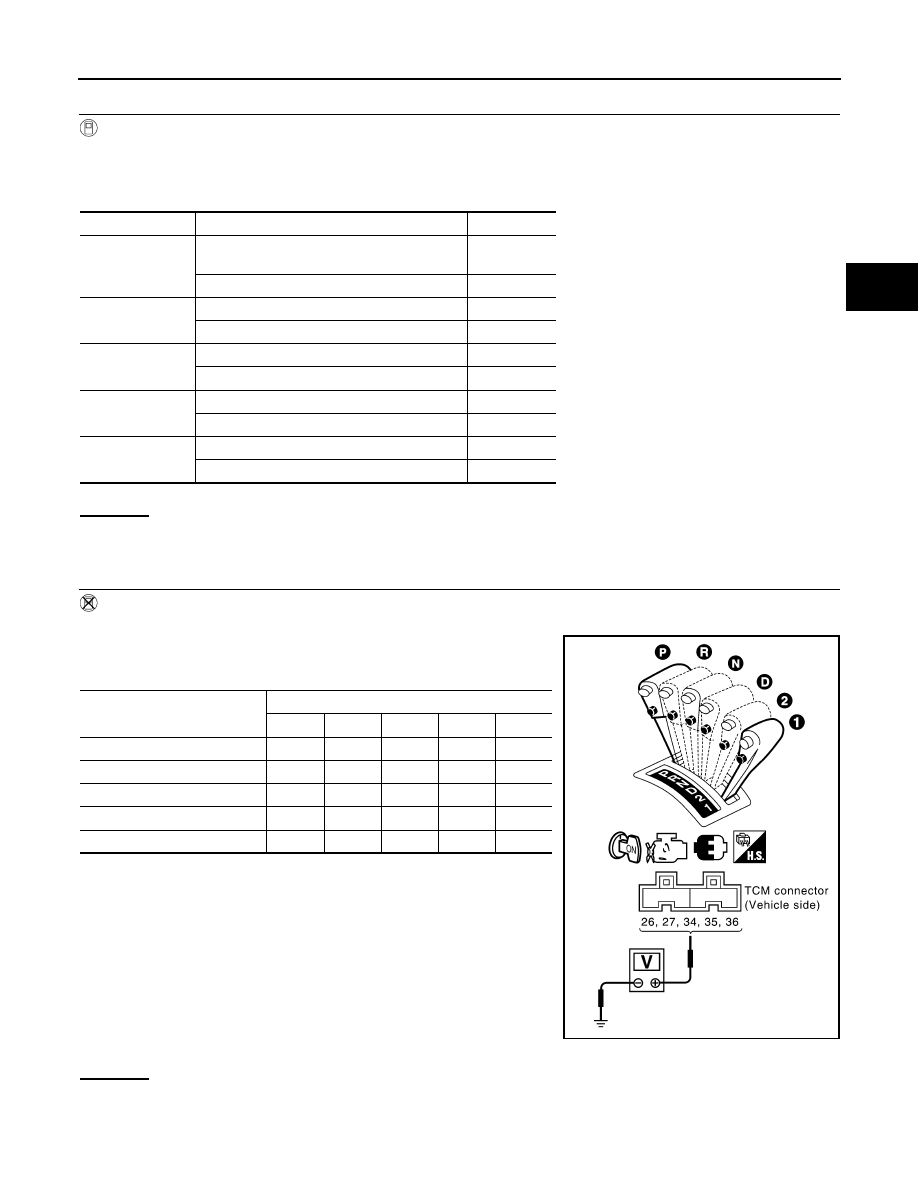

CHECK PNP SWITCH CIRCUIT

With CONSULT-III

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Read out “P·N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 4.

3.

CHECK PNP SWITCH CIRCUIT

Without CONSULT-III

1.

Turn ignition switch ON. (Do not start engine.)

2.

Check voltage between TCM connector terminals and ground
while moving selector lever through each position.

B: Battery voltage

0: 0V

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 4.

Item name

Condition

Display value

PN POSI SW

When setting selector lever to “N” or “P” posi-
tion.

ON

When setting selector lever to other positions.

OFF

R POSITION SW

When setting selector lever to “R” position.

ON

When setting selector lever to other positions.

OFF

D POSITION SW

When setting selector lever to “D” positions.

ON

When setting selector lever to other positions.

OFF

2 POSITION SW

When setting selector lever to “2” position.

ON

When setting selector lever to other positions.

OFF

1 POSITION SW

When setting selector lever to “1” position.

ON

When setting selector lever to other positions.

OFF

Selector lever position

Terminal

36

35

34

27

26

“P”, “N”

B

0

0

0

0

“R”

0

B

0

0

0

“D”

0

0

B

0

0

“2”

0

 0

0

B

0

“1”

0

0

0

0

B

SCIA7162E

TM-416

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSI-

TION SIGNAL CIRCUIT

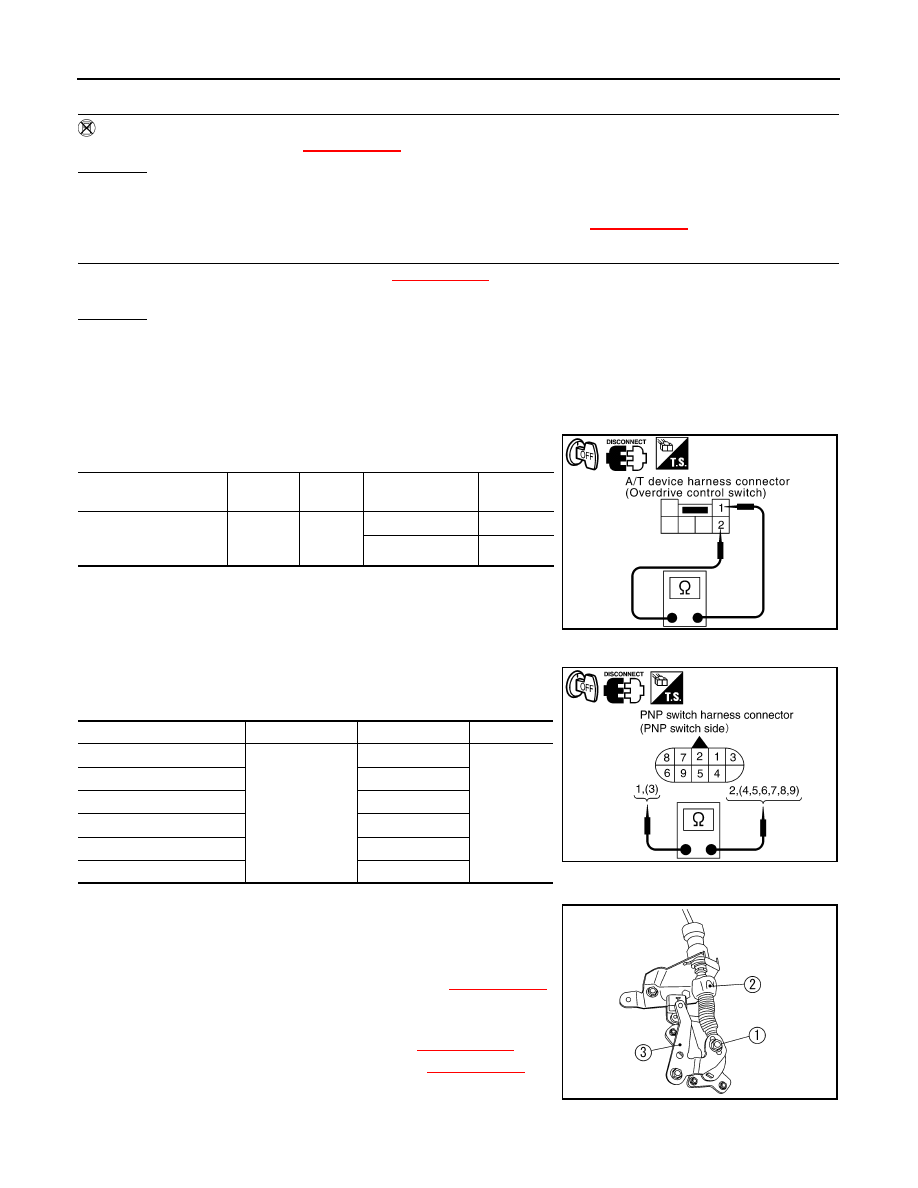

4.

CHECK PNP SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect PNP switch harness connector.

3.

Check continuity between PNP switch harness connector termi-
nals.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

CHECK CONTROL CABLE ADJUSTMENT

Check PNP switch again with control cable disconnected from manual shaft of A/T assembly. Refer to test
group 4.

OK or NG

OK

>> Adjust control cable. Refer to

XX-XX, "*****"

.

NG

>> Repair or replace PNP switch. Refer to

XX-XX, "*****"

.

6.

DETECT MALFUNCTIONING ITEM

Check the following.
• Harness for short or open between ignition switch and PNP switch
• Harness for short or open between PNP switch and TCM
• Harness for short or open between PNP switch and combination meter
• Harness for short or open between combination meter and TCM
• 10A fuse (No.51, located in the IPDM E/R)
• Combination meter.
• Ignition switch.

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

7.

CHECK OVERDRIVE CONTROL SWITCH CIRCUIT

With CONSULT-III

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Read out “OVERDRIVE SW”. Check the signal of overdrive control switch is indicated properly.

Without CONSULT-III

1.

Turn ignition switch ON. (Do not start engine.)

Selector lever position

Connector

Terminal

Continuity

“P”

F25

1 - 2, 3 - 7

Yes

*Continuity

should not

exist in posi-

tions other

than the

specified

positions.

“R”

3 - 8

“N”

1 - 2, 3 - 9

“D”

3 - 6

“2”

3 - 5

“1”

3 - 4

SCIA5588E

Item name

Overdrive control switch
Condition

Display value

OVERDRIVE SW

Depressed

ON

Released

OFF

PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSI-

TION SIGNAL CIRCUIT

TM-417

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

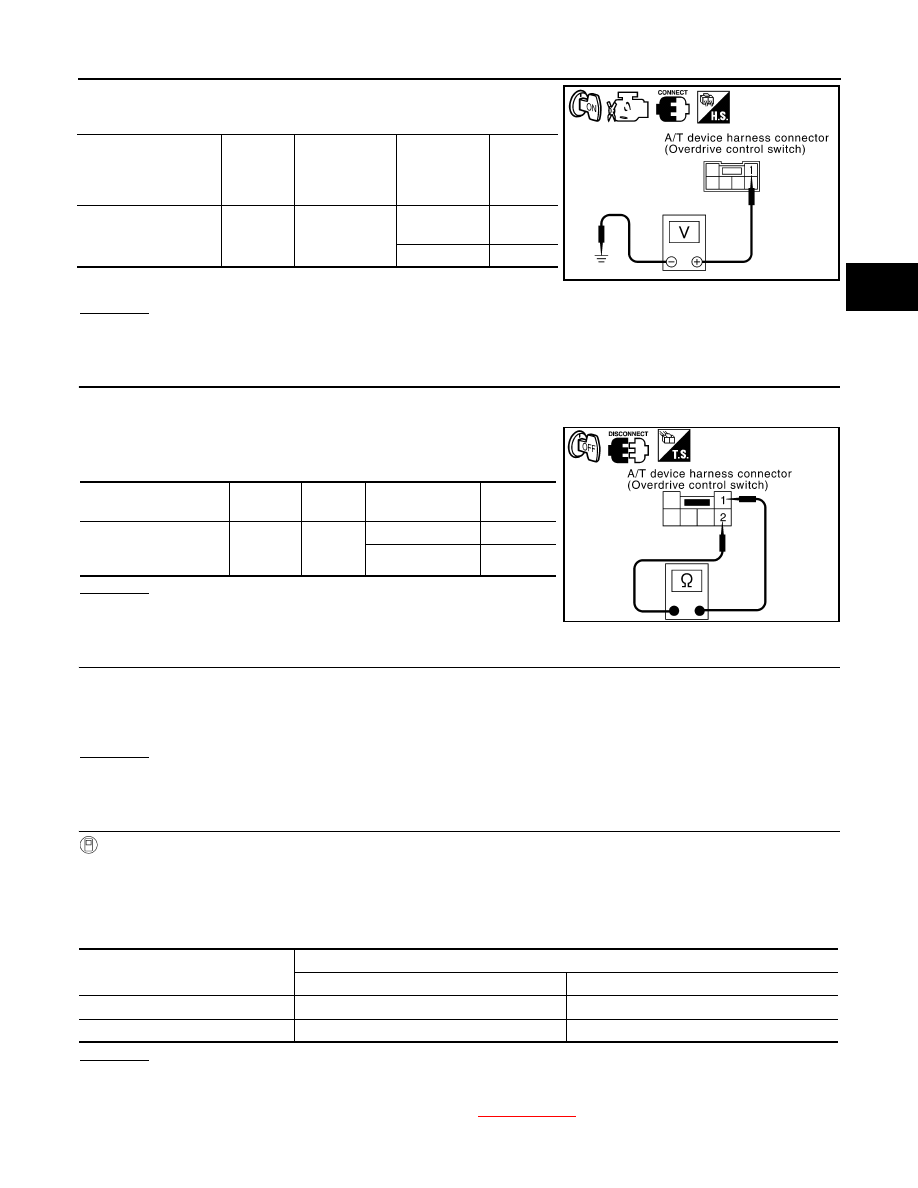

2.

Check voltage between A/T device harness connector terminal
and ground.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 8.

8.

CHECK OVERDRIVE CONTROL SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect A/T device harness connector.

3.

Check continuity between A/T device harness connector termi-
nals.

OK or NG

OK

>> GO TO 9.

NG

>> Repair or replace damaged parts.

9.

DETECT MALFUNCTIONING ITEM

Check the following.
• Harness for short or open between combination meter and A/T device harness connector
• Harness for short or open between A/T device harness connector and ground
• Combination meter.
OK or NG

OK

>> GO TO 10.

NG

>> Repair or replace damaged parts.

10.

CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT

 With CONSULT-III

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for TRANSMISSION with CONSULT-III.

3.

Read out “CLOSED THL/SW” and “W/O THRL/P-SW” depressing and releasing accelerator pedal.
Check that the signals of throttle position are indicated properly.

OK or NG

OK

>> GO TO 11.

NG

>>

Check the following. If any items are damaged, repair or replace damaged parts.

• Accelerator pedal position sensor. Refer to

XX-XX, "*****"

.

Item

Connector

Terminal

Overdrive

control switch

Condition

Judge-

ment

standard

(Approx.)

A/T device harness
connector (Overdrive
control switch)

M38

1 - Ground

Released

Battery
voltage

Depressed

0V

SCIA5336E

Item

Connector

Terminal

Overdrive control

switch condition

Continuity

A/T device harness con-
nector (Overdrive con-
trol switch)

M38

1 - 2

Released

No

Depressed

Yes

SCIA5330E

Accelerator pedal condition

Data monitor

CLOSED THL/SW

W/O THRL/P-SW

Released

ON

OFF

Fully depressed

OFF

ON

TM-418

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSI-

TION SIGNAL CIRCUIT

11.

PERFORM SELF-DIAGNOSIS

Without CONSULT-III

Perform self-diagnosis. Refer to

XX-XX, "*****"

.

OK or NG

OK

>> INSPECTION END

NG

−

 1 >> Self-diagnosis does not activate: GO TO 12.

NG

−

 2 >> DTC is displayed: Check the malfunctioning system. Refer to

XX-XX, "*****"

.

12.

CHECK TCM

1.

Check TCM input/output signal. Refer to

XX-XX, "*****"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

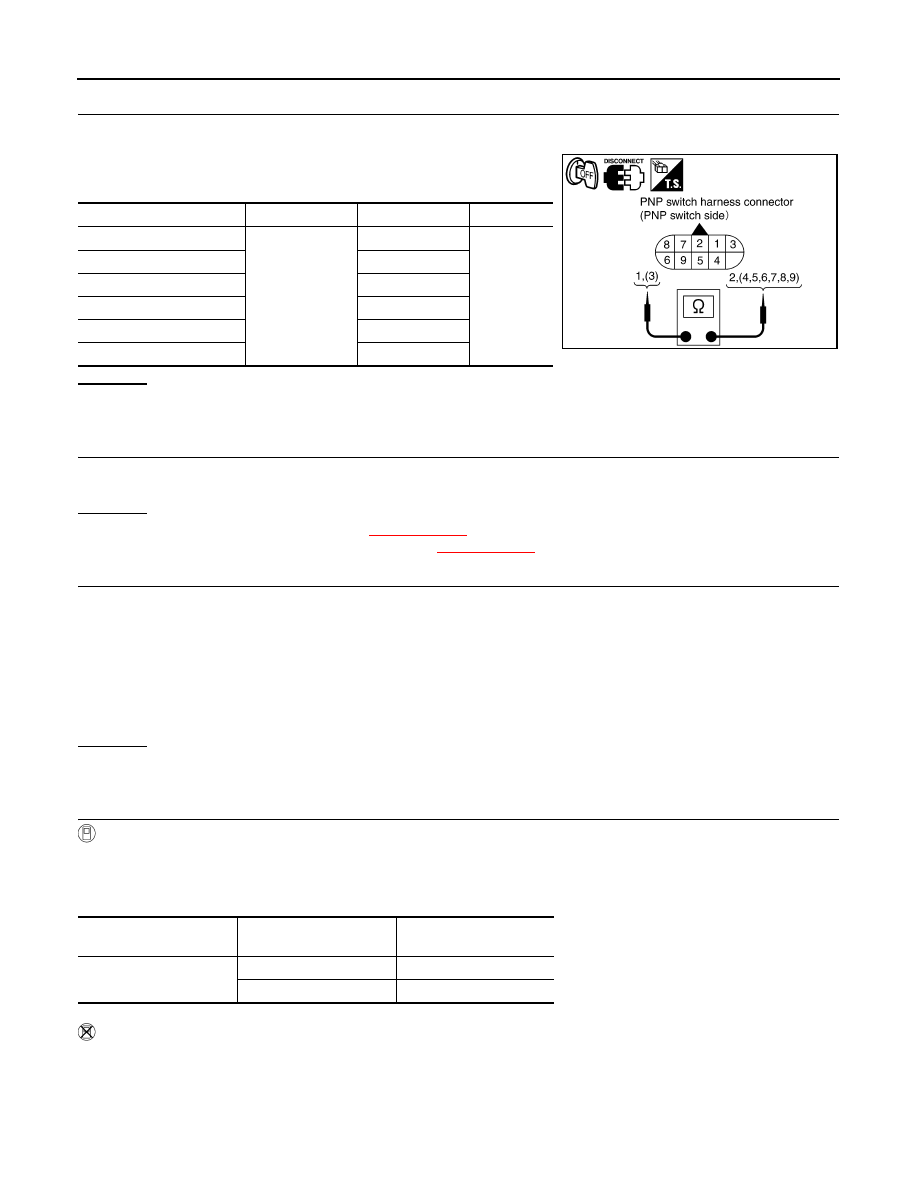

Component Inspection

INFOID:0000000001713110

OVERDRIVE CONTROL SWITCH

• Check continuity between A/T device harness connector terminals.

PNP SWITCH

1.

Check continuity between PNP switch harness connector termi-
nals.

2.

If NG, check again with control cable (2) disconnected from
manual shaft of A/T assembly. Refer to step 1.
(1): Lock nut
(3): Manual shaft

3.

If OK on step 2, adjust control cable (2). Refer to

XX-XX, "*****"

.

4.

If NG on step 2, remove PNP switch from A/T assembly and
check continuity of PNP switch terminals. Refer to step 1.

5.

If OK on step 4, adjust PNP switch. Refer to

XX-XX, "*****"

.

6.

If NG on step 4, replace PNP switch. Refer to

XX-XX, "*****"

.

Item

Connector

Terminal

Overdrive control

switch condition

Continuity

A/T device harness con-
nector (Overdrive con-
trol switch)

M38

1 - 2

Released

No

Depressed

Yes

SCIA5330E

Selector lever position

Connector

Terminal

Continuity

“P”

F25

1 - 2, 3 - 7

Yes

*Continuity

should not

exist in posi-

tions other

than the

specified

positions.

“R”

3 - 8

“N”

1 - 2, 3 - 9

“D”

3 - 6

“2”

3 - 5

“1”

3 - 4

SCIA5588E
