OVERRUN CLUTCH SOLENOID VALVE

TM-371

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

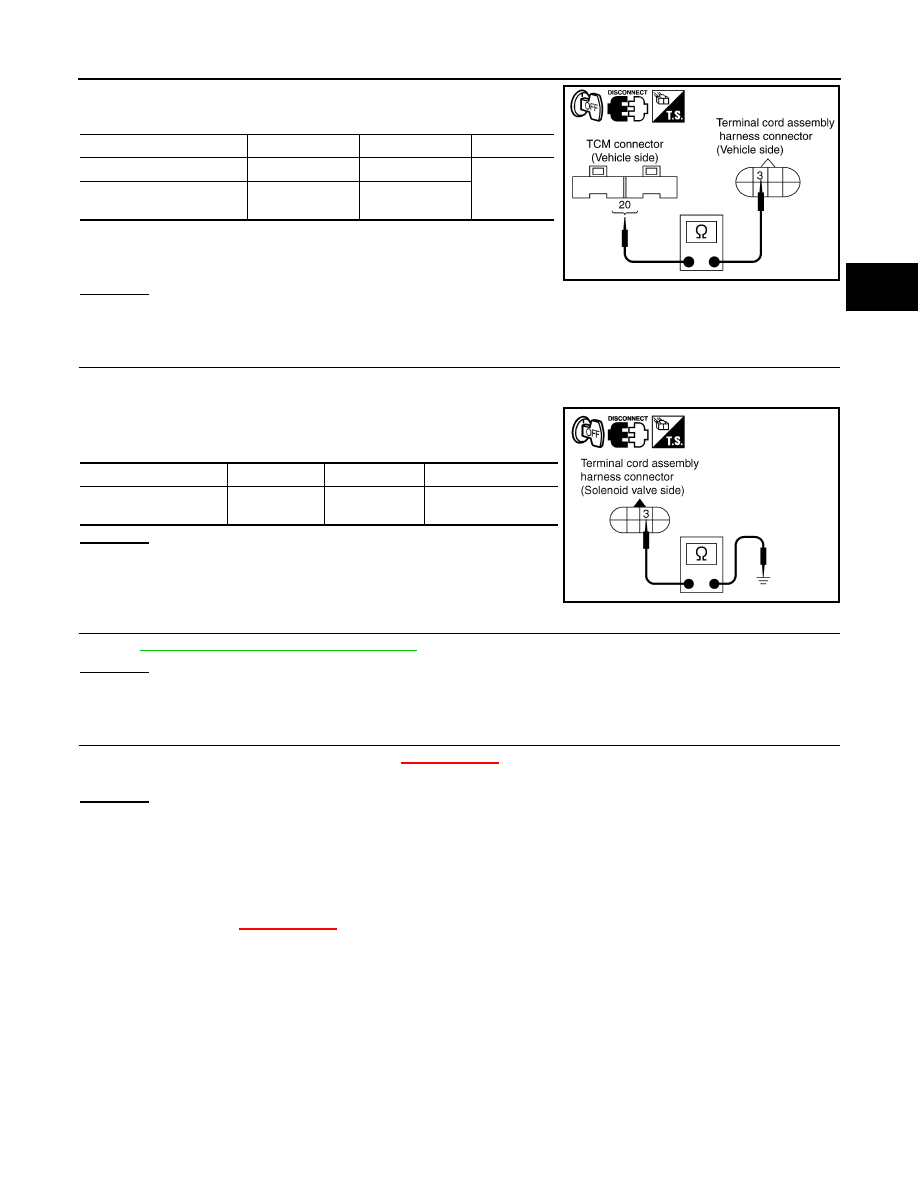

3.

Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.

4.

If OK, check harness for short to ground and short to power.

5.

If OK, check continuity between ground and transaxle assembly.

6.

Reinstall any part removed.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK VALVE RESISTANCE

1.

Turn ignition switch OFF.

2.

Disconnect terminal cord assembly connector in engine room.

3.

Check resistance between terminal cord assembly harness con-
nector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK DTC

Perform

TM-369, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 6.

6.

CHECK TCM

1.

Check TCM input/output signals. Refer to

XX-XX, "*****"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Component Inspection

INFOID:0000000001713025

OVERRUN CLUTCH SOLENOID VALVE

• For removal, refer to

XX-XX, "*****"

.

Resistance Check

Item

Connector

Terminal

Continuity

TCM

E101

20

Yes

Terminal cord assembly

harness connector

F30

3

SCIA3260E

Solenoid valve

Connector

Terminal

Resistance (Approx.)

Overrun clutch solenoid
valve

F30

3 - Ground

20 - 30

Ω

SCIA4945E

TM-372

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

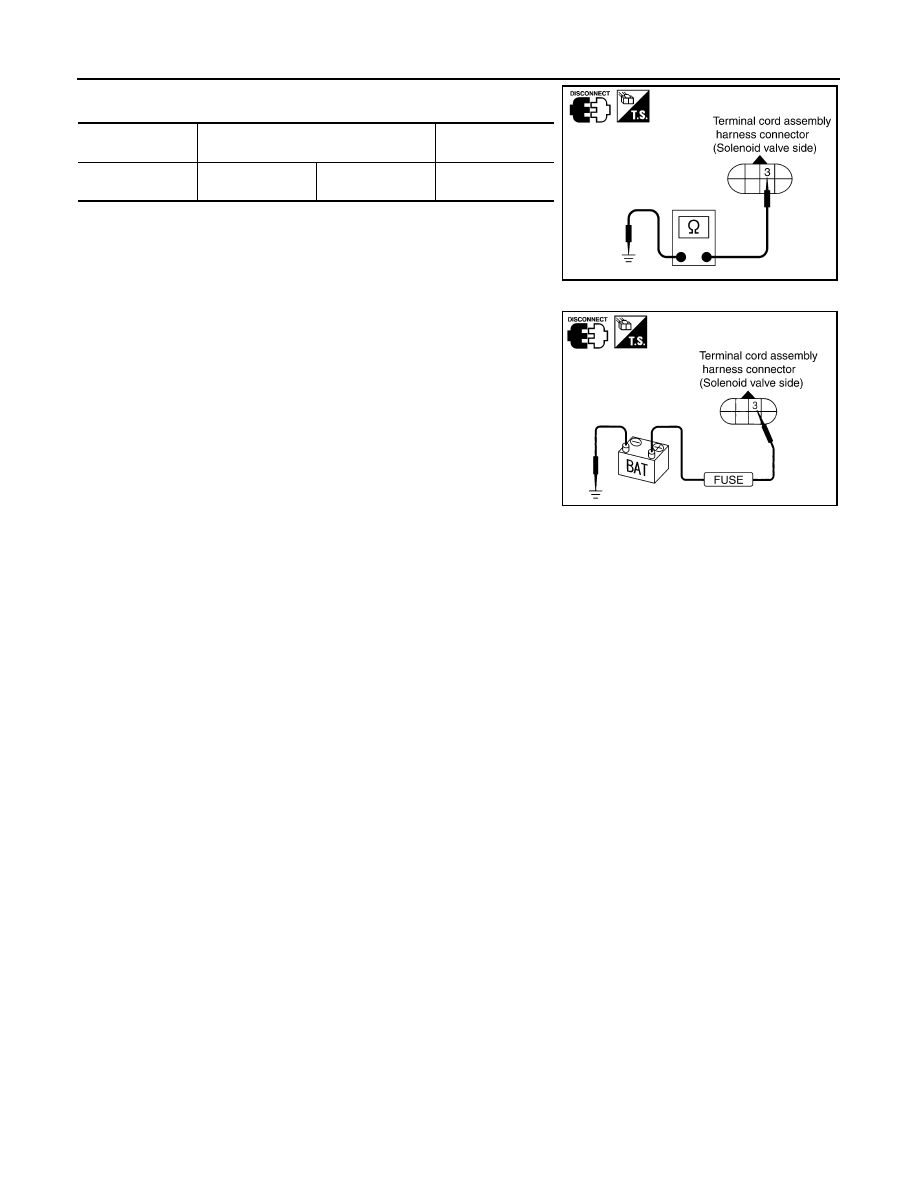

OVERRUN CLUTCH SOLENOID VALVE

• Check resistance between terminal and ground.

Operation Check

• Check solenoid valve by listening for its operating sound while

applying battery voltage to the terminal and ground.

Solenoid valve

Terminal

Resistance (Ap-

prox.)

Overrun clutch so-

lenoid valve

3

Ground

20 - 30

Ω

SCIA2059E

SCIA2062E

TORQUE CONVERTER CLUTCH SOLENOID VALVE

TM-373

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

TORQUE CONVERTER CLUTCH SOLENOID VALVE

Description

INFOID:0000000001713026

• The torque converter clutch solenoid valve is activated, with the gear in D

4

 and D

3

, by the TCM in response

to signals sent from the vehicle speed sensor and the ECM (throttle opening). Lock-up piston operation will
then be controlled.

• Lock-up operation, however, is prohibited when A/T fluid temperature is too low.
• When the accelerator pedal is depressed (less than 2/8) on lock-up condition, the engine speed should not

change abruptly. If there is an abrupt change in engine speed, there is no lock-up.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001713027

Remarks: Specification data are reference values.

On Board Diagnosis Logic

INFOID:0000000001713028

Diagnostic trouble code “T/C CLUTCH SOL/V” with CONSULT-III or 7th judgement flicker without CONSULT-
III is detected when TCM detects an improper voltage drop while it tries to operate the solenoid valve.

Possible Cause

INFOID:0000000001713029

• Torque converter clutch solenoid valve
• Harness or connector

(Solenoid circuit is open or shorted.)

DTC Confirmation Procedure

INFOID:0000000001713030

CAUTION:

• Always drive vehicle at a safe speed.
• If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at

least 10 seconds before continuing.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III and wait at least 1 second.

3.

Touch “START”.

4.

Start engine and maintain the following conditions for at least 5 consecutive seconds.
VEHICLE SPEED: 80 km/h (50 MPH) or more
THROTTLE POSI: 0.5/8 - 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.

5.

If the check result is NG, go to

TM-373, "Diagnosis Procedure"

.

 WITHOUT CONSULT-III

1.

Start engine.

2.

Drive vehicle in D

1

→

 D

2

→

 D

3

→

 D

4

→

 D

4

 lock-up position.

3.

Perform self-diagnosis. Refer to

TM-350, "Diagnosis Procedure without CONSULT-III"

.

4.

If the check result is NG, go to

TM-373, "Diagnosis Procedure"

.

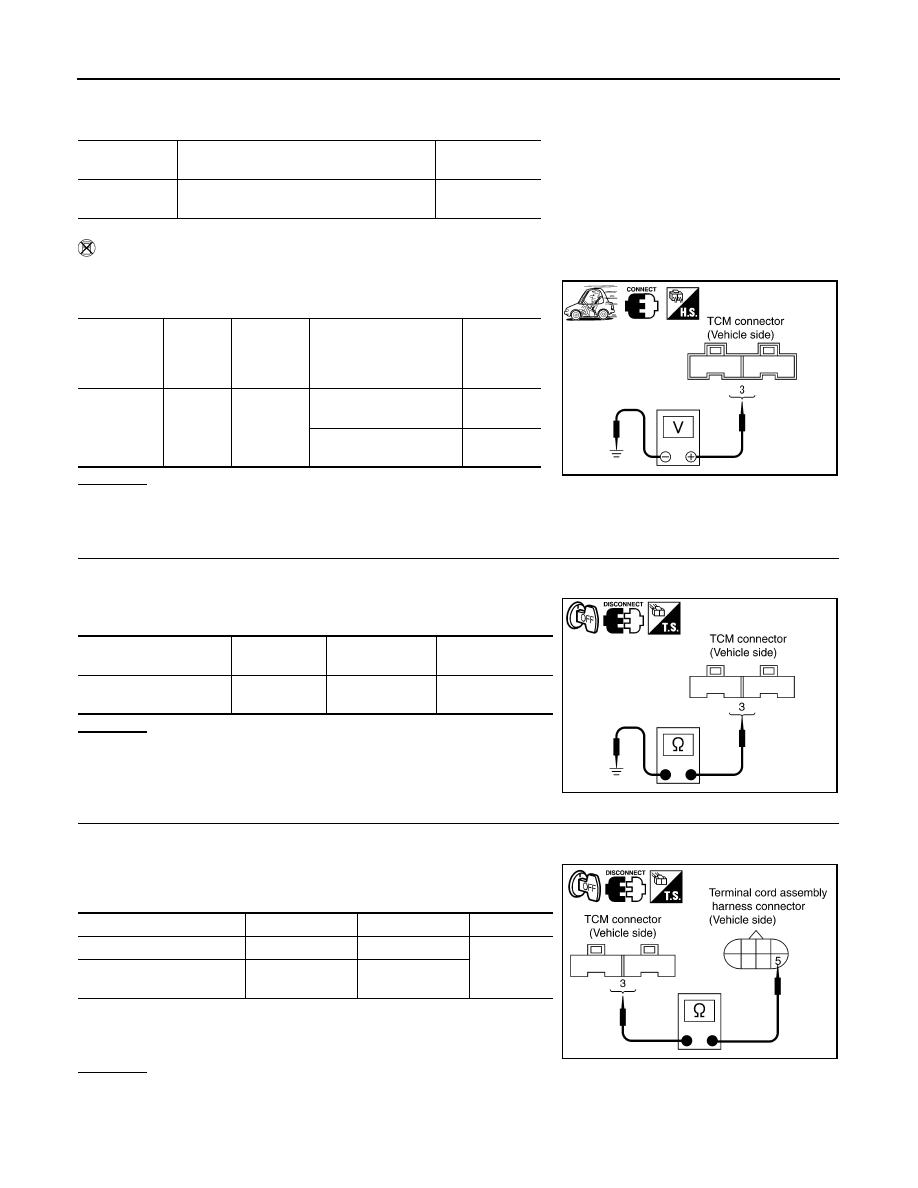

Diagnosis Procedure

INFOID:0000000001713032

1.

CHECK INPUT SIGNAL

With CONSULT-III

1.

Start engine.

2.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

Item name

Condition

Display value (Approx.)

TCC S/V DUTY

Lock-up OFF

⇔

 Lock-up ON

4%

⇔

 94%

TM-374

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

TORQUE CONVERTER CLUTCH SOLENOID VALVE

3.

Read out the value of “TCC S/V DUTY” while driving. Check the value changes according to driving
speed.

Without CONSULT-III

1.

Start engine.

2.

Check voltage between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

2.

CHECK TORQUE CONVERTER CLUTCH SOLENOID VALVE CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect TCM connector.

3.

Check resistance between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 3.

3.

 CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect terminal cord assembly harness connector and TCM connector.

3.

Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.

4.

If OK, check harness for short to ground and short to power.

5.

If OK, check continuity between ground and transaxle assembly.

6.

Reinstall any part removed.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

Item name

Condition

Display value
(Approx.)

TCC S/V
DUTY

Lock-up OFF

⇔

 Lock-up ON

4%

⇔

 94%

Item

Connec-

tor

Terminal

Condition

Judge-

ment stan-

dard

(Approx.)

Torque con-
verter clutch
solenoid
valve

E31

3 - Ground

When A/T performs lock-
up.

8 - 15V

When A/T does not per-
form lock-up.

0V

SCIA3261E

Solenoid Valve

Connector

Terminal

Resistance (Ap-

prox.)

Torque converter clutch
solenoid valve

E31

3 - Ground

5 - 20

Ω

SCIA3262E

Item

Connector

Terminal

Continuity

TCM

E31

3

Yes

Terminal cord assembly

harness connector

F30

5

SCIA3263E
