SHIFT SOLENOID VALVE A

TM-363

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

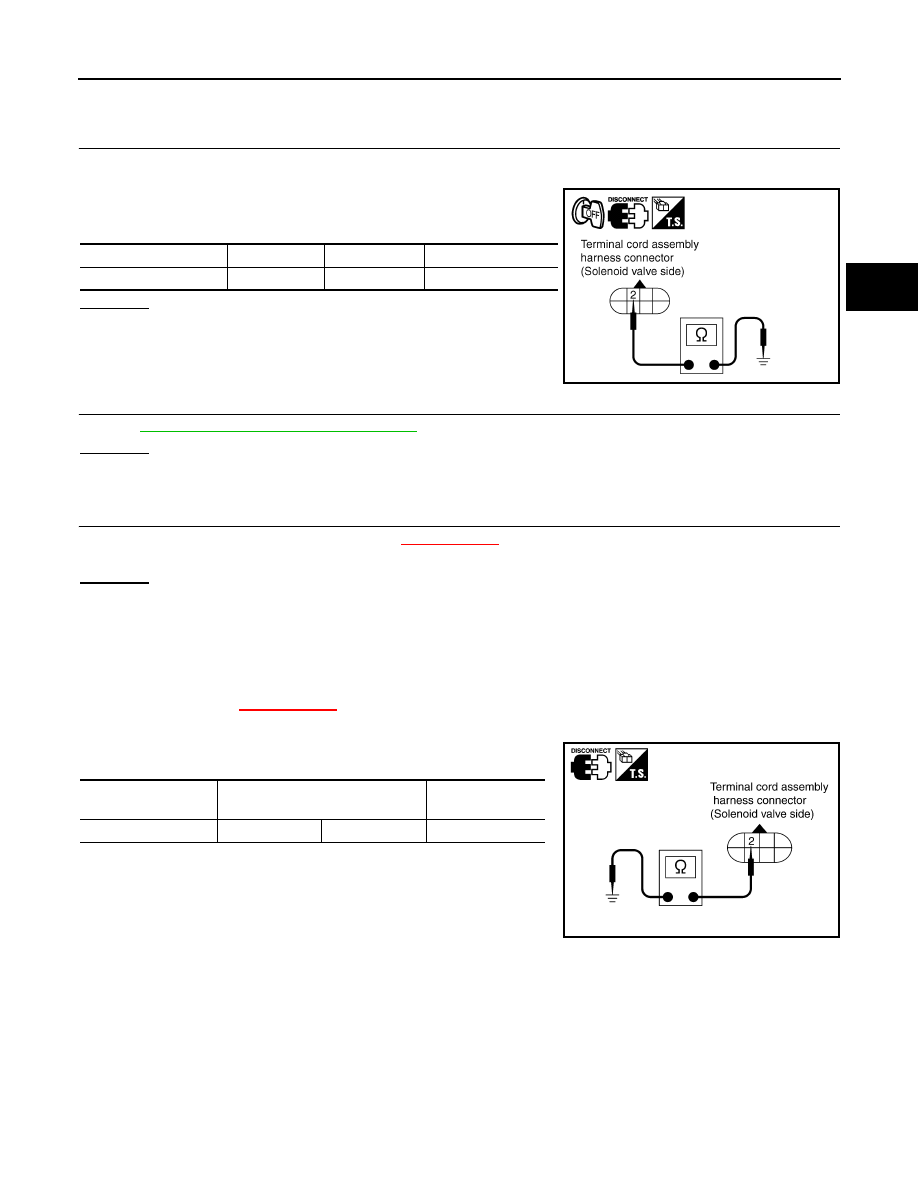

CHECK VALVE RESISTANCE

1.

Turn ignition switch OFF.

2.

Disconnect terminal cord assembly connector in engine room.

3.

Check resistance between terminal cord assembly harness con-
nector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace damaged parts.

5.

CHECK DTC

Perform

TM-361, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 6.

6.

CHECK TCM

1.

Check TCM input/output signals. Refer to

XX-XX, "*****"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Component Inspection

INFOID:0000000001713009

SHIFT SOLENOID VALVE A

• For removal, refer to

XX-XX, "*****"

.

Resistance Check

• Check resistance between terminal and ground.

Operation Check

Solenoid valve

Connector

Terminal

Resistance (Approx.)

Shift solenoid valve A

F30

2 - Ground

20 - 30

Ω

SCIA4942E

Solenoid valve

Terminal

Resistance (Ap-

prox.)

Shift solenoid valve A

2

Ground

20 - 30

Ω

SCIA2049E

TM-364

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

SHIFT SOLENOID VALVE A

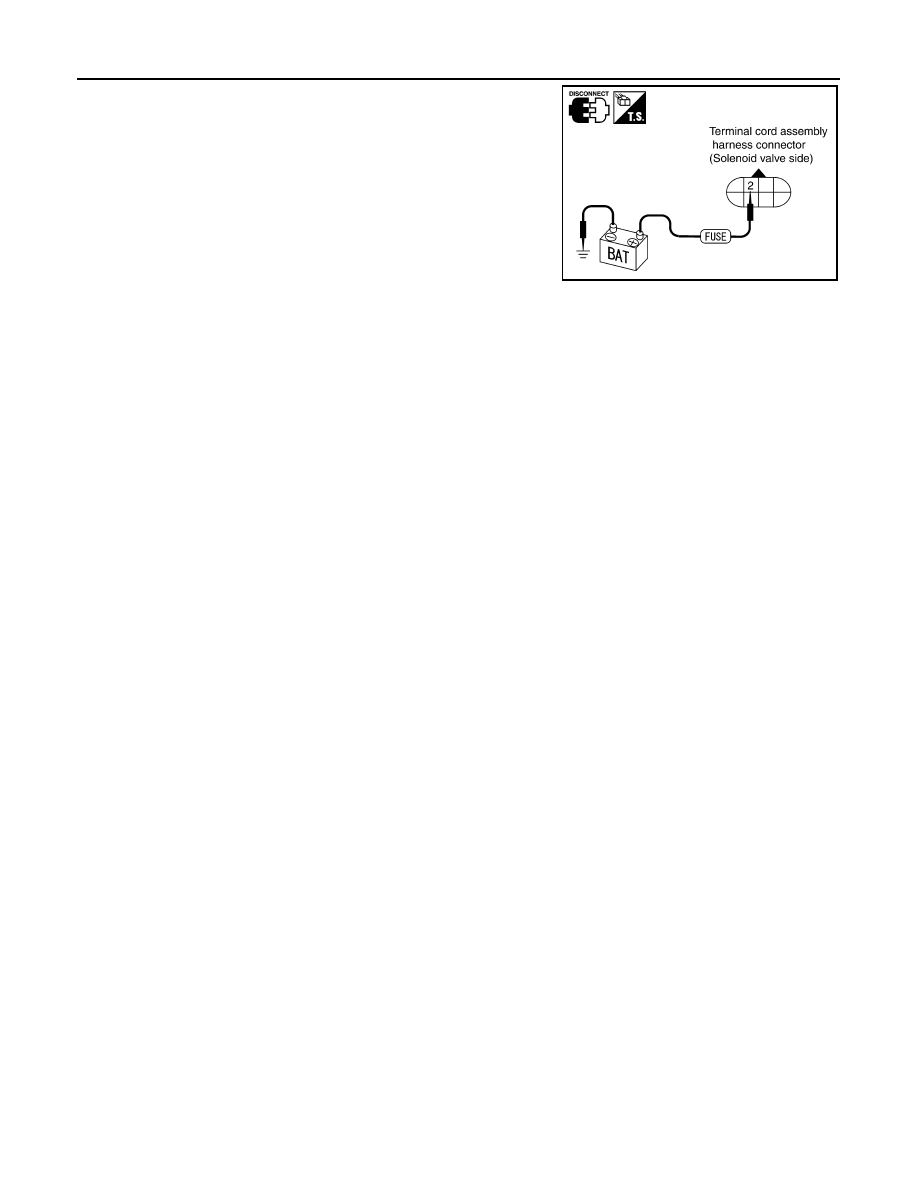

• Check solenoid valve by listening for its operating sound while

applying battery voltage to the terminal and ground.

SCIA2052E

SHIFT SOLENOID VALVE B

TM-365

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT SOLENOID VALVE B

Description

INFOID:0000000001713010

Shift solenoid valves A and B are turned ON or OFF by the TCM in response to signals sent from the PNP
switch, vehicle speed and ECM (throttle opening). Gears will then be shifted to the optimum position.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001713011

Remarks: Specification data are reference values.

On Board Diagnosis Logic

INFOID:0000000001713012

Diagnostic trouble code “SHIFT SOLENOID/V B” with CONSULT-III or 5th judgement flicker without CON-
SULT-III is detected when TCM detects an improper voltage drop when it tries to operate the solenoid valve.

Possible Cause

INFOID:0000000001713013

• Harness or connector

(Solenoid circuit is open or shorted.)

• Shift solenoid valve B

DTC Confirmation Procedure

INFOID:0000000001713014

CAUTION:

• Always drive vehicle at a safe speed.
• If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at

least 10 seconds before continuing.

 WITH CONSULT-III

1.

Turn ignition switch ON and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

2.

Touch “START”.

3.

Start engine.

4.

Drive vehicle in “D” position and allow the transaxle to shift 1

→

 2

→

 3 (“GEAR”).

5.

If the check result is NG, go to

TM-365, "Diagnosis Procedure"

.

 WITHOUT CONSULT-III

1.

Start engine.

2.

Drive vehicle in D

1

→

 D

2

→

 D

3

 position.

3.

Perform self-diagnosis.
Refer to

TM-38, "Diagnosis Procedure without CONSULT-III"

.

4.

If the check result is NG, go to

TM-365, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001713016

1.

CHECK INPUT SIGNAL

With CONSULT-III

1.

Start engine.

2.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Read out the value of “SHIFT S/V B” while driving.
Check the value changes according to driving speed.

Gear position

1

2

3

4

Shift solenoid valve A

ON (Closed)

OFF (Open)

OFF (Open)

ON (Closed)

Shift solenoid valve B

ON (Closed)

ON (Closed)

OFF (Open)

OFF (Open)

Item name

Condition

Display value

SHIFT S/V B

When shift solenoid valve B operates.
(When driving in “D

1

” or “D

2

”.)

ON

When shift solenoid valve B does not operate.
(When driving in “D

3

” or “D

4

”.)

OFF

TM-366

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

SHIFT SOLENOID VALVE B

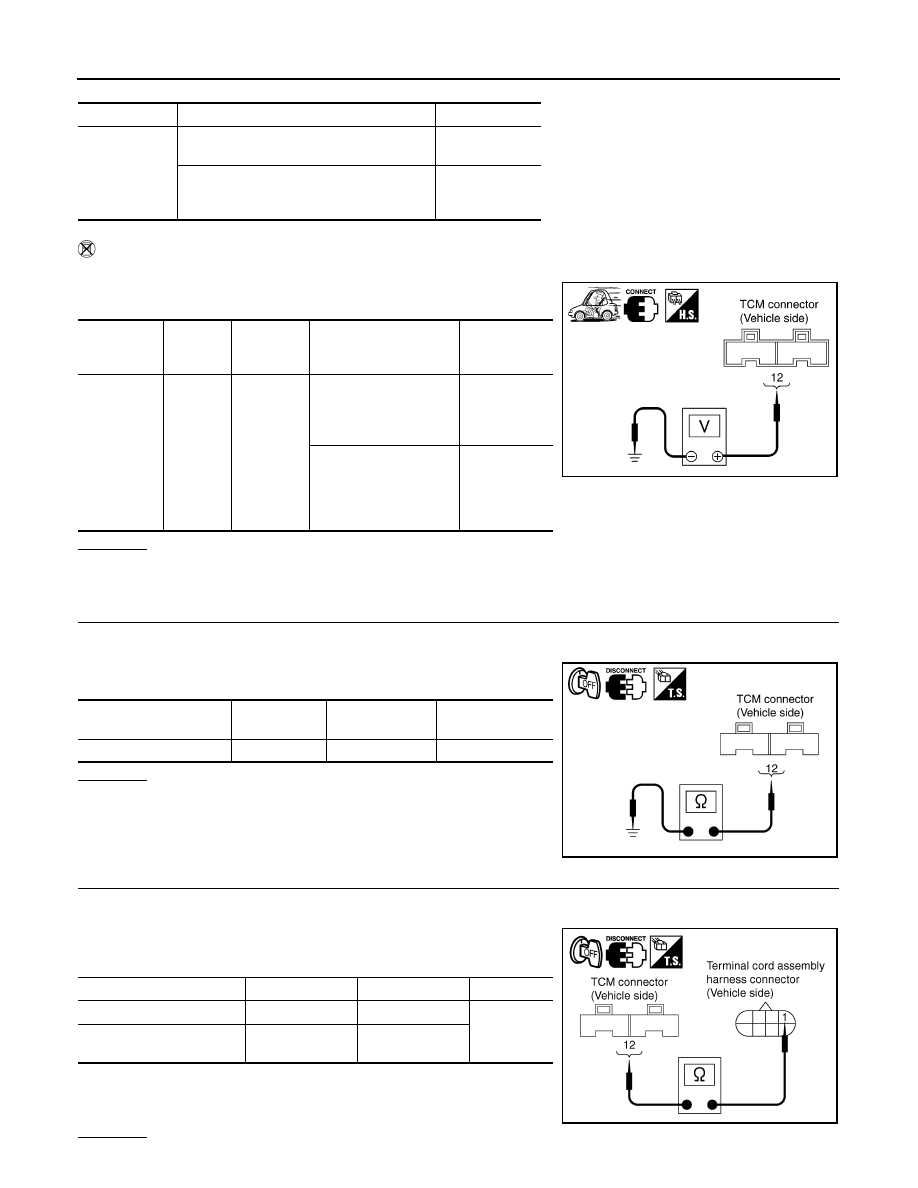

Without CONSULT-III

1.

Start engine.

2.

Check voltage between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

2.

CHECK SHIFT SOLENOID VALVE B CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect TCM connector.

3.

Check resistance between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 3.

3.

 CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect terminal cord assembly harness connector and TCM connector.

3.

Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.

4.

If OK, check harness for short to ground and short to power.

5.

If OK, check continuity between ground and transaxle assembly.

6.

Reinstall any part removed.

OK or NG

Item name

Condition

Display value

SHIFT S/V B

When shift solenoid valve B operates.
(When driving in “D

1

” or “D

2

”.)

ON

When shift solenoid valve B does not oper-
ate.
(When driving in “D

3

” or “D

4

”.)

OFF

Item

Connec-

tor

Terminal

Condition

Judgement

standard (Ap-

prox.)

Shift sole-

noid valve B

E31

12 -

Ground

When shift solenoid
valve B operates.
(When driving in “D

1

” or

“D

2

”.)

Battery volt-

age

When shift solenoid
valve B does not oper-
ate.
(When driving in “D

3

” or

“D

4

”.)

0V

SCIA3253E

Solenoid Valve

Connector

Terminal

Resistance (Ap-

prox.)

Shift solenoid valve B

E31

12 - Ground

5 - 20

Ω

SCIA3254E

Item

Connector

Terminal

Continuity

TCM

E101

12

Yes

Terminal cord assembly

harness connector

F30

1

SCIA4943E
