VEHICLE SPEED SENSOR MTR

TM-359

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

VEHICLE SPEED SENSOR MTR

Description

INFOID:0000000001712989

The vehicle speed sensor·MTR is built into the speedometer assembly. The sensor functions as an auxiliary
device to the revolution sensor when it is malfunctioning. The TCM will then use a signal sent from the vehicle
speed sensor·MTR.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001712990

Remarks: Specification data are reference values.

On Board Diagnosis Logic

INFOID:0000000001712991

Diagnostic trouble code “VHCL SPEED SEN-MTR” with CONSULT-III or 2nd judgement flicker without CON-
SULT-III is detected when TCM does not receive the proper voltage signal from the sensor.

Possible Cause

INFOID:0000000001712992

• Harness or connector

(Sensor circuit is open or shorted.)

• Vehicle speed sensor

DTC Confirmation Procedure

INFOID:0000000001712993

CAUTION:

• Always drive vehicle at a safe speed.
• If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at

least 10 seconds before continuing.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Turn ignition switch ON and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

2.

Touch “START”.

3.

Start engine and accelerate vehicle from 0 to 25 km/h (0 to 16 MPH).

4.

If the check result is NG, go to

TM-359, "Diagnosis Procedure"

.

 WITHOUT CONSULT-III

1.

Start engine.

2.

Drive vehicle under the following conditions:
Selector lever position: “D” position
Vehicle speed: Higher than 25 km/h (16 MPH)

3.

Perform self-diagnosis. Refer to

TM-38, "Diagnosis Procedure without CONSULT-III"

.

4.

If the check result is NG, go to

TM-359, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001712995

1.

CHECK INPUT SIGNAL

With CONSULT-III

1.

Start engine.

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Read out the value of “VHCL/S SE-MTR” while driving.
Check the value changes according to driving speed.

Item name

Condition

Display value

VHCL/S SE-MTR

During driving

Approximately matches the speedometer reading.

Item name

Condition

Display value

VHCL/S SE-MTR

During driving

Approximately matches
the speedometer reading.

TM-360

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

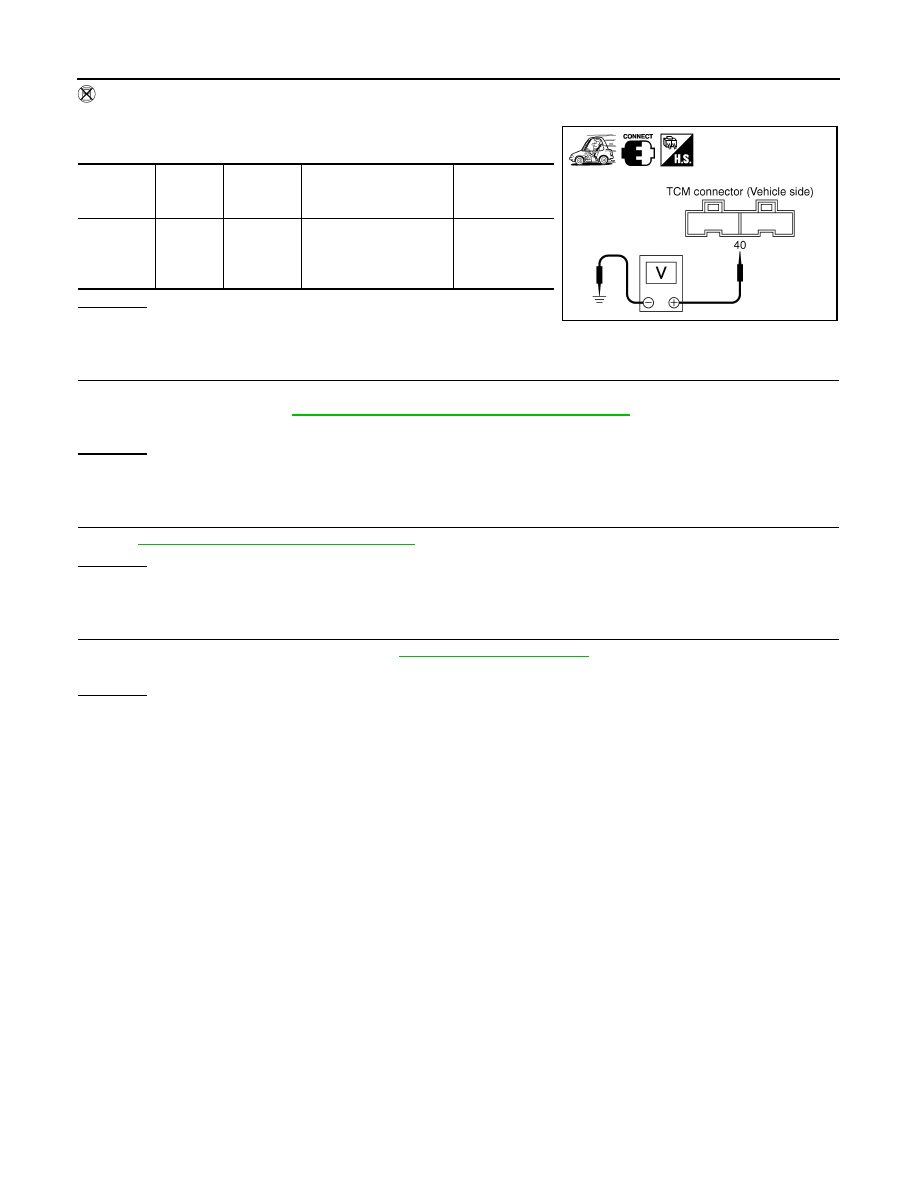

VEHICLE SPEED SENSOR MTR

Without CONSULT-III

1.

Start engine.

2.

Check voltage between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

DETECT MALFUNCTIONING ITEM

Check the following items:
• Combination meter. Refer to

MWI-4, "METER SYSTEM : System Description"

.

• Harness for short or open between TCM and combination meter.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

CHECK DTC

Perform

TM-359, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 4.

4.

CHECK TCM

1.

Check TCM input/output signals. Refer to

TM-422, "Reference Value"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Item

Connec-

tor

Terminal

Condition

Judgement

standard (Ap-

prox.)

Vehicle
speed sen-
sor

E32

40 -

Ground

When driving vehicle at 2
to 3 km/h (1 to 2 MPH)
for 1 m (3 ft) or more.

Voltage varies
between less
than 0V and
more than 4.5V

SCIA4940E

SHIFT SOLENOID VALVE A

TM-361

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT SOLENOID VALVE A

Description

INFOID:0000000001713002

Shift solenoid valves A and B are turned ON or OFF by the TCM in response to signals sent from the PNP
switch, vehicle speed and ECM (throttle opening). Gears will then be shifted to the optimum position.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001713003

Remarks: Specification data are reference values.

On Board Diagnosis Logic

INFOID:0000000001713004

Diagnostic trouble code “SHIFT SOLENOID/V A” with CONSULT-III or 4th judgement flicker without CON-
SULT-III is detected when TCM detects an improper voltage drop when it tries to operate the solenoid valve.

Possible Cause

INFOID:0000000001713005

• Harness or connector

(Solenoid circuit is open or shorted.)

• Shift solenoid valve A

DTC Confirmation Procedure

INFOID:0000000001713006

CAUTION:

• Always drive vehicle at a safe speed.
• If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at

least 10 seconds before continuing.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Turn ignition switch ON and select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

2.

Touch “START”.

3.

Start engine.

4.

Drive vehicle in “D” position and allow the transaxle to shift 1

→

 2 (“GEAR”).

5.

If the check result is NG, go to

TM-361, "Diagnosis Procedure"

.

 WITHOUT CONSULT-III

1.

Start engine.

2.

Drive vehicle in D

1

→

 D

2

 position.

3.

Perform self-diagnosis. Refer to

TM-38, "Diagnosis Procedure without CONSULT-III"

.

4.

If the check result is NG, go to

TM-361, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001713008

1.

CHECK INPUT SIGNAL

With CONSULT-III

1.

Start engine.

2.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Read out the value of “SHIFT S/V A” while driving.
Check the value changes according to driving speed.

Gear position

1

2

3

4

Shift solenoid valve A

ON (Closed)

OFF (Open)

OFF (Open)

ON (Closed)

Shift solenoid valve B

ON (Closed)

ON (Closed)

OFF (Open)

OFF (Open)

Item name

Condition

Display value

SHIFT S/V A

When shift solenoid valve A operates.
(When driving in “D

1

” or “D

4

”.)

ON

When shift solenoid valve A does not operate.
(When driving in “D

2

” or “D

3

”.)

OFF

TM-362

< COMPONENT DIAGNOSIS >

[TYPE 2 (4AT: RE4F03B)]

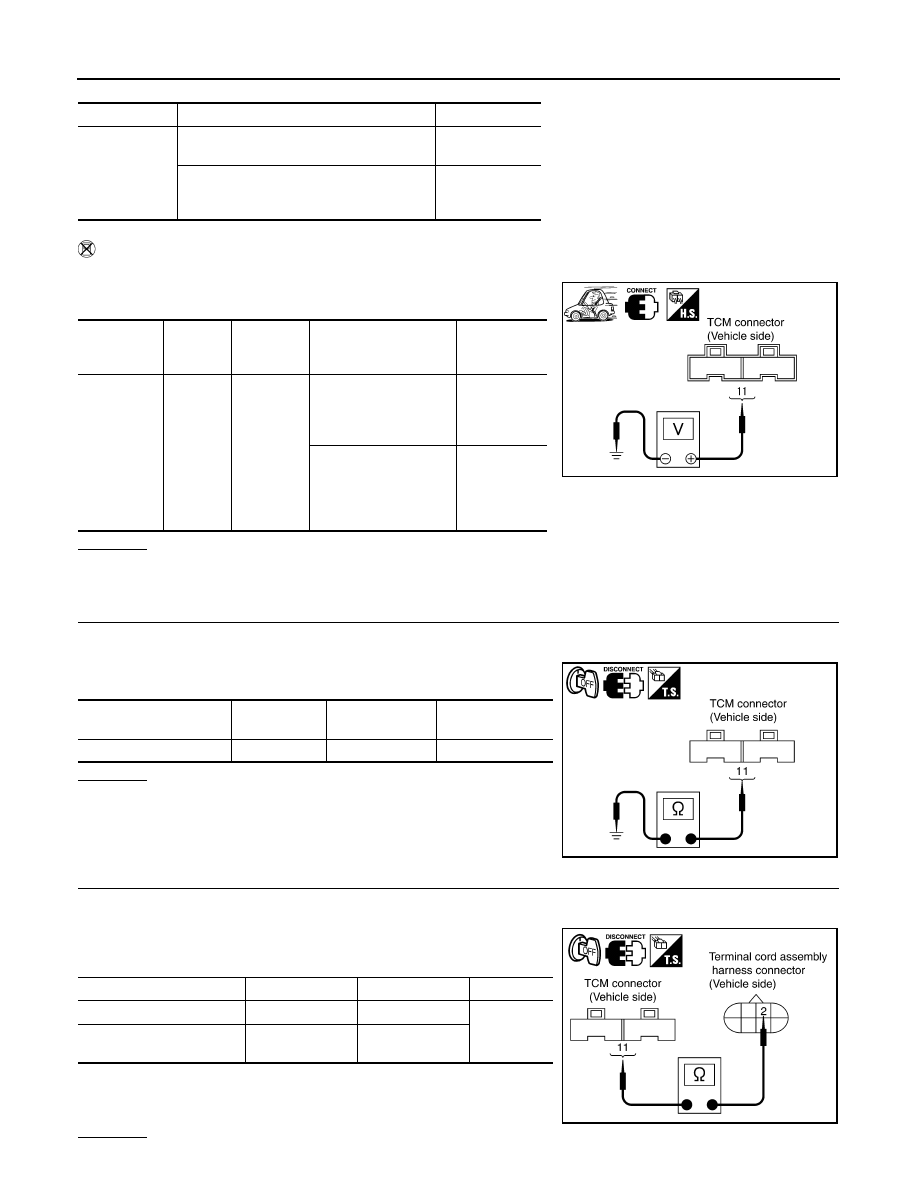

SHIFT SOLENOID VALVE A

Without CONSULT-III

1.

Start engine.

2.

Check voltage between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 2.

2.

CHECK SHIFT SOLENOID VALVE A CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect TCM connector.

3.

Check resistance between TCM connector terminal and ground.

OK or NG

OK

>> GO TO 5.

NG

>> GO TO 3.

3.

 CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect terminal cord assembly harness connector and TCM connector.

3.

Check continuity between terminal cord assembly harness con-
nector terminal and TCM connector terminal.

4.

If OK, check harness for short to ground and short to power.

5.

If OK, check continuity between ground and transaxle assembly.

6.

Reinstall any part removed.

OK or NG

Item name

Condition

Display value

SHIFT S/V A

When shift solenoid valve A operates.
(When driving in “D

1

” or “D

4

”.)

ON

When shift solenoid valve A does not oper-
ate.
(When driving in “D

2

” or “D

3

”.)

OFF

Item

Connec-

tor

Terminal

Condition

Judgement

standard (Ap-

prox.)

Shift sole-

noid valve A

E31

11 - Ground

When shift solenoid
valve A operates.
(When driving in “D

1

” or

“D

4

”.)

Battery volt-

age

When shift solenoid
valve A does not oper-
ate.
(When driving in “D

2

” or

“D

3

”.)

0V

SCIA3248E

Solenoid Valve

Connector

Terminal

Resistance (Ap-

prox.)

Shift solenoid valve A

E31

11 - Ground

20 - 30

Ω

SCIA3249E

Item

Connector

Terminal

Continuity

TCM

E31

11

Yes

Terminal cord assembly

harness connector

F30

2

SCIA3250E
