CO-50

< DISASSEMBLY AND ASSEMBLY >

[MR18DE]

COOLING FAN

DISASSEMBLY AND ASSEMBLY

COOLING FAN

DISASSEMBLY AND ASSEMBLY

INFOID:0000000001337847

Disassembly

1.

Remove cooling fan from fan motor.

2.

Remove fan motor from fan shroud.

Inspection After Disassembly

Inspect cooling fan for crack or unusual bend.
• If anything is found, replace cooling fan.

Assembly

Assembly is the reverse order of disassembly.

SERVICE DATA AND SPECIFICATIONS (SDS)

CO-51

< SERVICE DATA AND SPECIFICATIONS (SDS)

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000001337854

CAPACITY

Unit:

 (lmp qt)

THERMOSTAT

WATER CONTROL VALVE

RADIATOR

Unit: kPa (bar, kg/cm

2

, psi)

Engine coolant capacity (with reservoir tank at “MAX” level)

Approx. 6.8 (6.0)

Valve opening temperature

80.5 - 83.5

°

C (177 - 182

°

F)

Maximum valve lift

 8 mm/ 95

°

C (0.315 in/ 203

°

F)

Valve closing temperature

 77

°

C (171

°

F)

Valve opening temperature

93.5 - 96.5

°

C (200 - 206

°

F)

Maximum valve lift

8 mm/ 108

°

C (0.315 in/ 226

°

F)

Valve closing temperature

90

°

C (194

°

F)

Cap relief pressure

Standard

78 - 98 (0.78 - 0.98, 0.8 - 1.0, 11- 14)

Limit

59 (0.59, 0.6, 9)

Leakage test pressure

157 (1.57, 1.6, 23)

CO-52

< FUNCTION DIAGNOSIS >

[K9K]

DESCRIPTION

FUNCTION DIAGNOSIS

DESCRIPTION

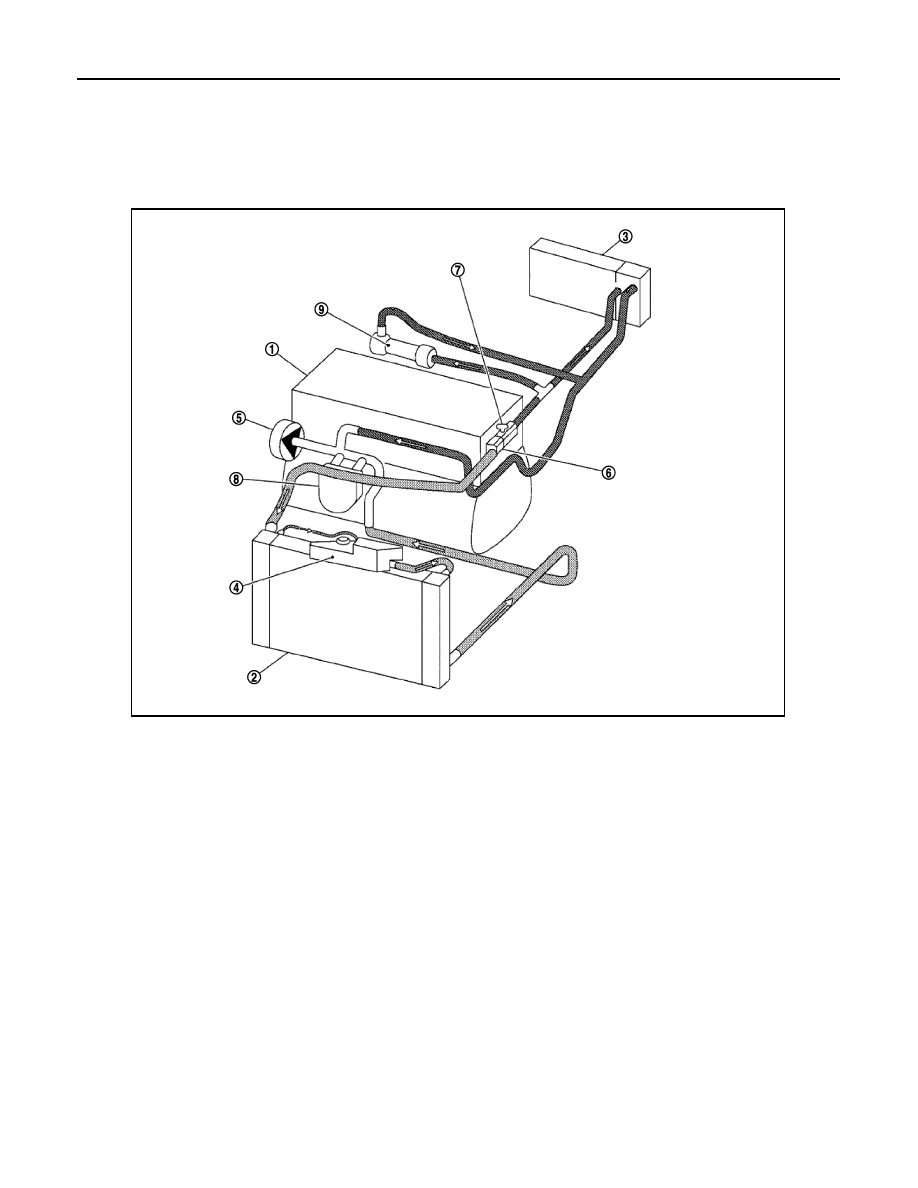

Engine Cooling System

INFOID:0000000001381580

1.

Engine

2.

Radiator

3.

Heater core

4.

Reservoir tank

5.

Water pump

6.

Thermostat

7.

Air relief plug

8.

Oil cooler

9.

EGR cooler

MBIB9046E

OVERHEATING CAUSE ANALYSIS

CO-53

< SYMPTOM DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

SYMPTOM DIAGNOSIS

OVERHEATING CAUSE ANALYSIS

Troubleshooting Chart

INFOID:0000000001381581

Symptom

Check items

Cooling sys-
tem parts
malfunction

Poor heat transfer

Water pump malfunction

Worn timing belt

—

Thermostat stuck closed

—

Damaged fins

Dust contamination or pa-
per clogging

Mechanical damage

Clogged radiator cooling
tube

Excess foreign material
(rust, dirt, sand, etc.)

Reduced air flow

Cooling fan does not oper-
ate

Fan assembly

—

High resistance to fan rota-
tion

Damaged fan blades

Damaged radiator shroud

—

—

—

Improper coolant mixture
ratio

—

—

—

Poor coolant quality

—

—

—

Insufficient coolant

Coolant leaks

Cooling hose

Loose clamp

Cracked hose

Water pump

Poor sealing

Reservoir tank cap

Loose

Poor sealing

Radiator

O-ring for damage, deterio-
ration or improper fitting

Cracked radiator tank

Cracked radiator core

Reservoir tank

Cracked reservoir tank

Overflowing reservoir tank

Exhaust gas leaks into cool-
ing system

Cylinder head deterioration

Cylinder head gasket deteri-
oration
