REPAIR FOR COMPONENT PARTS

TM-287

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

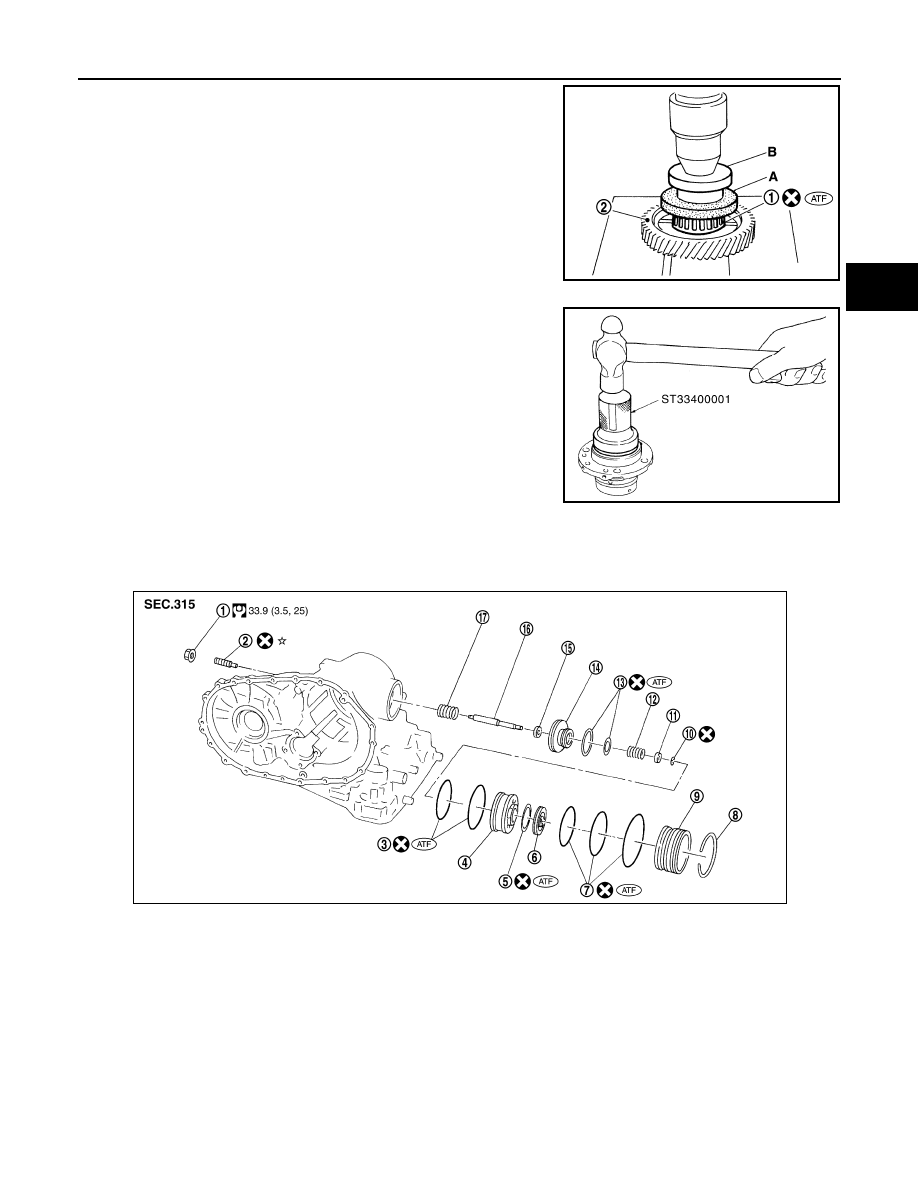

7.

Install output gear bearing according to the following proce-
dures.

CAUTION:

Do not reuse output gear bearing.

a.

Set Tool (A) and suitable (B) on output gear bearing inner race
(1), and press output gear bearing inner race (1) to output gear
(2).

CAUTION:

Set Tool (A) on output gear bearing inner race (1).

b.

Set Tool on output gear bearing outer race, and drive output
gear bearing outer race to bearing retainer.

Band Servo Piston Assembly

INFOID:0000000001730994

COMPONENTS

DISASSEMBLY

Tool number:

KV35272000

SCIA7047E

SCIA0268E

1.

Lock nut

2.

Anchor end pin

3.

O-ring

4.

Servo piston retainer

5.

D-ring

6.

OD servo piston

7.

O-ring

8.

Snap ring

9.

OD servo piston retainer

10. E-ring

11.

Spring retainer

12. OD servo return spring

13. D-ring

14. Band servo piston

15. Band servo thrust washer

16. Band servo piston stem

17. 2nd servo return spring

SCIA5891J

TM-288

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

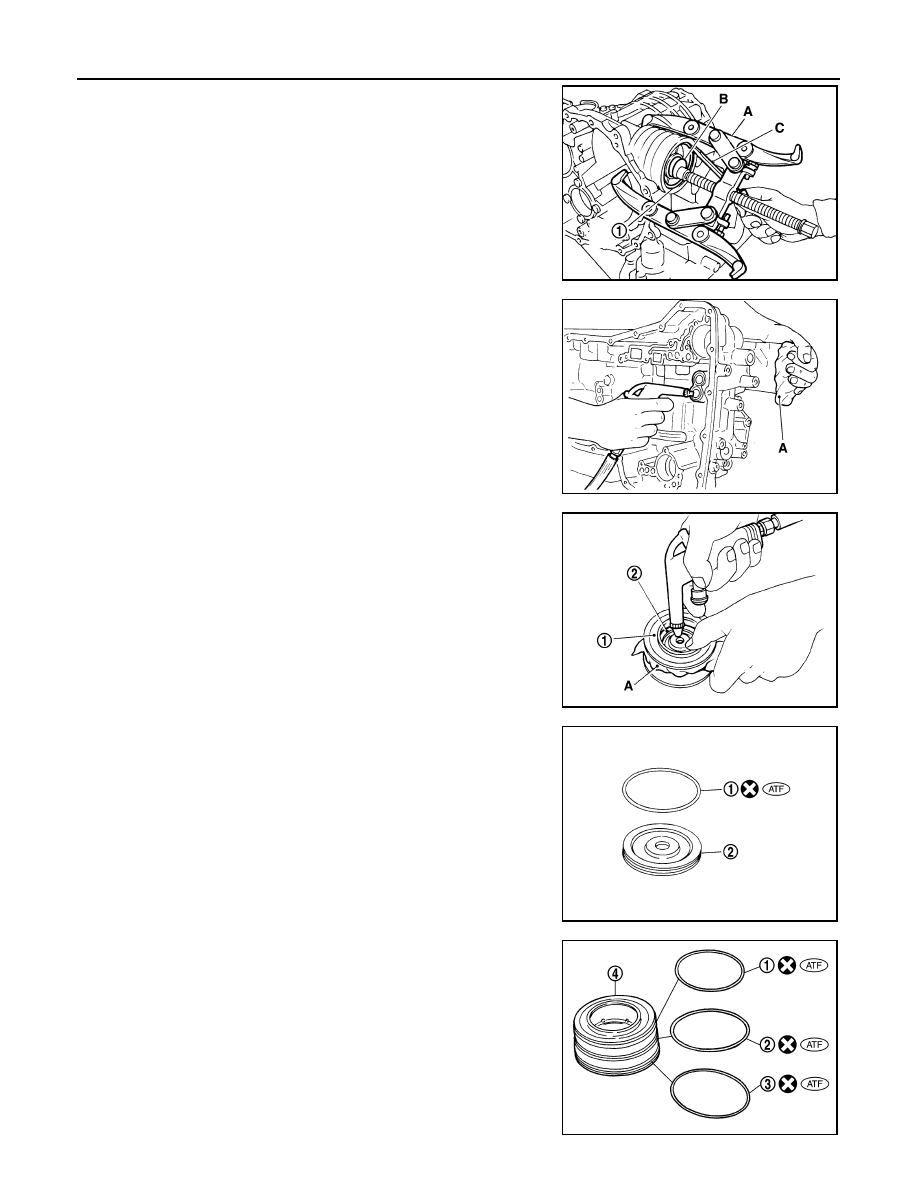

1.

Push in OD servo piston assembly using suitable tool (A) and
suitable tool (B), and then remove snap ring (1) from transaxle
case using suitable tool (C).

2.

Apply compressed air into the oil hole as shown to remove OD
servo piston assembly and band servo piston assembly.

CAUTION:

Do not blow air in too quickly, or OD servo piston assembly,
band servo piston assembly and ATF could jump out. Care-
fully blow air little by little while protecting with lint-free
cloth A.

3.

Remove 2nd servo return spring from transaxle case.

4.

Wrap OD servo piston retainer (1) using lint-free cloth A, and
then apply compressed air into the band servo piston stem hole
on OD servo piston (2) to remove OD servo piston (2) from OD
servo piston retainer (1).

CAUTION:

Do not blow air in too quickly, or OD servo piston (2) and
ATF could jump out. Carefully blow air little by little while
protecting with lint-free cloth A.

5.

Remove D-ring (1) from OD servo piston (2).

6.

Remove O-rings (1), (2) and (3) from OD servo piston retainer
(4).
(1): O-ring (small diameter)
(2): O-ring (medium diameter)
(3): O-ring (large diameter)

SCIA7050E

SCIA7051E

SCIA7052E

SCIA7053E

SCIA6492J

REPAIR FOR COMPONENT PARTS

TM-289

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

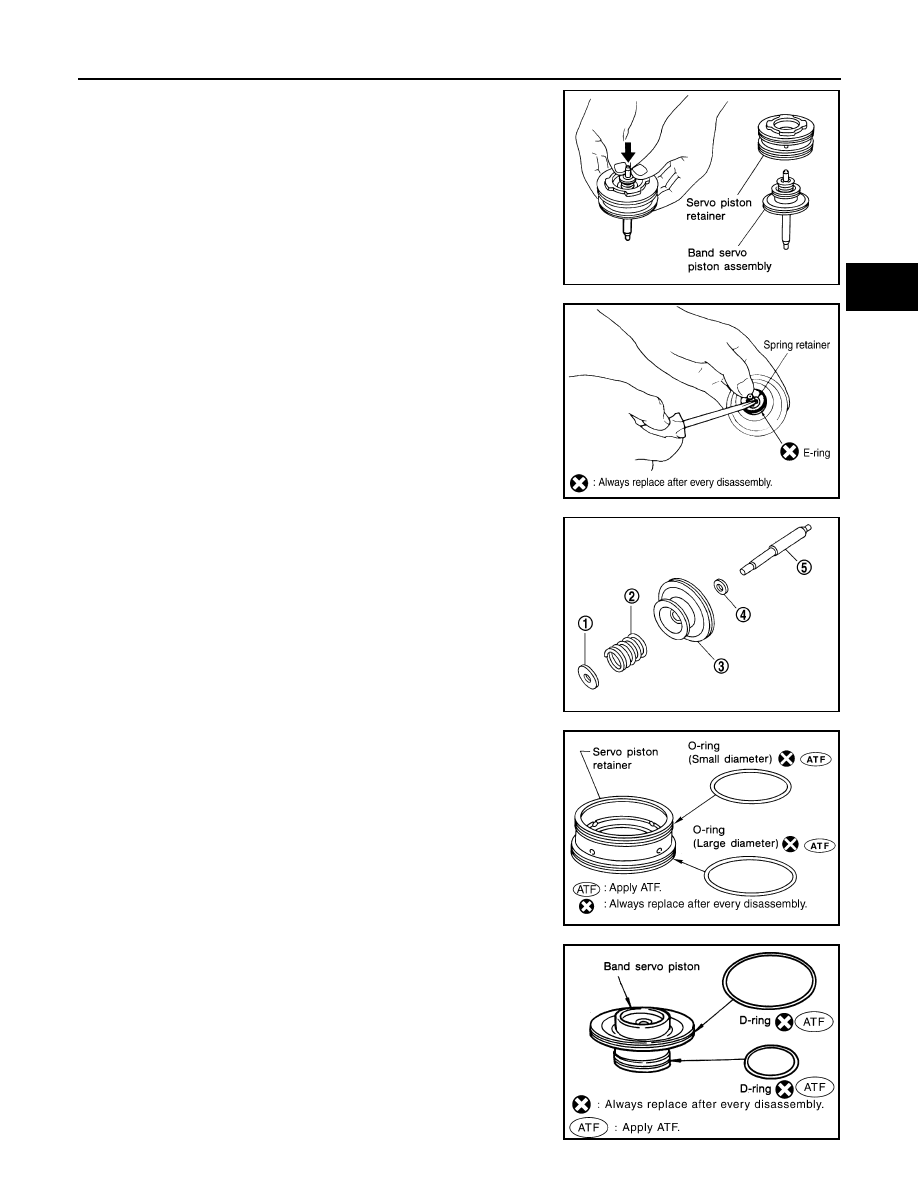

7.

Press in band servo piston assembly to remove from servo pis-
ton retainer.

8.

Place band servo piston stem on a wooden block, and remove
E-ring from band servo piston stem using suitable tool while
pressing spring retainer downward.

9.

Remove spring retainer (1), OD servo return spring (2), band
servo piston (3) and band servo thrust washer (4) from band
servo piston stem (5).

10. Remove O-rings from servo piston retainer.

11. Remove D-rings from band servo piston.

SAT293D

SCIA4336E

SCIA7054E

SCIA3671E

SCIA3688E

TM-290

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

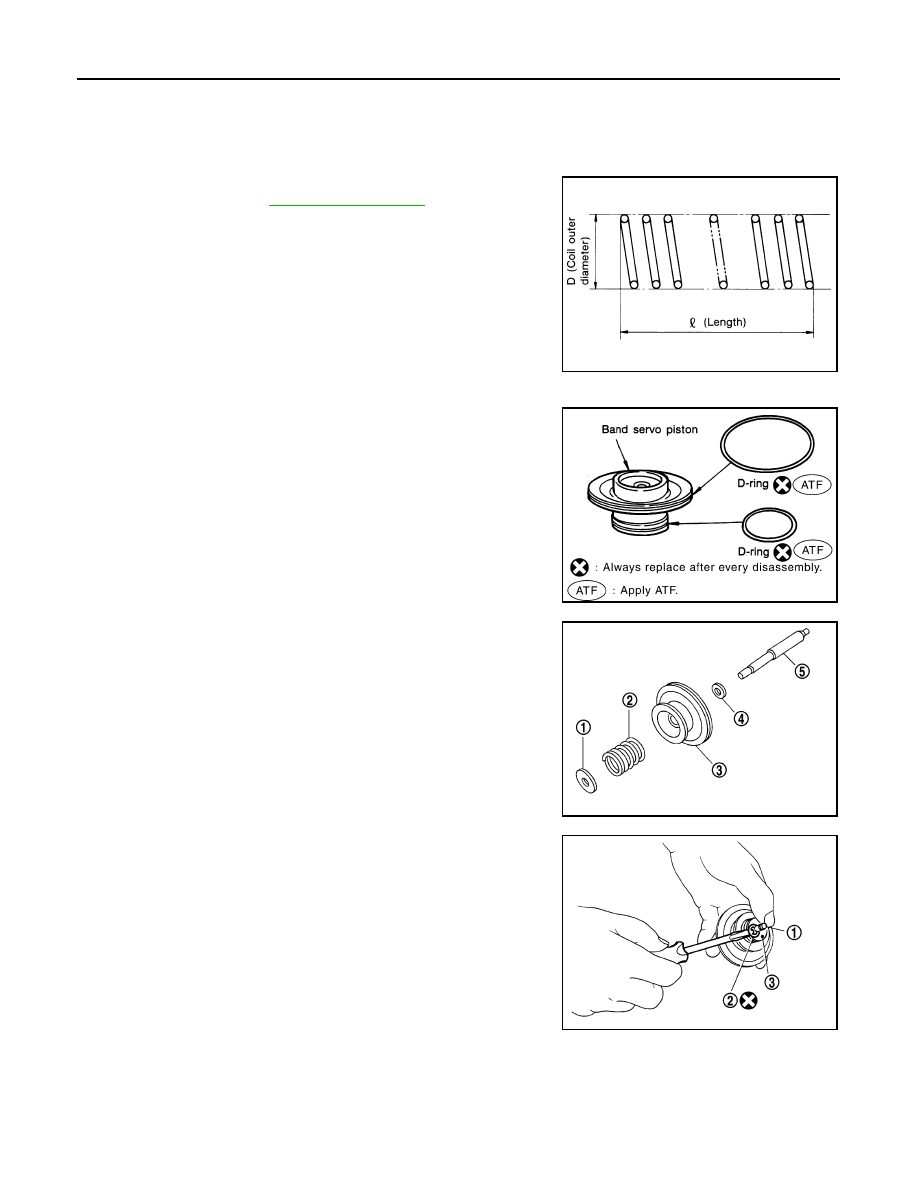

INSPECTION

Pistons, Retainers and Piston Stem

Check the sliding surfaces for damage or excessive wear. Replace if necessary.

Return Springs

• Check each return spring for damage or deformation. Also mea-

sure free length. Refer to

TM-323, "Band Servo"

.

• Replace springs if deformed or fatigued.

ASSEMBLY

1.

Install D-rings to band servo piston.

2.

Install band servo thrust washer (4), band servo piston (3), OD
servo return spring (2) and spring retainer (1) to band servo pis-
ton stem (5).

3.

Place band servo piston stem (1) on a wooden block, and install
E-ring (2) to band servo piston stem (1) while pressing spring
retainer (3) downward.

SAT138D

SCIA3688E

SCIA7054E

SCIA7056E
