REPAIR FOR COMPONENT PARTS

TM-283

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

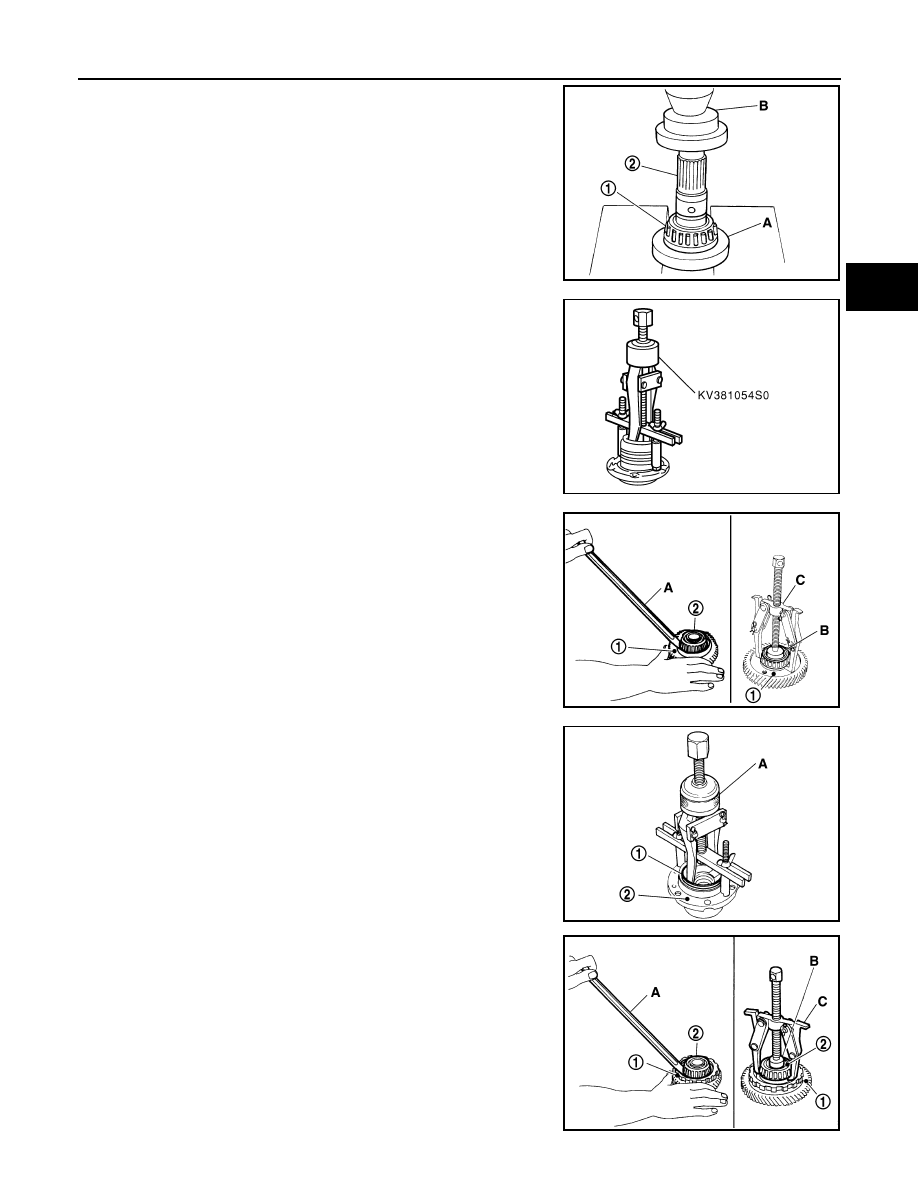

2.

Remove output shaft bearing according to the following proce-
dures.

a.

Set output shaft bearing inner race (1) on suitable tool (A), and
set a suitable tool (B) on output shaft (2), and press output shaft
(2) to remove output shaft bearing inner race (1).

CAUTION:

Set a drift (A) on output shaft bearing inner race (1).

b.

Set Tool on output shaft bearing outer race, and remove output
shaft bearing outer race from bearing retainer.

3.

Remove output gear bearing according to the following proce-
dures.

a.

Insert suitable tool (A) between the mating surfaces of output
gear (1) and output gear bearing inner race (2), and enlarge the
gap.

CAUTION:

Do not damage output gear (1).

b.

Set a suitable tool (B) on output gear (1), and remove output
gear bearing inner race (2) using suitable tool (C).

c.

Set Tool (A) on output gear bearing outer race (1), and remove
output gear bearing outer race (1) from bearing retainer (2).

4.

Remove idler gear bearing according to the following proce-
dures.

a.

Insert suitable tool (A) between the mating surfaces of idler gear
(1) and idler gear bearing inner race (2), and enlarge the gap.

CAUTION:

Do not damage idler gear (1).

b.

Set suitable tool (B), on idler gear (1), and remove idler gear
bearing inner race (2) using suitable tool (C).

SCIA7041E

SAT168K

SCIA7042E

Tool number:

KV381054S0

SCIA7043E

SCIA7044E

TM-284

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

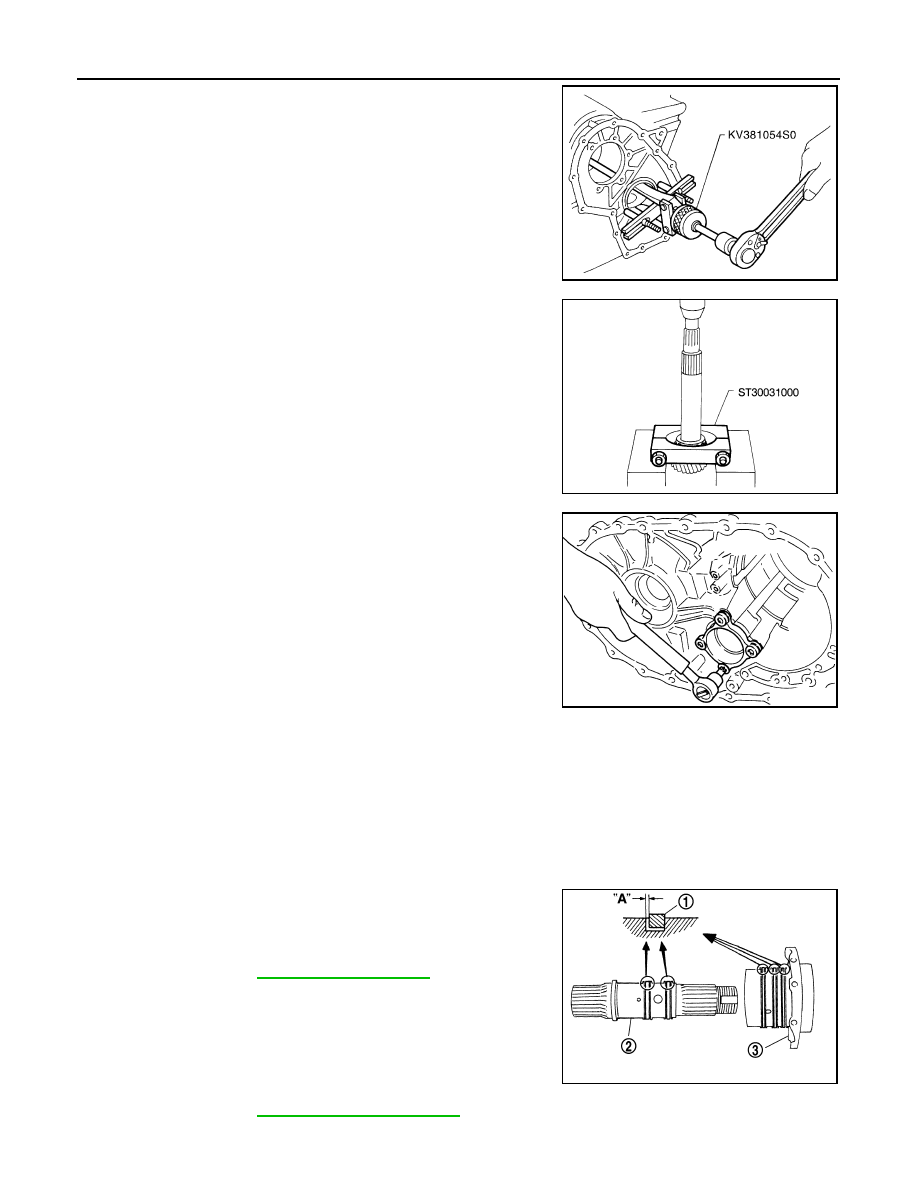

c.

Set Tool on idler gear bearing outer race, and remove idler gear
bearing outer race from transaxle case.

5.

Remove reduction pinion gear bearing according to the following
procedures.

a.

Set Tool on reduction pinion gear bearing inner race, and press
reduction pinion gear to remove reduction pinion gear bearing
inner race.

CAUTION:

Set Tool on reduction pinion gear bearing inner race.

b.

Remove reduction pinion gear bearing outer race from transaxle
case.

INSPECTION

Output Shaft, Output Gear, Idler Gear and Reduction Pinion Gear

Check for wear, damage or crack. Replace if necessary.

Bearings

• Make sure bearings roll freely and are free from noise, cracks, pitting or wear.
• When replacing taper roller bearing, replace outer and inner race as a set.
Check for damage or deformation. Replace if necessary.

Seal Ring Clearance

• Install new seal rings (1) on output shaft (2).
• Measure clearance “A” between each seal ring and groove.

• Replace output shaft (2) if the measurements exceed the allowable

limit.

• Install new seal rings (1) on bearing retainer (3).
• Measure clearance “A” between each seal ring and groove.

• Replace bearing retainer (3) if the measurements exceed the allowable limit.

SAT859DD

NAT048

SAT651D

Standard clearance and allowable limit:

Refer to

TM-323, "Output Shaft"

.

Standard clearance and allowable limit:

Refer to

TM-324, "Bearing Retainer"

.

SCIA7045E

REPAIR FOR COMPONENT PARTS

TM-285

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

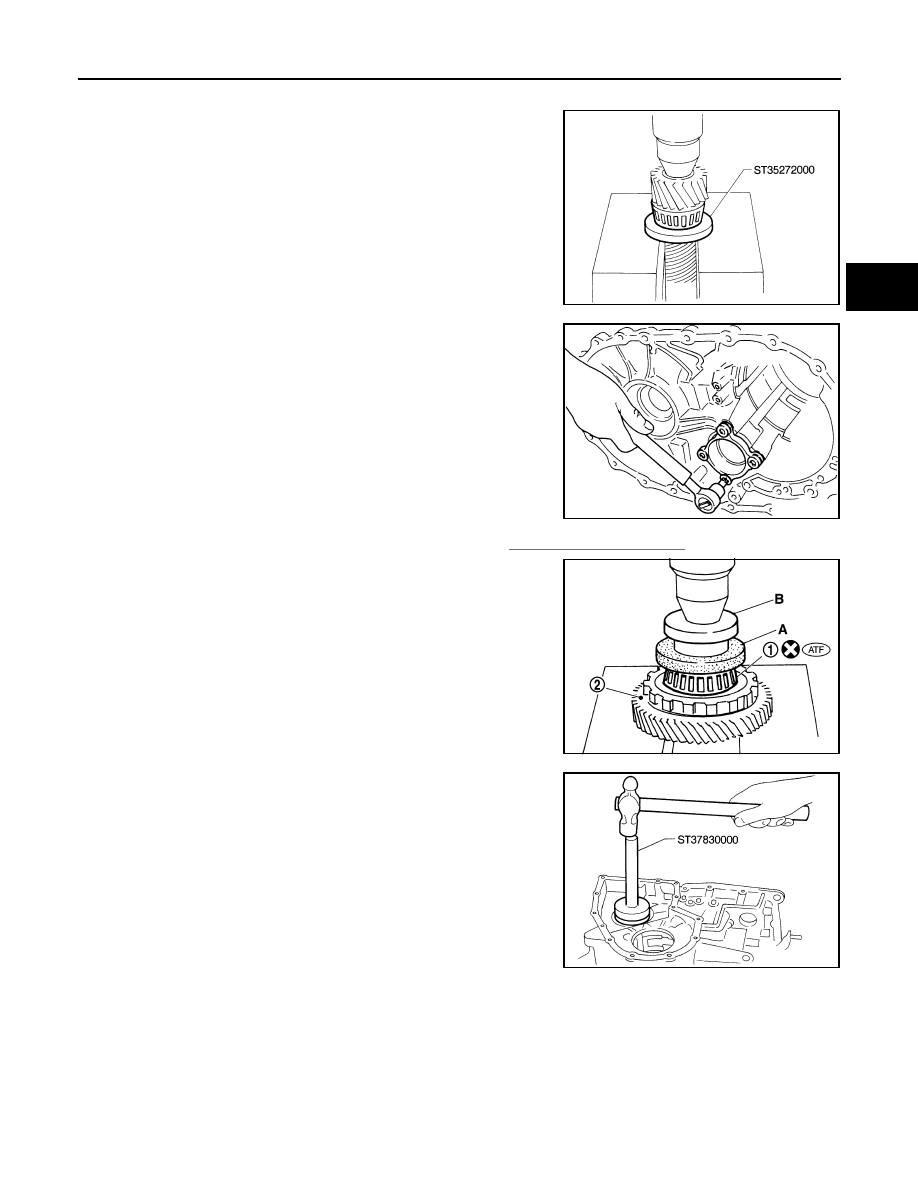

ASSEMBLY

1.

Install reduction pinion gear bearing according to the following
procedures.

a.

Set Tool on reduction pinion gear bearing inner race, and press
reduction pinion gear to reduction pinion gear bearing inner
race.

CAUTION:

Set Tool on reduction pinion gear bearing inner race.

b.

Install reduction pinion gear bearing outer race to transaxle
case.

c.

Tighten reduction pinion gear bearing outer race bolts to the
specified torque.

2.

Checking reduction pinion gear bearing preload. Refer to

TM-298, "Adjustment (1)"

.

3.

Install idler gear bearing according to the following procedures.

CAUTION:

Do not reuse idler gear bearing.

a.

Set Tool (A) and suitable tool (B) on idler gear bearing inner race
(1), and press idler gear bearing inner race (1) to idler gear (2).

CAUTION:

Set Tool (A) on idler gear bearing inner race (1).

b.

Set Tool on idler gear bearing outer race, and drive idler gear
bearing outer race into transaxle case.

NAT049

SAT651D

Tool number:

KV35272000

SCIA7046E

NAT051

TM-286

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

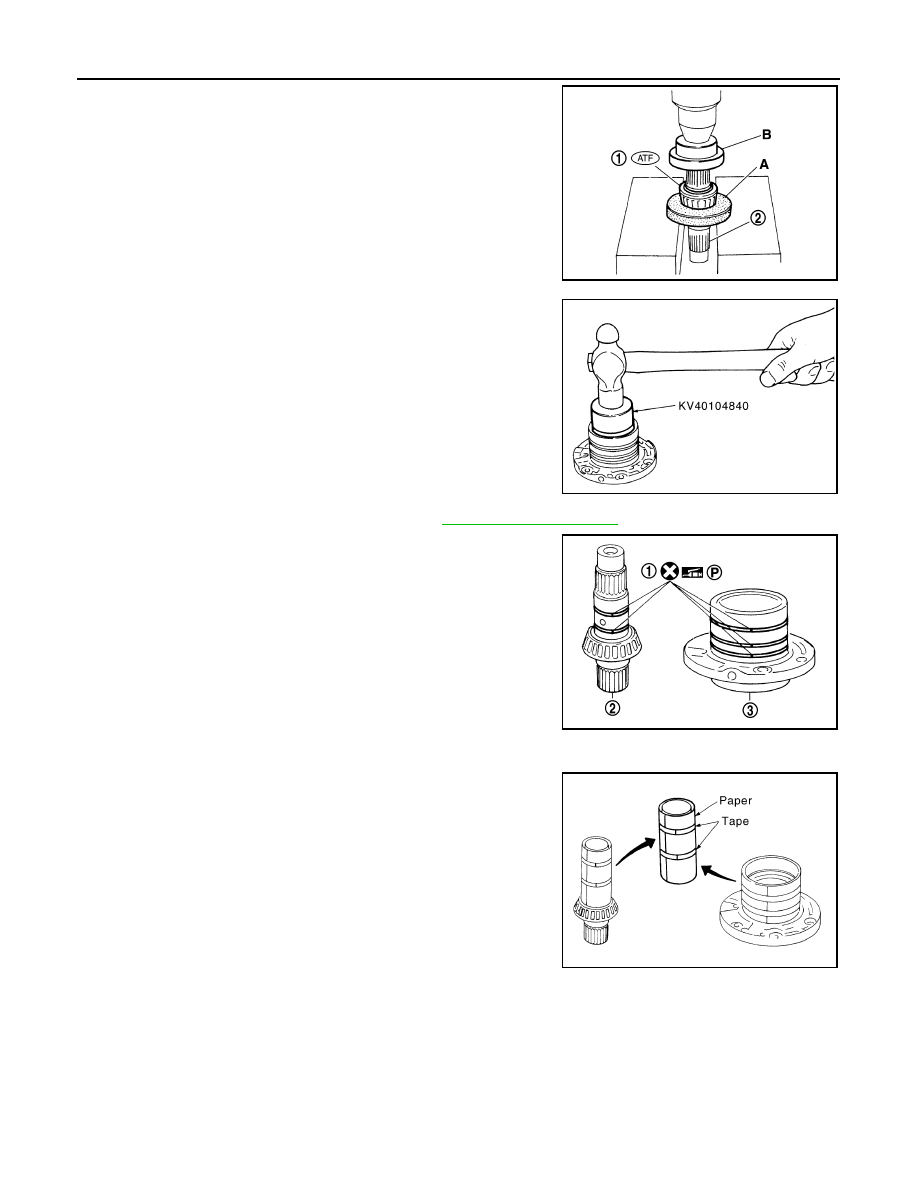

4.

Install output shaft bearing according to the following proce-
dures.

a.

Set suitable tool (A) and a suitable tool (B) on output shaft bear-
ing inner race (1), and press output shaft (2) to output shaft
bearing inner race (1).

CAUTION:

Set suitable tool (A) on output shaft bearing inner race (1).

b.

Set Tool on output shaft bearing outer race, and drive output
shaft bearing outer race to bearing retainer.

5.

Checking output shaft bearing preload. Refer to

TM-298, "Adjustment (1)"

.

6.

Install seal rings according to the following procedures.

a.

Install seal rings (1) evenly to the grooves on output shaft (2)
and bearing retainer (3), and fully close the opening.

CAUTION:

Roll paper around seal rings to prevent seal rings from
spreading.

SCIA7048E

SCIA0270E

SCIA7049E

SCIA2190E
