Nissan Tiida C11. Manual - part 1306





REPAIR FOR COMPONENT PARTS

TM-275

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

6.

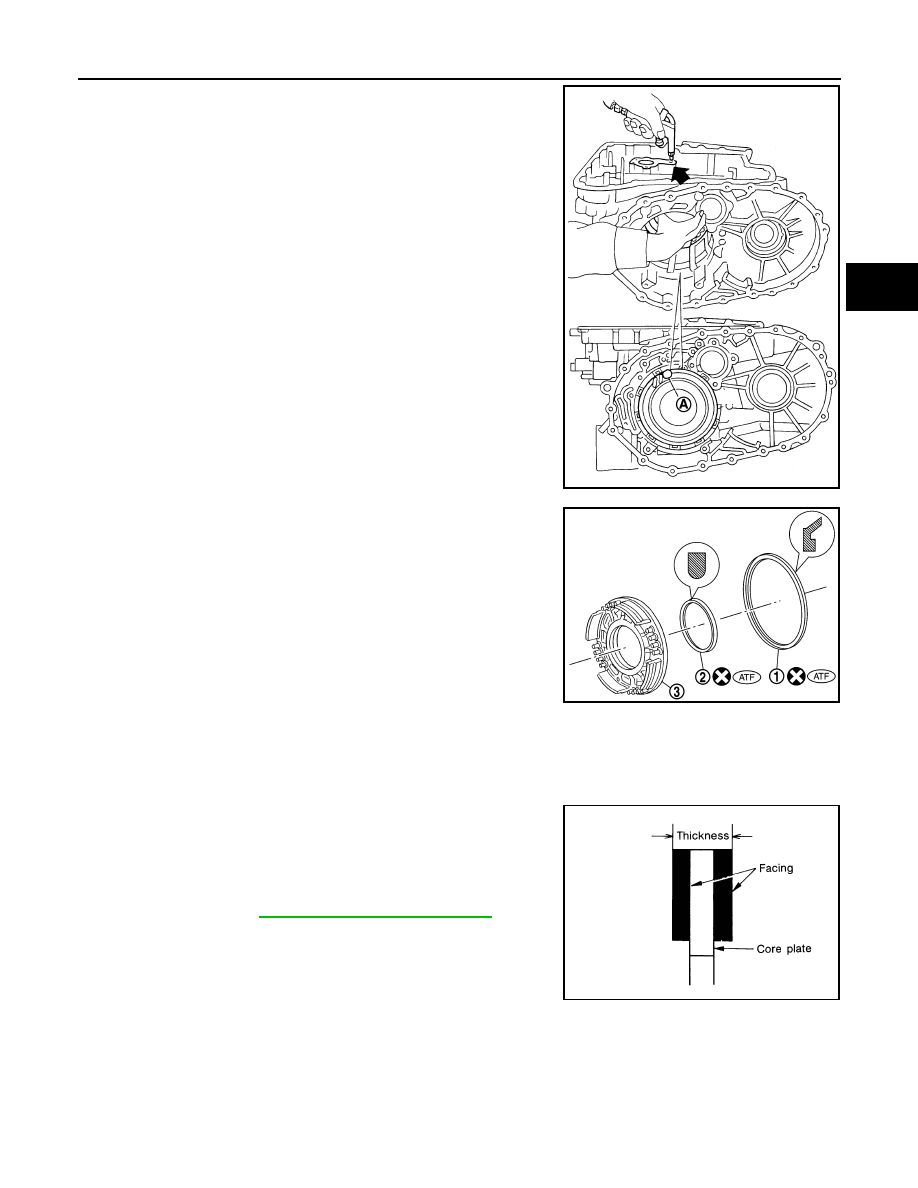

Apply compressed air into the oil hole on transaxle case as
shown to raise piston while strongly pressing the whole low &
reverse brake piston by hand. When applying compressed air,
strongly press the whole piston and adjust the pressure so that it
is raised evenly. Portion (A) (low & reverse brake pressure)
especially tends to tilt.

CAUTION:

Apply air gradually and allow low & reverse brake piston to
come out evenly.

7.

Remove low & reverse brake piston from transaxle case by turn-
ing it.

8.

Inspect transaxle case. Replace if damaged or worn.

9.

Remove seal ring (1) and D-ring (2) from low & reverse brake
piston (3).

INSPECTION

Low & Reverse Brake Snap Rings

Check for deformation, fatigue or damage. Replace if necessary.

Low & Reverse Brake Drive Plates

• Check facing for burns, cracks or damage. Replace if necessary.
• Measure thickness of facing.

CAUTION:

• Measure the thickness at 3 locations and find the average.
• Inspect ALL drive plates.
• Replace if the thickness is below the allowable limit.

Low & Reverse Brake Dish Plates

• Check for deformation or damage.

SCIA6346J

SCIA6516J

Thickness of drive plate

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

SAT162D

TM-276

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

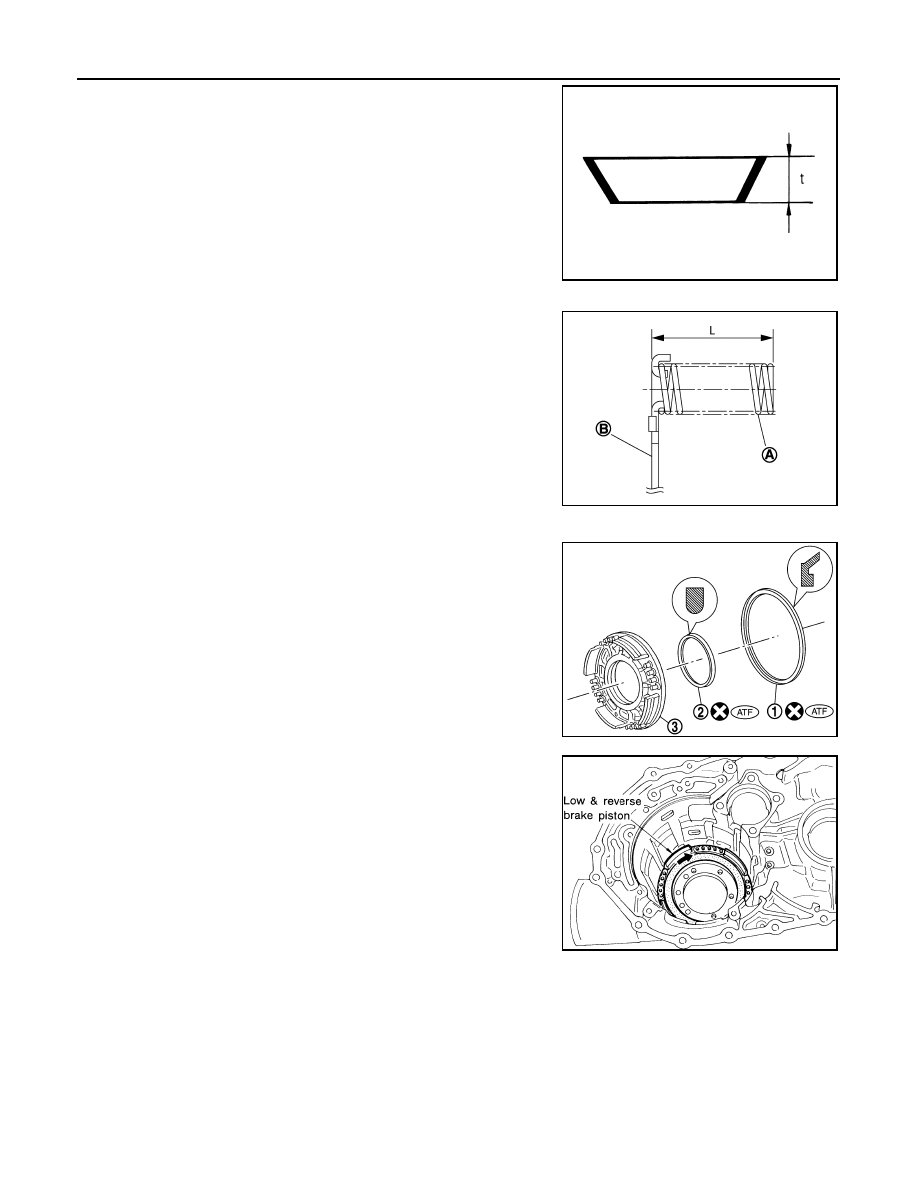

• Measure thickness (t) of dish plate. Replace if damaged, deformed

or worn.

Low & Reverse Brake Spring Retainer Assembly

Check length (L) of spring retainer assembly. Replace if damaged,
deformed or worn.

CAUTION:

Do not remove return springs (A) from spring retainer (B)

ASSEMBLY

1.

Install seal ring (1) and D-ring (2) on low & reverse brake piston
(3).

2.

Install low & reverse brake piston in transaxle case while turning
it.

CAUTION:

Apply ATF to inner surface of transaxle case.

Thickness of dish plate (t):

2.93 mm (0.1154 in)

SAT163D

Length (L):

26.3 mm (1.035 in)

SCIA7025J

SCIA6516J

SAT239D

REPAIR FOR COMPONENT PARTS

TM-277

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

3.

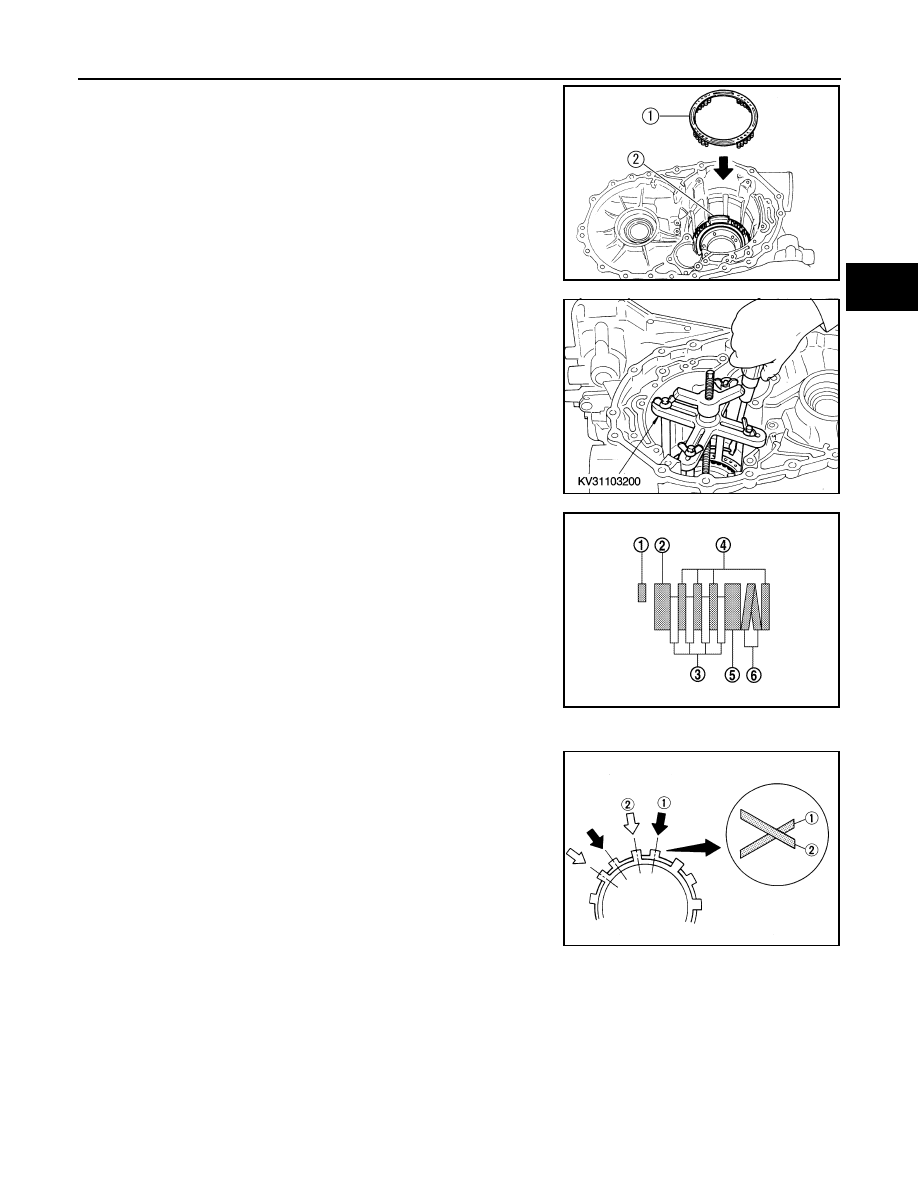

Install spring retainer assembly (1) on low & reverse brake pis-
ton (2).

4.

Set Tool on spring retainer assembly, and install snap ring while
compressing spring retainer assembly.

CAUTION:

Set Tool directly over return springs.

5.

Install driven plates (4), dish plates (6), retaining plates (2), (5)
and drive plates (3).
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Retaining plate
(6): Dish plate
Drive plate/Driven plate: 4/4

CAUTION:

Be careful with the order of plates

NOTE:
Install two dish plates fitting each installation direction with
groove (1) and (2) displaced slightly.

SCIA6020J

SAT242D

SCIA5994E

SAT254E

TM-278

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

6.

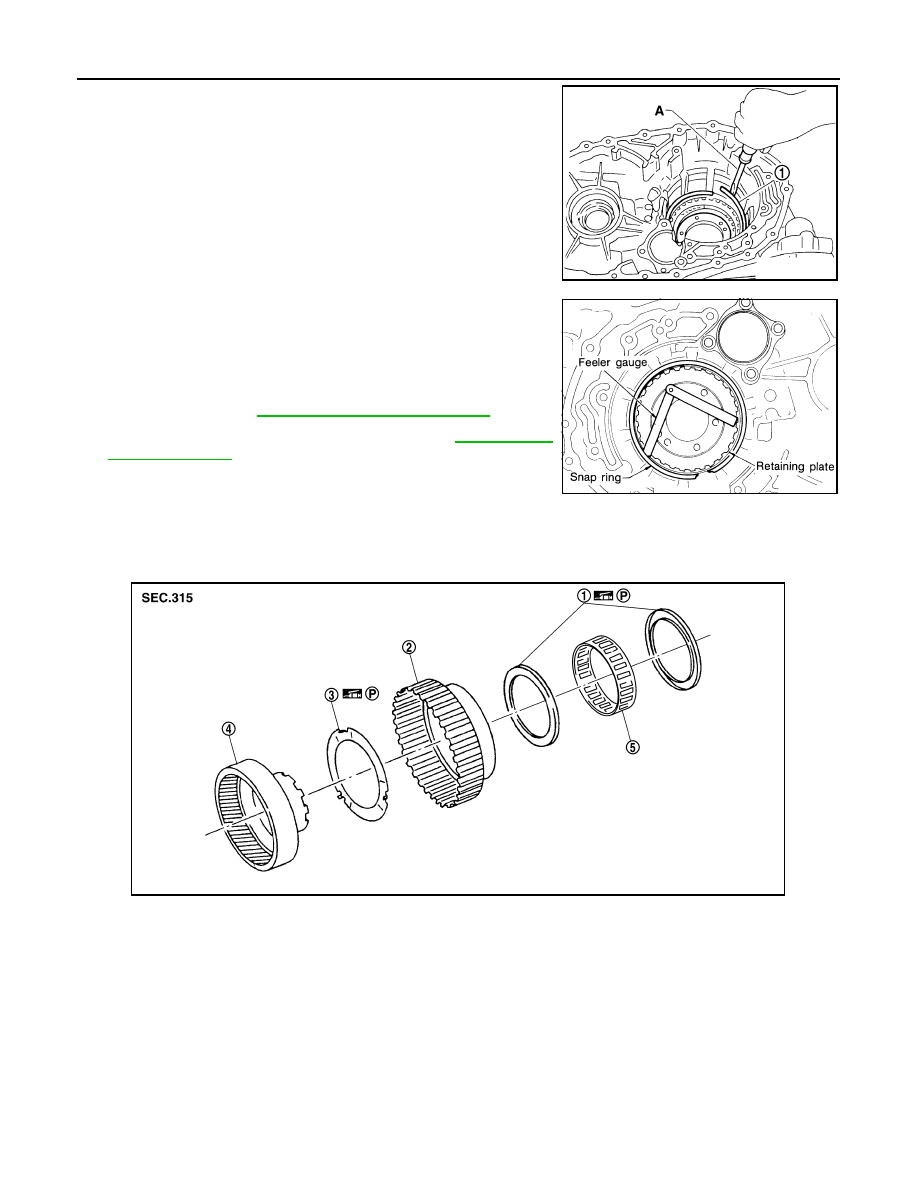

Install snap ring (1) using suitable tool (A).

7.

Measure clearance between retaining plate and snap ring. If not
within allowable limit, select proper retaining plate (front side).

8.

Check operation of low & reverse brake. Refer to

TM-273, "Low

& Reverse Brake"

.

Rear Internal Gear and Forward Clutch Hub

INFOID:0000000001730992

COMPONENTS

DISASSEMBLY

SCIA7039E

Specified clearance

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

SAT246D

1.

End bearing

2.

Forward clutch hub

3.

Thrust washer

4.

Rear internal gear

5.

Forward one-way clutch

SCIA5880J
