REPAIR FOR COMPONENT PARTS

TM-271

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

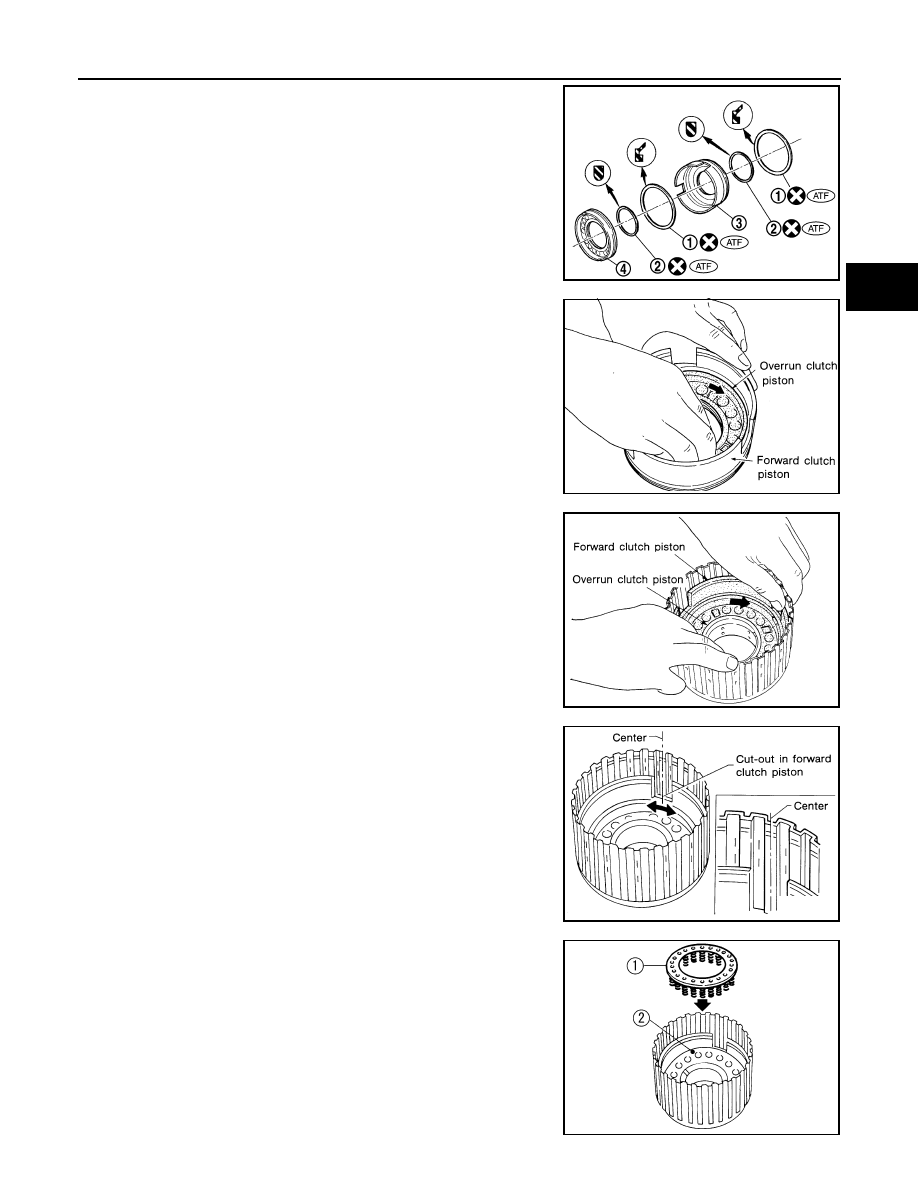

1.

Install seal rings (1) and D-rings (2) on forward clutch piston (3)
and overrun clutch piston (4).

CAUTION:

Be careful with the direction of seal rings (1).

2.

Install overrun clutch piston on forward clutch piston by turning it
slowly.

CAUTION:

Apply ATF to inner surface of forward clutch piston.

3.

Install forward clutch piston with overrun clutch piston on for-
ward clutch drum by turning it slowly.

CAUTION:

Apply ATF to inner surface of forward clutch drum.

4.

Align notch in forward clutch piston with groove in forward clutch
drum.

5.

Install spring retainer assembly (1) on overrun clutch piston (2).

SCIA6005J

SAT215D

SAT216D

SAT217D

SCIA6019J

TM-272

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

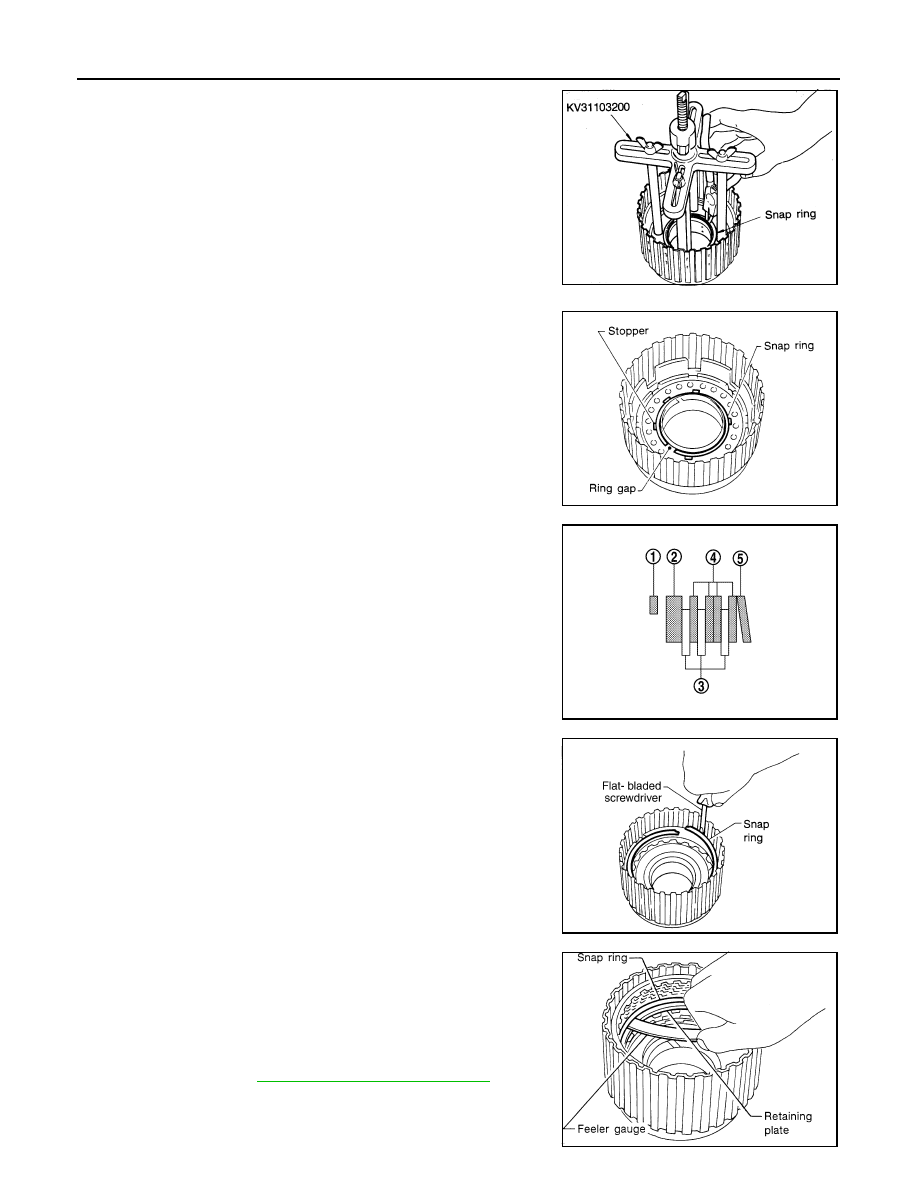

6.

Set Tool on spring retainer assembly, and install snap ring while
compressing spring retainer assembly.

CAUTION:

• Set Tool directly over return springs.
• Do not expand snap ring excessively.

• Do not align snap ring gap with spring retainer assembly

stopper.

7.

Install dish plate (5), driven plates (4), drive plates (3) and retain-
ing plate (2) for overrun clutch.
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Dish plate
Drive plate/Driven plate: 3/4

CAUTION:

Be careful with the order of plates.

8.

Install snap ring for overrun clutch using suitable tool.

9.

Measure clearance between overrun clutch retaining plate and
snap ring using feeler gauge. If not within allowable limit, select
proper retaining plate.

SAT205D

SAT134F

SCIA5993E

SCIA4895E

Specified clearance

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

SAT227D

REPAIR FOR COMPONENT PARTS

TM-273

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

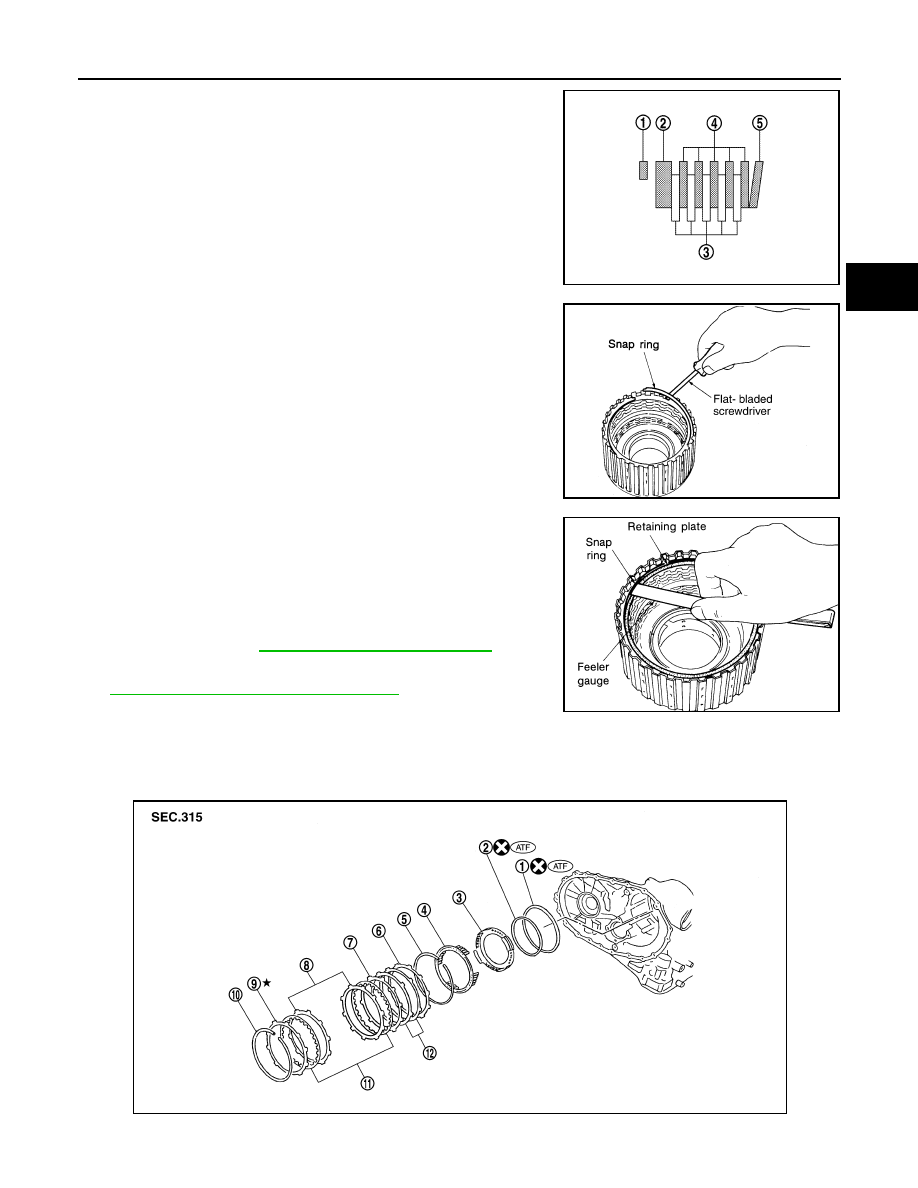

10. Install dish plate (5), driven plates (4), drive plates (3) and retain-

ing plate (2) for forward clutch.
(1): Snap ring
(2): Retaining plate
(3): Drive plate
(4): Driven plate
(5): Dish plate
Drive plate/Driven plate: 5/5

CAUTION:

Be careful with the order of plates.

11. Install snap ring for forward clutch using suitable tool.

12. Measure clearance between forward clutch retaining plate and

snap ring using feeler gauge. If not within allowable limit, select
proper retaining plate.

13. Check operation of forward clutch and overrun clutch. Refer to

TM-267, "Forward and Overrun Clutches"

.

Low & Reverse Brake

INFOID:0000000001730991

COMPONENTS

SCIA5992E

SCIA4894E

Specified clearance

Standard and allowable limit:

Refer to

TM-321, "Clutches and Brakes"

.

SAT228D

SCIA6007J

TM-274

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

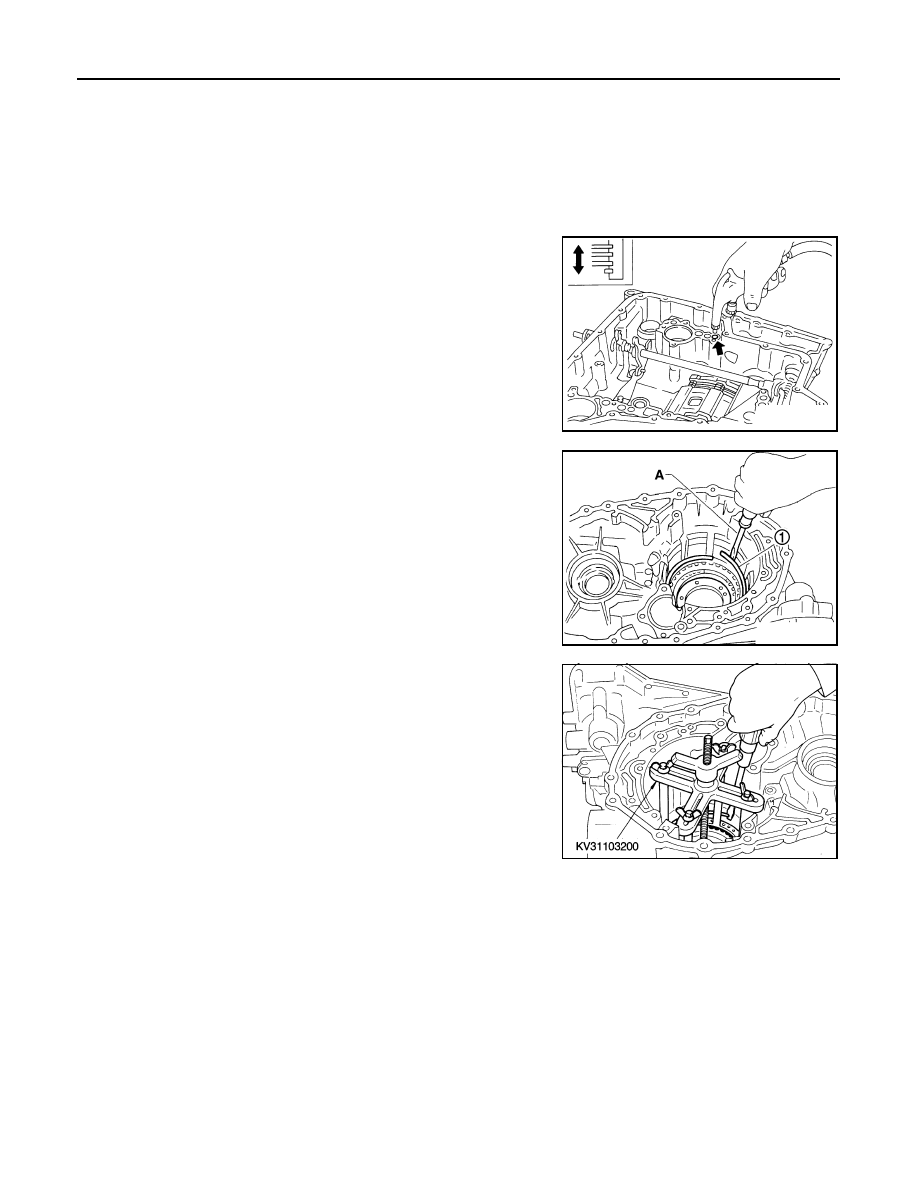

DISASSEMBLY

1.

Check operation of low & reverse brake.

a.

Apply compressed air into oil hole of transaxle case at the loca-
tion as shown.

b.

Check to see that retaining plate moves to snap ring.

c.

If retaining plate does not contact snap ring:
• D-ring might be damaged.
• Seal ring might be damaged.

2.

Remove snap ring (1) using suitable tool (A).

3.

Remove retaining plates, drive plates, driven plates, dish plates.

4.

Set Tool on spring retainer assembly, and remove snap ring
from transaxle case while compressing spring retainer assem-
bly.

CAUTION:

Set Tool directly over return springs.

5.

Remove spring retainer assembly from transaxle case.

CAUTION:

Do not remove return springs from spring retainer.

1.

Seal ring

2.

D-ring

3.

Low & reverse brake piston

4.

Spring retainer assembly

5.

Snap ring

6.

Driven plate

7.

Retaining plate

8.

Driven plate

9.

Retaining plate

10. Snap ring

11.

Drive plate

12. Dish plate

SAT230D

SCIA7039E

SAT242D
