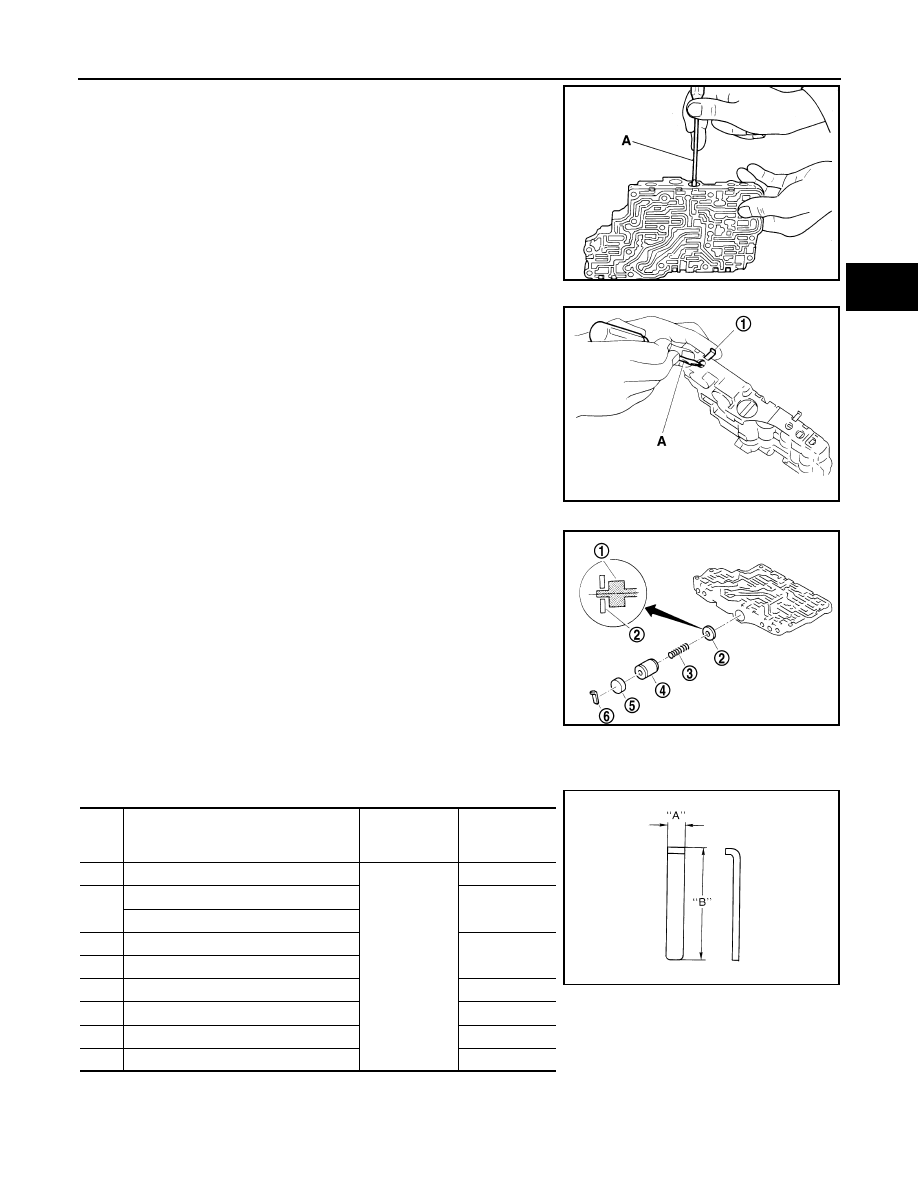

• Use suitable tool wraped with vinyl tape (A) and use it to insert

valves into their proper positions.

• Install retainer plates (1).
- While pushing plug or return spring, install retainer plate (1) using

suitable tool (A).

1-2 Accumulator Valve

• Install 1-2 accumulator valve (1), 1-2 accumulator valve spring and

plug. Align 1-2 accumulator retainer plate (2) from opposite side of
control valve body.

• Install 1-2 accumulator valve piston spring (3), 1-2 accumulator

piston (4), plug (5) and retainer plate (6).

Retainer Plate (Control Valve Upper Body)

Install proper retainer plates.

Unit: mm (in)

Control Valve Lower Body

INFOID:0000000001730987

COMPONENTS

SCIA7138E

SCIA7139E

SCIA7182E

Lo-

cat-

ion

Retainer plate designation

Width “A”

Length “B”

L14

Pilot valve

6.0 (0.236)

21.5 (0.846)

L15

1-2 accumulator valve

40.5 (1.594)

1-2 accumulator piston

L16

1st reducing valve

21.5 (0.846)

L17

3-2 timing valve

L18

Overrun clutch reducing valve

24.0 (0.945)

L19

Torque converter relief valve

21.5 (0.846)

L20

Torque converter clutch control valve

28.0 (1.102)

L21

Cooler check valve

24.0 (0.945)

SAT086F

TM-256

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

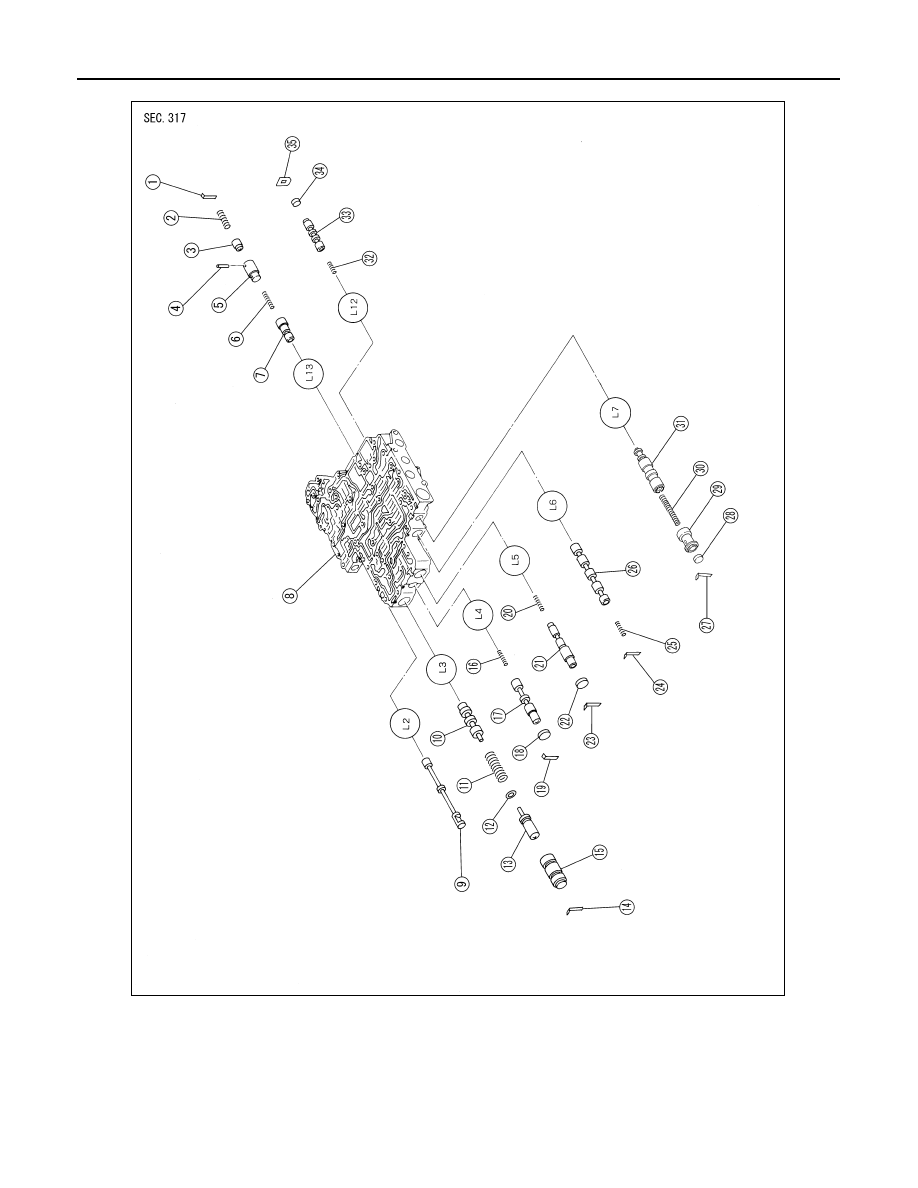

1.

Retainer plate

2.

Pressure modifier piston spring

3.

Pressure modifier piston

4.

Parallel pin

5.

Sleeve

6.

Pressure modifier valve spring

7.

Pressure modifier valve

8.

Control valve lower body

9.

Manual valve

10. Pressure regulator valve

11. Pressure regulator valve spring

12. Spring seat

13. Plug

14. Retainer plate

15. Sleeve

16. Overrun clutch control valve spring

17. Overrun clutch control valve

18. Plug

SCIA2959J

REPAIR FOR COMPONENT PARTS

TM-257

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DISASSEMBLY

Remove valves at retainer plate.
For removal procedures, refer to

TM-252, "Control Valve Upper

Body"

.

INSPECTION

Valve Springs

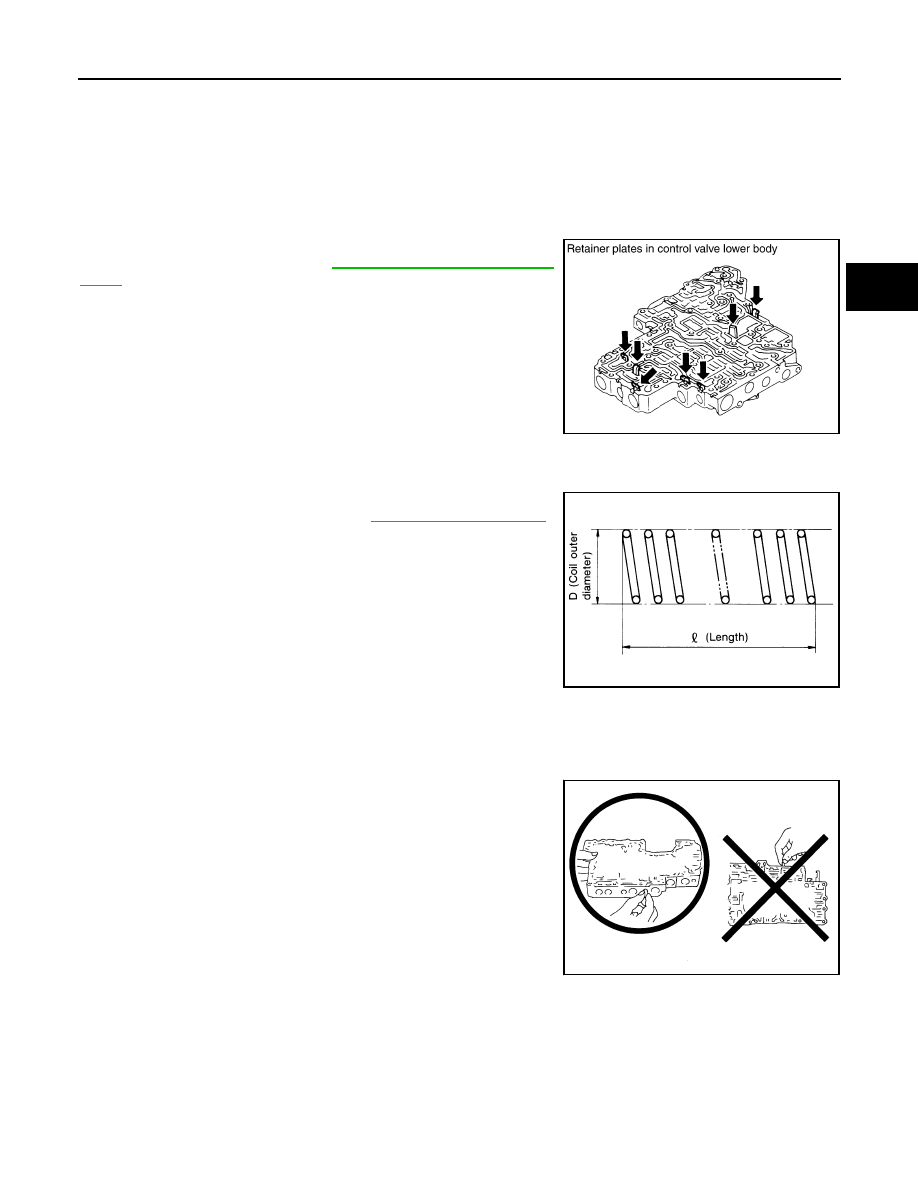

• Check each valve spring for damage or deformation. Also measure

free length and outer diameter. Refer to

TM-321, "Control Valves"

.

• Replace valve springs if deformed or fatigued.

Control Valves

Check sliding surfaces of control valves, sleeves and plugs for damage. Replace if necessary.

ASSEMBLY

CAUTION:

• Apply ATF to all components before installation.
• Lay control valve body down when installing valves. Do not

stand control valve body upright.

19. Retainer plate

20. Accumulator control valve spring

21. Accumulator control valve

22. Plug

23. Retainer plate

24. Retainer plate

25. Shift valve A spring

26. Shift valve A

27. Retainer plate

28. Plug

29. Shuttle plug

30. Shuttle valve spring

31. Shuttle valve

32. Shift valve B spring

33. Shift valve B

34. Plug

35. Retainer plate

SCIA4978E

SAT138D

SAT139D

TM-258

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

REPAIR FOR COMPONENT PARTS

Install control valves.
For installation procedures, refer to

TM-252, "Control Valve Upper

Body"

.

Retainer Plate (Control Valve Lower Body)

Install proper retainer plates.

Unit: mm (in)

Reverse Clutch

INFOID:0000000001730988

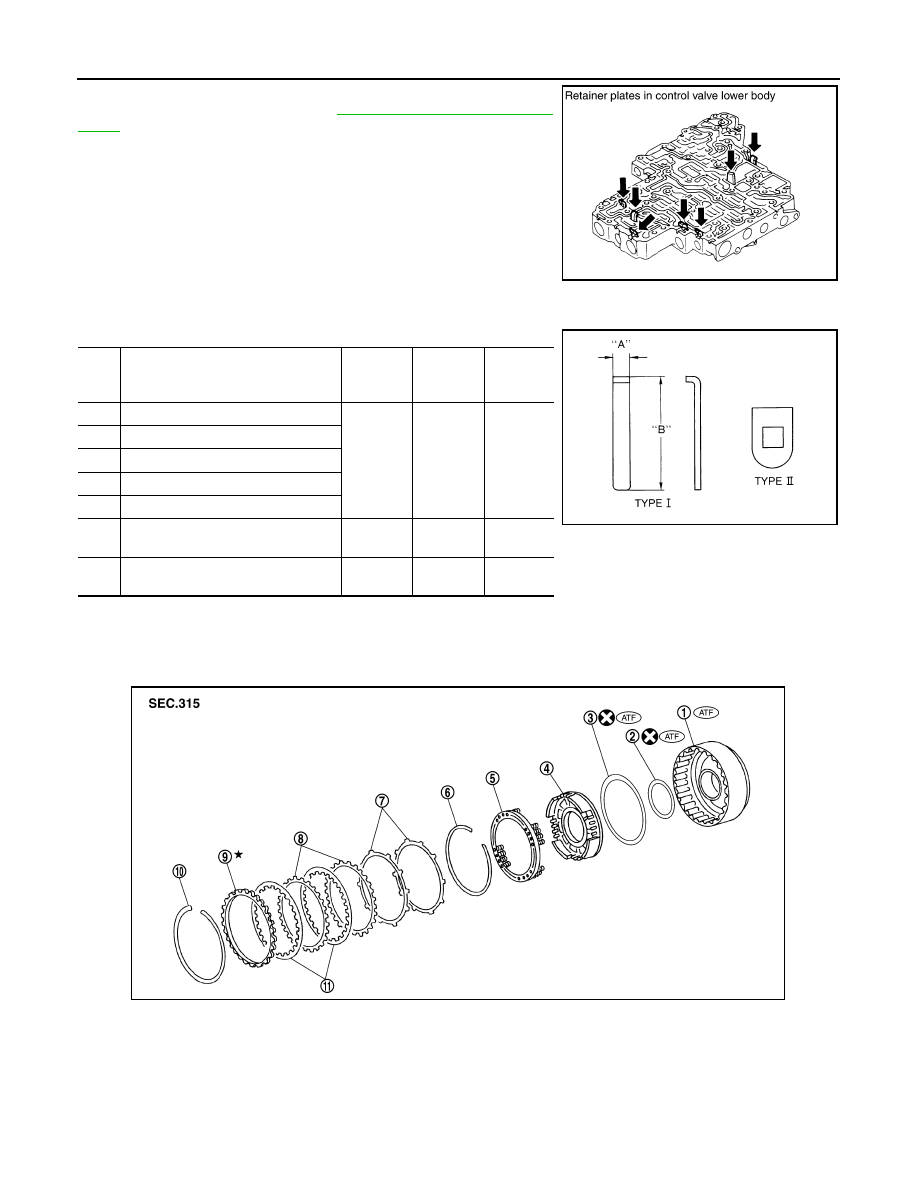

COMPONENTS

DISASSEMBLY

SCIA4978E

Lo-

cat-

ion

Retainer plate designation

Width “A”

Length “B”

Type

L3

Pressure regulator valve

6.0

(0.236)

28.0

(1.102)

I

L4

Overrun clutch control valve

L5

Accumulator control valve

L6

Shift valve A

L7

Shuttle valve

L12

Shift valve B

17.0

(0.669)

24.0

(0.945)

II

L13

Pressure modifier valve

6.0

(0.236)

28.0

(1.102)

I

SAT089F

1.

Reverse clutch drum

2.

D-ring

3.

Seal ring

4.

Reverse clutch piston

5.

Spring retainer assembly

6.

Snap ring

7.

Dish plate

8.

Driven plate

9.

Retaining plate

10. Snap ring

11.

Drive plate

SCIA6939J
