SYSTEM SYMPTOM

TM-159

< SYMPTOM DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1.

Turn ignition switch ON. (Do not start engine)

2.

Check voltage between A/T device harness connector terminal
and ground.

OK or NG

OK (With CONSULT-II)>>GO TO 3.
OK (Without CONSULT-II)>>GO TO 4.
NG

>> Check overdrive control switch circuit. Refer to

XX-XX, "*****"

 (type 1) or

XX-XX, "*****"

 (type 2).

3.

CHECK PNP SWITCH CIRCUIT

With CONSULT-II

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.

3.

Read out “P·N”, “R”, “D”, “2” and “1” position switches moving
selector lever to each position.

OK or NG

OK

>> GO TO 5

NG

>> Check PNP switch circuit. Refer to

TM-46, "Component Inspection"

.

4.

CHECK PNP SWITCH CIRCUIT

Without CONSULT-II

1.

Turn ignition switch ON. (Do not start engine.)

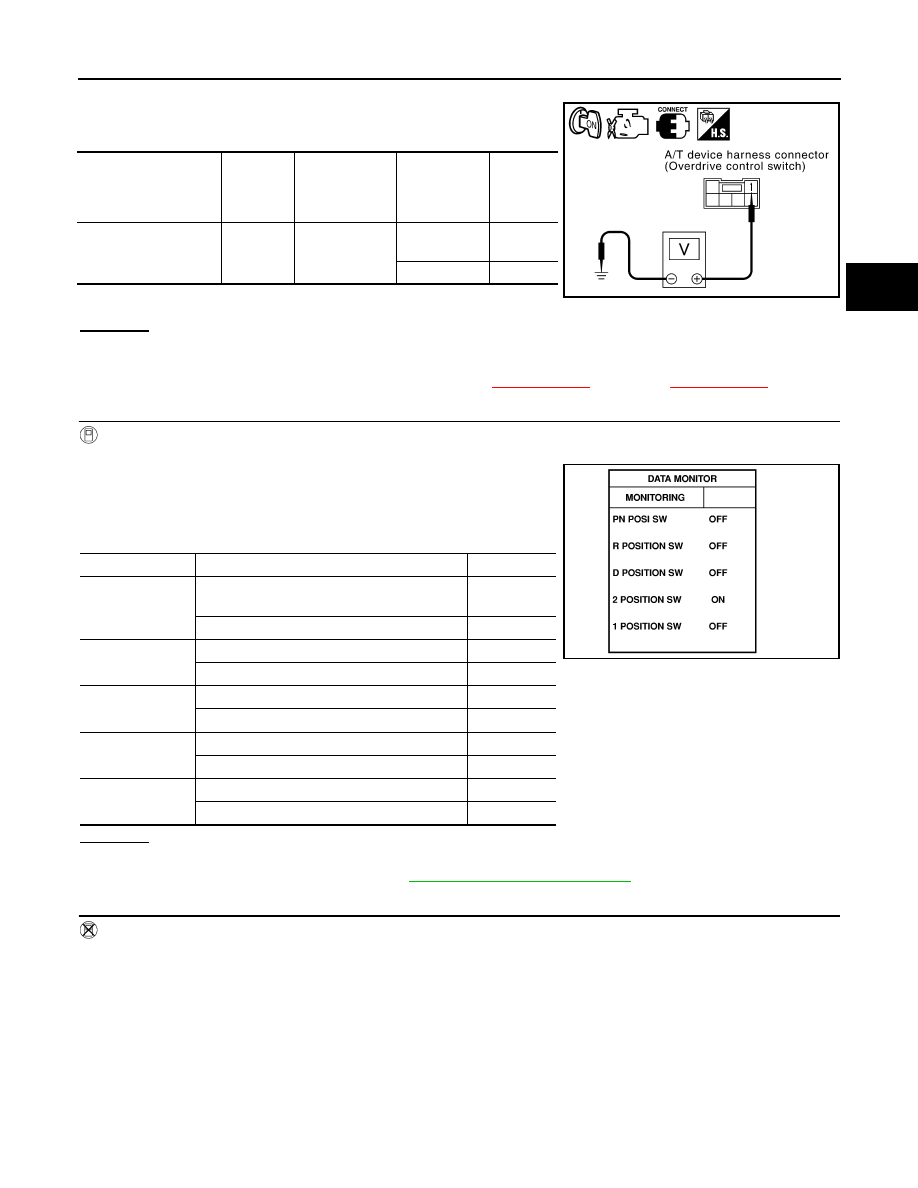

Item

Connector

Terminal

Overdrive

control switch

Condition

Judge-

ment

standard

(Approx.)

A/T device harness
connector (Overdrive
control switch)

M38

1 - Ground

Released

Battery
voltage

Depressed

0V

SCIA5336E

Monitor item

Condition

Display value

PN POSI SW

When setting selector lever to “N” or “P” posi-
tion.

ON

When setting selector lever to other positions.

OFF

R POSITION SW

When setting selector lever to “R” position.

ON

When setting selector lever to other positions.

OFF

D POSITION SW

When setting selector lever to “D” positions.

ON

When setting selector lever to other positions.

OFF

2 POSITION SW

When setting selector lever to “2” position.

ON

When setting selector lever to other positions.

OFF

1 POSITION SW

When setting selector lever to “1” position.

ON

When setting selector lever to other positions.

OFF

SAT701J

TM-160

< SYMPTOM DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

SYSTEM SYMPTOM

2.

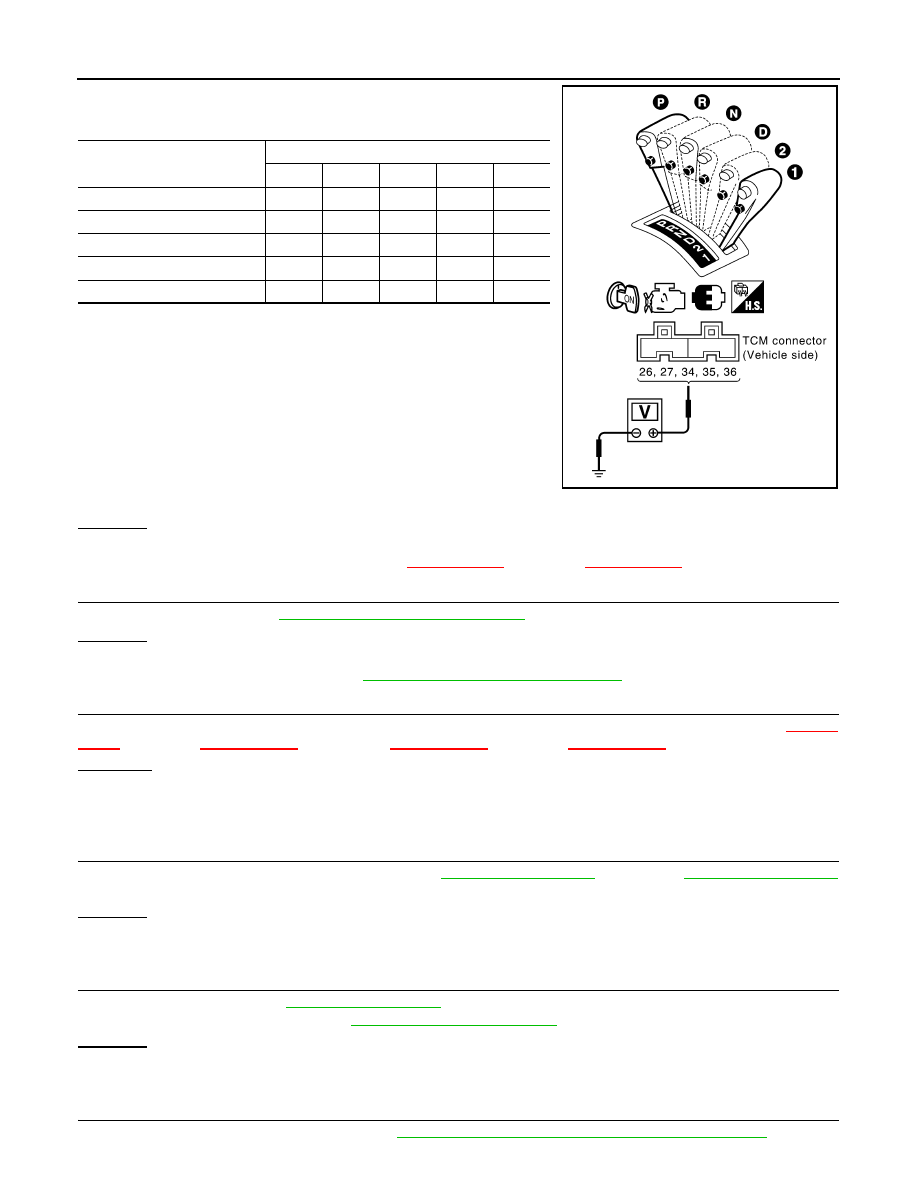

Check voltage between TCM connector terminals and ground
while moving selector lever through each position.

B: Battery voltage

0: 0V

OK or NG

OK

>> GO TO 5

NG

>> Check PNP switch circuit. Refer to

XX-XX, "*****"

 (type 1) or

XX-XX, "*****"

 (type 2).

5.

CHECK A/T POSITION

Check A/T position. Refer to

TM-204, "Checking of A/T Position"

.

OK or NG

OK

>> GO TO 6.

NG

>> Adjust A/T position. Refer to

TM-204, "Adjustment of A/T Position"

.

6.

CHECK VEHICLE SPEED SENSOR·A/T AND VEHICLE SPEED SENSOR·MTR CIRCUIT

Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to

XX-XX,

"*****"

 (type 1) or

XX-XX, "*****"

 (type 2) and

XX-XX, "*****"

 (type 1) or

XX-XX, "*****"

 (type 2).

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR

circuits.

7.

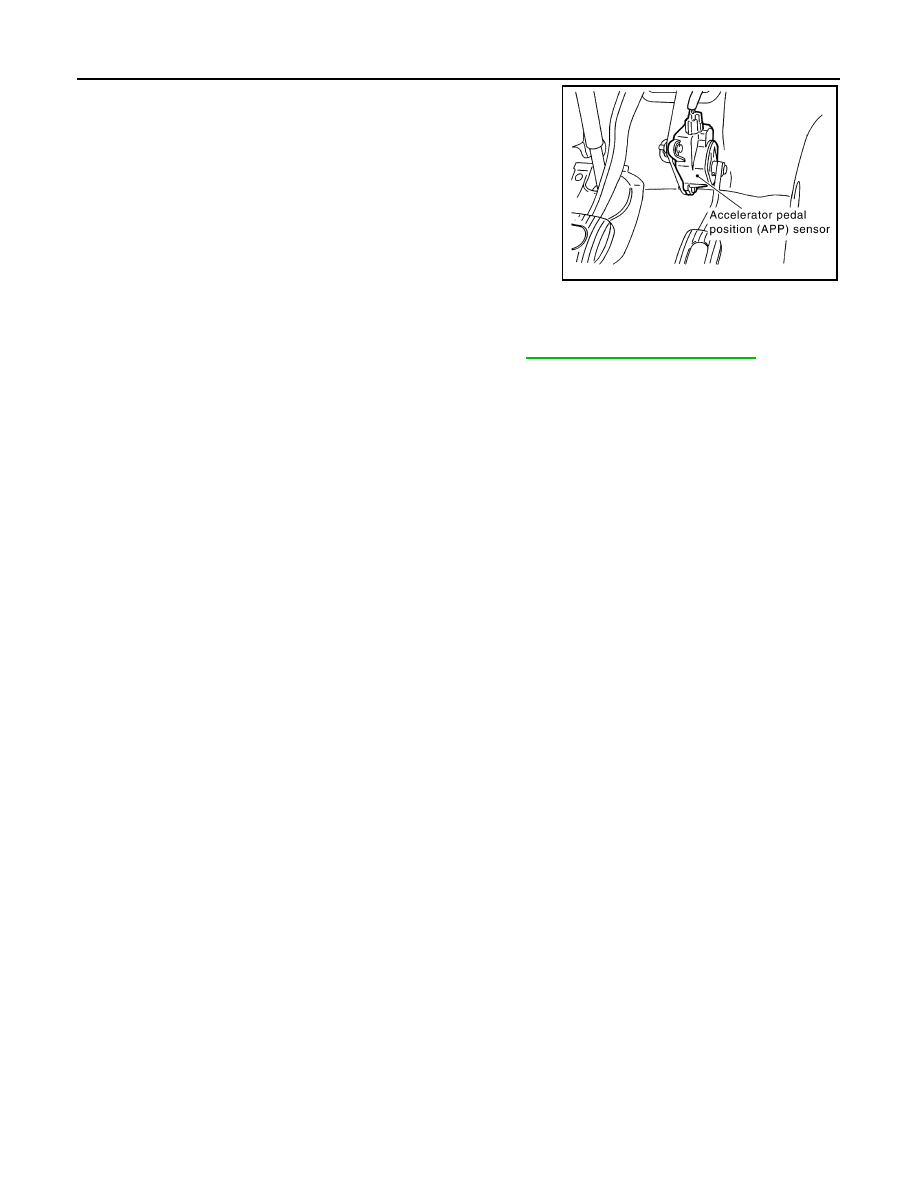

CHECK ACCELERATOR PEDAL POSITION SENSOR

Check accelerator pedal position sensor. Refer to

EC-297, "Description"

 (type 1) or

EC-583, "Description"

(type 2).

OK or NG

OK

>> GO TO 8.

NG

>> Repair or replace accelerator pedal position sensor.

8.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

TM-213, "Component"

.

2.

Check A/T fluid condition. Refer to

TM-171, "Checking A/T Fluid"

.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 9.

9.

DETECT MALFUNCTIONING ITEM

1.

Remove control valve assembly. Refer to

TM-191, "Control Valve Assembly and Accumulators"

.

Selector lever position

Terminal

36

35

34

27

26

“P”,  “N”

B

0

0

0

0

“R”

0

B

0

0

0

“D”

0

0

B

0

0

“2”

0

0

0

B

0

“1”

0

0

0

0

B

SCIA7162E

SYSTEM SYMPTOM

TM-161

< SYMPTOM DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

2.

Check the following.

-

Shift valve A

-

Overrun clutch solenoid valve

3.

Disassemble A/T. Refer to

TM-222, "Disassembly"

.

4.

Check the following.

-

Overrun clutch assembly. Refer to

TM-267, "Forward and Overrun Clutches"

.

-

Low & reverse brake assembly. Refer to

TM-273, "Low & Reverse Brake"

.

OK or NG

OK

>> GO TO 10.

NG

>> Repair or replace damaged parts.

10.

CHECK SYMPTOM

Check again. Refer to

TM-186, "Cruise Test - Part 3"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 11.

11.

CHECK TCM

1.

Check TCM input/output signals. Refer to

TM-22, "Input/Output Signal of TCM"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>>  INSPECTION END

NG

>> Repair or replace damaged parts.

TCM Self-Diagnosis Does Not Activate

INFOID:0000000001696261

SYMPTOM:
OD OFF indicator lamp does not come on in TCM self-diagnostic procedure even if the lamp circuit is
good.

DESCRIPTION

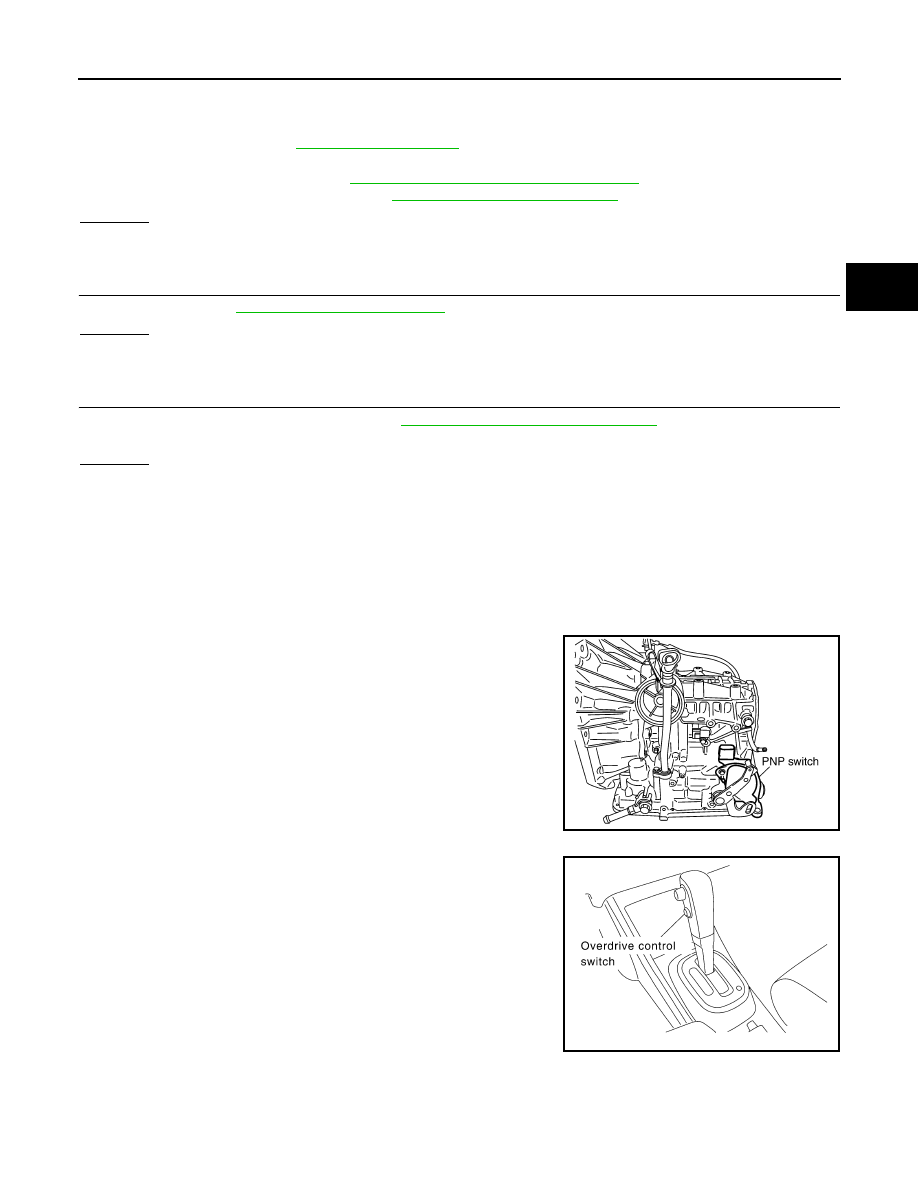

• PNP  switch

PNP switch assembly includes a transaxle position switch. The
transaxle position switch detects the selector lever position and
sends a signal to the TCM.

• Overdrive control switch

Overdrive control switch detects the switch position (ON or OFF)
and sends a signal to the TCM.

SCIA7141E

SCIA7142E

TM-162

< SYMPTOM DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

SYSTEM SYMPTOM

• Closed throttle position signal and wide open throttle position sig-

nal
ECM judges throttle opening based on a signal from accelerator
pedal position sensor, and sends the signal via CAN communica-
tion to the TCM.

DIAGNOSTIC PROCEDURE

NOTE:
The diagnostic procedure includes inspection for the PNP stitch, overdrive control switch, closed throttle posi-
tion signal and wide open throttle position signal circuit. Refer to

TM-115, "Component Inspection"

.

SCIA7143E
