A/T Does Not Shift: D

3

→

 2

2

, When Selector Lever "D"

→

 "2" Position

INFOID:0000000001696258

SYMPTOM:
A/T does not shift from D

3

 to 2

2

when changing selector lever from “D” to “2” position on “Cruise Test

— Part 3”.

1.

CHECK SYMPTOM

Check symptom. Refer to

TM-183, "Cruise Test - Part 1"

 or

TM-185, "Cruise Test - Part 2"

.

Is “A/T Does Not Shift: D

1

→

D

2

 or Does Not Kickdown: D

4

→

 D

2

” OK?

YES (With CONSULT-II) >>GO TO 2.
YES (Without CONSULT-II) >>GO TO 3.
NO

>> GO TO

TM-146, "A/T Does Not Shift: D

1

→

 D

2

or Does Not Kickdown: D

4

→

 D

2

"

.

2.

CHECK PNP SWITCH CIRCUIT

With CONSULT-II

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Read out “P·N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.

OK or NG

OK

>> INSPECTION END

NG

>> Check PNP switch circuit. Refer to

TM-46, "Component Inspection"

.

3.

CHECK PNP SWITCH CIRCUIT

Without CONSULT-II

1.

Turn ignition switch ON. (Do not start engine.)

Monitor item

Condition

Display value

PN POSI SW

When setting selector lever to “N” or “P” posi-
tion.

ON

When setting selector lever to other positions.

OFF

R POSITION SW

When setting selector lever to “R” position.

ON

When setting selector lever to other positions.

OFF

D POSITION SW

When setting selector lever to “D” positions.

ON

When setting selector lever to other positions.

OFF

2 POSITION SW

When setting selector lever to “2” position.

ON

When setting selector lever to other positions.

OFF

1 POSITION SW

When setting selector lever to “1” position.

ON

When setting selector lever to other positions.

OFF

TM-156

< SYMPTOM DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

SYSTEM SYMPTOM

2.

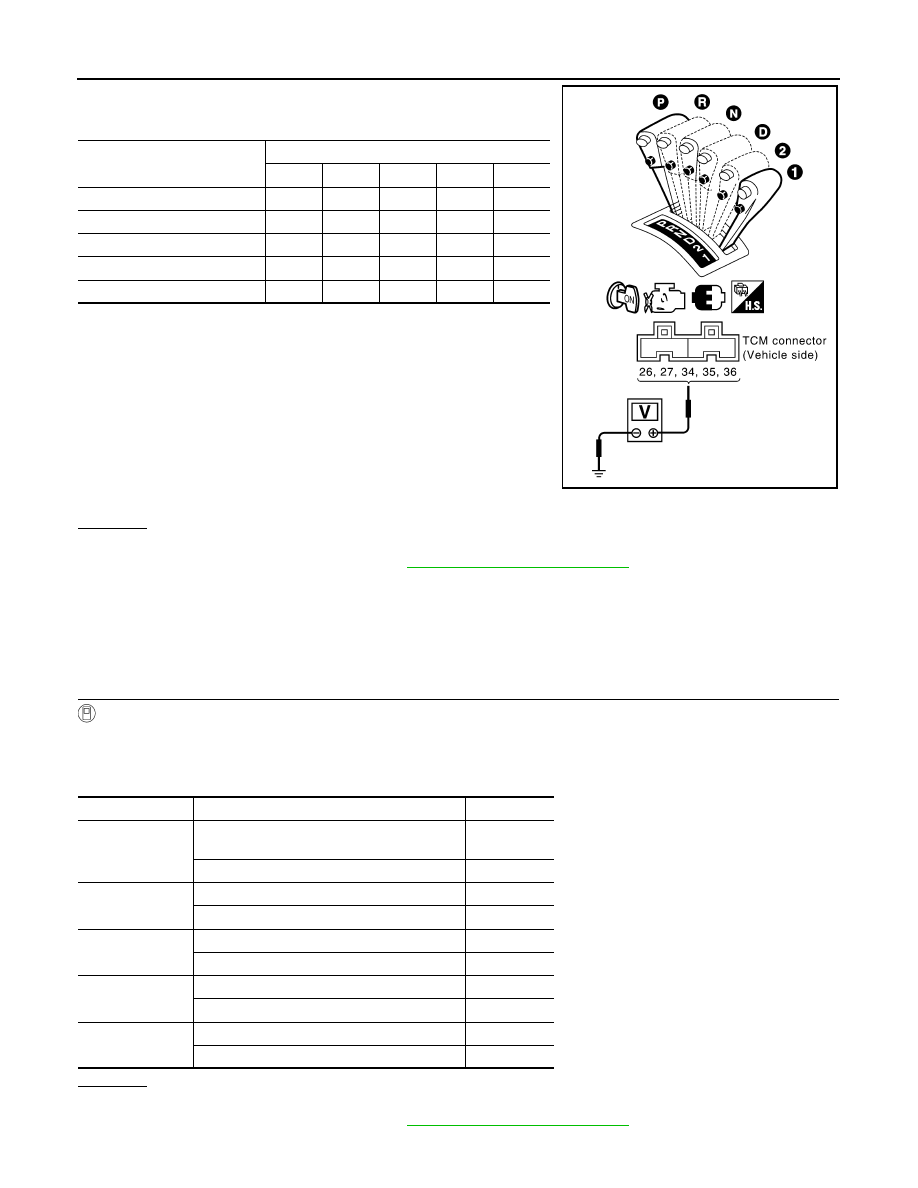

Check voltage between TCM connector terminals and ground
while moving selector lever through each position.

B: Battery voltage

0: 0V

OK or NG

OK

>> INSPECTION END

NG

>> Check PNP switch circuit. Refer to

TM-46, "Component Inspection"

.

A/T Does Not Shift: 2

2

→

 1

1

, When Selector Lever "2"

→

 "1" Position

INFOID:0000000001696259

SYMPTOM:
A/T does not shift from 2

2

 to 1

1

 when changing selector lever from “2” to “1” position on “Cruise Test

— Part 3”.

1.

CHECK PNP SWITCH CIRCUIT

With CONSULT-II

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Read out “P·N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.

OK or NG

OK

>> GO TO 3

NG

>> Check PNP switch circuit. Refer to

TM-46, "Component Inspection"

.

Selector lever position

Terminal

36

35

34

27

26

“P”,  “N”

B

0

0

0

0

“R”

0

B

0

0

0

“D”

0

0

B

0

0

“2”

0

0

0

B

0

“1”

0

0

0

0

B

SCIA7162E

Monitor item

Condition

Display value

PN POSI SW

When setting selector lever to “N” or “P” posi-
tion.

ON

When setting selector lever to other positions.

OFF

R POSITION SW

When setting selector lever to “R” position.

ON

When setting selector lever to other positions.

OFF

D POSITION SW

When setting selector lever to “D” positions.

ON

When setting selector lever to other positions.

OFF

2 POSITION SW

When setting selector lever to “2” position.

ON

When setting selector lever to other positions.

OFF

1 POSITION SW

When setting selector lever to “1” position.

ON

When setting selector lever to other positions.

OFF

SYSTEM SYMPTOM

TM-157

< SYMPTOM DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

2.

CHECK PNP SWITCH CIRCUIT

Without CONSULT-II

1.

Turn ignition switch ON. (Do not start engine.)

2.

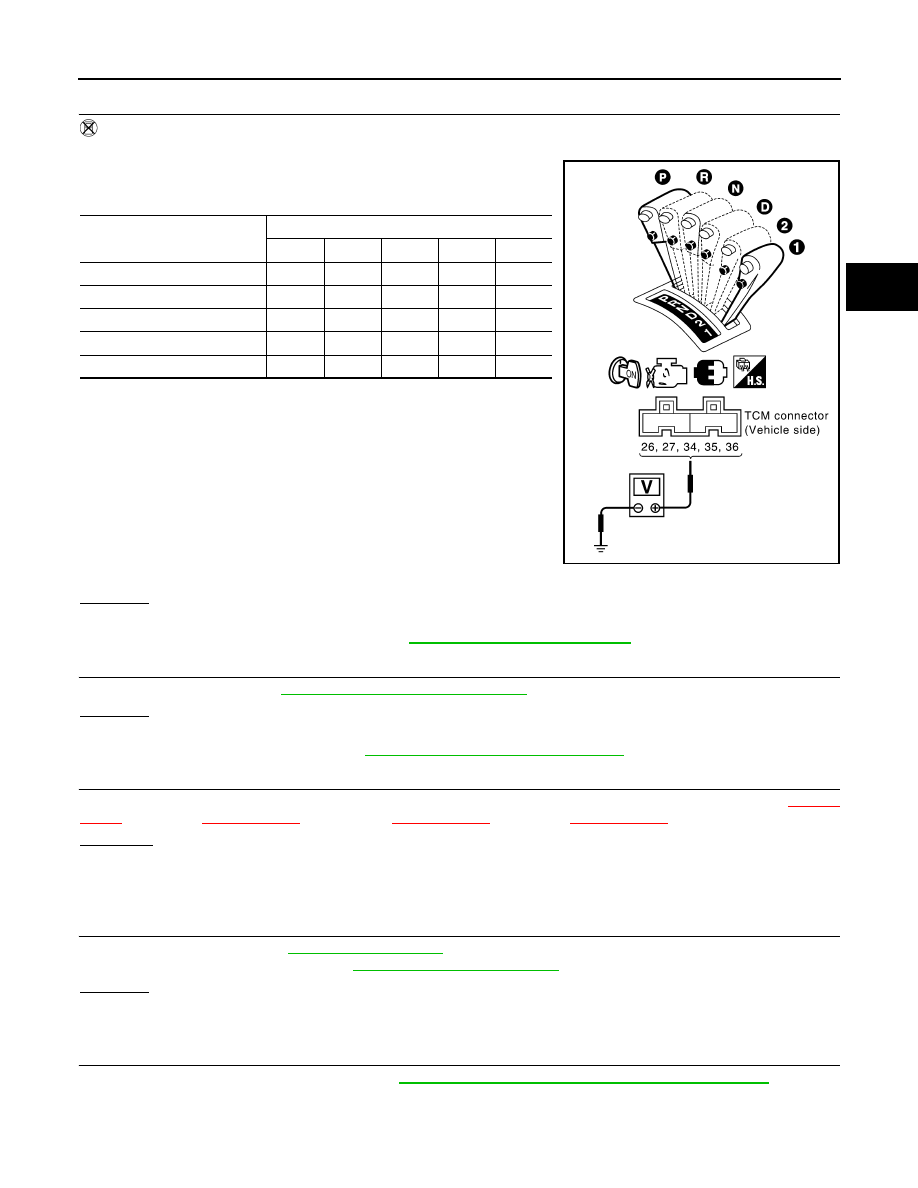

Check voltage between TCM connector terminals and ground
while moving selector lever through each position.

B: Battery voltage

0: 0V

OK or NG

OK

>> GO TO 3

NG

>> Check PNP switch circuit. Refer to

TM-46, "Component Inspection"

.

3.

CHECK A/T POSITION

Check A/T position. Refer to

TM-204, "Checking of A/T Position"

.

OK or NG

OK

>> GO TO 4.

NG

>> Adjust A/T position. Refer to

TM-204, "Adjustment of A/T Position"

.

4.

CHECK VEHICLE SPEED SENSOR·A/T AND VEHICLE SPEED SENSOR·MTR CIRCUIT

Check vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR circuit. Refer to

XX-XX,

"*****"

 (type 1) or

XX-XX, "*****"

 (type 2) and

XX-XX, "*****"

 (type 1) or

XX-XX, "*****"

 (type 2).

OK or NG

OK

>> GO TO 5.

NG

>> Repair or replace vehicle speed sensor·A/T (revolution sensor) and vehicle speed sensor·MTR

circuits.

5.

CHECK A/T FLUID CONDITION

1.

Remove oil pan. Refer to

TM-213, "Component"

.

2.

Check A/T fluid condition. Refer to

TM-171, "Checking A/T Fluid"

.

OK or NG

OK

>> GO TO 7.

NG

>> GO TO 6.

6.

DETECT MALFUNCTIONING ITEM

1.

Remove control valve assembly. Refer to

TM-191, "Control Valve Assembly and Accumulators"

.

2.

Check the following items:

-

Shift valve A

-

Shift solenoid valve A

Selector lever position

Terminal

36

35

34

27

26

“P”, “N”

B

0

0

0

0

“R”

0

B

0

0

0

“D”

0

0

B

0

0

“2”

0

0

0

B

0

“1”

0

0

0

0

B

SCIA7162E

TM-158

< SYMPTOM DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

SYSTEM SYMPTOM

-

Overrun clutch control valve

-

Overrun clutch solenoid valve

3.

Disassemble A/T. Refer to

TM-222, "Disassembly"

.

4.

Check the following items:

-

Servo piston assembly

-

Brake band

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

7.

CHECK SYMPTOM

Check again. Refer to

TM-186, "Cruise Test - Part 3"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 8.

8.

CHECK TCM

1.

Check TCM input/output signals. Refer to

TM-22, "Input/Output Signal of TCM"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Vehicle Does Not Decelerate by Engine Brake

INFOID:0000000001696260

SYMPTOM:
• Vehicle does not decelerate by engine brake when shifting from 2

2

 (1

2

) to 1

1

“Cruise Test — Part 3”.

• Vehicle does not decelerate by engine brake when OD OFF (OD OFF indicator lamp is on) on “Cruise

Test — Part 3”.

• Vehicle does not decelerate by engine brake when shifting A/T from “D” to “2” position on “Cruise

Test — Part 3”.

1.

CHECK CAN COMMUNICATION LINE

Perform self-diagnosis. Refer to

XX-XX, "*****"

 or

TM-38, "Diagnosis Procedure without CONSULT-III"

.

Is a malfunction in CAN communication indicated in the results?

YES

>> Check CAN communication line. Refer to

XX-XX, "*****"

 (type 1) or

XX-XX, "*****"

 (type 2).

NO

>> GO TO 2.

2.

CHECK OVERDRIVE CONTROL SWITCH CIRCUIT

With CONSULT-II

1.

Turn ignition switch ON. (Do not start engine)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.

3.

Read out “OVERDRIVE SW”.
Check the signal of the overdrive control switch is indicated properly.

Without CONSULT-II

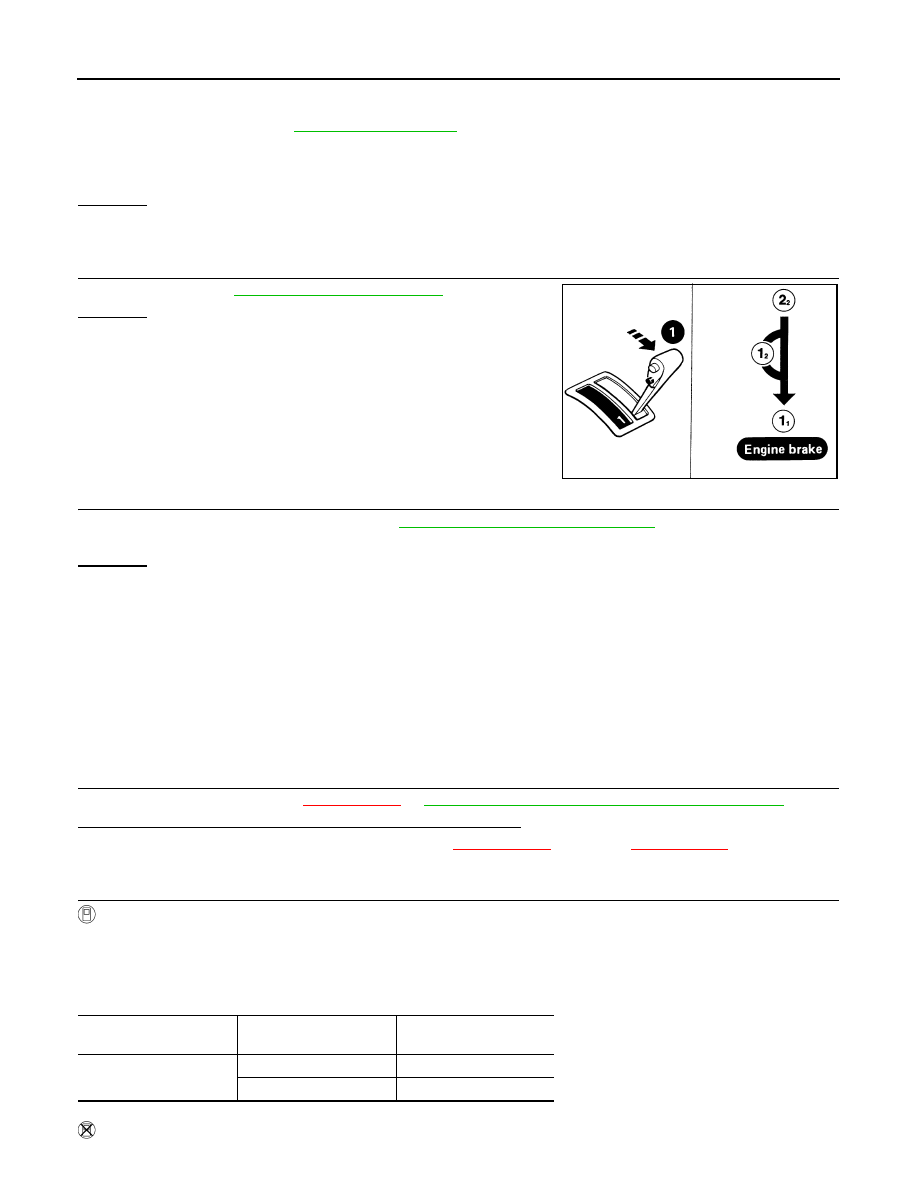

SAT778B

Item name

Overdrive control switch
Condition

Display value

OVERDRIVE SW

Depressed

ON

Released

OFF
