INSPECTION

SB-5

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

2.

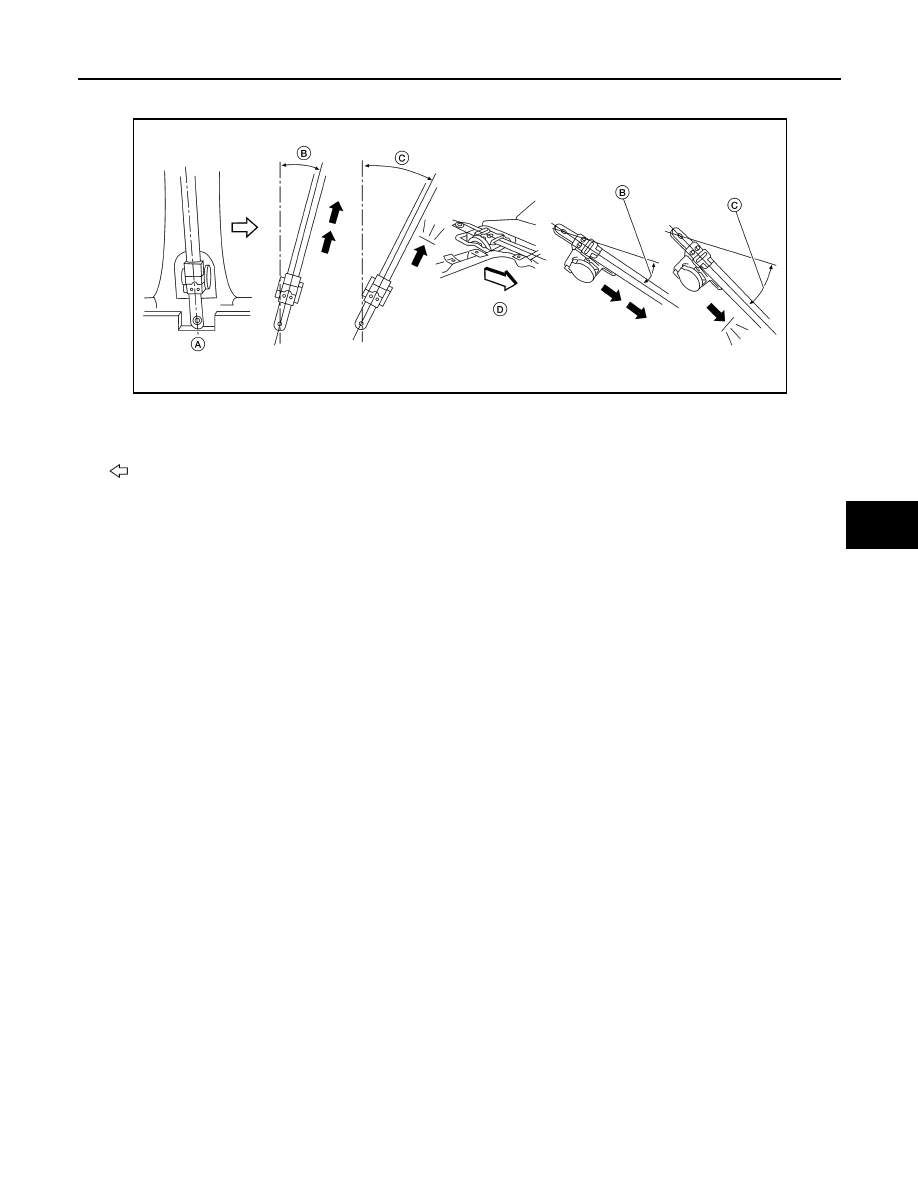

Slowly pull out seat belt webbing while tilting the retractor assembly forward from the installed position
without twisting the retractor assembly as shown in the illustration.

A: Seat belt retractor in vertically installed position.
B: With 15

°

 or less tilt, the webbing can be pulled out.

C: With 35

°

 or more tilt, the webbing can not be pulled out.

D: Seat belt retractor in horizontally installed position.

: Vehicle front.

If the seat belt does not operate properly within the specifications, replace the seat belt retractor assem-
bly.

WHIA0351E

SB-6

< ON-VEHICLE REPAIR >

FRONT SEAT BELT

ON-VEHICLE REPAIR

FRONT SEAT BELT

Removal and Installation of Front Seat Belt

INFOID:0000000001396419

LHD shown, RHD similar

CAUTION:

Before servicing the SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.

REMOVAL OF SEAT BELT RETRACTOR

1.

Disconnect both the negative and positive battery cables, then wait at least 3 minutes.

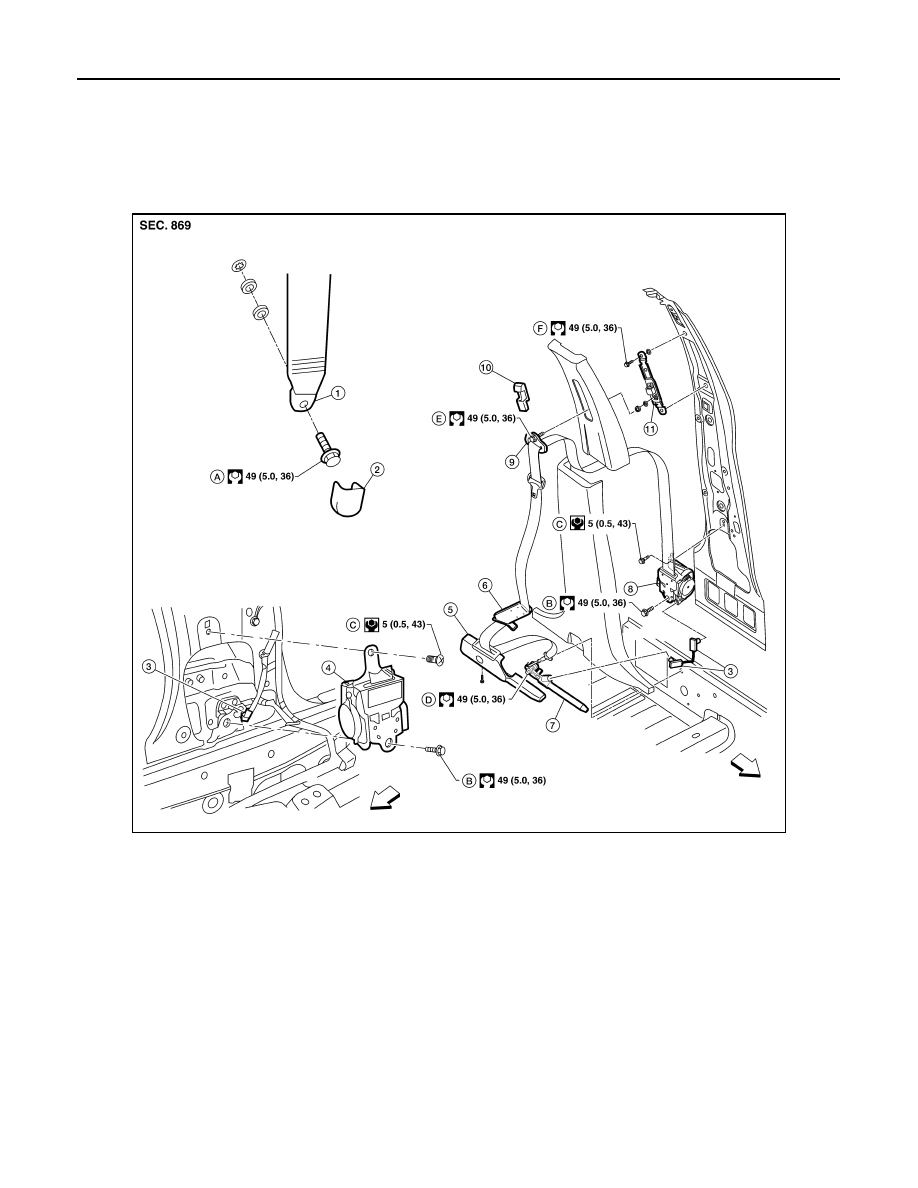

LHIA0115E

1.

Outer anchor RH (also LH if equipped)

2.

Anchor cover RH (also LH if equipped)

3.

Seat belt pre-tensioner con-
nector

4.

Seat belt retractor RH

5.

Lap seat belt pre-tensioner (driver side)
cover lower

6.

Lap seat belt pre-tensioner
(driver side) cover upper

7.

Lap seat belt pre-tensioner (driver side) 8.

Seat belt retractor LH

9.

D-ring anchor

10. Adjuster cover

11.

Seat belt adjuster

A.

Outer anchor bolt RH

B.

Seat belt retractor anchor bolt

C.

Seat belt retractor bolt upper

D.

Lap seat belt pre-tensioner
(driver side)

E.

D-ring anchor bolt

F.

Adjuster anchor bolt

Vehicle front

FRONT SEAT BELT

SB-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

2.

Remove the adjuster cover and D-ring anchor bolt.

3.

Remove both the center pillar upper and lower garnish. Refer to

INT-20, "Removal and Installation"

.

WARNING:

Do not reuse center pillar upper garnish if removed.

4.

Pull the floor trim away from center pillar.

5.

Disconnect seat belt pre-tensioner connector(s). Refer to

SRC-

9, "Direct-connect SRS Component Connectors"

.

NOTE:
Seat belt retractor LH assembly may have double pre-tension-
ers using 2 separate Direct-connect SRS Component Connec-
tors. If equipped, make sure to disconnect both pre-tensioners.

6.

Remove the outer anchor bolt (or lap seat belt pre-tensioner if driver side).

7.

Remove the seat belt retractor bolt upper and seat belt retractor anchor bolt, then remove the seat belt
retractor.

INSTALLATION OF SEAT BELT RETRACTOR

Installation is in the reverse order of removal.

REMOVAL OF SEAT BELT BUCKLE

1.

Remove the front seat, refer to

SE-14, "Removal and Installation"

.

2.

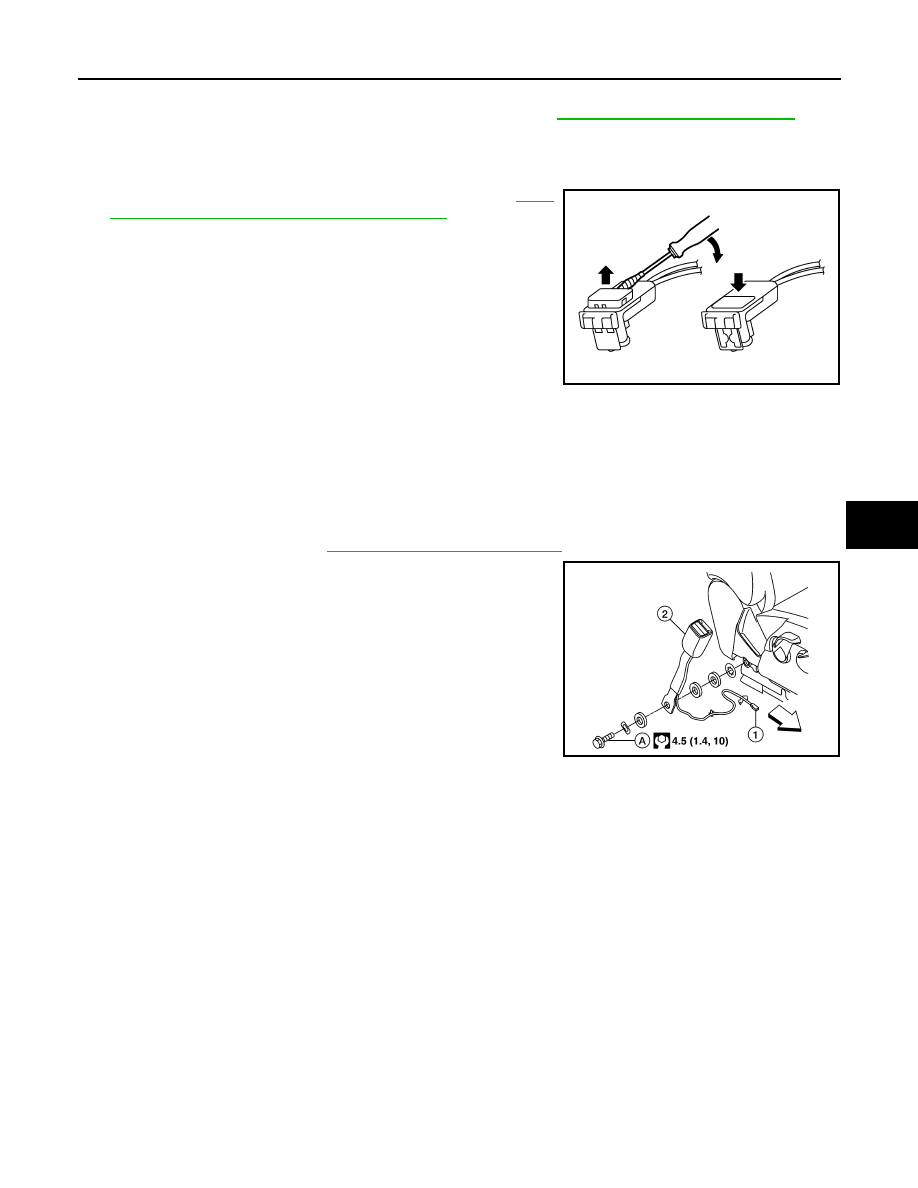

Disconnect the seat belt buckle harness connector (1).

: Vehicle front

3.

Remove the anchor bolt (A), then remove the seat belt buckle
(2).

INSTALLATION OF SEAT BELT BUCKLE

Installation is in the reverse order of removal.

PHIA0953J

WHIA0330E

SB-8

< ON-VEHICLE REPAIR >

REAR SEAT BELT

REAR SEAT BELT

Removal and Installation of Rear Seat Belt

INFOID:0000000001366761

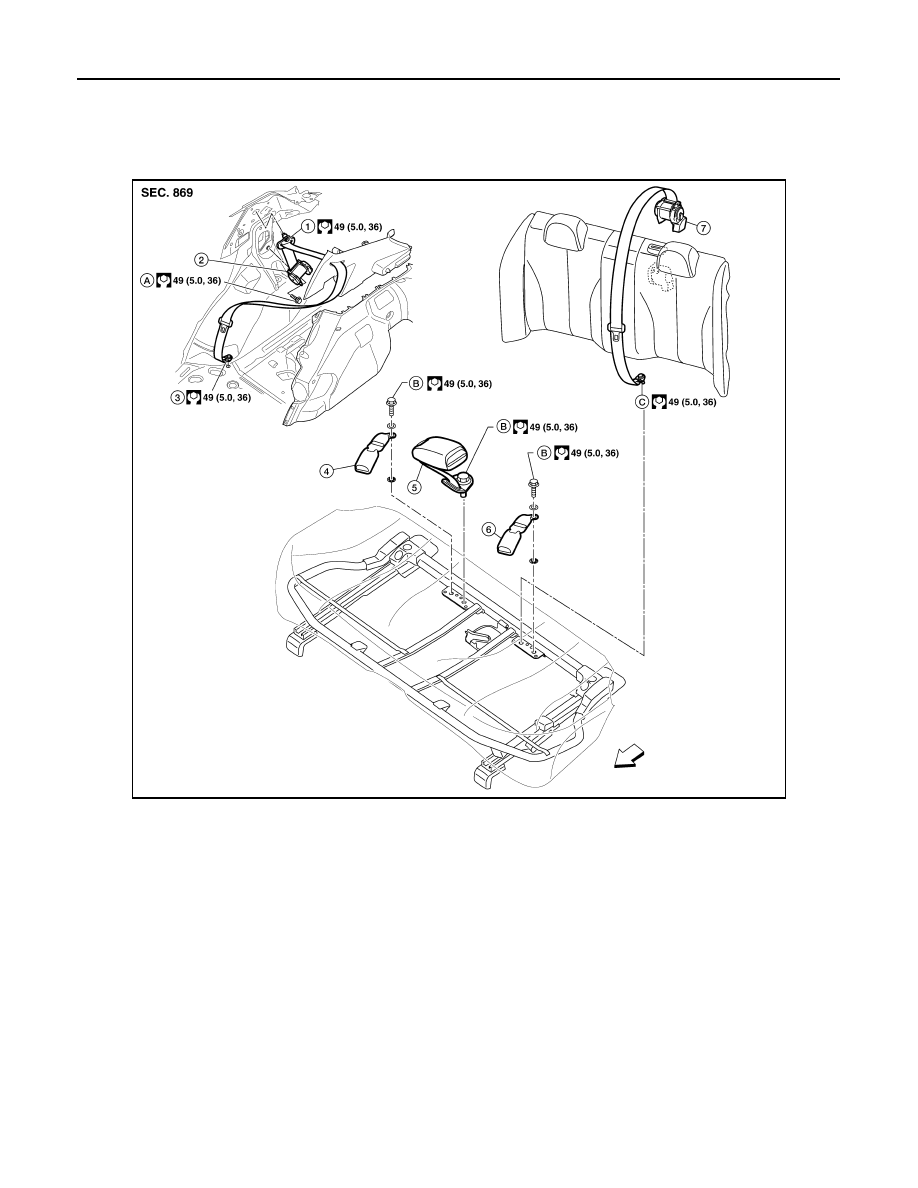

Hatchback

ALHIA0044GB

1.

D-ring anchor

2.

Outer seat belt retractor RH

3.

Outer anchor bolt

4.

Seat belt buckle center

5.

Seat belt buckle RH

6.

Seat belt buckle LH

7.

Center seat belt retractor

A.

Outer retractor anchor bolt RH

B.

Buckle anchor bolt

C.

Center anchor bolt
