SHOCK ABSORBER

RSU-9

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

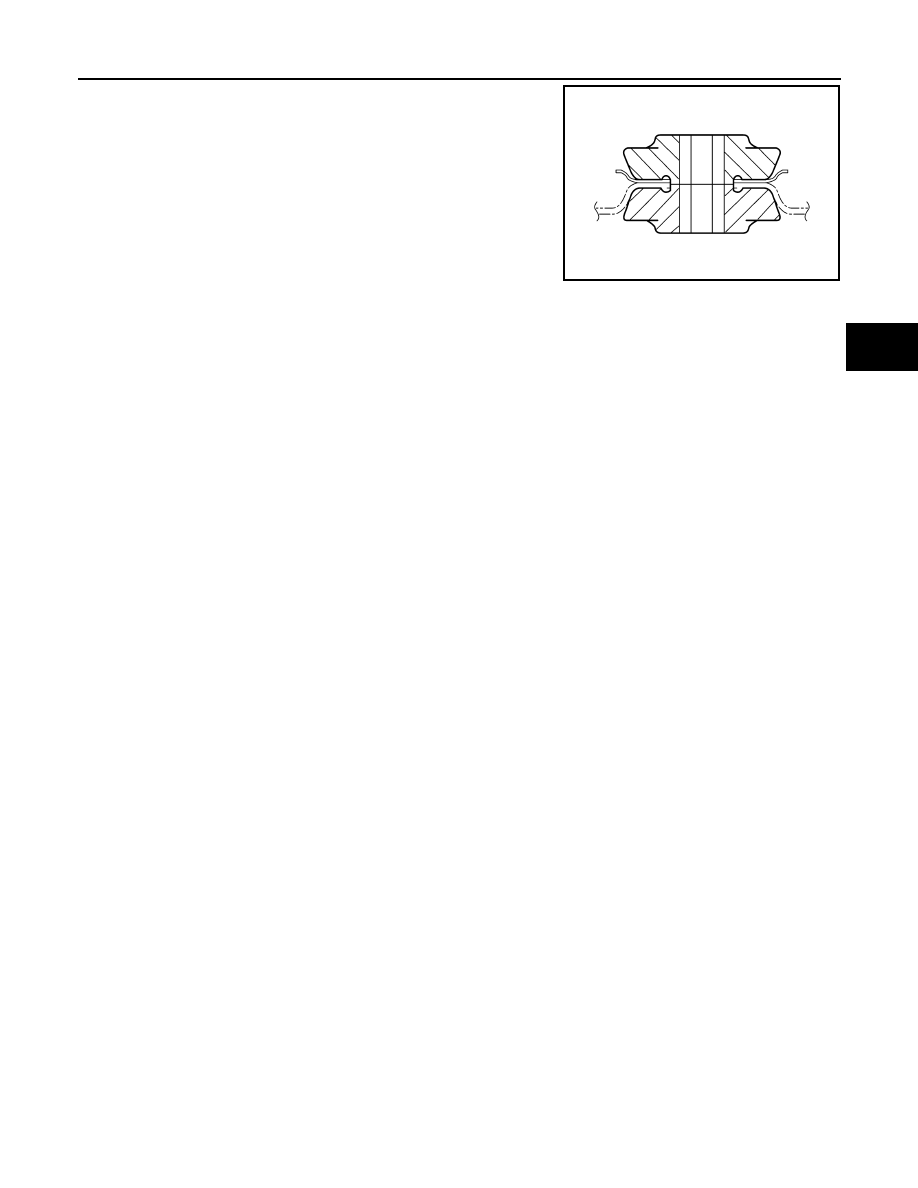

• When installing body side bushing (upper), install the projection to

the body side hole securely.

SEIA0645J

RSU-10

< ON-VEHICLE REPAIR >

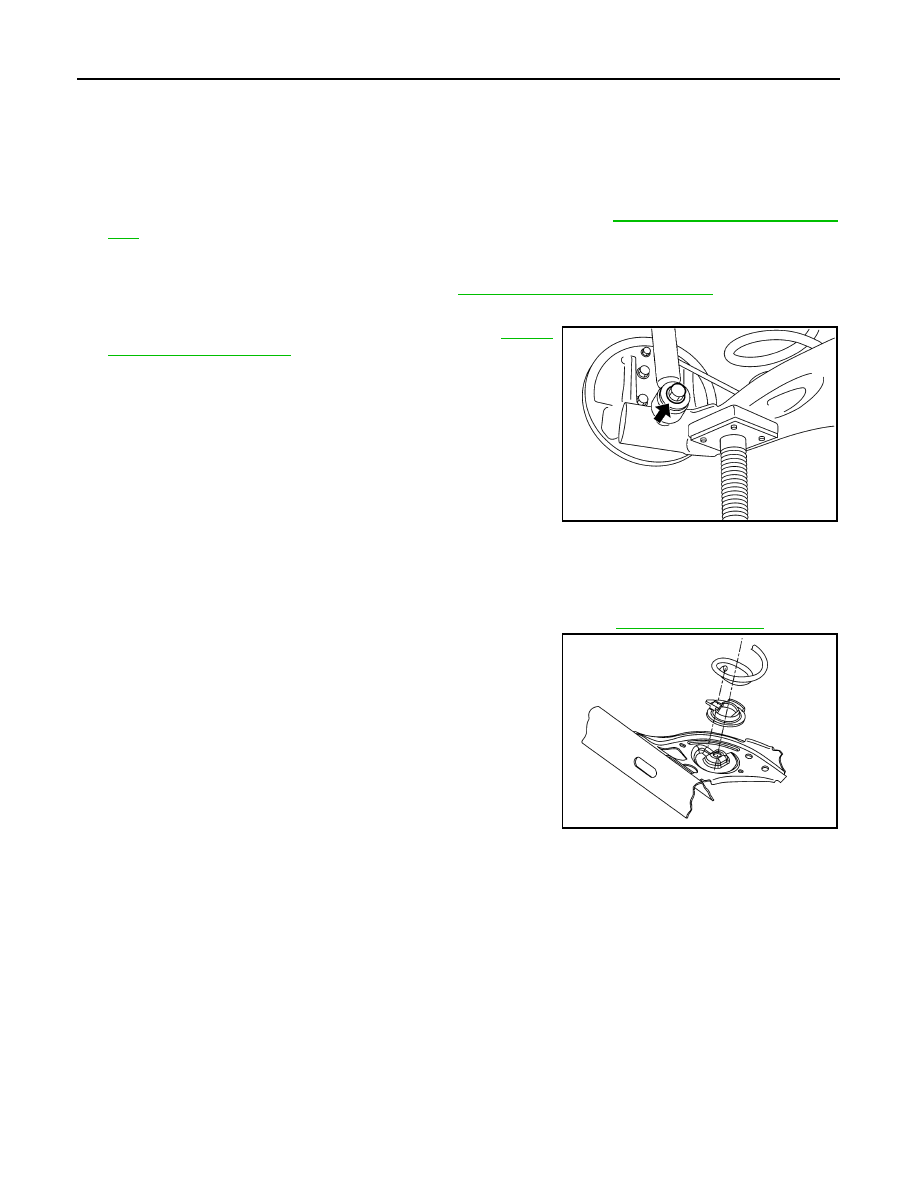

COIL SPRING

COIL SPRING

Removal and Installation

INFOID:0000000001724579

REMOVAL

1.

Remove rear tires from vehicle using power tool.

2.

Remove wheel sensor from wheel hub and bearing assembly. Refer to

BRC-83, "Removal and Installa-

tion"

 .

CAUTION:

Do not pull on wheel sensor harness.

3.

Separate brake tube from wheel cylinder. Refer to

BR-15, "Rear Brake Tube and Hose"

 .

4.

Set jack under rear suspension beam.

5.

Remove shock absorber lower side bolt. Refer to

RSU-8,

"Removal and Installation"

 .

6.

Gradually lower the jack, and then remove coil spring and rear
spring rubber seat (upper and lower).

INSPECTION AFTER REMOVAL

Check coil spring and spring rubber seat for deformation, cracks, and damage, and replace it if a malfunction
is detected.

INSTALLATION

• Installation is in the reverse order of removal. For tightening torque, refer to

RSU-7, "Component"

 .

• When installing spring, be sure to securely install the spring end

position aligned to flush of rear spring rubber seat (lower) as
shown.

SEIA0146J

SEIA0149J

REAR SUSPENSION BEAM

RSU-11

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

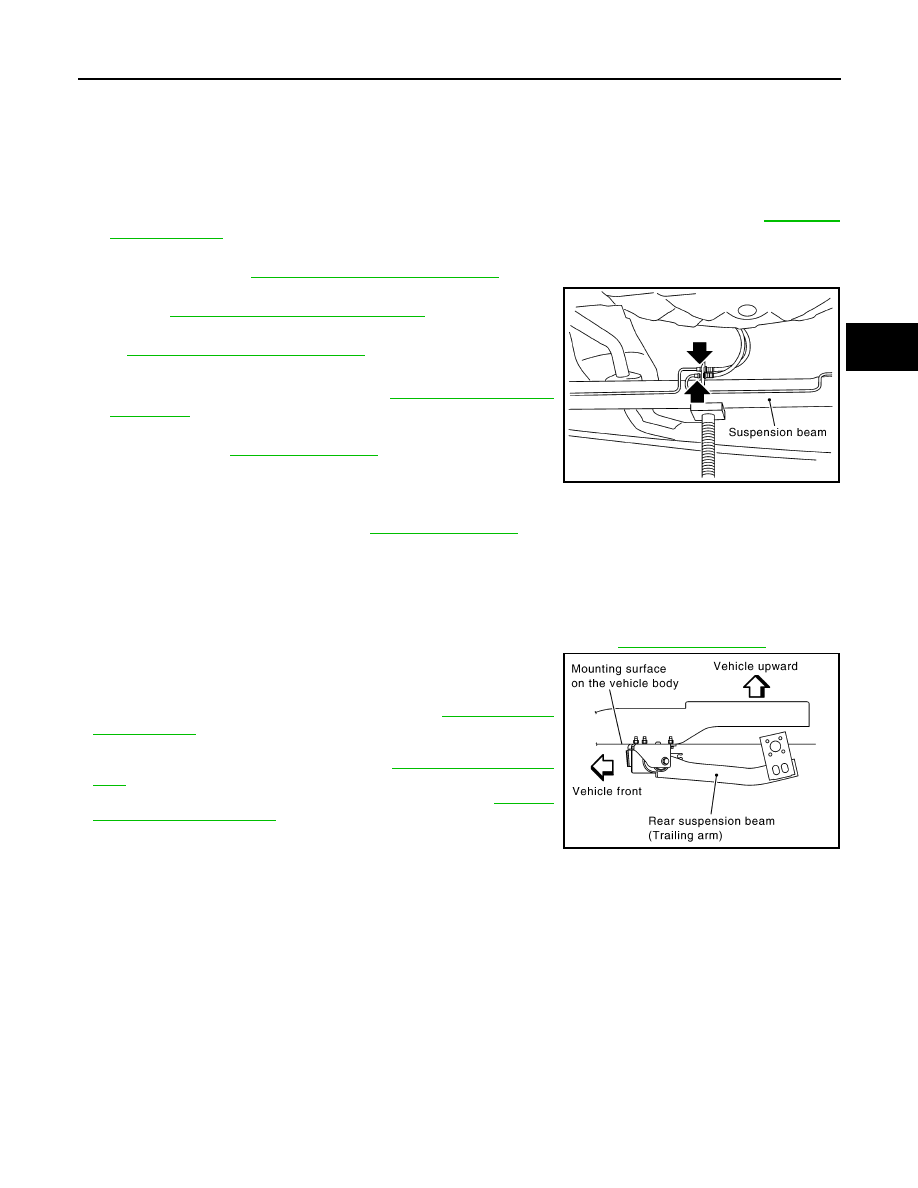

REAR SUSPENSION BEAM

Removal and Installation

INFOID:0000000001724580

REMOVAL

1.

Remove rear tires from vehicle using power tool.

2.

Separate parking brake rear cable from rear drum brake and rear suspension beam. Refer to

PB-4, "On-

Vehicle Service"

 .

3.

Remove wheel sensor and wheel sensor harness from wheel hub and bearing assembly and rear suspen-
sion beam. Refer to

BRC-83, "Removal and Installation"

 .

4.

Remove lock plate and separate brake tube from brake hose.
Refer to

BR-15, "Rear Brake Tube and Hose"

 .

5.

Remove wheel hub and bearing assembly and back plate. Refer
to

RAX-6, "Removal and Installation"

 .

6.

Set jack under rear suspension beam.

7.

Remove coil spring (left/right). Refer to

RSU-10, "Removal and

Installation"

 .

8.

Remove bolts between body and rear suspension beam
bracket. Refer to

RSU-7, "Component"

 .

9.

Gradually lower the jack, and then remove rear suspension
beam from vehicle.

10. Remove the rear suspension beam bracket bolt and nut, and then remove rear suspension beam bracket

from rear suspension beam. Refer to

RSU-7, "Component"

 .

11. Remove brake tube protector from rear suspension beam..

INSPECTION AFTER REMOVAL

Check components for deformation, cracks, and other damage, and replace if necessary.

INSTALLATION

• Installation is in the reverse order of removal. For tightening torque, refer to

RSU-7, "Component"

 .

• Perform final tightening of rear suspension beam and rear suspen-

sion beam bracket (rubber bushing) under unladen conditions with
tires on level ground.

• Refill with new brake fluid and bleed air. Refer to

BR-8, "Bleeding

Brake System"

 .

• Check the following after finishing work.
- Parking brake operation (stroke): Refer to

PB-4, "On-Vehicle Ser-

vice"

 .

- Wheel sensor harness for proper connection: Refer to

BRC-83,

"Removal and Installation"

 .

MEIA0029E

MEIA0030E

RSU-12

< SERVICE DATA AND SPECIFICATIONS (SDS)

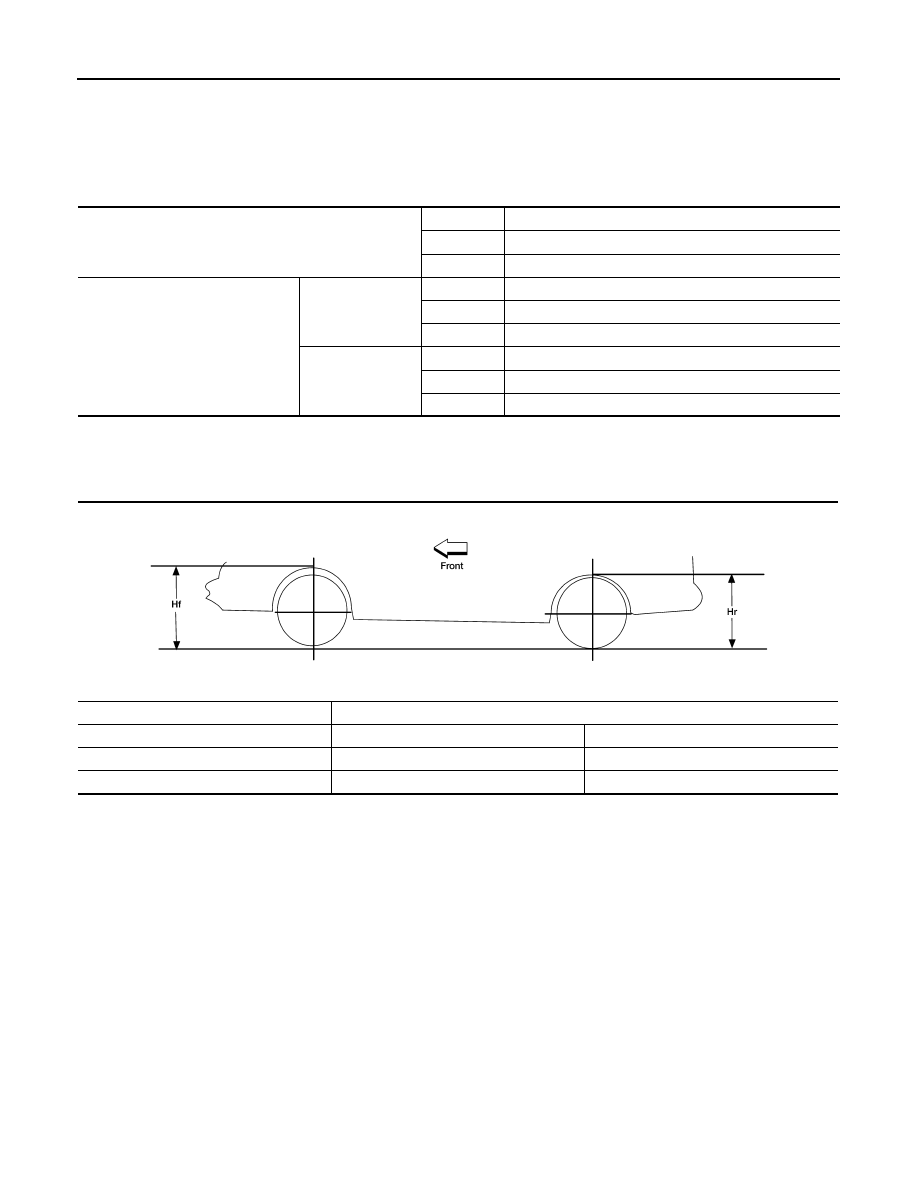

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Alignment (Unladen*)

INFOID:0000000001724581

*: Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Wheelarch Height (Unladen*)

INFOID:0000000001724582

Unit: mm (in)

*: Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.

Camber
Degree minute (Decimal degree)

Minimum

– 2

°

 01

′

 (– 2.02

°

)

Nominal

– 1

°

 31

′

 (– 1.52

°

)

Maximum

– 1

°

 01

′

 (– 1.02

°

)

Total toe-in

Distance (A - B)

Minimum

– 1.0 mm (– 0.039 in)

Nominal

3.0 mm (0.118 in)

Maximum

7.0 mm (0.276 in)

Angle (A - B)
Degree minute
(Decimal degree)

Minimum

– 0

°

 5

′

 (0.08

°

)

Nominal

0

°

 13

′

 (0.22

°

)

Maximum

0

°

 31 (0.52)

Tire size

P195/65R15

Engine model

K9K

HR16DE, MR18DE

Front (Hf)

689 (27.13)

692 (27.24)

Rear (Hr)

689 (27.13)

689 (27.13)
