REAR SEAT BELT

SB-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

Sedan

REMOVAL OF OUTER SEAT BELT RETRACTOR - HATCHBACK

1.

Remove rear seatback, cushion and seat back side, refer to

SE-18, "Removal and Installation"

.

2.

Remove the outer anchor bolt.

3.

Remove the luggage side lower finisher, refer to

INT-20, "Removal and Installation"

.

4.

Remove the D-ring anchor bolt.

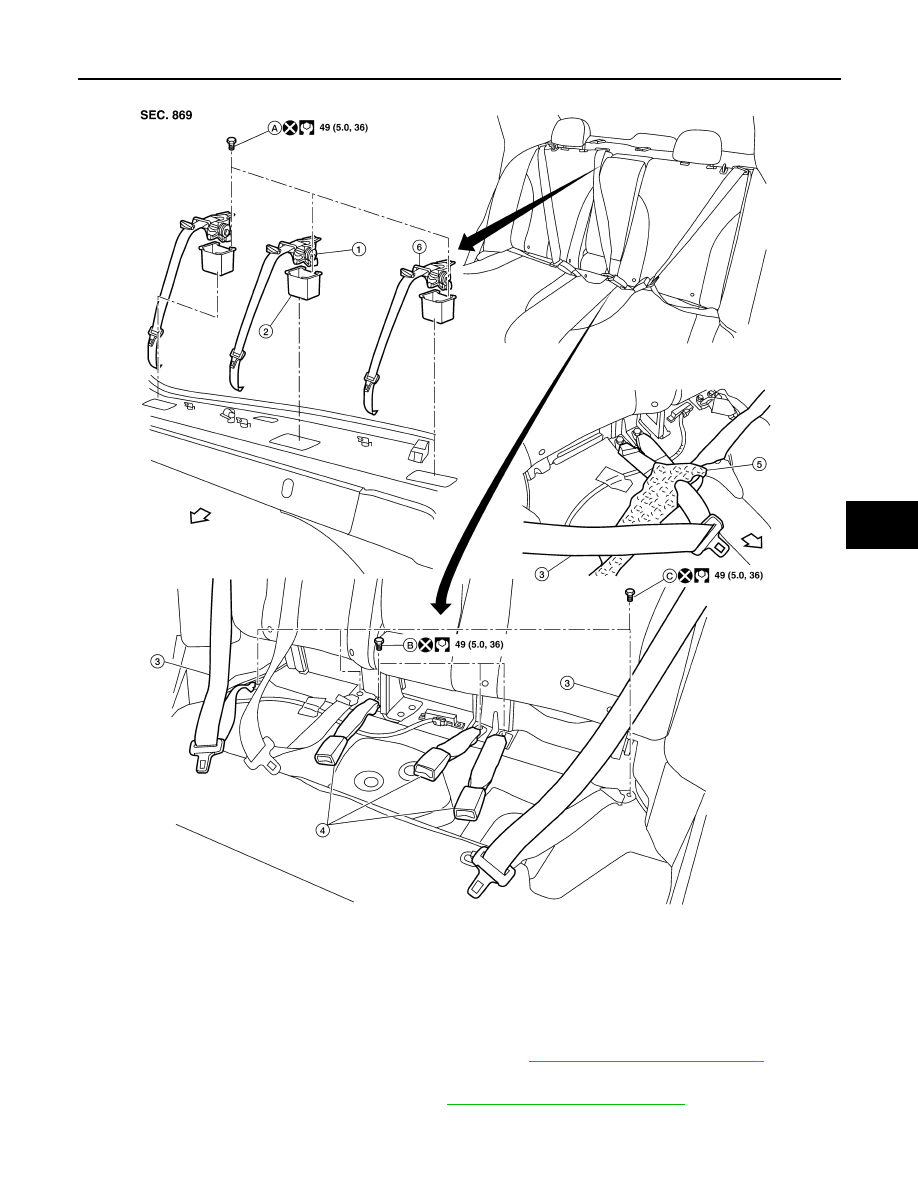

LHIA0132E

1.

Seat belt retractor

2.

Seat belt retractor cup

3.

Rear seat belt

4.

Seat belt buckle

5.

Rear seat cushion

6.

Seat belt escutcheon

A.

Seat belt retractor bolt

B.

Buckle anchor bolt

C.

Seat belt anchor bolt

⇐

Vehicle front

C.

Seat belt anchor bolt

Vehicle front

SB-10

< ON-VEHICLE REPAIR >

REAR SEAT BELT

5.

Remove the outer retractor anchor bolt, then remove outer seat belt retractor.

INSTALLATION OF OUTER SEAT BELT RETRACTOR - HATCHBACK

Installation is in the reverse order of removal.

REMOVAL OF OUTER SEAT BELT RETRACTOR - SEDAN

1.

Remove rear seat cushion, refer to

SE-18, "Removal and Installation"

.

2.

Remove outer seat belt anchor bolt.

3.

Release the seat belt escutcheon, then remove from belt.

4.

Remove rear parcel shelf finisher, refer to

INT-26, "Removal and Installation"

.

5.

Remove outer seat belt retractor bolt, then remove outer seat belt retractor.

INSTALLATION OF OUTER SEAT BELT RETRACTOR - SEDAN

Installation is in the reverse order of removal.

REMOVAL OF CENTER SEAT BELT RETRACTOR - HATCHBACK

1.

Remove and disassemble the rear seat cushion, refer to

SE-18, "Removal and Installation"

.

2.

Remove the center seat belt retractor.

INSTALLATION OF CENTER SEAT BELT RETRACTOR - HATCHBACK

Installation is in the reverse order of removal.

REMOVAL OF CENTER SEAT BELT RETRACTOR - SEDAN

1.

Lift front edge of rear seat cushion and slide forward.

2.

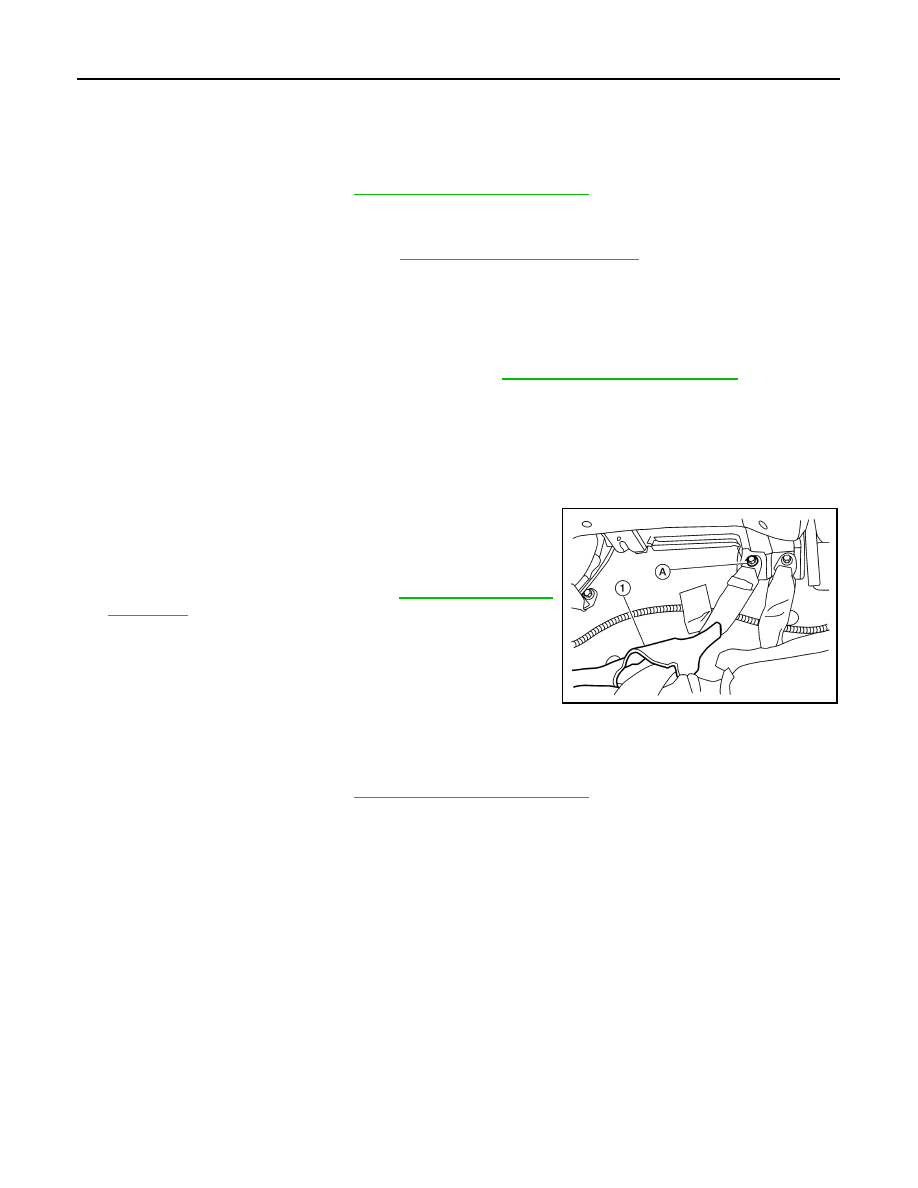

Remove center seat belt anchor bolt (A), then pull center seat
belt through rear seat cushion (1).

⇐

 Vehicle front

3.

Release the seat belt escutcheon, then remove from belt.

4.

Remove rear parcel shelf finisher, refer to

INT-26, "Removal and

Installation"

.

5.

Remove the bolt, then remove center seat belt retractor.

INSTALLATION OF CENTER SEAT BELT RETRACTOR - SEDAN

Installation is in the reverse order of removal.

REMOVAL OF SEAT BELT BUCKLE

1.

Remove rear seat cushion, refer to

SE-18, "Removal and Installation"

.

2.

Remove buckle anchor bolt, then remove seat belt buckle.

INSTALLATION OF SEAT BELT BUCKLE

Installation is in the reverse order of removal.

WIIA1380E

LATCH SYSTEM FOR CHILDREN

SB-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

LATCH SYSTEM FOR CHILDREN

Removal and Installation

INFOID:0000000001366762

NOTE:
The LATCH (Lower Anchors and Tether for Children) system is not serviceable.

SB-12

< ON-VEHICLE REPAIR >

TOP TETHER STRAP CHILD RESTRAINT

TOP TETHER STRAP CHILD RESTRAINT

Removal and Installation

INFOID:0000000001366763

REMOVAL

1.

Disconnect the negative battery cable.

2.

Remove the rear parcel shelf finisher. Refer to

INT-26, "Removal and Installation"

.

3.

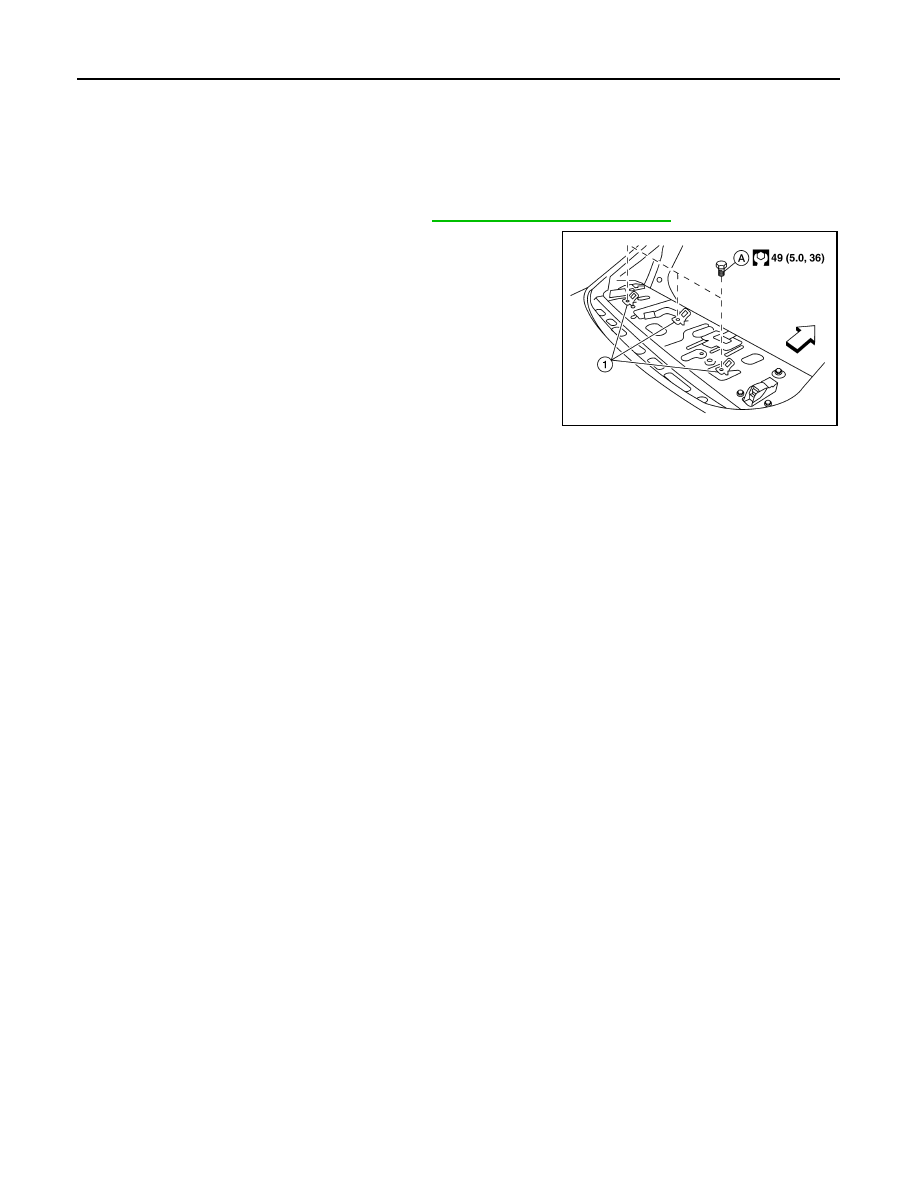

Remove the bolt (A), then remove the top tether bracket (1) from
the body panel.

INSTALLATION

Installation is in the reverse order of removal.
