Nissan Tiida C11. Manual - part 1138





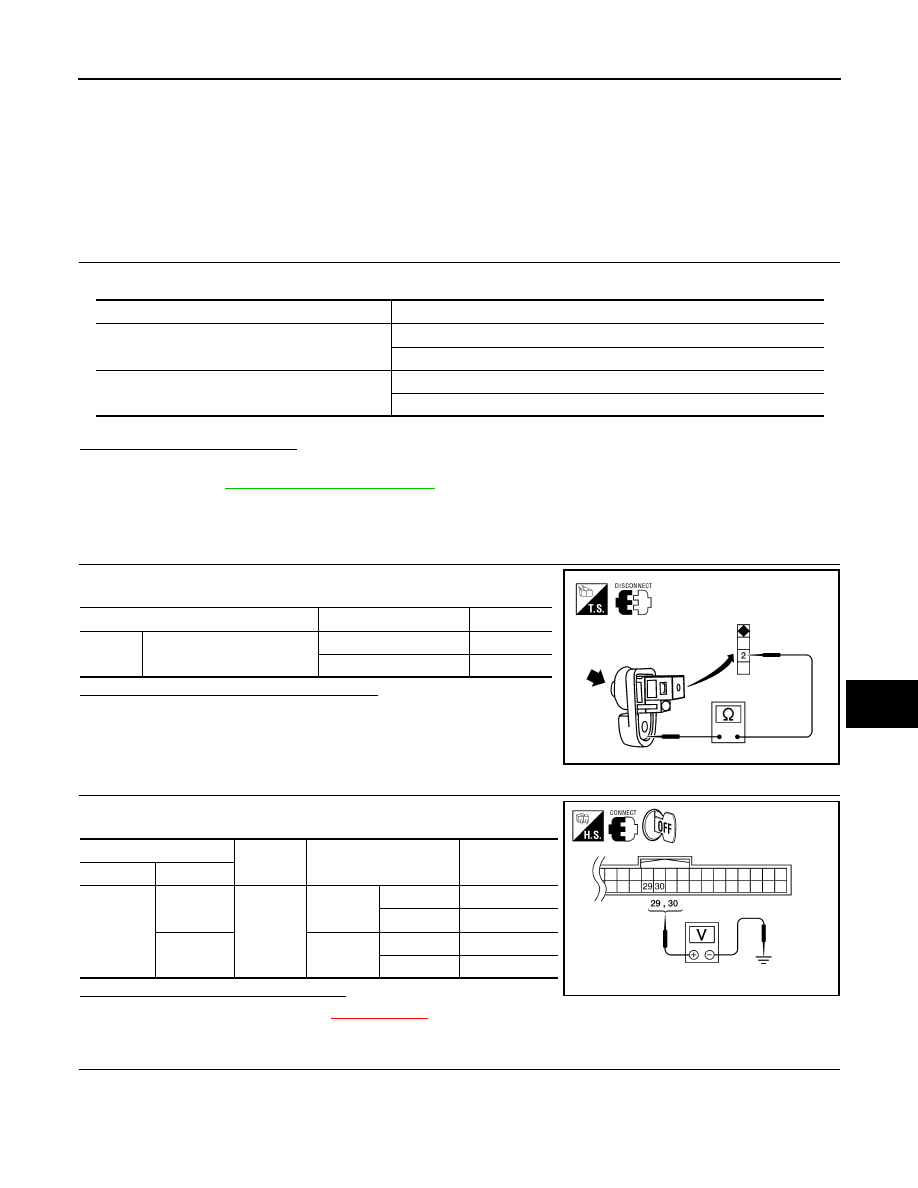

DOOR SWITCH

RF-15

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

DOOR SWITCH

Description

INFOID:0000000001724569

Detects door open/close condition and transmits the signal to BCM.

Component Function Check

INFOID:0000000001724570

1.

 CHECK DOOR SWITCH INPUT SIGNAL

Check (“DOOR SW-DR” and “DOOR SW-AS”) in “DATA MONITOR” mode with CONSULT-III.

Is the inspection result normal?

YES

>> Door switch circuit is OK.

NO

>> Refer to

RF-15, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001724571

1.

 CHECK FRONT DOOR SWITCH

Check front door switches.

Are the continuity test results as specified?

YES

>> GO TO 2

NO

>> Replace front door switch.

2.

 CHECK FRONT DOOR SWITCH INPUT SIGNAL

Check voltage between BCM connectors M18 and ground.

Are the voltage readings as specified?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> GO TO 3

3.

 CHECK HARNESS CONTINUITY

Monitor item

Condition

DOOR SW-DR

OPEN

: ON

CLOSE

: OFF

DOOR SW-AS

OPEN

: ON

CLOSE

: OFF

Terminal

Switch condition

Continuity

2

Ground

Pressed

No

Released

Yes

LIIA2377E

(+)

(–)

Front door condition

Voltage

Connector

Terminal

M18

29

Ground

LH

OPEN

0V

CLOSE

Battery voltage

30

RH

OPEN

0V

CLOSE

Battery voltage

ALKIA1230GB

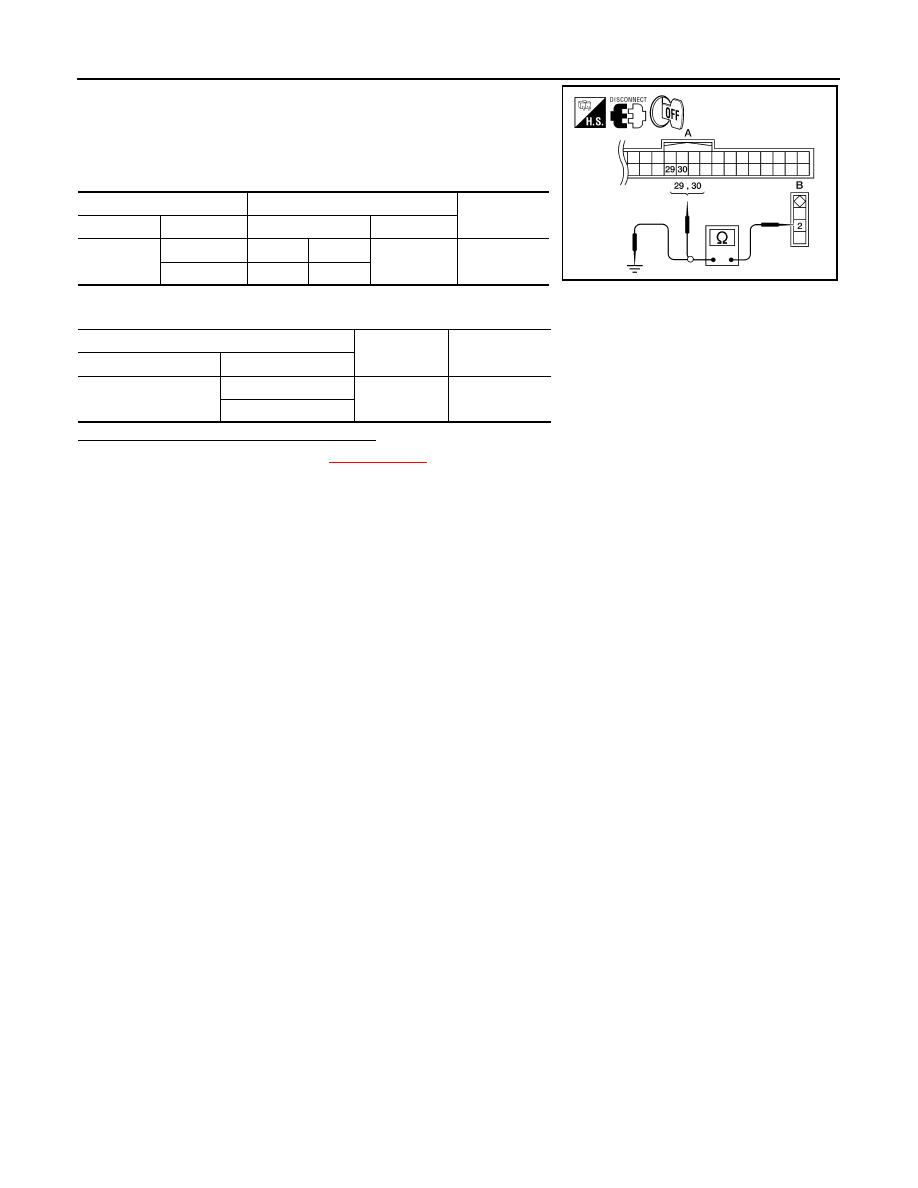

RF-16

< COMPONENT DIAGNOSIS >

DOOR SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect BCM connectors M18 and front door switch connec-
tors B27 and B34.

3.

Check continuity between BCM connectors M18 (A) and front
door switch connectors B27 and B34 (B).

4.

Check continuity between BCM connectors M20 (A) and ground.

Are the continuity test results as specified?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M18

29

LH

B34

2

Yes

30

RH

B27

A

Continuity

Connector

Terminal

M18

29

Ground

No

30

ALKIA1231GB

BCM (BODY CONTROL MODULE)

RF-17

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000001724572

VALUES ON THE DIAGNOSIS TOOL

TERMINAL LAYOUT

Refer to

XX-XX, "*****"

.

PHYSICAL VALUES

Refer to

XX-XX, "*****"

.

WIRING DIAGRAM

Refer to

XX-XX, "*****"

.

DTC INSPECTION

Refer to

XX-XX, "*****"

.

DTC INDEX

Refer to

XX-XX, "*****"

.

Monitor Item

Condition

Value/Status

DOOR SW-DR

Front door LH closed

OFF

Front door LH opened

ON

DOOR SW-AS

Front door RH closed

OFF

Front door LH opened

ON

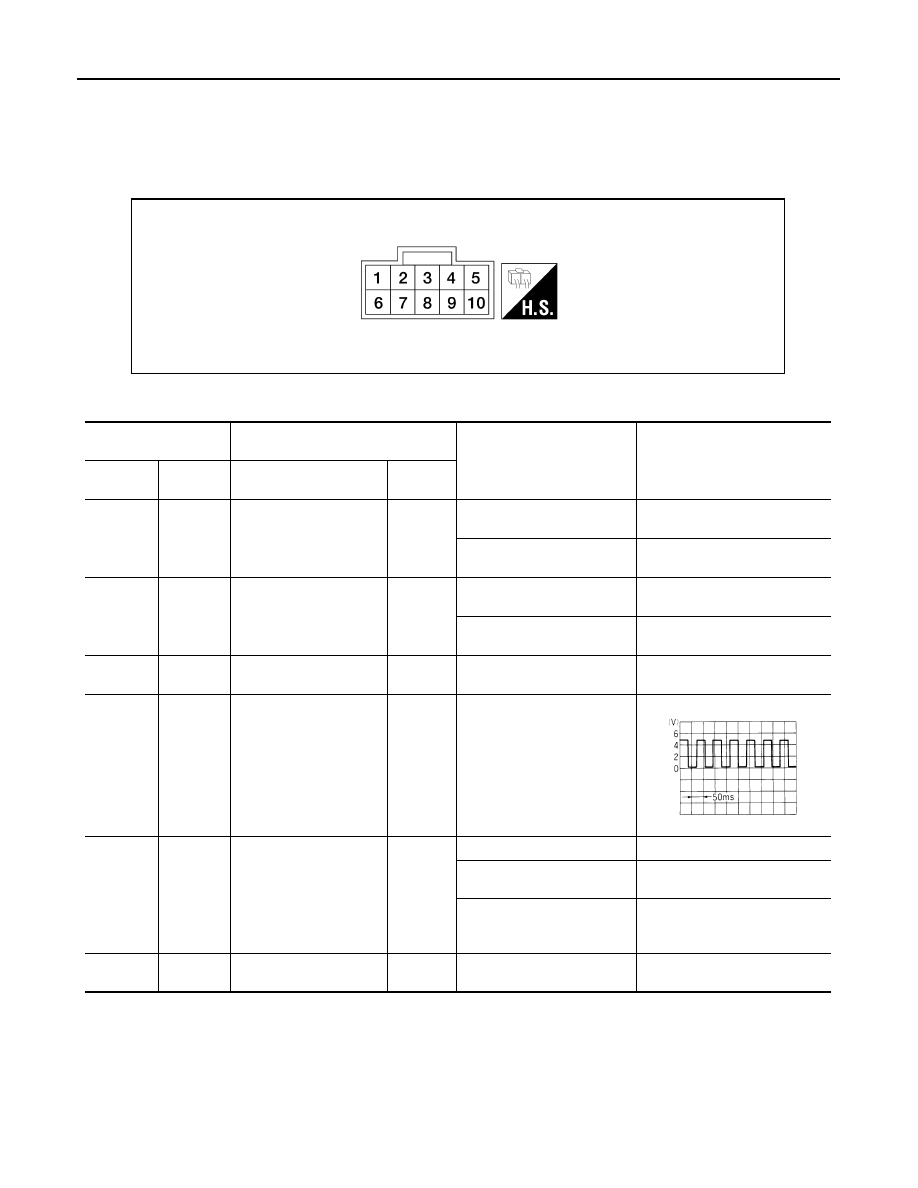

RF-18

< ECU DIAGNOSIS >

SUNROOF SYSTEM

SUNROOF SYSTEM

Reference Value

INFOID:0000000001724573

TERMINAL LAYOUT

PHYSICAL VALUES

WIIA1344E

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

(Approx.)

+

-

Signal name

Input/

Output

1

(SB)

Ground

Sunroof switch (OPEN)
signal

Input

Ignition switch ON and sun-
roof switch in OPEN position

0V

Ignition switch ON and sun-
roof switch in OFF position

Battery voltage

5

(R)

Ground

Sunroof switch (CLOSE)
signal

Input

Ignition switch ON and sun-
roof switch in CLOSE position

0V

Ignition switch ON and sun-
roof switch in OFF position

Battery voltage

7

(P)

Ground

BAT power supply

Input

Battery voltage

8

(W)

Ground

Vehicle speed signal

Input

Speedometer operated [when
vehicle speed is approx. 40
km/h (25 MPH)]

9

(SB)

Ground

RAP signal

Input

Ignition switch ON

Battery voltage

Within 45 seconds after igni-
tion switch turned OFF

Battery voltage

When front door LH or RH is
opened while retained power
is operating

0V

10

(B)

Ground

Ground

Input

0V

ELF1080D
