INSPECTION AND ADJUSTMENT

RF-7

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000001724556

MEMORY RESET PROCEDURE

1.

Please observe the following instructions while confirming the sunroof operation.
NOTE:
Do not disconnect the battery power while the sunroof is operating or within 5 seconds after the sunroof
stops (to wipe-out the memory of lid position and operating friction).

2.

Initialization of system should be conducted after the following conditions.
• When the battery has been disconnected or discharged.
• When the sunroof motor has been disconnected from power.
• When the sunroof motor is changed.
• When the sunroof does not operate normally (Incomplete initialization conditions).

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000001724557

INITIALIZATION PROCEDURE

If the sunroof does not close or open automatically, use the following procedure to return sunroof operation to
normal.
1.

Turn ignition switch ON.

2.

Push and release the tilt up switch to start the tilt up operation.

3.

Push and hold the tilt up switch until the sunroof pops up.
NOTE:
The sunroof will move toward the tilt up direction and will be stopped mechanically, at which time it will be
automatically fully closed. Keep pushing the switch during this operation. Release the switch when the
operation is complete.

4.

Push and hold the tilt up switch within 10 seconds of step 3.

5.

After 4 seconds, the sunroof will be automatically cycled in sequence of slide open-tilt up-tilt down.
NOTE:
Keep pushing the switch during this operation.

6.

When the sunroof stops, release the switch 0.5 second later.

7.

If the slide switch operates normally, the initialization is complete.

RF-8

< FUNCTION DIAGNOSIS >

SUNROOF SYSTEM

FUNCTION DIAGNOSIS

SUNROOF SYSTEM

System Diagram

INFOID:0000000001724558

SUNROOF

System Description

INFOID:0000000001724559

SUNROOF SYSTEM

INPUT/OUTPUT SIGNAL CHART

SUNROOF OPERATION

• The sunroof motor assembly is supplied with constant battery power. The BCM supplies power while the

ignition switch is ON or retained power is operating.

• The open & close signals from the sunroof switch enable the sunroof motor to move arbitrarily.

AUTO OPERATION

The sunroof AUTO feature makes it possible to slide open and slide close or tilt up and tilt down the sunroof
without holding the sunroof switch in the slide open/tilt down or slide close/tilt up position.

RETAINED POWER OPERATION

Retained power operation is an additional power supply function that enables the sunroof system to operate
up to 45 seconds after the ignition switch is turned OFF.

Retained power function cancel conditions

• When a front door is opened (door switch ON)
• When ignition switch is turned ON again.
• When 45 seconds elapse on the timer.

ANTI-PINCH FUNCTION

The CPU (central processing unit) of the sunroof motor assembly monitors the sunroof motor operatin and the
sunroof position (fully-closed or other) by signals from the sunroof motor.
When the sunroof motor detects an interruption during the slide close or tilt down operation, the sunroof motor
assembly will reverse to slide open or tilt up.

ALKIA0861GB

Item

Input signal to sunroof motor assembly

Sunroof motor function

Actuator

Sunroof switch

Sunroof switch signal (open)

Sunroof control

Sunroof motor

Sunroof switch signal (close)

BCM

RAP signal

SUNROOF SYSTEM

RF-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

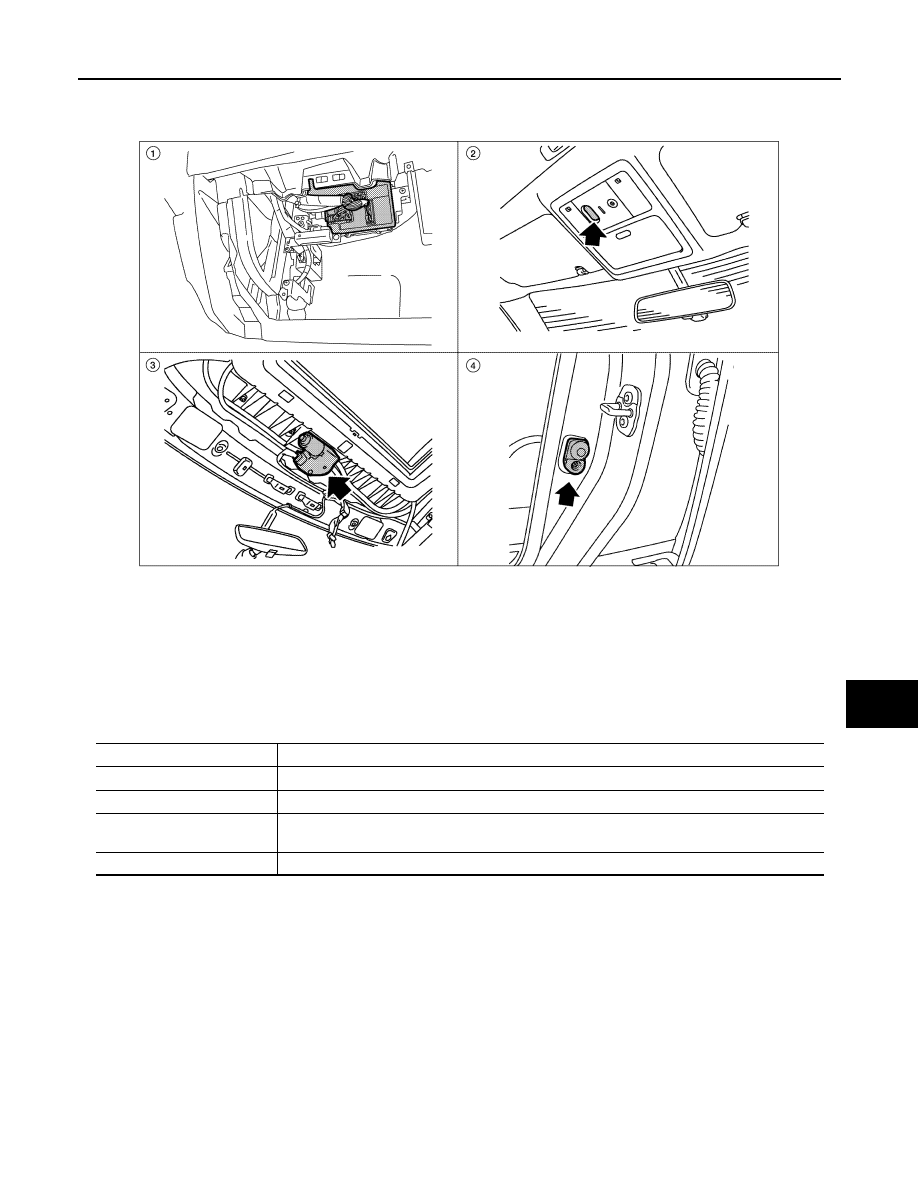

Component Parts Location

INFOID:0000000001724560

Component Description

INFOID:0000000001724561

LIIA2597E

1.

BCM  M18, M20
(View with glove box removed)

2.

Sunroof switch R6

3.

Sunroof motor assembly R4

4.

Front door switch
LH B34
RH B27

Component

Function

BCM

Supplies power to the sunroof motor assembly.

Sunroof switch

Transmits open & close operation signal to sunroof motor assembly.

Sunroof motor assembly

The sunroof motor and integrated CPU enables tilt up/down & slide open/close as requested by
the sunroof switch.

Front door switch

Detects door open/close condition and transmits to BCM.

RF-10

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001724562

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

RETAINED PWR

RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)

INFOID:0000000001724563

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

XX-XX, "*****"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

This function is not used even though it is displayed.

Work Support Item

Description

RETAINED PWR SET

MODE 1
MODE 2
MODE 3

Monitor Item

Description

IGN ON SW

Indicates [ON/OFF] condition of the ignition switch.

DOOR SW-DR

Indicates [ON/OFF] condition of the front door switch LH.

DOOR SW-AS

Indicates [ON/OFF] condition of the front door switch RH.

Active Test Item

Description

RETAINED PWR

Turns retained power function [ON/OFF].
