Nissan Tiida C11. Manual - part 1134





RAX-6

< ON-VEHICLE REPAIR >

WHEEL HUB

ON-VEHICLE REPAIR

WHEEL HUB

Removal and Installation

INFOID:0000000001724589

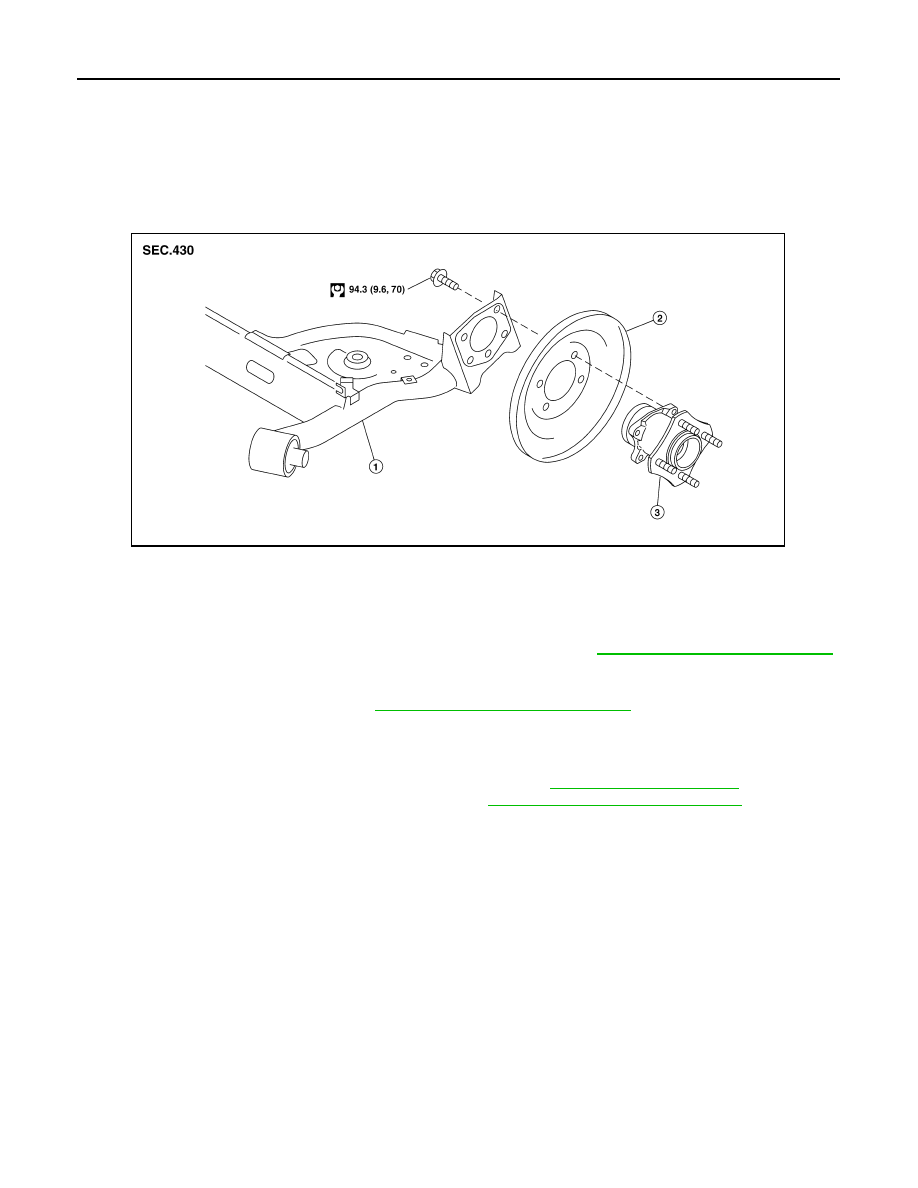

COMPONENTS

REMOVAL

1.

Remove tires from vehicle using power tool.

2.

Remove wheel sensor from wheel hub and bearing assembly. Refer to

RAX-6, "Removal and Installation"

.

CAUTION:

Do not pull on wheel sensor harness.

3.

Remove the brake assembly. Refer to

BR-37, "Disassembly and Assembly"

.

4.

Remove wheel hub and bearing assembly bolts, and then remove wheel hub and bearing assembly from
vehicle.

5.

If necessary remove back plate, following procedure.
1.

Remove parking brake rear cable from back plate. Refer to

PB-4, "On-Vehicle Service"

.

2.

Separate brake tube from wheel cylinder. Refer to

BR-15, "Rear Brake Tube and Hose"

.

INSPECTION AFTER REMOVAL

Check for any deformity, cracks, or other damage on the wheel hub assembly, replace if necessary.

CAUTION:

The wheel hub assembly does not require maintenance. If any of the following symptoms are noted,
replace the wheel hub assembly.
• Growling noise is emitted from the wheel hub bearing during operation.
• Wheel hub bearing drags or turns roughly.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear suspension beam

2.

Back plate

3.

Wheel hub and bearing assembly

WDIA0360E

SERVICE DATA AND SPECIFICATIONS (SDS)

RAX-7

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000001724587

Axial end play

0.05 mm (0.002 in) or less
