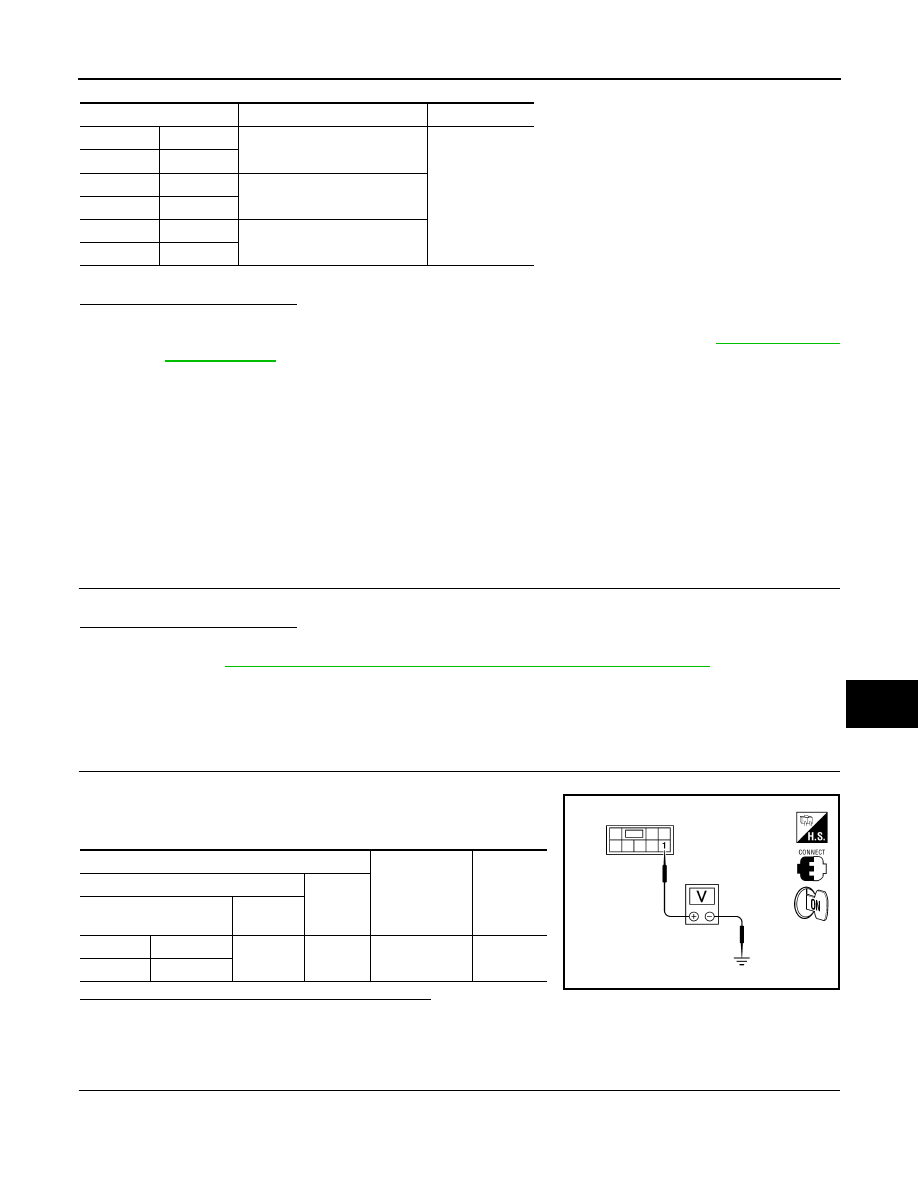

PWC-16

< COMPONENT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

( ): RHD

Is the inspection result normal?

YES

>> Main power window and door lock/unlock switch is OK.

NO

>> Replace main power window and door lock/unlock switch. Refer to

INT-13, "Removal and Installa-

tion"

. After that, refer to

PWC-16, "POWER WINDOW MAIN SWITCH : Special Repair Require-

ment"

.

POWER WINDOW MAIN SWITCH : Special Repair Requirement

INFOID:0000000001696308

1.

 PERFORM INITIALIZATION PROCEDURE

Perform initialization procedure.
Refer to

PWC-4, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Check intermittent incident. Refer to

GI-55, "Intermittent Incident"

.

2.

 CHECK ANTI-PINCH OPERATION

Check anti-pinch operation.
Refer to

PWC-4, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

Is the inspection result normal?

YES

>> Inspection end.

NO

>> Refer to

PWC-14, "POWER WINDOW MAIN SWITCH : Component Inspection"

FRONT POWER WINDOW SWITCH

FRONT POWER WINDOW SWITCH : Description

INFOID:0000000001696309

• BCM supplies power.
• Front power window motor (passenger side) will be operated if power window and door lock/unlock switch

(passenger side) is operated.

FRONT POWER WINDOW SWITCH : Component Function Check

INFOID:0000000001696310

Power Window And Door Lock/unlock Switch (Passenger Side)

1.

 CHECK FRONT POWER WINDOW MOTOR (PASSENGER SIDE) FUNCTION

Terminal

Main power window and door lock/un-

lock switch condition

Continuity

3

17

Rear LH

UP

Yes

5

Rear  RH

12 (11)

Front (passenger

side)

1

Rear LH

NEUTRAL

3

5

Rear RH

7

16 (8)

Front (passenger

side)

11

1

Rear LH

DOWN

7

Rear  RH

8

Front (passenger

side)

POWER SUPPLY AND GROUND CIRCUIT

PWC-17

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Does front power window motor (passenger side) operate with power window and door lock/unlock switch
(passenger side) operation?
Is the inspection result normal?

YES

>> Power window and door lock/unlock switch (passenger side) power supply and ground circuit are

OK.

NO

>> Refer to

PWC-17, "FRONT POWER WINDOW SWITCH : Diagnosis Procedure"

.

FRONT POWER WINDOW SWITCH : Diagnosis Procedure

INFOID:0000000001696311

Power Window And Door Lock/Unlock Switch (Passenger Side) Power Supply Circuit Check

1.

 CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between power window and door lock/unlock switch (passenger side) connector and
ground.

( ): RHD

Is the measurement value within the specification?

YES

>> GO TO 3

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect BCM and power window and door lock/unlock switch (passenger side).

3.

Check continuity between BCM connector and power window and door lock/unlock switch (passenger
side) connector.

( ): RHD

4.

Check continuity between BCM connector (A) and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

3.

 CHECK HARNESS CONTINUITY [POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH PASSEN-

GER SIDE)]

1.

Turn ignition switch OFF.

2.

Disconnect main power window and door lock/unlock switch and power window and door lock/unlock
switch (passenger side).

3.

Check continuity between main power window and door lock/unlock switch connector and power window
and door lock/unlock switch (passenger side) connector.

Terminal

Voltage (V)

(Approx.)

(+)

(–)

Power window and door

lock/unlock

switch (passenger side)

connector

Terminal

D105

1 (8)

Ground

Battery voltage

BCM connector

Terminal

Power window and door

lock/unlock switch (pas-

senger side) connector

Terminal

Continuity

M20

68

D105

1 (8)

Yes

BCM connector

Terminal

Ground

Continuity

M20

68

No

PWC-18

< COMPONENT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

( ): RHD

4.

Check continuity between main power window and door lock/unlock switch connector (A) and ground.

( ): RHD

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-55, "Intermittent Incident"

.

NO

>> Repair or replace harness.

4.

 CHECK BCM OUTPUT SIGNAL

1.

Connect BCM.

2.

Turn ignition switch ON.

3.

Check voltage between power window and door lock/unlock switch (passenger side) connector and
ground.

( ): RHD

Is the measurement value within the specification?

YES

>> GO TO 5

NO

>> Repair or replace harness.

5.

 CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH (PASSENGER SIDE)

Check power window and door lock/unlock switch (passenger side).
Refer to

PWC-16, "FRONT POWER WINDOW SWITCH : Component Function Check"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-55, "Intermittent Incident"

.

NO

>> Replace power window and door lock/unlock switch (passenger side). Refer to

INT-13, "Removal

and Installation"

.

COMPONENT INSPECTION

1.

 CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH (PASSENGER SIDE)

Check power window and door lock/unlock switch (passenger side).

Main power win-

dow and door

lock/unlock

switch connector

Terminal

Power window

and door lock/un-

lock switch (pas-

senger side)

connector

Terminal

Continuity

D7

12 (11)

D105

3 (11)

Yes

16 (8)

2 (12)

Main power window and door lock/

unlock switch connector

Terminal

Ground

Continuity

D7

12 (11)

No

16 (8)

Terminal

Voltage (V)

(Approx.)

(+)

(–)

Power window and door

lock/unlock switch (pas-

senger side) connector

Terminal

D105

1 (8)

Ground

Battery voltage

POWER SUPPLY AND GROUND CIRCUIT

PWC-19

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

( ): RHD

Is the inspection result normal?

YES

>> Power window and door lock/unlock switch (passenger side) is OK.

NO

>> Replace power window and door lock/unlock switch (passenger side). Refer to

INT-13, "Removal

and Installation"

.

REAR POWER WINDOW SWITCH

REAR POWER WINDOW SWITCH : Description

INFOID:0000000001696312

• BCM supplies power.
• Rear power window motor will be operated if rear power window switch is operated. Rear power window

switch.

REAR POWER WINDOW SWITCH : Component Function Check

INFOID:0000000001696313

Rear Power Window Switch

1.

 CHECK REAR POWER WINDOW MOTOR FUNCTION

Does rear power window motor operate with rear power window switch operation?

Is the inspection result normal?

YES

>> Rear power window switch power supply and ground circuit are OK.

NO

>> Refer to

PWC-19, "REAR POWER WINDOW SWITCH : Diagnosis Procedure"

.

REAR POWER WINDOW SWITCH : Diagnosis Procedure

INFOID:0000000001696314

Rear Power Window Switch Power Supply Circuit Check

1.

 CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between rear power window switch connector
and ground.

Is the measurement value within the specification?

YES

>> GO TO 2 (Rear power window switch LH)

YES

>> GO TO 3 (Rear power window switch RH)

NO

>> GO TO 4

2.

 CHECK HARNESS CONTINUITY (REAR POWER WINDOW SWITCH LH)

Terminal

Power window switch condition

Continuity

1 (8)

4 (6)

UP

Yes

2 (12)

5 (7)

2 (12)

5 (7)

NEUTRAL

4 (6)

3 (11)

1 (8)

5 (7)

DOWN

4 (6)

3 (11)

Terminal

Condition

Voltage (V)

(Approx.)

(+)

(–)

Rear power window

switch connector

Terminal

LH

D203

1

Ground

Ignition switch

ON

Battery
voltage

RH

D303
