PWC-8

< FUNCTION DIAGNOSIS >

POWER WINDOW SYSTEM

Component Parts Location

INFOID:0000000001696300

Component Description

INFOID:0000000001696301

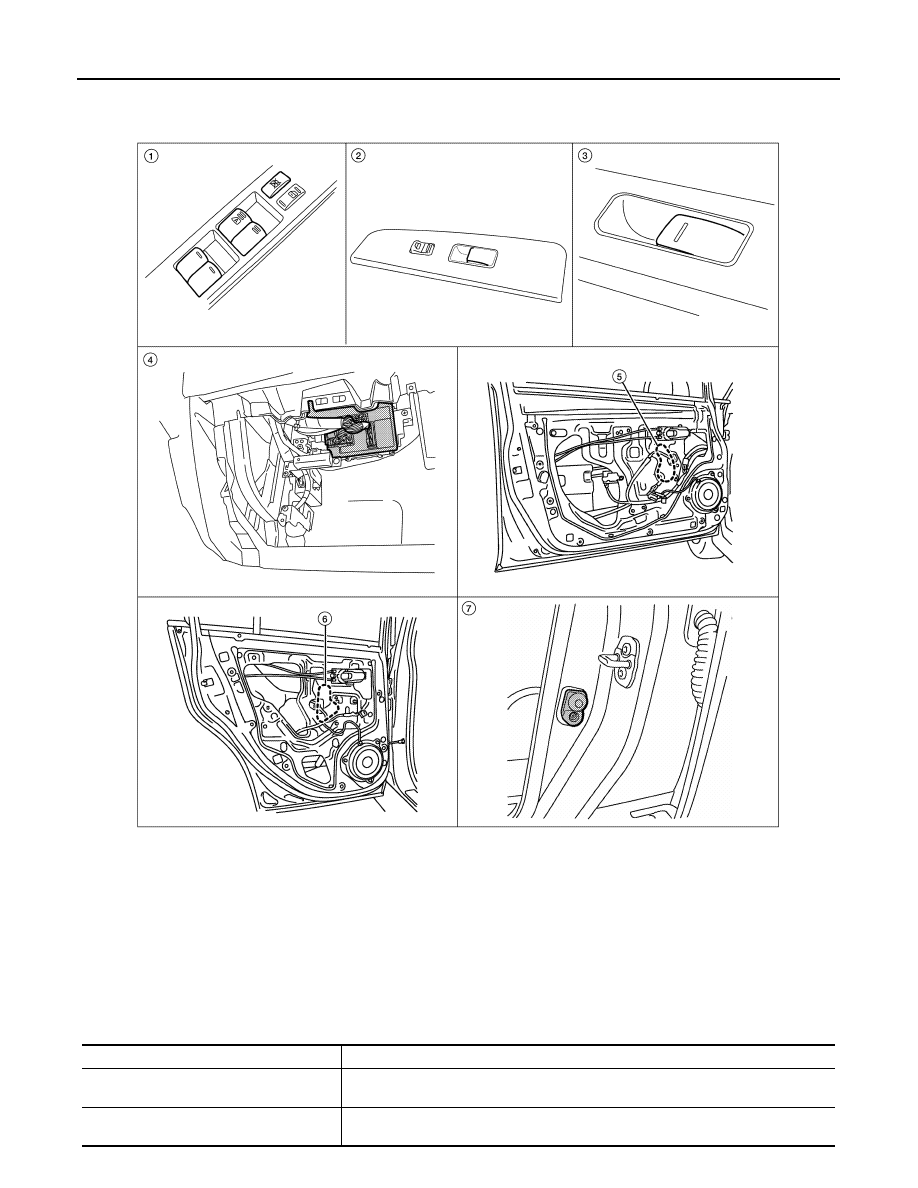

POWER WINDOW SYSTEM

LIIA2529E

1.

Main power window and door lock/
unlock switch D7, D8

2.

Power window and door lock/unlock
switch (passenger side) D105

3.

Rear power windowswitch LH D203,
RH D303

4.

BCM M18, M19, M20 (view with
glove box removed)

5.

Front power window motor (driver
side) D9, (passenger side) D104

6.

Rear power window motor LH D204,
RH D304

7.

Front door switch (driver side) B34,
(passenger side) B27

Component

Function

BCM

• Supplies power supply to power window switch.
• Controls retained power.

Main power window and door lock/unlock
switch

• Directly controls all power window motor of all doors.
• Controls anti-pinch operation of front power window (driver side).

POWER WINDOW SYSTEM

PWC-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

Power window and door lock/unlock switch
(passenger side)

• Controls front power window motor (passenger side).

Rear power window switch

• Controls rear power window motors LH and RH.

Front power window motor (driver side)

• Integrates the ENCODER POWER and WINDOW MOTOR.
• Starts operating with signals from main power window and door lock/unlock switch.
• Transmits power window motor rotation as a pulse signal to main power window and

door lock/unlock switch.

Front power window motor (passenger side)

Starts operating with signals from main power window and door lock/unlock switch &
power window and door lock/unlock switch (passenger side).

Rear power window motor

Starts operating with signals from main power window and door lock/unlock switch &
rear power window switch.

Front door switch (driver or passenger side)

Detects door open/close condition and transmits to BCM.

Component

Function

PWC-10

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001696302

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

RETAINED PWR

RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)

INFOID:0000000001696303

Data monitor

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-54, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

This function is not used even though it is displayed.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

BCM

×

RAP system

RETAINED PWR

×

Monitor Item

Description

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch LH.

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch RH.

POWER SUPPLY AND GROUND CIRCUIT

PWC-11

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

COMPONENT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

POWER WINDOW MAIN SWITCH

POWER WINDOW MAIN SWITCH : Description

INFOID:0000000001696304

• BCM supplies power.
• It operates each power window motor via corresponding power window switch and makes window move up/

down when main power window and door lock/unlock switch is operated.

POWER WINDOW MAIN SWITCH : Component Function Check

INFOID:0000000001696305

Main Power Window And Door Lock/unlock Switch

1.

 CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH FUNCTION

Does power window motor operate with main power window and door lock/unlock switch operation?
Is the inspection result normal?

YES

>> Main power window and door lock/unlock switch power supply and ground circuit are OK.

NO

>> Refer to

PWC-11, "POWER WINDOW MAIN SWITCH : Diagnosis Procedure"

.

POWER WINDOW MAIN SWITCH : Diagnosis Procedure

INFOID:0000000001696306

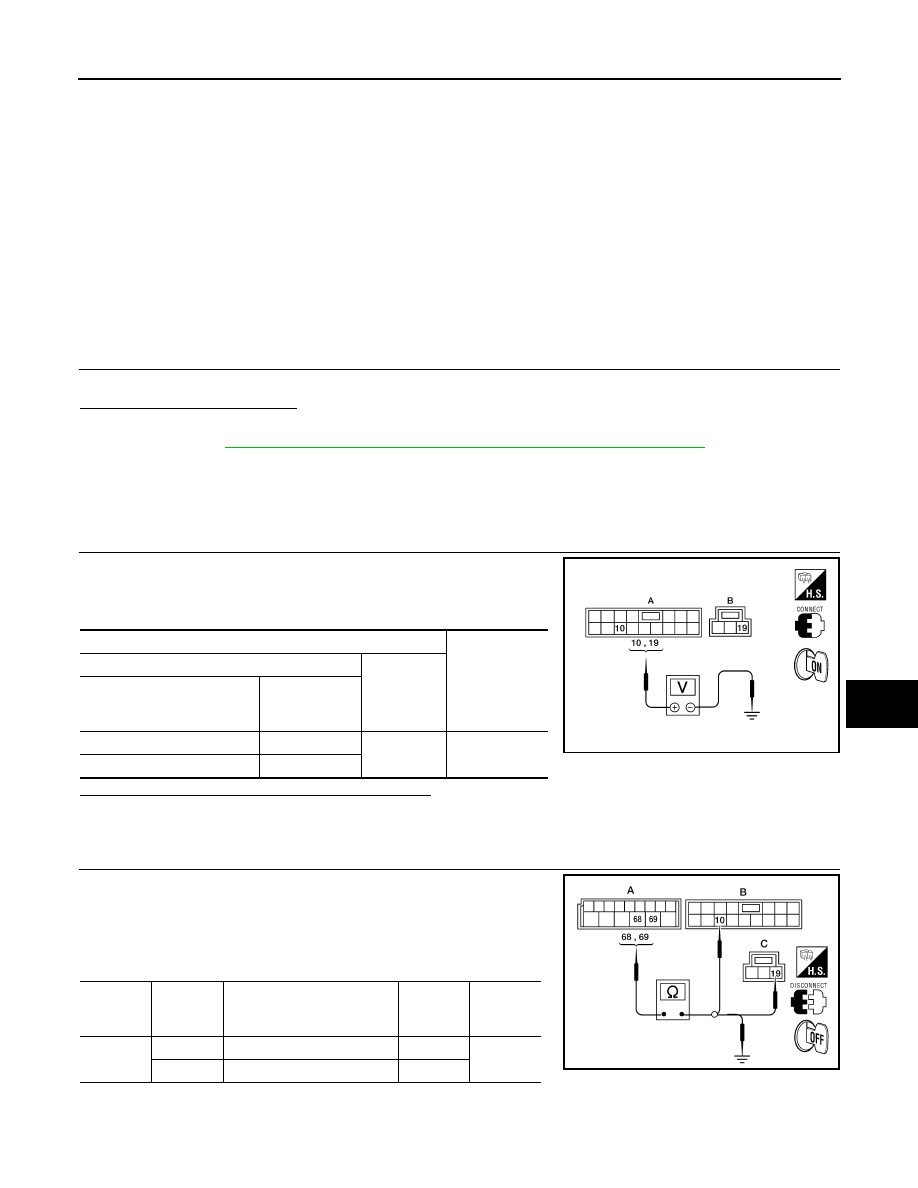

Main Power Window And Door Lock/unlock Switch Power Supply Circuit Check

1.

 CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch ON.

2.

Check voltage between main power window and door lock/
unlock switch connectors (A and B) and ground.

Is the measurement value within the specification?

YES

>> GO TO 3

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect BCM and main power window and door lock/unlock
switch.

3.

Check continuity between BCM connector (A) and main power
window and door lock/unlock switch connectors (B and C).

4.

Check continuity between BCM connector and ground.

Terminal

Voltage (V)

(Approx.)

(+)

(–)

Main power window and door

lock/unlock switch

connector

Terminal

D7 (A)

10

Ground

Battery voltage

D8 (B)

19

ALKIA0273ZZ

BCM

connector

Terminal

Main power window and door

lock/unlock switch

connector

Terminal

Continuity

M20 (A)

68

D7 (B)

10

Yes

69

D8 (C)

19

LIIA2215E
