Nissan Tiida C11. Manual - part 1117





PWC-4

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : De-
scription

INFOID:0000000001696361

Initial setting is necessary when battery terminal is diconnected.

CAUTION:

The following specified operations are not performed under the non-initialized condition.
• Auto-up operation
• Anti-pinch function
• Retained power operation

ADDITIONAL SERVICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Spe-
cial Repair Requirement

INFOID:0000000001696362

INITIALIZATION PROCEDURE

1.

Disconnect battery negative terminal or main power window and door lock/unlock switch. Reconnect it
after a minute or more.

2.

Turn ignition switch ON.

3.

Operate power window switch to fully open the window. (This operation is unnecessary if the window is
already fully open)

4.

Continue pulling the power window switch UP (AUTO-UP operation). Even after glass stops at fully closed
position, keep pulling the switch for 4 seconds or more.

5.

Inspect anti-pinch function.

CHECK ANTI-PINCH FUNCTION

1.

Fully open the door window.

2.

Place a piece of wood near fully closed position.

3.

Close door glass completely with AUTO-UP.

• Check that glass lowers for approximately 150 mm (5.9 in.) or 2 seconds without pinching  piece of wood

and stops.

• Check that glass does not rise when operating the power window main switch while lowering.

CAUTION:

• Do not check with hands and other part of body because they may be pinched.  Do not get pinched.
• Check that AUTO-UP operates before inspection when system initialization is performed.
• It may switch to fail-safe mode if open/close operation is performed continuously. Perform initial set-

ting in that situation.  Refer to

XX-XX, "*****"

.

• Perform initial setting when auto-up operation or anti-pinch function does not operate normally.
• Finish initial setting. Otherwise, next operation cannot be done.
1.

Auto-up operation

2.

Anti-pinch function

3.

Retained power operation when ignition switch is OFF.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000001696363

Initial setting is necessary when replacing main power window and door lock/unlock switch.

CAUTION:

The following specified operations are not performed under the non-initialized condition.
• Auto-up operation
• Anti-pinch function
• Retained power operation

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000001696364

INITIALIZATION PROCEDURE

INSPECTION AND ADJUSTMENT

PWC-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

1.

Disconnect battery negative terminal or main power window and door lock/unlock switch. Reconnect it
after a minute or more.

2.

Turn ignition switch ON.

3.

Operate power window switch to fully open the window. (This operation is unnecessary if the window is
already fully open)

4.

Continue pulling the power window switch UP (AUTO-UP operation). Even after glass stops at fully closed
position, keep pulling the switch for 4 seconds or more.

5.

Inspect anti-pinch function.

CHECK ANTI-PINCH FUNCTION

1.

Fully open the door window.

2.

Place a piece of wood near fully closed position.

3.

Close door glass completely with AUTO-UP.

• Check that glass lowers for approximately 150 mm (5.9 in.) or 2 seconds without pinching  piece of wood

and stops.

• Check that glass does not rise when operating the main power window and door lock/unlock switch while

lowering.

CAUTION:

• Do not check with hands and other part of body because they may be pinched.  Do not get pinched.
• Check that AUTO-UP operates before inspection when system initialization is performed.
• It may switch to fail-safe mode if open/close operation is performed continuously. Perform initial set-

ting in that situation.  Refer to

XX-XX, "*****"

.

• Perform initial setting when auto-up operation or anti-pinch function does not operate normally.
• Finish initial setting. Otherwise, next operation cannot be done.
1.

Auto-up operation

2.

Anti-pinch function

3.

Retained power operation when ignition switch is OFF.

PWC-6

< FUNCTION DIAGNOSIS >

POWER WINDOW SYSTEM

FUNCTION DIAGNOSIS

POWER WINDOW SYSTEM

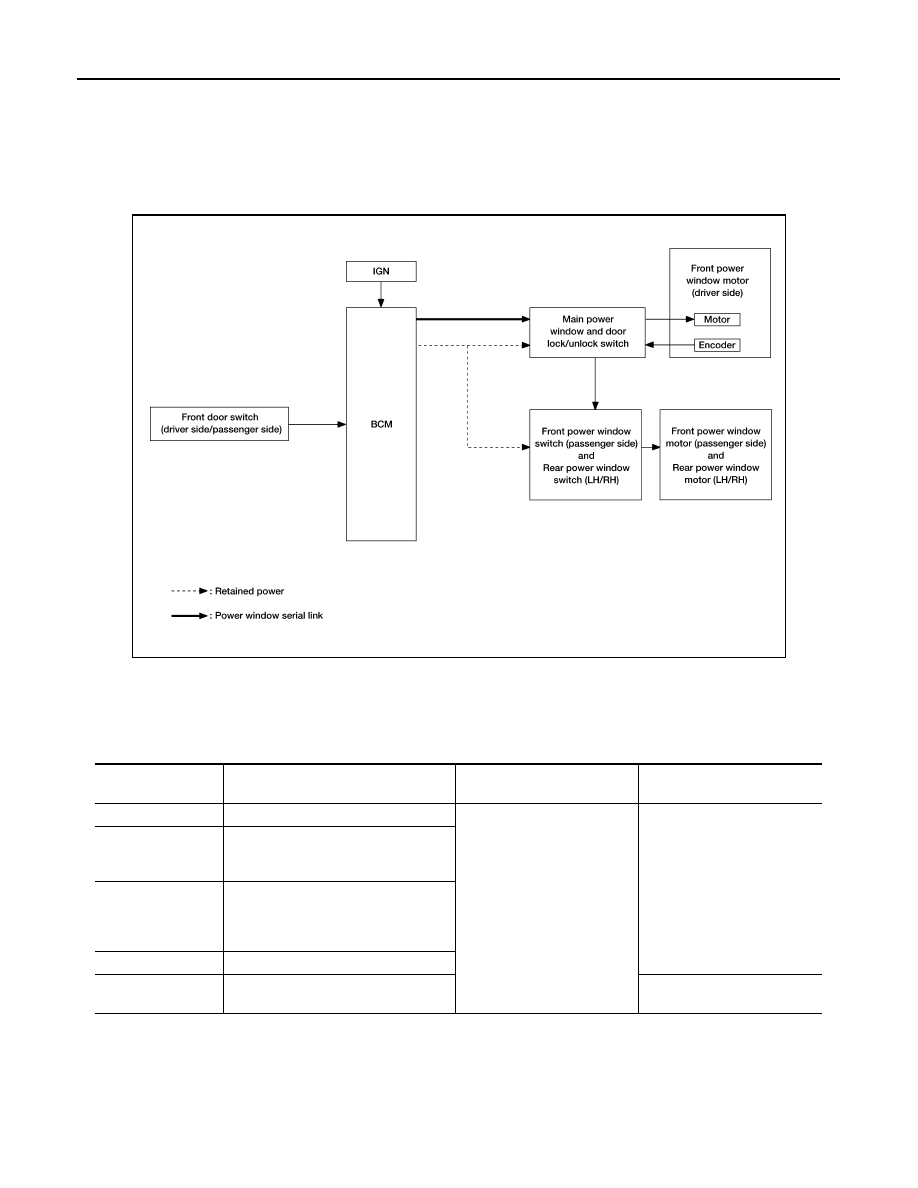

System Diagram

INFOID:0000000001696298

POWER WINDOW SYSTEM

System Description

INFOID:0000000001696299

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

INPUT/OUTPUT SIGNAL CHART

FRONT POWER WINDOW SWITCH (PASSENGER SIDE) & REAR POWER WINDOW SWITCH (LH
& RH)

INPUT/OUTPUT SIGNAL CHART

ALKIA1093GB

Item

Input signal to main power window and

door lock/unlock switch

Main power window and door

lock/unlock switch function

Actuator

Encoder

Encoder pulse signal

Power window control

Front power window motor

Main power window
and door lock/unlock
switch

Front power window motor (driver side)
UP/DOWN signal

Power window and
door lock/unlock
switch (passenger
side)

Front power window motor (passenger
side) UP/DOWN signal

BCM

RAP signal

Rear power window
switch

Rear power window motor UP/DOWN
signal

Rear power window motor

POWER WINDOW SYSTEM

PWC-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW OPERATION

• Power window system is operable during the retained power operation timer after turning ignition switch ON

and OFF.

• Main power window and door lock/unlock switch can open/close all windows.
• Front & rear power window switches can open/close the corresponding windows.

POWER WINDOW AUTO-OPERATION (FRONT DRIVER SIDE)

• AUTO UP/DOWN operation can be performed when main power window and door lock/unlock switch turns

to AUTO.

• Encoder continues detecting the movement of power window motor and transmits to main power window

and door lock/unlock switch as the encoder pulse signal while power window motor is operating.

• Main power window and door lock/unlock switch reads the changes of encoder signal and stops AUTO oper-

ation when door glass is at fully opened/closed position.

• Power window motor is operable in case encoder is malfunctioning.

RETAINED POWER OPERATION

• Retained power operation is an additional power supply function that enables power window system to oper-

ate during the 45 seconds even when ignition switch is turned OFF

Retained power function cancel conditions

• Front door CLOSE (door switch OFF)

OPEN (door switch ON).

• When ignition switch is ON.
• When timer time passes (45 seconds).

POWER WINDOW LOCK

Ground circuit inside main power window and door lock/unlock switch shuts off when power window lock
switch is ON. This inhibits power window switch operation except with the main power window and door lock/
unlock switch.

ANTI-PINCH OPERATION (FRONT DRIVER SIDE)

• Pinch foreign material in the door glass during AUTO-UP operation,and it is the anti-pinch function that low-

ers the door glass 150 mm (5.9 in.) or 2 seconds when detected.

• Encoder continues detecting the movement of power window motor and transmits to main power window

and door lock/unlock switch as the encoder pulse signal while power window motor is operating.

• Resistance is applied to the power window motor rotation that changes the frequency of encoder pulse sig-

nal if foreign material is trapped in the door glass.

• Power window switch controls to lower the window glass for 150 mm (5.9 in.) or 2 seconds after it detects

encoder pulse signal frequency change.

OPERATION CONDITION
• When door glass AUTO-UP operation is performed (anti-pinch function does not operate just before the door

glass closes and is fully closed)

NOTE:
Depending on environment and driving conditions, if a similar impact or load is applied to the door glass, it
may lower.

Item

Input signal to front power window

switch (passenger side) & rear power

window switch (LH & RH)

Front power window switch

(passenger side) & rear power

window switch (LH & RH) func-

tion

Actuator

Front power window
switch (passenger
side)

Front power window motor (passen-
ger side) UP/DOWN signal

Power window control

Front power window motor

(passenger side)

Rear power window
switch (LH & RH)

Rear power window motor (LH & RH)
UP/DOWN signal

Rear power window motor (LH

& RH)
