PG-6

< ON-VEHICLE REPAIR >

BATTERY

ON-VEHICLE REPAIR

BATTERY

Removal and Installation

INFOID:0000000001691346

REMOVAL

1.

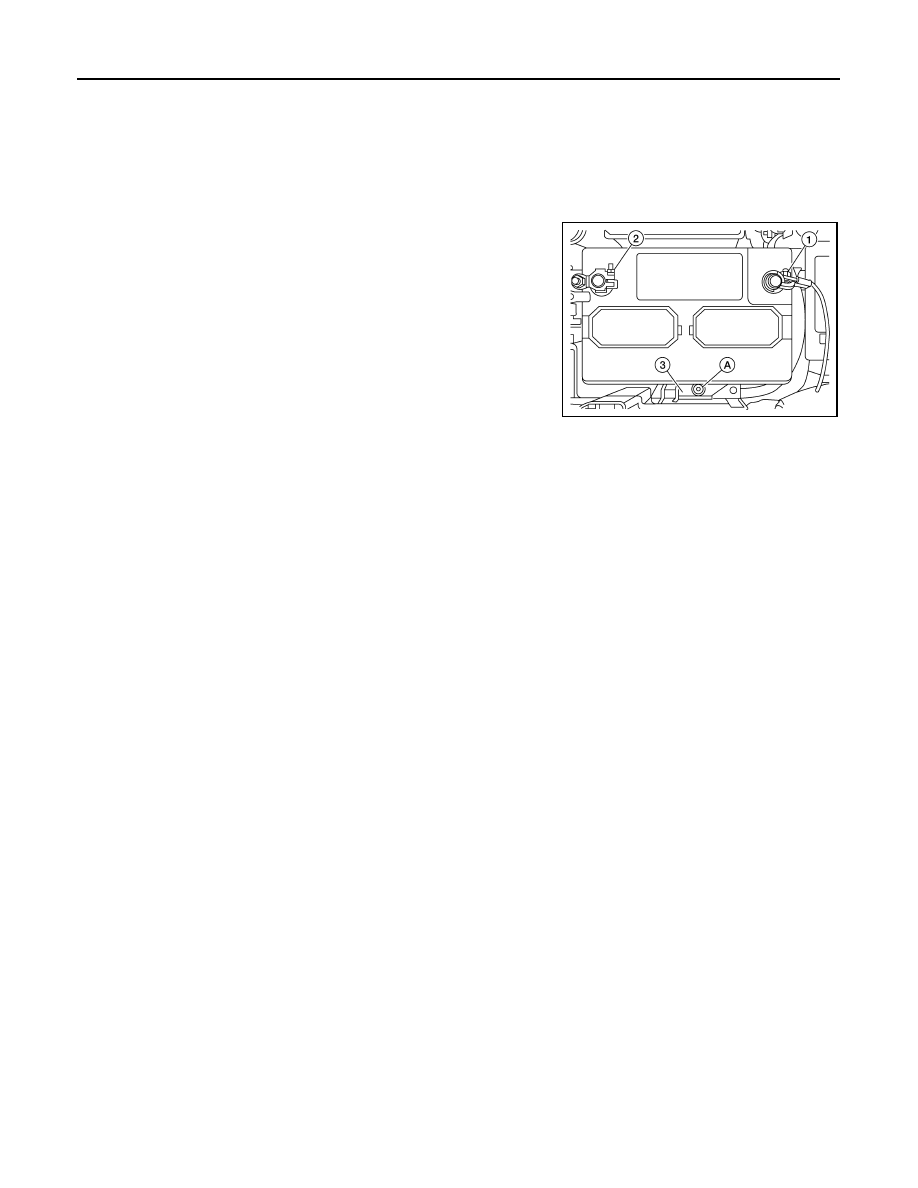

Disconnect battery negative (1) and positive (2) cables from bat-
tery terminals.

CAUTION:

When disconnecting, disconnect the battery cable from the
negative terminal first.

2.

Remove battery hold-down wedge nut (A) to remove battery
wedge bracket (3).

3.

Remove battery.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When connecting, connect the battery cable to the positive terminal first.

AWMIA0053ZZ

Battery wedge bracket nut

: 30 N·m (3.1 kg-m, 22 ft-lb)

Battery terminal nut

: 5.4 N·m (0.55 kg-m, 48 in-lb)

PWC-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

PWC

A

B

PWC

N

O

P

CONTENTS

POWER WINDOW CONTROL SYSTEM

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

INSPECTION AND ADJUSTMENT .....................

4

ADDITIONAL SERVICE WHEN REMOVING BAT-
TERY NEGATIVE TERMINAL .....................................

4

ADDITIONAL SERVICE WHEN REMOVING
BATTERY NEGATIVE TERMINAL : Description ......

4

ADDITIONAL SERVICE WHEN REMOVING
BATTERY NEGATIVE TERMINAL : Special Re-
pair Requirement .......................................................

4

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ..........................................................

4

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ..................................

4

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .......

4

FUNCTION DIAGNOSIS ...............................

6

POWER WINDOW SYSTEM ...............................

6

System Diagram .......................................................

6

System Description  ...................................................

6

Component Parts Location ......................................

8

Component Description .............................................

8

DIAGNOSIS SYSTEM (BCM)  ............................

10

COMMON ITEM  .........................................................

10

COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................

10

RETAINED PWR  .......................................................

10

RETAINED PWR : CONSULT-III Function (BCM -
RETAINED PWR)  ...................................................

10

COMPONENT DIAGNOSIS  .........................

11

POWER SUPPLY AND GROUND CIRCUIT ......

11

POWER WINDOW MAIN SWITCH ............................

11

POWER WINDOW MAIN SWITCH : Description ....

11

POWER WINDOW MAIN SWITCH : Component
Function Check ........................................................

11

POWER WINDOW MAIN SWITCH : Diagnosis
Procedure ................................................................

11

POWER WINDOW MAIN SWITCH : Component
Inspection ................................................................

14

POWER WINDOW MAIN SWITCH : Special Re-
pair Requirement  .....................................................

16

FRONT POWER WINDOW SWITCH .........................

16

FRONT POWER WINDOW SWITCH : Descrip-
tion ...........................................................................

16

FRONT POWER WINDOW SWITCH : Compo-
nent Function Check ................................................

16

FRONT POWER WINDOW SWITCH : Diagnosis
Procedure ................................................................

17

REAR POWER WINDOW SWITCH  ...........................

19

REAR POWER WINDOW SWITCH : Description ....

19

REAR POWER WINDOW SWITCH : Component
Function Check ........................................................

19

REAR POWER WINDOW SWITCH : Diagnosis
Procedure ................................................................

19

REAR POWER WINDOW SWITCH : Component
Inspection ................................................................

21

POWER WINDOW MOTOR  ..............................

22

DRIVER SIDE .............................................................

22

DRIVER SIDE : Description .....................................

22

DRIVER SIDE : Component Function Check  ..........

22

DRIVER SIDE : Diagnosis Procedure  .....................

22

DRIVER SIDE : Component Inspection ...................

23

DRIVER SIDE : Special Repair Requirement ..........

23

PASSENGER SIDE ....................................................

24

PASSENGER SIDE : Description ............................

24

PASSENGER SIDE : Component Function Check

....

24

PASSENGER SIDE : Diagnosis Procedure  ............

24

PWC-2

PASSENGER SIDE : Component Inspection  .........

25

REAR LH ...................................................................

25

REAR LH : Description  ...........................................

25

REAR LH : Component Function Check  ................

25

REAR LH : Diagnosis Procedure ............................

25

REAR LH : Component Inspection  .........................

26

REAR RH  ..................................................................

27

REAR RH : Description  ..........................................

27

REAR RH : Component Function Check  ................

27

REAR RH : Diagnosis Procedure  ...........................

27

REAR RH : Component Inspection  ........................

28

ENCODER .........................................................

29

DRIVER SIDE ............................................................

29

DRIVER SIDE : Description ....................................

29

DRIVER SIDE : Component Function Check  .........

29

DRIVER SIDE : Diagnosis Procedure  ....................

29

DRIVER SIDE : Special Repair Requirement .........

31

DOOR SWITCH  .................................................

32

Description ..............................................................

32

Component Function Check  ...................................

32

Diagnosis Procedure  ..............................................

32

Component Inspection ............................................

33

POWER WINDOW LOCK SWITCH ...................

34

Description ..............................................................

34

Component Function Check  ...................................

34

Special Repair Requirement ...................................

34

ECU DIAGNOSIS  ........................................

35

BCM (BODY CONTROL MODULE)  ..................

35

Reference Value  .....................................................

35

POWER WINDOW MAIN SWITCH ....................

36

Reference Value  .....................................................

36

Wiring Diagram - LHD -  ..........................................

38

Wiring Diagram - RHD - ..........................................

45

Fail Safe .................................................................

51

SYMPTOM DIAGNOSIS  ............................

53

NONE OF THE POWER WINDOWS CAN BE
OPERATED USING ANY SWITCH  ...................

53

Diagnosis Procedure ...............................................

53

DRIVER SIDE POWER WINDOW ALONE
DOES NOT OPERATE  ......................................

54

Diagnosis Procedure ...............................................

54

FRONT PASSENGER SIDE POWER WIN-
DOW ALONE DOES NOT OPERATE ...............

55

Diagnosis Procedure ...............................................

55

REAR LH SIDE POWER WINDOW ALONE
DOES NOT OPERATE  ......................................

56

Diagnosis Procedure ...............................................

56

REAR RH SIDE POWER WINDOW ALONE
DOES NOT OPERATE  ......................................

57

Diagnosis Procedure ...............................................

57

ANTI-PINCH SYSTEM DOES NOT OPERATE
NORMALLY (DRIVER SIDE)  ............................

58

Diagnosis Procedure ...............................................

58

AUTO OPERATION DOES NOT OPERATE
BUT MANUAL OPERATE NORMALLY
(DRIVER SIDE)  ..................................................

59

Diagnosis Procedure ...............................................

59

POWER WINDOW RETAINED POWER OP-
ERATION DOES NOT OPERATE PROPERLY

...

60

Diagnosis Procedure ...............................................

60

POWER WINDOW LOCK SWITCH DOES
NOT FUNCTION  ................................................

61

Diagnosis Procedure ...............................................

61

ON-VEHICLE MAINTENANCE ..................

62

PRE-INSPECTION FOR DIAGNOSTIC  ............

62

Basic Inspection ......................................................

62

DIAGNOSIS AND REPAIR WORKFLOW

PWC-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000001696360

DETAILED FLOW

1.

 OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-
tion occurred) as much as possible when the customer brings the vehicle in.

>> GO TO 2

2.

 REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.
Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 3

3.

 IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 2 and then identify where to start per-
forming the diagnosis based on possible causes and symptoms.

>> GO TO 4

4.

 IDENTIFY THE MALFUNCTIONING PARTS WITH “COMPONENT DIAGNOSIS”

Perform the diagnosis with “Component diagnosis” of the applicable system.

>> GO TO 5

5.

 REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 6

6.

 FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,
referring to the symptom inspection result in step 2.

Are the malfunctions corrected?

YES

>> INSPECTION END

NO

>> Refer to

GI-55, "Intermittent Incident"

.
