MWI-14

< FUNCTION DIAGNOSIS >

METER SYSTEM

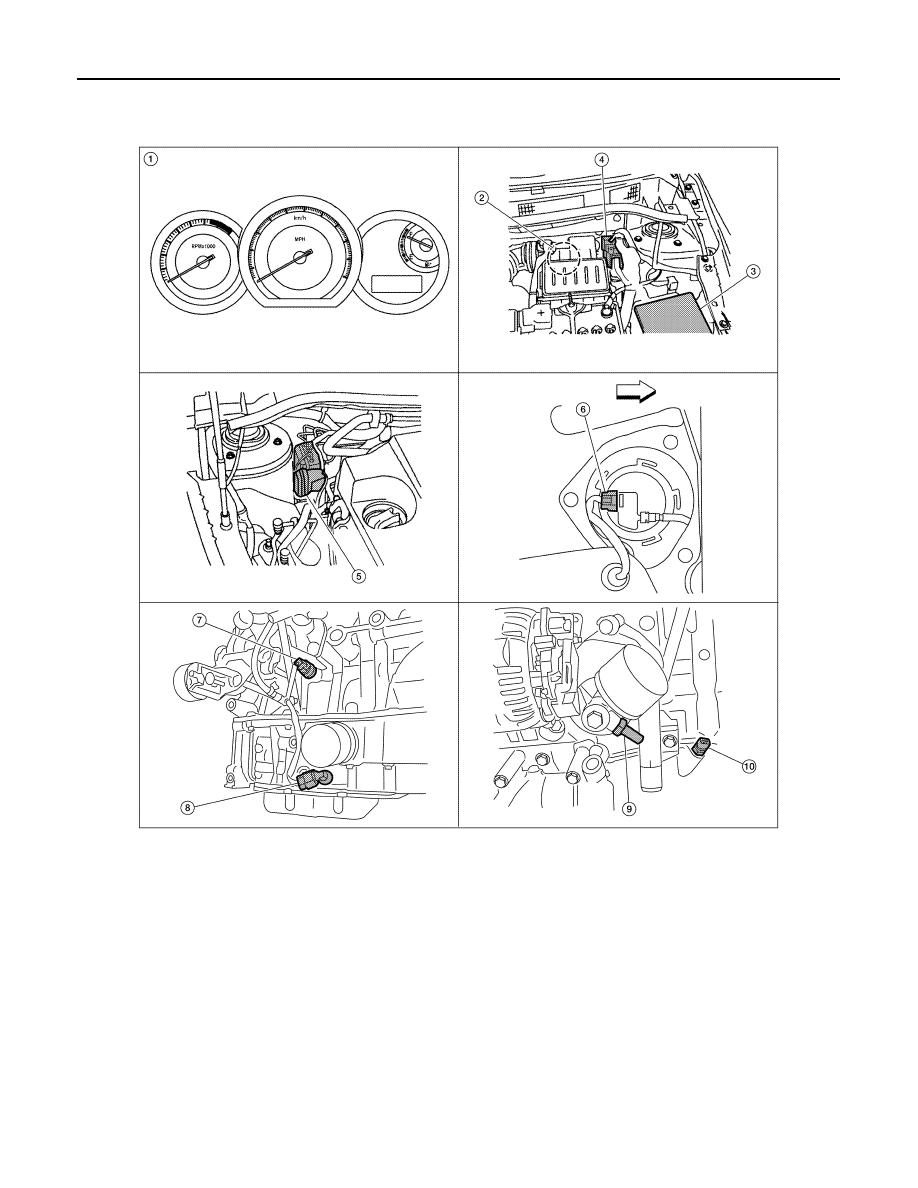

ODO/TRIP METER : Component Parts Location

INFOID:0000000001537310

1.

Combination meter M24

2.

ABS actuator and electric unit (control
unit) E33 (RHD models) (MR18DE
shown, HR16DE and K9K similar)

3.

IPDM E/R E43, E46, E48 (MR18DE
shown, HR16DE and K9K similar)

4.

ECM E16 (MR18DE shown, HR16DE
and K9K similar)

5.

ABS actuator and electric unit (control
unit) E33 (LHD models)

6.

Fuel level sensor unit and fuel pump
B40 (view with rear seat and inspection
hole cover removed)

⇐

: Front

7.

Oil pressure switch F32 (HR16DE and
MR18DE models) (view with engine re-
moved)

8.

Oil level sensor F60 (HR16DE and
MR18DE models) (view with engine re-
moved)

9.

Oil pressure switch F32 (K9K models)
(view with engine removed)

10. Oil level sensor F60 (K9K models)

(view with engine removed)

ALNIA0624ZZ

MWI

METER SYSTEM

MWI-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ODO/TRIP METER : Component Description

INFOID:0000000001537302

WARNING LAMPS/INDICATOR LAMPS

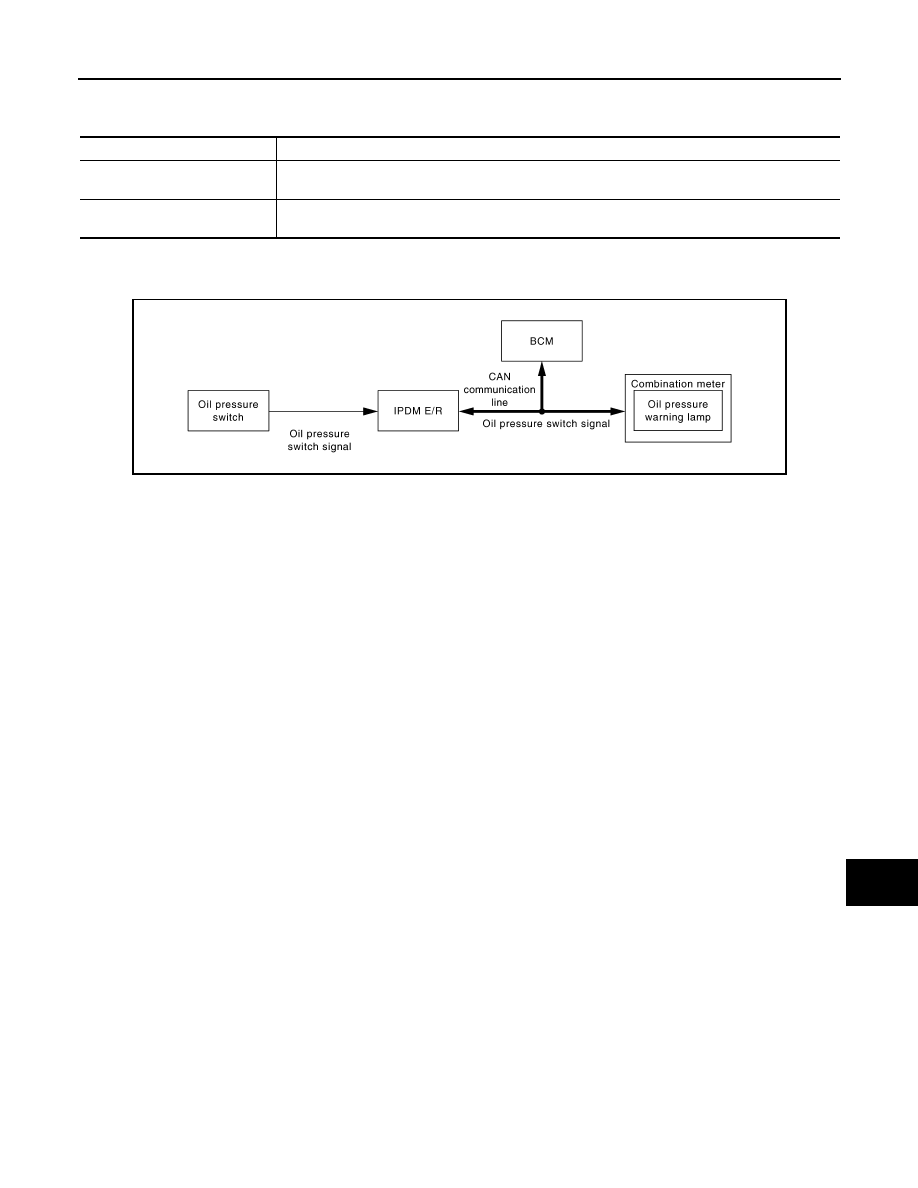

WARNING LAMPS/INDICATOR LAMPS : System Diagram

INFOID:0000000001537297

WARNING LAMPS/INDICATOR LAMPS : System Description

INFOID:0000000001537298

OIL PRESSURE WARNING LAMP

• IPDM E/R reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure switch sig-

nal to the combination meter via BCM with the CAN communication line.

• The combination meter turns the oil pressure warning lamp ON/OFF according to the oil pressure switch sig-

nal received via CAN communication.

Unit

Description

Combination meter

Converts the vehicle speed signal received from the ABS actuator and electric unit (control unit) via
CAN communication to mileage. Then, it displays the accumulated mileage using the odo/trip meter.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter via CAN communication.

JSNIA0449GB

MWI-16

< FUNCTION DIAGNOSIS >

METER SYSTEM

WARNING LAMPS/INDICATOR LAMPS : Component Parts Location

INFOID:0000000001537311

1.

Combination meter M24

2.

ABS actuator and electric unit (control
unit) E33 (RHD models) (MR18DE
shown, HR16DE and K9K similar)

3.

IPDM E/R E43, E46, E48 (MR18DE
shown, HR16DE and K9K similar)

4.

ECM E16 (MR18DE shown, HR16DE
and K9K similar)

5.

ABS actuator and electric unit (control
unit) E33 (LHD models)

6.

Fuel level sensor unit and fuel pump
B40 (view with rear seat and inspection
hole cover removed)

⇐

: Front

7.

Oil pressure switch F32 (HR16DE and
MR18DE models) (view with engine re-
moved)

8.

Oil level sensor F60 (HR16DE and
MR18DE models) (view with engine re-
moved)

9.

Oil pressure switch F32 (K9K models)
(view with engine removed)

10. Oil level sensor F60 (K9K models)

(view with engine removed)

ALNIA0624ZZ

MWI

METER SYSTEM

MWI-17

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

WARNING LAMPS/INDICATOR LAMPS : Component Description

INFOID:0000000001537300

INFORMATION DISPLAY

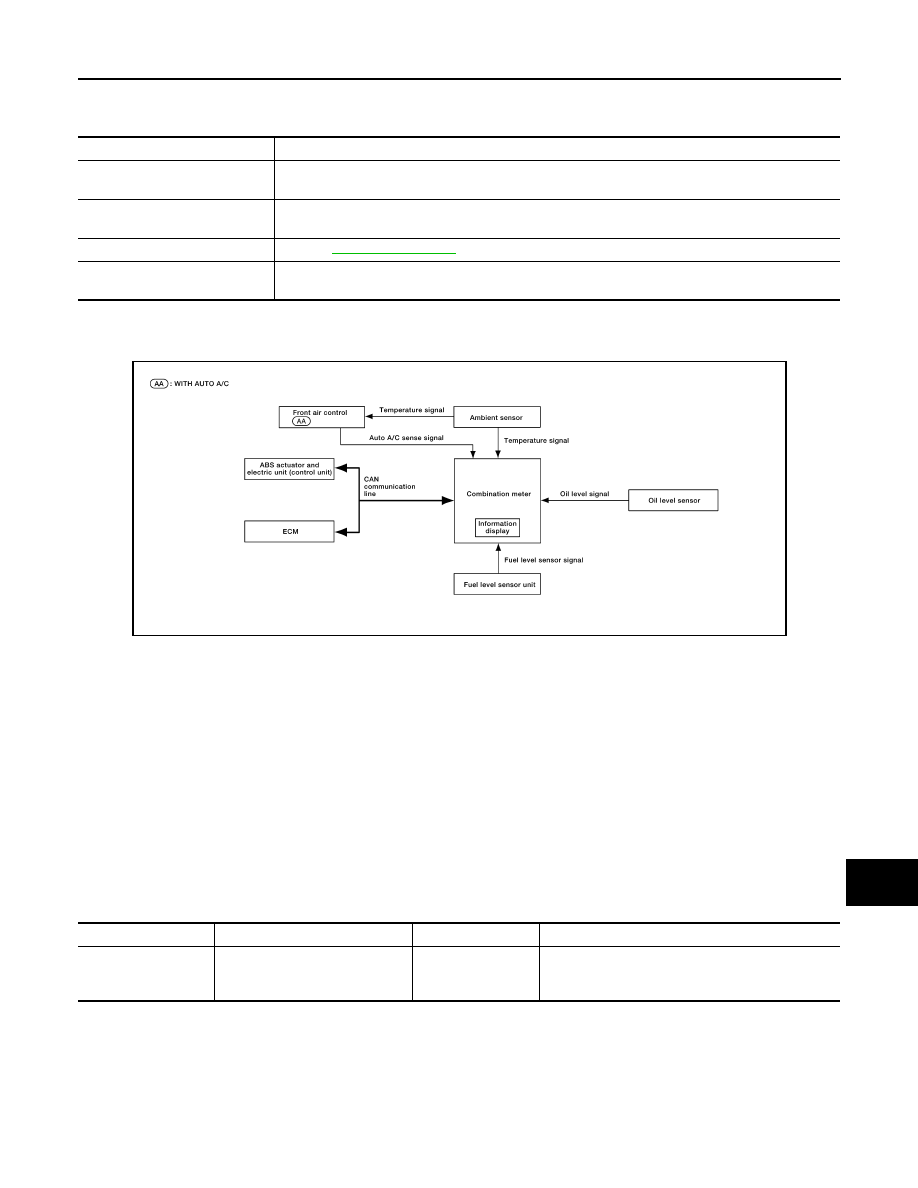

INFORMATION DISPLAY : System Diagram

INFOID:0000000001374677

INFORMATION DISPLAY : System Description

INFOID:0000000001374678

FUNCTION

The information display can indicate the following items.
• Engine oil change schedule
• Engine oil level
• Distance to empty
• Journey time
• Average fuel consumption
• Average speed
• Outside air temperature

ENGINE OIL CHANGE SCHEDULE

The remaining distance from the set engine oil change schedule is displayed.

OIL LEVEL

The combination meter judges the engine oil level based on the oil level sensor signal received from the oil
level sensor. If the oil level is sufficient, “Oil Good” is displayed for approximately 10 seconds. If the oil level is
low, “Oil Lo” blinks for approximately 30 seconds.

DISTANCE TO EMPTY

Unit

Description

Combination meter

Turns the oil pressure warning lamp ON/OFF according to the oil pressure switch signal received
from BCM by means of communication.

IPDM E/R

Reads the ON/OFF signals from the oil pressure switch and transmits the oil pressure switch signal
to the combination meter via BCM with the CAN communication line.

Oil pressure switch

Refer to

MWI-31, "Description"

.

BCM

Transmits the oil pressure switch signal received from IPDM E/R to the combination meter via CAN
communication.

AWNIA0163GB

Items

Setting range

Setting unit

Description

Engine oil change
schedule

0 – 30000 km
(0 – 18000 miles)

1000 km

(500 miles)

The remaining distance from the set distance is dis-
played for 5 seconds after the ignition switch is
turned ON.
