METER SYSTEM

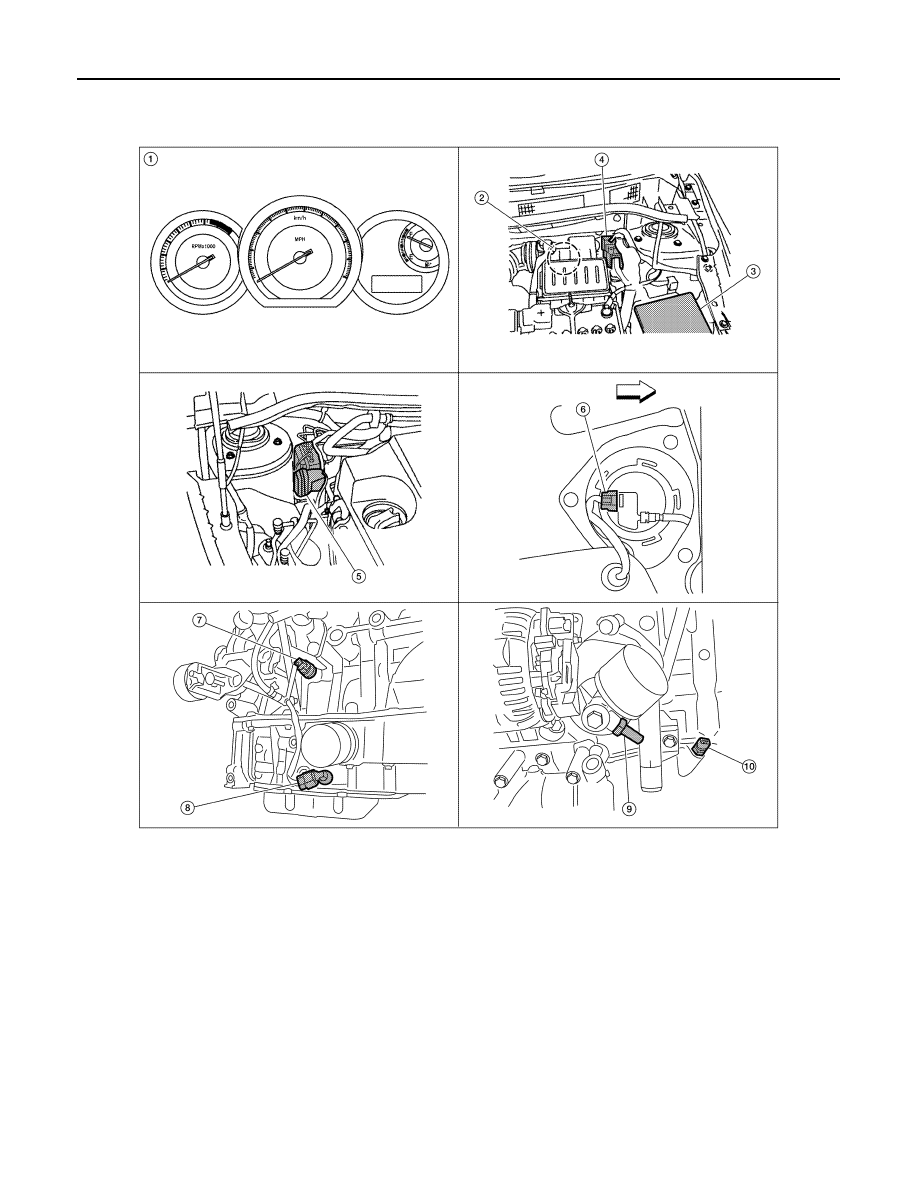

METER SYSTEM : Component Parts Location

INFOID:0000000001374649

1.

Combination meter M24

2.

ABS actuator and electric unit (control
unit) E33 (RHD models) (MR18DE
shown, HR16DE and K9K similar)

3.

IPDM E/R E43, E46, E48 (MR18DE
shown, HR16DE and K9K similar)

4.

ECM E16 (MR18DE shown, HR16DE
and K9K similar)

5.

ABS actuator and electric unit (control
unit) E33 (LHD models)

6.

Fuel level sensor unit and fuel pump
B40 (view with rear seat and inspection
hole cover removed)

⇐

: Front

7.

Oil pressure switch F32 (HR16DE and
MR18DE models) (view with engine re-
moved)

8.

Oil level sensor F60 (HR16DE and
MR18DE models) (view with engine re-
moved)

9.

Oil pressure switch F32 (K9K models)
(view with engine removed)

10. Oil level sensor F60 (K9K models)

(view with engine removed)

ALNIA0624ZZ

MWI

METER SYSTEM

MWI-7

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER SYSTEM : Component Description

INFOID:0000000001537306

SPEEDOMETER

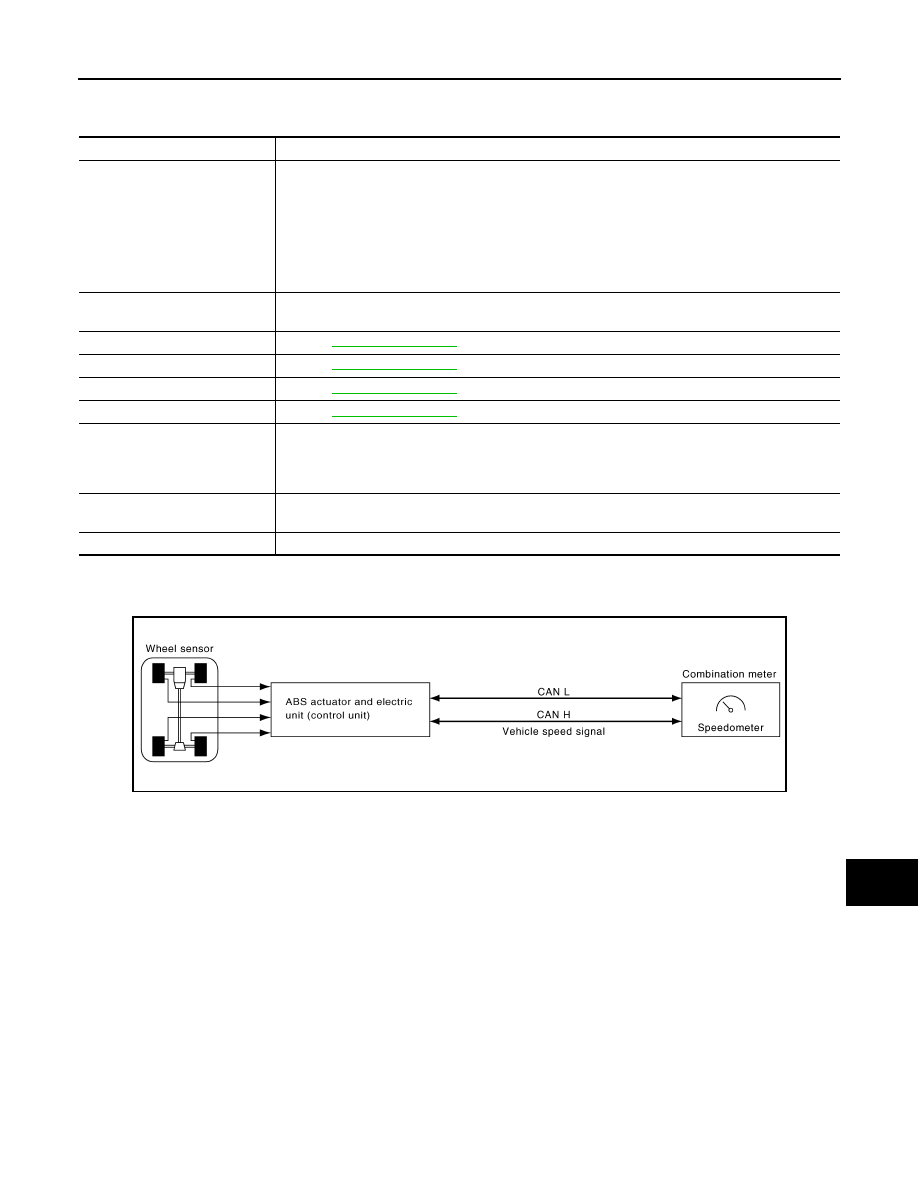

SPEEDOMETER : System Diagram

INFOID:0000000001374650

SPEEDOMETER : System Description

INFOID:0000000001374651

The ABS actuator and electric unit (control unit) provides a vehicle speed signal to the combination meter via
CAN communication lines.

Unit

Description

Combination meter

Controls the following with the signals received from each unit via CAN communication and the sig-
nals from switches and sensors.

• Speedometer

• Tachometer

• Warning lamps

• Indicator lamps

• Information display

• Warning chime

• Fuel gauge

IPDM E/R

Reads the ON/OFF signals of the oil pressure switch and transmits the oil pressure switch signal to
the combination meter via BCM with CAN communication line.

Fuel level sensor unit

Refer to

MWI-29, "Description"

.

Oil pressure switch

Refer to

MWI-31, "Description"

.

Oil level sensor

Refer to

MWI-32, "Description"

.

Ambient sensor

Refer to

MWI-34, "Description"

.

ECM

Transmits the following signals to the combination meter with CAN communication line.

• Engine speed signal

• Engine coolant temperature signal

• Fuel consumption monitor signal

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

BCM

Transmits signals provided by various units to the combination meter with CAN communication line.

WKIA5370E

MWI-8

< FUNCTION DIAGNOSIS >

METER SYSTEM

SPEEDOMETER : Component Parts Location

INFOID:0000000001537307

1.

Combination meter M24

2.

ABS actuator and electric unit (control
unit) E33 (RHD models) (MR18DE
shown, HR16DE and K9K similar)

3.

IPDM E/R E43, E46, E48 (MR18DE
shown, HR16DE and K9K similar)

4.

ECM E16 (MR18DE shown, HR16DE
and K9K similar)

5.

ABS actuator and electric unit (control
unit) E33 (LHD models)

6.

Fuel level sensor unit and fuel pump
B40 (view with rear seat and inspection
hole cover removed)

⇐

: Front

7.

Oil pressure switch F32 (HR16DE and
MR18DE models) (view with engine re-
moved)

8.

Oil level sensor F60 (HR16DE and
MR18DE models) (view with engine re-
moved)

9.

Oil pressure switch F32 (K9K models)
(view with engine removed)

10. Oil level sensor F60 (K9K models)

(view with engine removed)

ALNIA0624ZZ

MWI

METER SYSTEM

MWI-9

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SPEEDOMETER : Component Description

INFOID:0000000001537305

TACHOMETER

TACHOMETER : System Diagram

INFOID:0000000001374653

TACHOMETER : System Description

INFOID:0000000001374654

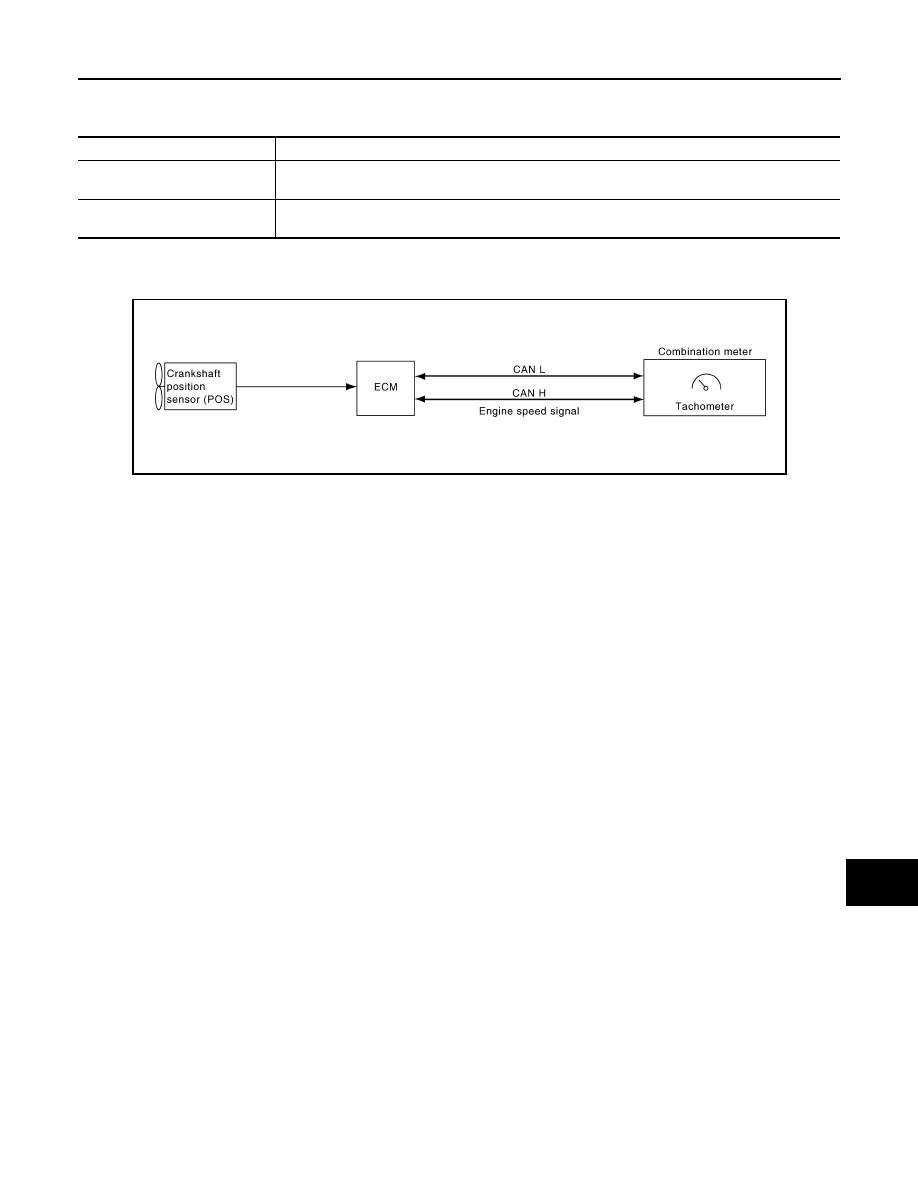

The tachometer indicates engine speed in revolutions per minute (rpm).
The ECM provides an engine speed signal to the combination meter via CAN communication lines.

Unit

Description

Combination meter

Indicates the vehicle speed according to the vehicle speed signal received from ABS actuator and
electric unit (control unit) via CAN communication.

ABS actuator and electric unit
(control unit)

Transmits the vehicle speed signal to the combination meter with CAN communication line.

SKIB6904E
