MWI-10

< FUNCTION DIAGNOSIS >

METER SYSTEM

TACHOMETER : Component Parts Location

INFOID:0000000001537308

1.

Combination meter M24

2.

ABS actuator and electric unit (control
unit) E33 (RHD models) (MR18DE
shown, HR16DE and K9K similar)

3.

IPDM E/R E43, E46, E48 (MR18DE
shown, HR16DE and K9K similar)

4.

ECM E16 (MR18DE shown, HR16DE
and K9K similar)

5.

ABS actuator and electric unit (control
unit) E33 (LHD models)

6.

Fuel level sensor unit and fuel pump
B40 (view with rear seat and inspection
hole cover removed)

⇐

: Front

7.

Oil pressure switch F32 (HR16DE and
MR18DE models) (view with engine re-
moved)

8.

Oil level sensor F60 (HR16DE and
MR18DE models) (view with engine re-
moved)

9.

Oil pressure switch F32 (K9K models)
(view with engine removed)

10. Oil level sensor F60 (K9K models)

(view with engine removed)

ALNIA0624ZZ

MWI

METER SYSTEM

MWI-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TACHOMETER : Component Description

INFOID:0000000001537304

FUEL GAUGE

FUEL GAUGE : System Diagram

INFOID:0000000001374659

FUEL GAUGE : System Description

INFOID:0000000001374660

The fuel gauge indicates the approximate fuel level in the fuel tank.
The fuel gauge is regulated by the unified meter control unit and a variable resistor signal supplied by the fuel
level sensor unit.

Unit

Description

Combination meter

Indicates the engine speed according to the engine speed signal received from ECM via CAN com-
munication.

ECM

Transmits the engine speed signal to the combination meter with CAN communication line.

AWNIA0004GB

MWI-12

< FUNCTION DIAGNOSIS >

METER SYSTEM

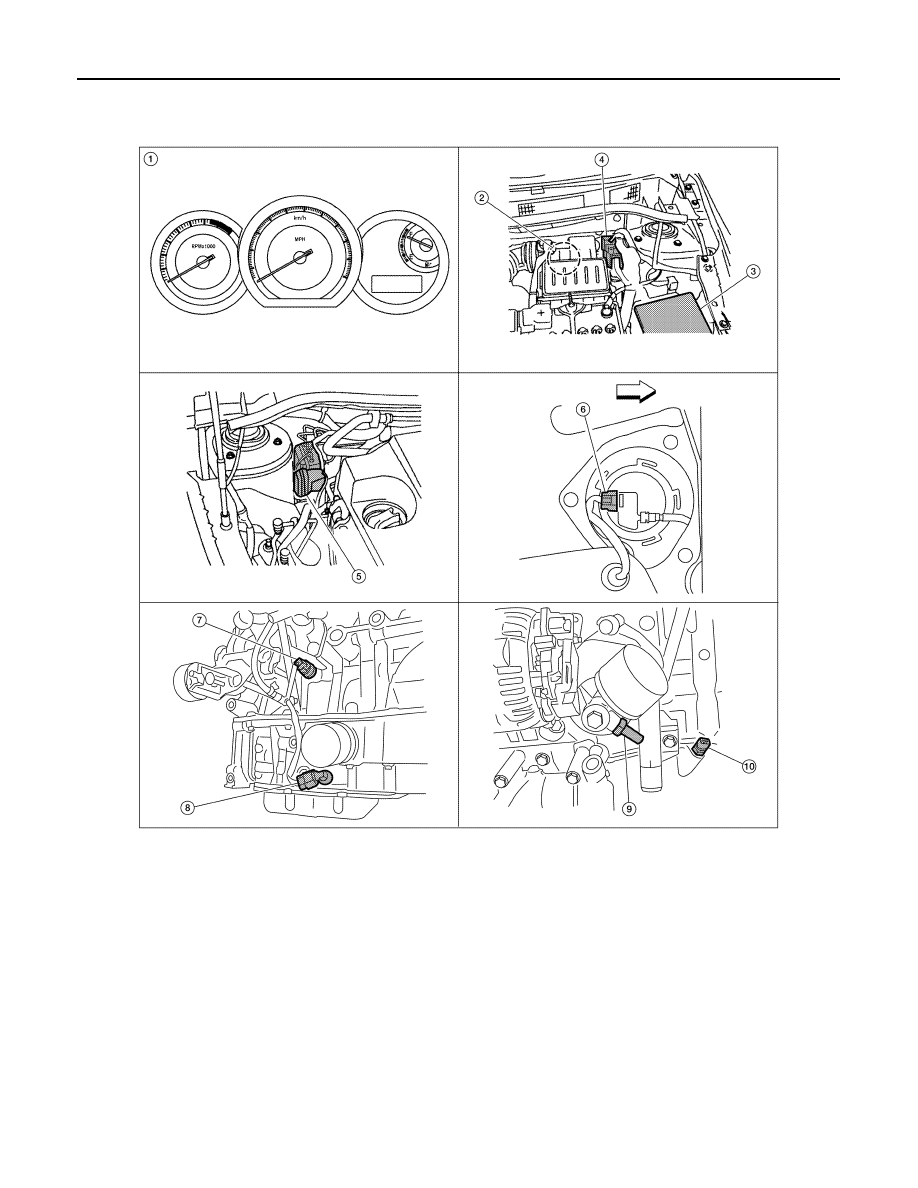

FUEL GAUGE : Component Parts Location

INFOID:0000000001537309

1.

Combination meter M24

2.

ABS actuator and electric unit (control
unit) E33 (RHD models) (MR18DE
shown, HR16DE and K9K similar)

3.

IPDM E/R E43, E46, E48 (MR18DE
shown, HR16DE and K9K similar)

4.

ECM E16 (MR18DE shown, HR16DE
and K9K similar)

5.

ABS actuator and electric unit (control
unit) E33 (LHD models)

6.

Fuel level sensor unit and fuel pump
B40 (view with rear seat and inspection
hole cover removed)

⇐

: Front

7.

Oil pressure switch F32 (HR16DE and
MR18DE models) (view with engine re-
moved)

8.

Oil level sensor F60 (HR16DE and
MR18DE models) (view with engine re-
moved)

9.

Oil pressure switch F32 (K9K models)
(view with engine removed)

10. Oil level sensor F60 (K9K models)

(view with engine removed)

ALNIA0624ZZ

MWI

METER SYSTEM

MWI-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FUEL GAUGE : Component Description

INFOID:0000000001537303

ODO/TRIP METER

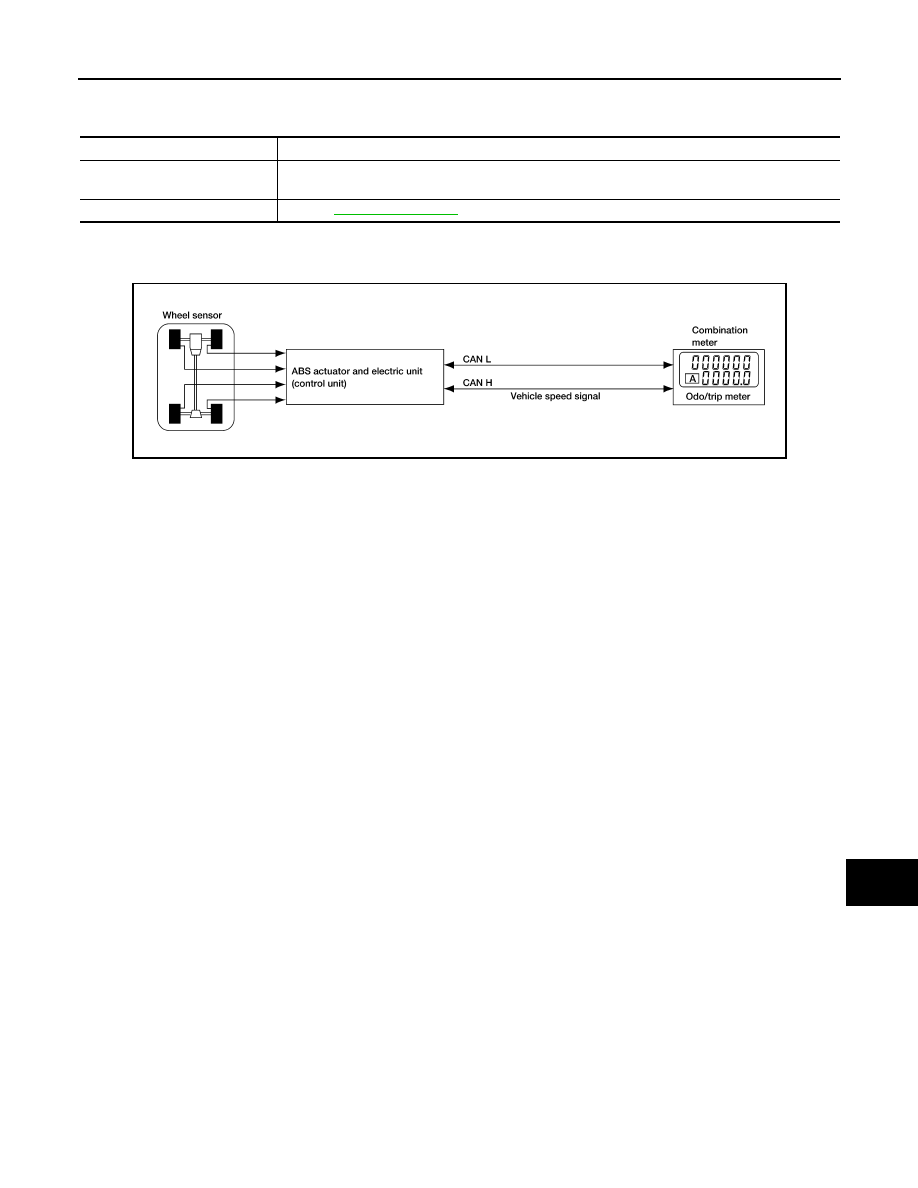

ODO/TRIP METER : System Diagram

INFOID:0000000001374671

ODO/TRIP METER : System Description

INFOID:0000000001374672

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the combi-
nation meter and the mileage is displayed.

HOW TO CHANGE THE DISPLAY FOR ODO/TRIP METER

Refer to Owner's Manual for odo/trip meter operating instructions.

Unit

Description

Combination meter

Indicates the fuel level according to the fuel level sensor signal received from the fuel level sensor
unit.

Fuel level sensor unit

Refer to

MWI-29, "Description"

.

AWNIA0005GB
