2.

Stop engine. Remove drain plug (1) and drain oil.

3.

Set a new gasket on drain plug (1) and install it to transaxle and
tighten drain plug to the specified torque. Refer to Exploded
View.

CAUTION:

Do not reuse gasket.

REFILLING

1.

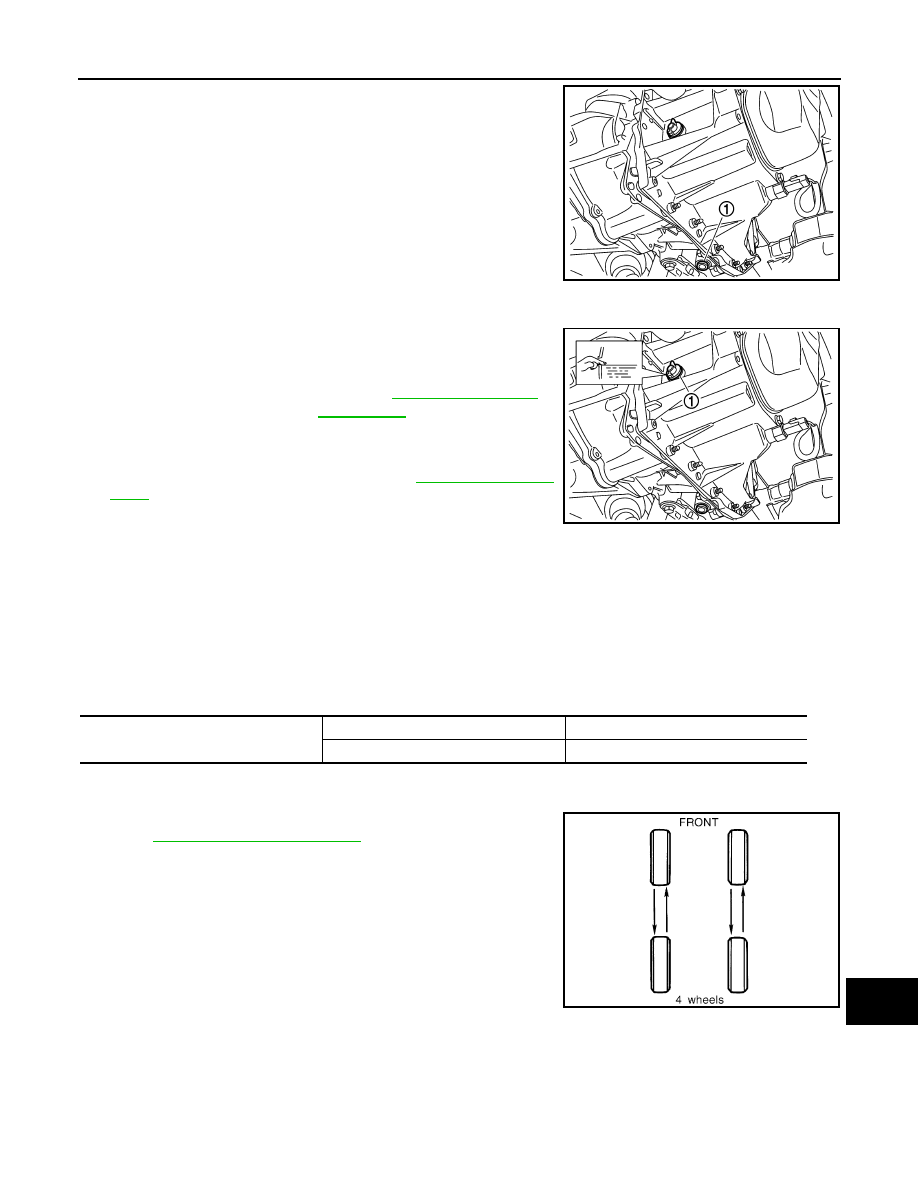

Remove filler plug (1). Fill with new oil until oil level reaches the
specified limit near filler plug hole as shown.

2.

After refilling oil, check oil level.

3.

Set a new gasket on filler plug (1), then install it to transaxle and
tighten to the specified torque. Refer to

TM-635, "Exploded

View"

.

CAUTION:

Do not reuse gasket.

Balancing Wheels

INFOID:0000000001730925

Adjust wheel balance using road wheel center.

CAUTION:

• Be careful not to scratch the road wheel during removal.
• Use clip-on type wheel balance weights only.

Wheel balance (Maximum allowable unbalance):

Rotation

INFOID:0000000001730926

• Follow the maintenance schedule for tire rotation service intervals.

Refer to

MA-7, "Periodic Maintenance"

.

• Do not include the T-type spare tire when rotating tires.

CAUTION:

• When installing wheels, tighten them diagonally by dividing

the work two to three times in order to prevent the wheels
from developing any distortion.

• Be careful not to tighten wheel nut at torque exceeding the

specification to prevent damage of disc rotor.

PCIB1504E

Oil grade and capacity

: Refer to

MA-19, "Fluids and

Lubricants"

.

SCIA7119E

Maximum allowable unbalance

Dynamic (At rim flange)

Less than 5 g (0.18 oz) (one side)

Static (At rim flange)

Less than 10 g (0.35 oz)

Wheel nut

: 113 N·m (12 kg-m, 83 ft-lb)

SMA829C

MA-54

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

Checking Brake Fluid Level and Leaks

INFOID:0000000001730905

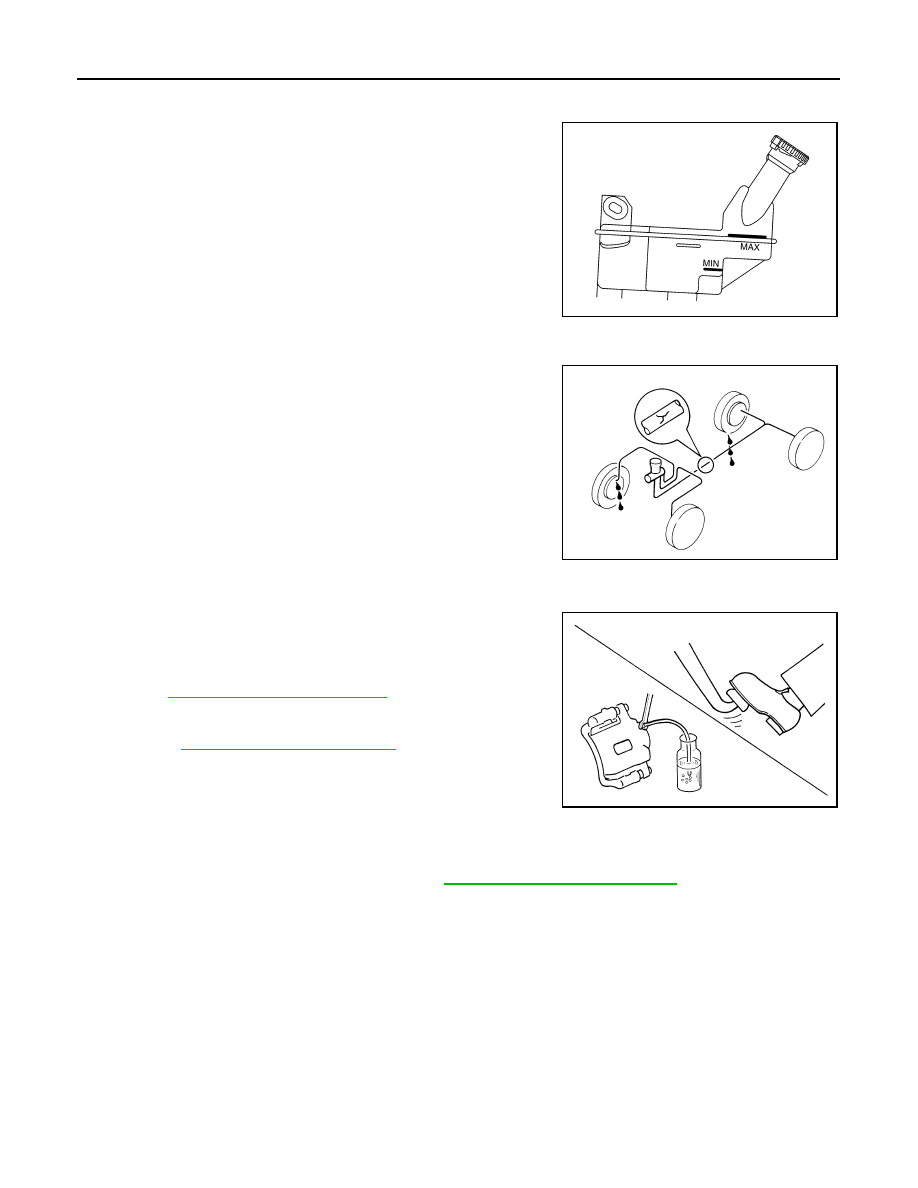

• Make sure the fluid level in the reservoir tank is within the standard

(between MAX and MIN lines).

• Visually check around the reservoir tank for fluid leakage.
• If fluid level is excessively low, check brake system for fluid leak-

age.

• Release parking brake lever and see if brake warning lamp goes

off. If not, check brake system for fluid leakage.

Checking Brake Line and Cables

INFOID:0000000001730906

• Check brake fluid lines and parking brake cables for improper

attachment, leaks, chafing, abrasions, deterioration, etc.

Changing Brake Fluid

INFOID:0000000001730907

1.

Drain brake fluid from each bleed valve.

2.

Refill until new brake fluid comes out from each bleed valve.
Use same procedure as in bleeding hydraulic system to refill
brake fluid.
Refer to

BR-8, "Bleeding Brake System"

 .

• Refill with recommended Genuine Brake Fluid or equivalent

DOT 3 (US FMVSS No. 116).
Refer to

MA-19, "Fluids and Lubricants"

 .

• Never reuse drained brake fluid.
• Be careful not to splash brake fluid on painted areas.

Drain and Refill

INFOID:0000000001730927

CAUTION:

• Refill using recommended brake fluid. Refer to

MA-19, "Fluids and Lubricants"

.

• Never reuse drained brake fluid.
• Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is

splashed on painted areas, immediately wipe them with cloth and wash it away with water.

• Before working, disconnect connectors of ABS actuator and electric unit (control unit) or battery

cable from the negative terminal.

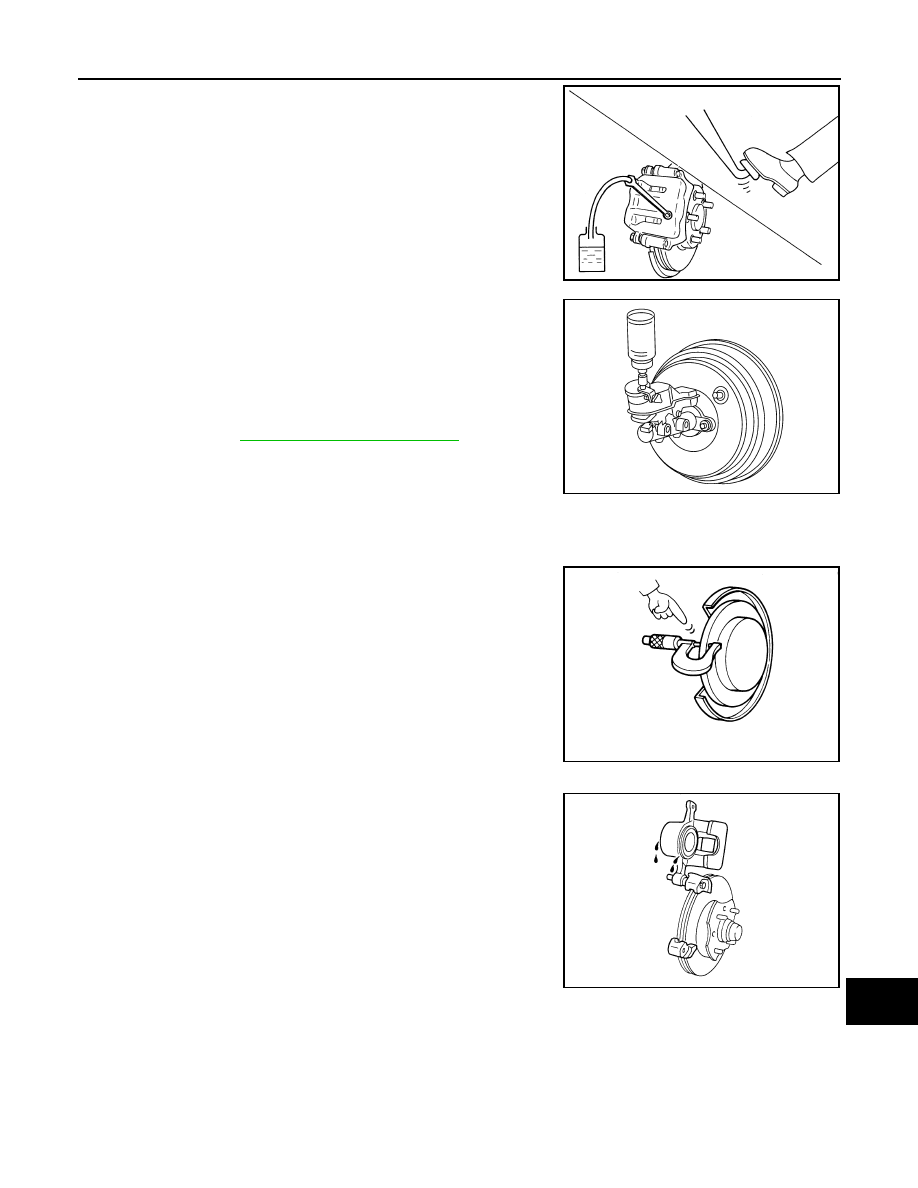

1.

Connect a vinyl tube to bleed valve.

SFIA3067E

SBR389C

SBR419C

CHASSIS AND BODY MAINTENANCE

MA-55

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

2.

Depress the brake pedal, loosen the bleed valve, and gradually
remove the brake fluid.

3.

Clean inside of reservoir tank, and refill with new brake fluid.

4.

Loosen bleed valve, depress brake pedal slowly to full stroke
and then release it. Repeat the procedure every 2 or 3 seconds
until the new brake fluid comes out, then close the bleed valve
while depressing the brake pedal. Repeat the same procedure
for each wheel.

5.

Bleed air. Refer to

BR-8, "Bleeding Brake System"

 .

Checking Disc Brake

INFOID:0000000001730908

ROTOR

Check the rotor condition and thickness. Resurface or replace the
rotor as necessary.

CALIPER

Check the caliper for leakage.

PAD

WFIA0512E

WFIA0513E

SMA260A

SMA922A

MA-56

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

Check the brake pads for wear or damage. Refer to

BR-24,

"Removal and Installation of Brake Pad"

 .

Axle and Suspension Parts

INFOID:0000000001730909

Check front and rear axle and suspension parts for excessive play,
cracks, wear or other damage.
• Shake each wheel to check for excessive play.
• Check wheel bearings for smooth operation.
• Check axle and suspension nuts and bolts for looseness.
• Check strut (shock absorber) for oil leakage or other damage.
• Check suspension ball joint for grease leakage and ball joint dust

cover for cracks or other damage.

Drive Shaft

INFOID:0000000001730910

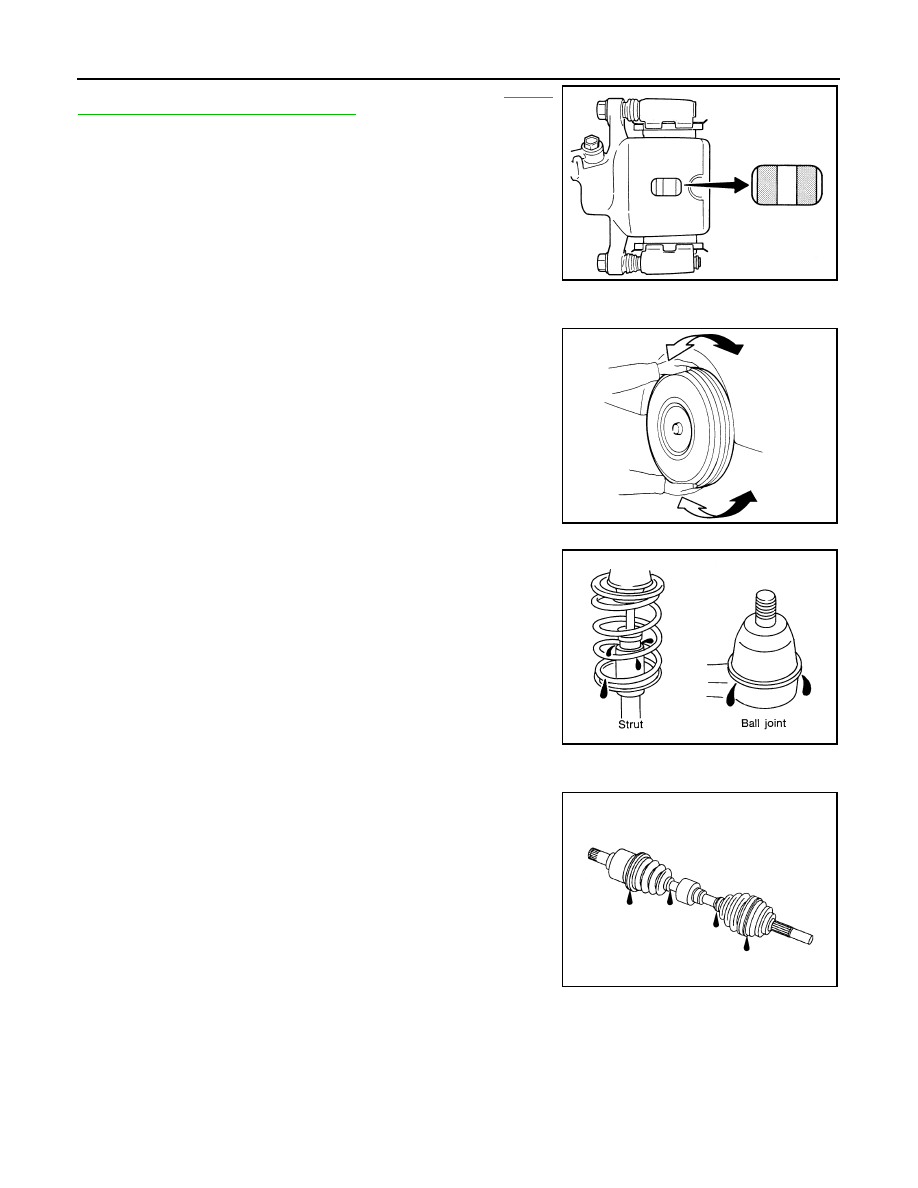

Check boot and drive shaft for cracks, wear, damage and grease
leakage.

BRA0010D

SMA525A

SFA392B
