Nissan Tiida C11. Manual - part 1073





ENGINE MAINTENANCE (K9K)

MA-49

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

5.

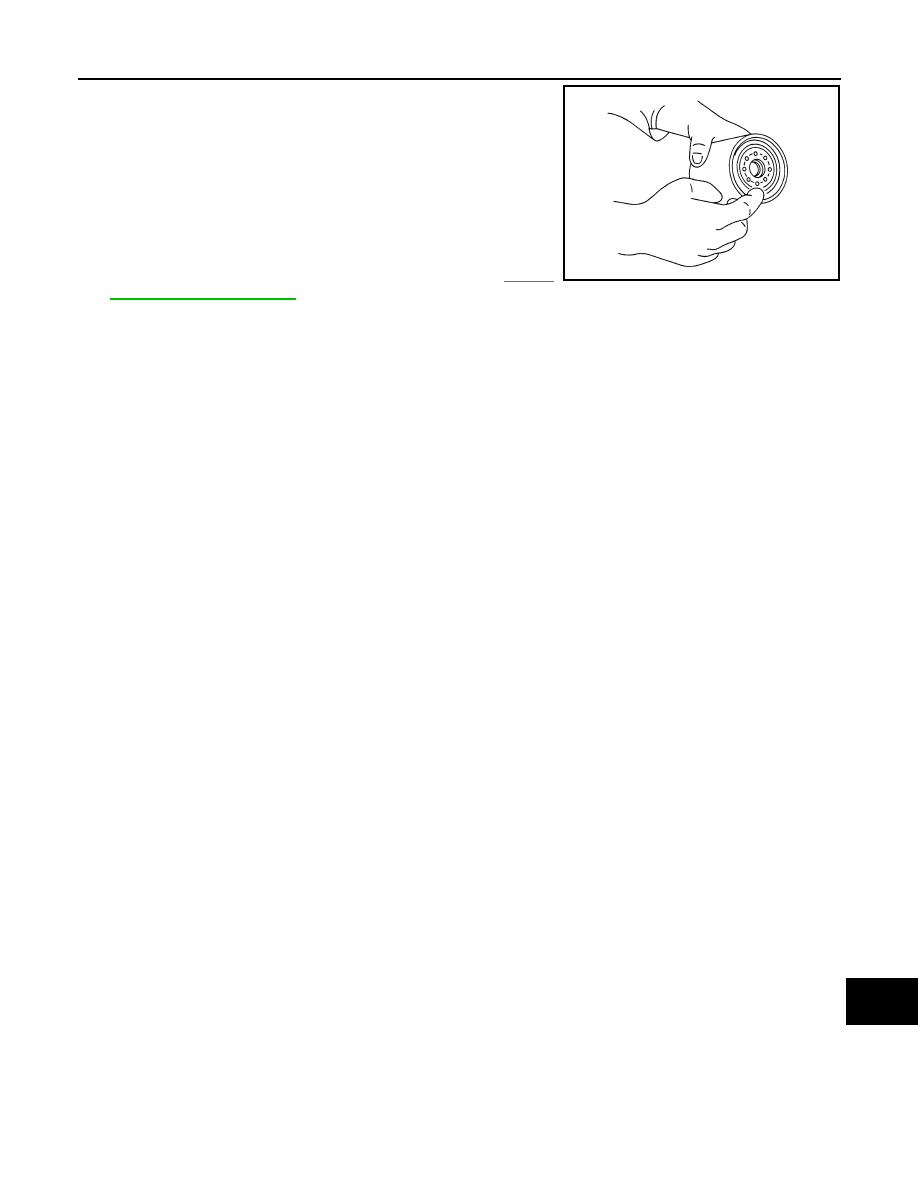

Apply engine oil to the oil seal contact surface of the new oil fil-
ter.

6.

Install the oil filter until it comes into contact with the oil seal on
the engine bracket.

7.

Using an oil filter wrench [SST: KV113C0010 (Mot. 1329)],
tighten oil filter.

8.

After warming up the engine, check for engine oil leakage.

9.

Check oil level and add engine oil as necessary. Refer to

MA-47,

"ENGINE OIL : Inspection"

.

Oil filter

: 14 N·m (1.4 kg-m, 10 ft-lb)

SMA010

MA-50

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

CHASSIS AND BODY MAINTENANCE

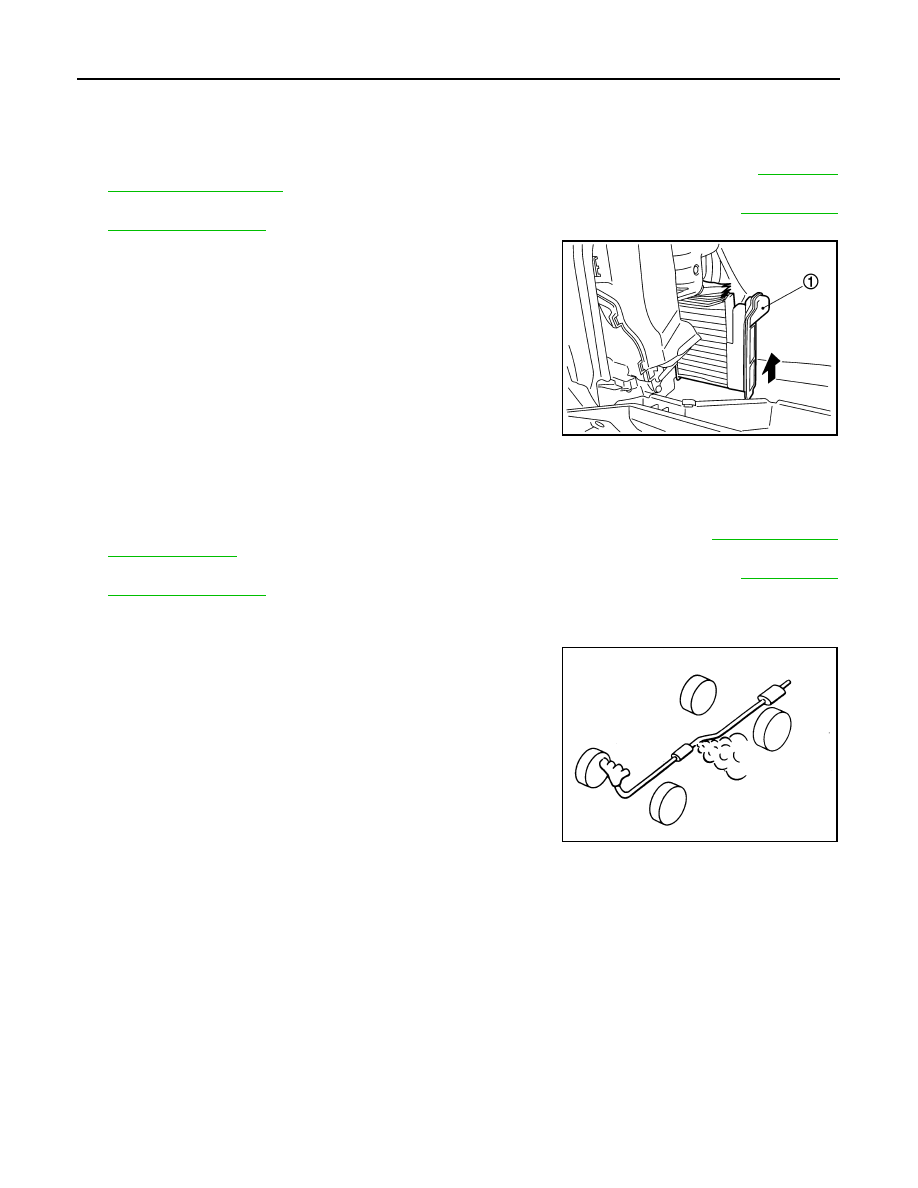

Air Conditioner Filter

INFOID:0000000001730893

1.

Remove the instrument lower finisher and instrument lower cover (LH) for LHD only. Refer to

IP-23, "Dis-

assembly and Assembly"

.

2.

Remove the glove box assembly and instrument lower cover (RH) for RHD only. Refer to

IP-23, "Disas-

sembly and Assembly"

.

3.

Compress the air conditioner filter (1) downward while sliding it
to the RH side of the vehicle to release the upper pawl.

4.

Move the bottom of air conditioner filter (1) upward as shown to
release the bottom tab, then remove it.

5.

Replace the air conditioner filter with new one and install the new filter in the A/C unit assembly.

CAUTION:

Make sure that the air conditioner filter lower tab is fully seated, and that the air conditioner upper
pawl is locked into place securing the new filter into the A/C unit assembly.

6.

Install the glove box assembly and instrument lower cover (RH) for RHD only. Refer to

IP-23, "Disassem-

bly and Assembly"

.

7.

Install the instrument lower finisher and instrument lower cover (LH) for LHD only. Refer to

IP-23, "Disas-

sembly and Assembly"

.

Checking Exhaust System

INFOID:0000000001730894

Check the exhaust pipes, muffler, and exhaust mounts for improper
attachment, leaks, cracks, damage, chafing, or deterioration.

Checking Clutch Fluid Level and Leaks

INFOID:0000000001730897

If fluid level is extremely low, check clutch system for leaks.

Checking Clutch System

INFOID:0000000001730898

Check fluid lines and operating cylinder for improper attachment, cracks, damage, loose connections, chafing
and deterioration.

Checking M/T Oil

INFOID:0000000001730899

OIL LEAKAGE AND OIL LEVEL

1.

Make sure that oil is not leaking from transaxle or around it.

SJIA0652E

SMA211A

CHASSIS AND BODY MAINTENANCE

MA-51

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

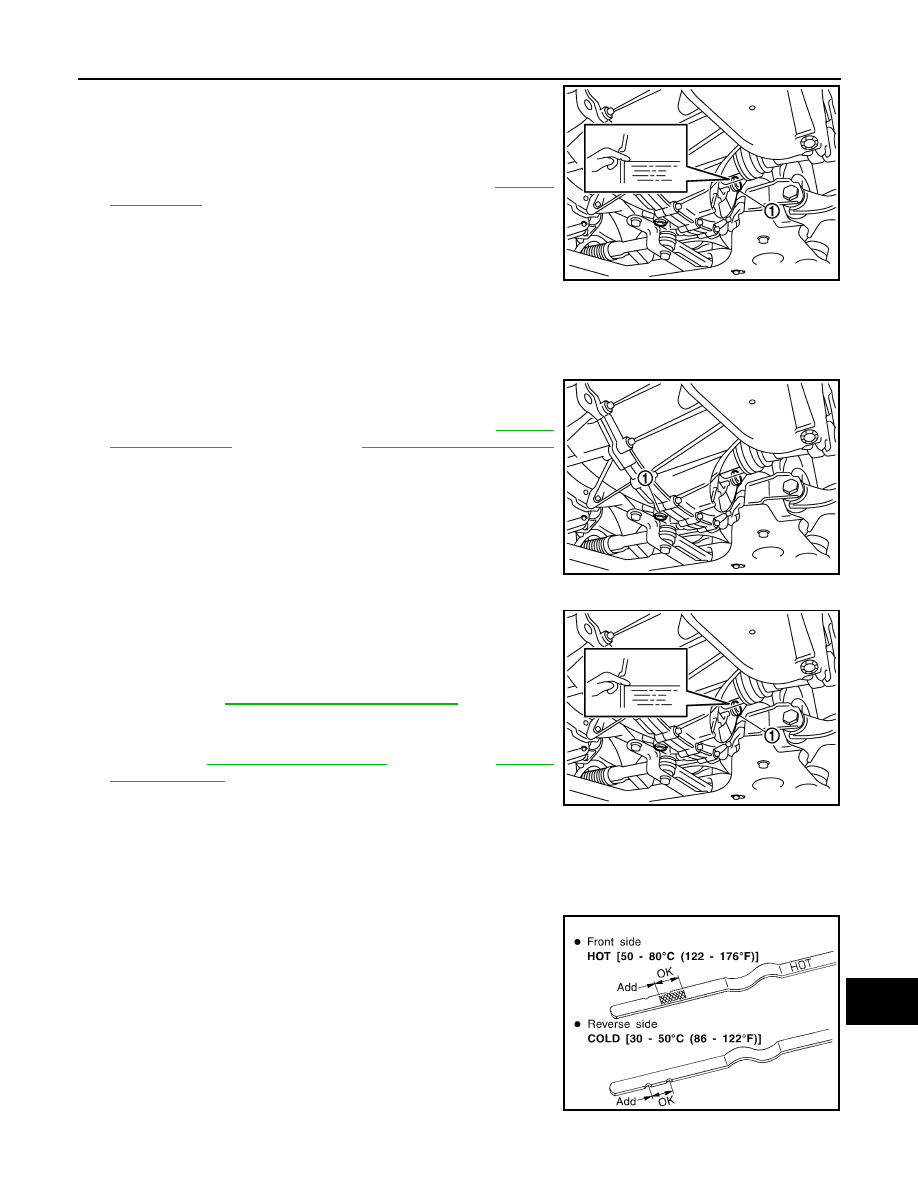

2.

Remove filler plug (1) and check oil level at filler plug  hole as
shown.

CAUTION:

Do not start engine while checking oil level

3.

Install a new gasket onto filler plug (1) and install it into tran-
saxle. Tighten filler plug to specification. Refer to

EM-166,

"Component"

 .

CAUTION:

Do not reuse gasket.

Changing M/T Oil

INFOID:0000000001730900

DRAINING

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug (1) and drain oil.

3.

Install a new gasket onto drain plug (1) and install it into tran-
saxle. Tighten drain plug to specification. Refer to

TM-628,

"Exploded View"

 (RS5F91R) or

TM-672, "Exploded View"

(RS6F94R).

CAUTION:

Do not reuse gasket.

FILLING

1.

Remove filler plug (1). Fill with new oil until oil level reaches the
specified limit at filler plug hole as shown.

2.

After refilling oil, check oil level. Install a new gasket on filler plug
(1), then install it into transaxle. Tighten filler plug to specifica-
tion. Refer to

TM-628, "Exploded View"

 (RS5F91R) or

TM-672,

"Exploded View"

 (RS6F94R).

CAUTION:

Do not reuse gasket.

Checking A/T Fluid: RE4F03B

INFOID:0000000001730901

1.

Warm up engine.

2.

Check for A/T fluid leakage.

3.

Before driving, A/T fluid level can be checked at A/T fluid tem-
peratures of 30 to 50

°

C (86 to 122

°

F) using the “COLD” range

on A/T fluid level gauge.

a.

Park vehicle on level surface and set parking brake.

b.

Start engine and move selector lever through each gear posi-
tion. Leave selector lever in “P” position.

c.

Check A/T fluid level with engine idling.

SCIA7623E

SCIA7622E

Oil grade and capacity

: Refer to

MA-19, "Fluids and Lubricants"

SCIA7623E

SCIA3451E

MA-52

< ON-VEHICLE MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

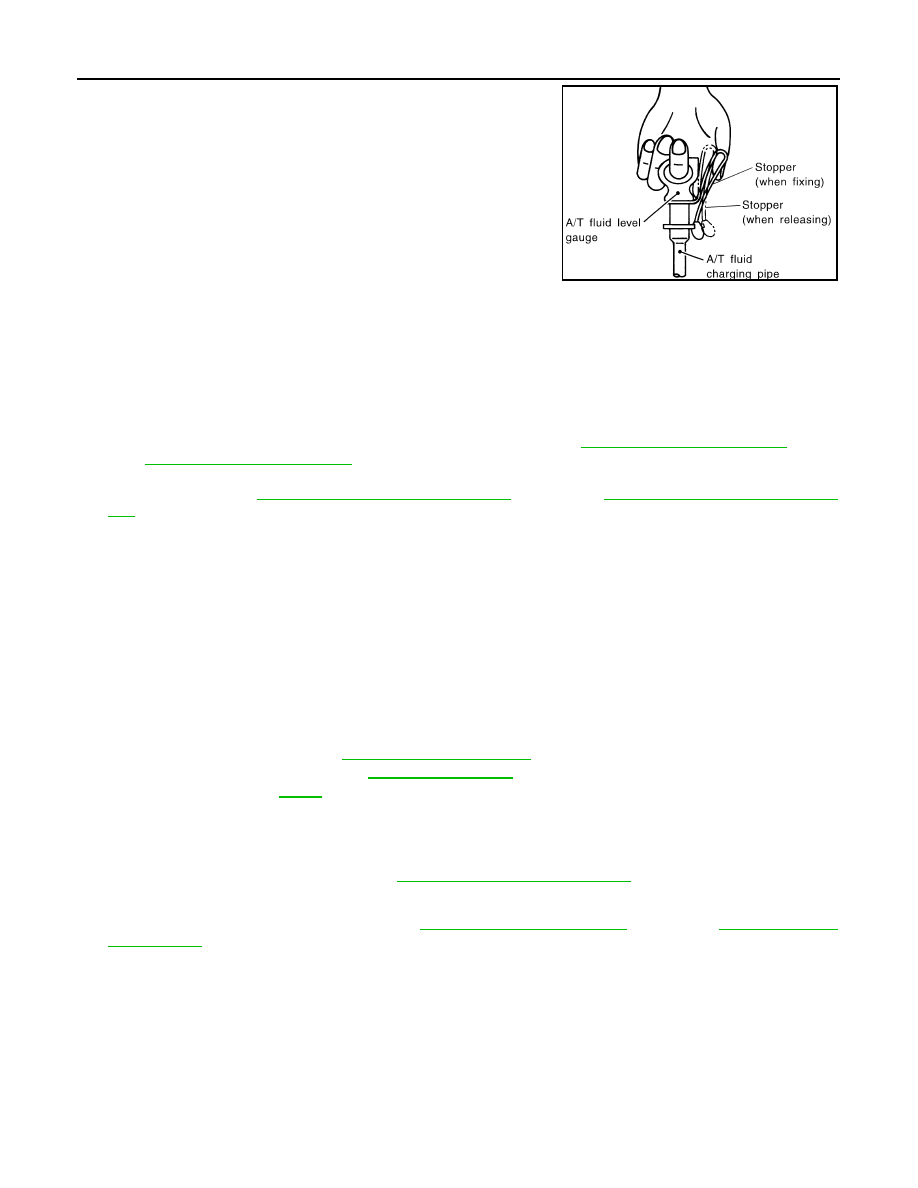

d.

Remove A/T fluid level gauge and wipe clean with lint-free cloth.

CAUTION:

When wiping the A/T fluid level gauge, always use lint-free
cloth.

e.

Re-insert A/T fluid level gauge into A/T fluid charging pipe as far
as it will go.

CAUTION:

Firmly fix the A/T fluid level gauge to the A/T fluid charging
pipe using the stopper attached.

f.

Remove A/T fluid level gauge and note reading. If reading is at
low side of range, add A/T fluid to the A/T fluid charging pipe.

CAUTION:

Do not overfill.

4.

Drive vehicle for approximately 5 minutes.

5.

Re-check A/T fluid level at A/T fluid temperatures of 50 to 80

°

C (122 to 176

°

F) using “HOT” range on A/T

fluid level gauge.

CAUTION:

• When wiping the A/T fluid level gauge, always use lint-free cloth.
• Firmly fix the A/T fluid level gauge to the A/T fluid charging pipe using the stopper attached.

6.

Check A/T fluid condition and make any necessary repairs. Refer to

TM-171, "Checking A/T Fluid"

 (TYPE

1) or

TM-473, "Checking A/T Fluid"

 (TYPE 2). If the A/T fluid contains frictional material (clutches, bands,

etc.), or if the A/T is repaired, overhauled, or replaced, inspect and clean the A/T fluid cooler mounted in
the radiator. Refer to

TM-172, "A/T Fluid Cooler Cleaning"

 (TYPE 1) or

TM-474, "A/T Fluid Cooler Clean-

ing"

 (TYPE 2).

7.

Install the removed A/T fluid level gauge into the A/T fluid charging pipe.

CAUTION:

Firmly fix the A/T fluid level gauge to the A/T fluid charging pipe using the stopper attached.

Changing A/T Fluid: RE4F03B

INFOID:0000000001730902

1.

Warm up A/T fluid.

2.

Stop engine.

3.

Drain A/T fluid by removing the drain plug. Reinstall the drain plug to the specified torque.

CAUTION:

Do not reuse drain plug gasket.

4.

Refill the transaxle with new specified A/T fluid through the A/T fluid charging pipe. Always refill the tran-
saxle with the same volume of A/T fluid that was drained out.

5.

Run engine at idle speed for 5 minutes.

6.

Check A/T fluid level and condition. Refer to

TM-171, "Checking A/T Fluid"

 (TYPE 1) or

TM-473, "Check-

ing A/T Fluid"

 (TYPE 2).

Checking A/T Fluid: RSF91R

INFOID:0000000001730929

Changing A/T Fluid: RS9F94R

INFOID:0000000001730930

DRAINING
1.

Start engine and let it run to warm up transaxle.

SMA051D

Drain plug:

Refer to

TM-210, "Exploded View"



(TYPE 1) or

TM-503, "Exploded

View"

 (TYPE 2).

Fluid grade and capacity:

Refer to

MA-19, "Fluids and Lubricants"

 .
